Initial Inspection and Diagnostic Overview

METER / GAUGE / DISPLAY: CLOCK SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT:
Use these procedures to troubleshoot the clock system.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding.
NEXT -- Continue to next step.
3. PROBLEM SYMPTOMS TABLE
(a) Refer to the Problem Symptoms Table Symptom Related Diagnostic Procedures.

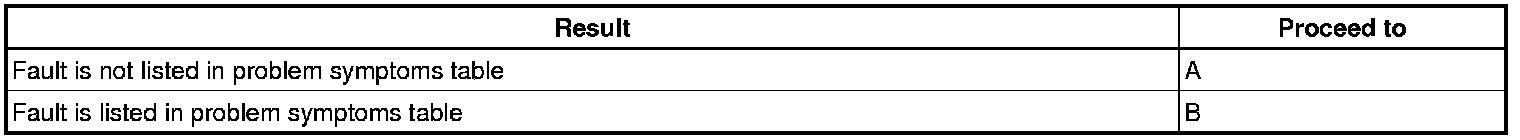

Result





B -- Go to step 5
A -- Continue to next step.
4. OVERALL ANALYSIS AND TROUBLESHOOTING
(a) w/ Navigation System:
Terminals of ECU Pinout Values and Diagnostic Parameters.
(b) w/o Navigation System:
Terminals of ECU Pinout Values and Diagnostic Parameters.
NEXT -- Continue to next step.
5. ADJUST, REPAIR OR REPLACE
NEXT -- END
