Audible Warning Device: Testing and Inspection

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: SKID CONTROL BUZZER: INSPECTION


1. INSPECT SKID CONTROL BUZZER ASSEMBLY

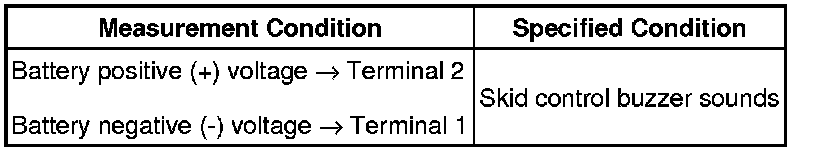

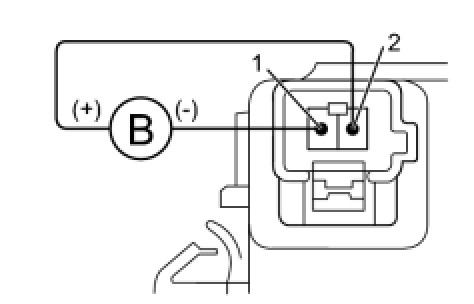

(a) Apply battery voltage to the skid control buzzer and check that the buzzer sounds.
OK:





If the result is not as specified, replace the skid control buzzer assembly.
