Removal

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: SKID CONTROL BUZZER: REMOVAL


1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE FRONT DOOR SCUFF PLATE LH Removal

3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

4. REMOVE COWL SIDE TRIM BOARD LH Removal

5. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Removal

6. REMOVE INSTRUMENT SIDE PANEL Removal

7. REMOVE NO. 1 SWITCH HOLE BASE Removal

8. REMOVE INSTRUMENT PANEL BOX ASSEMBLY Removal

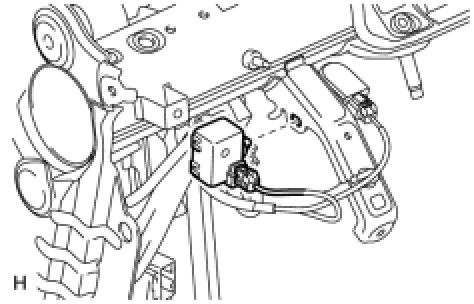

9. REMOVE SKID CONTROL BUZZER ASSEMBLY






(a) Detach the clamp and remove the buzzer.
(b) Disconnect the buzzer connector.
