1. ACTUATOR CHECK

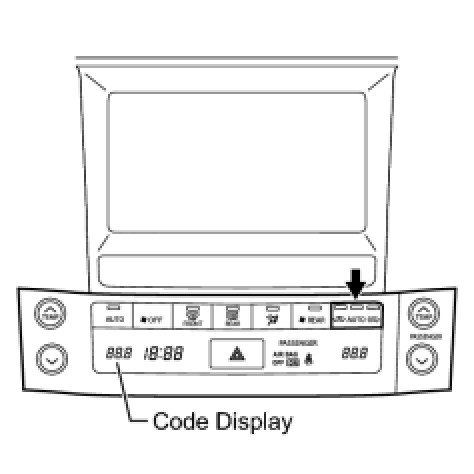

(a) Turn the engine switch on (IG) while pressing the A/C control AUTO switch and recirculation/fresh switch simultaneously.





(b) Press the recirculation/fresh switch.

(c) By performing the actuator check, each damper, motor, and relay are automatically operated at 1 second intervals in a continuous cycle from step No. 1 to No. 10. During this operation, check the temperature and airflow indicated on the display as well as by hand.
HINT:
- If a slower display is desired, press the driver temperature up switch to stop the automatic display. The display changes to step operation display mode which allows the display to be changed 1 step for each press of the switch.
- The buzzer sounds when the display code changes.
- Codes are displayed from smaller to larger numbers in order.
- To cancel the check mode, press the OFF switch.

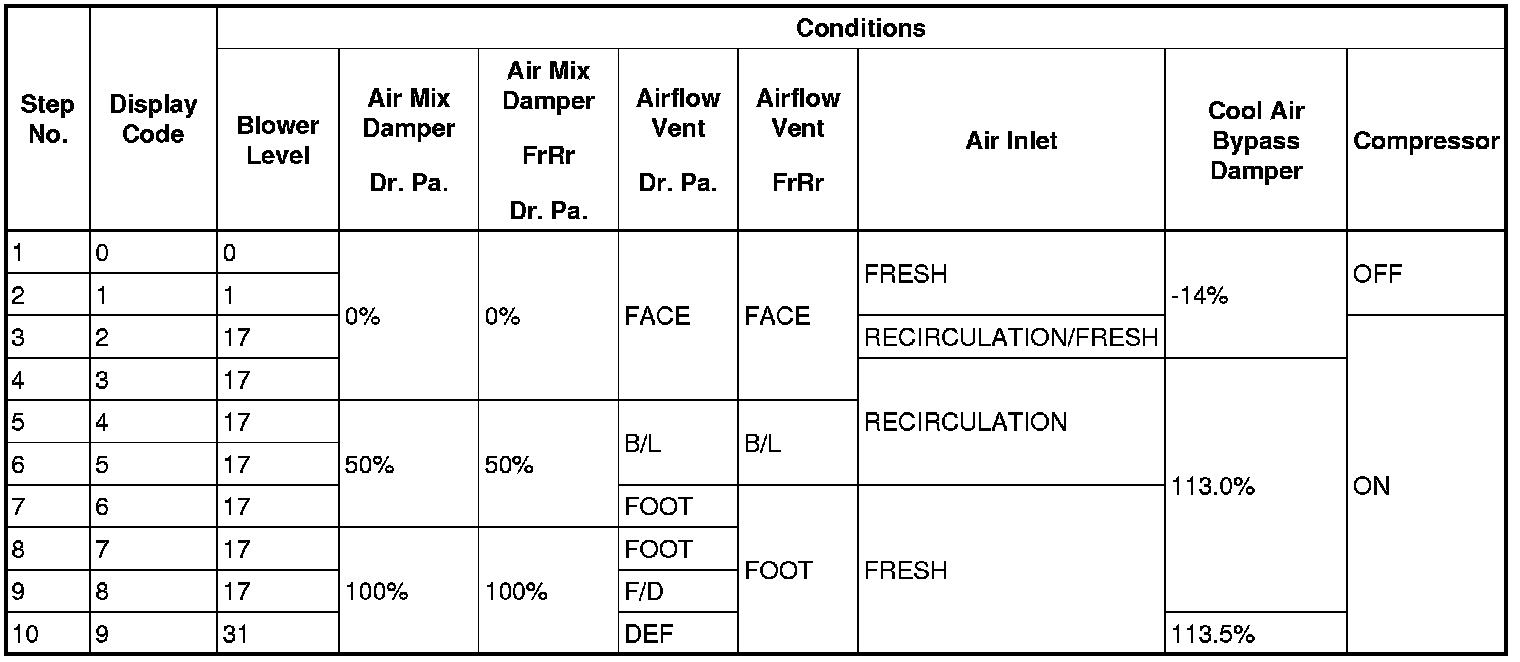

Front Air Conditioning Unit

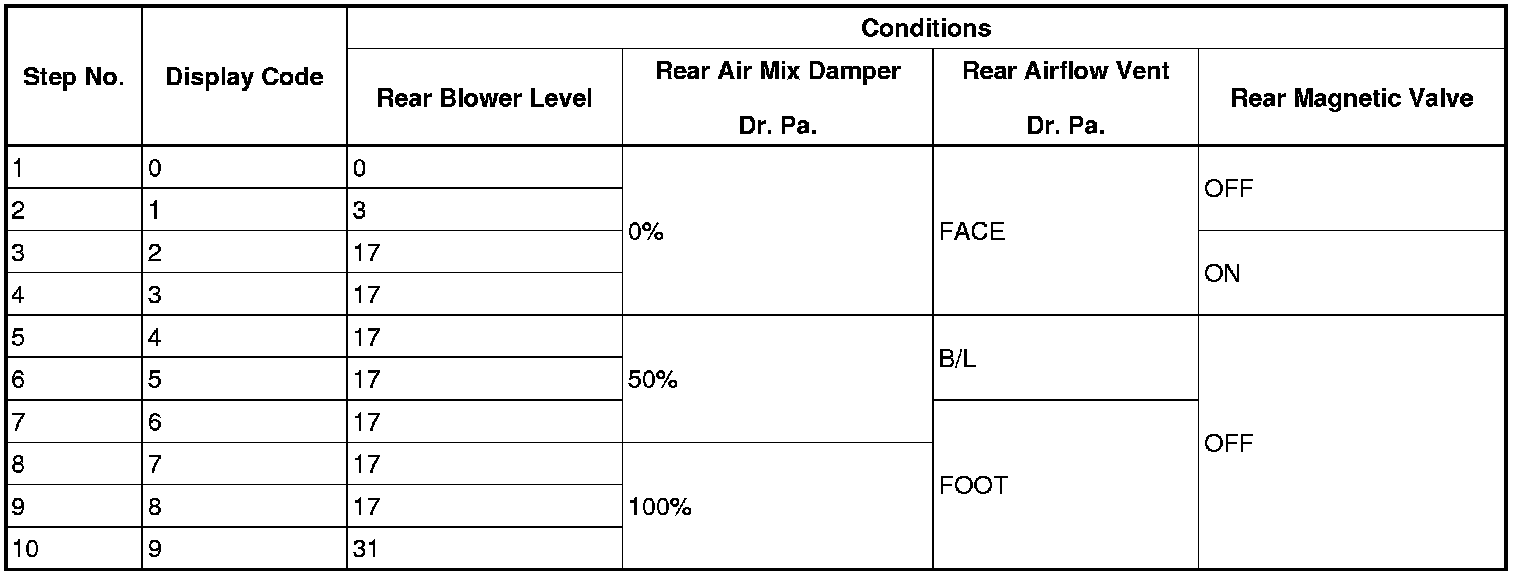

Rear Air Conditioning Unit
