Removal
HEATING / AIR CONDITIONING: SOLAR SENSOR: REMOVAL
1. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY Removal
2. REMOVE AUTOMATIC LIGHT CONTROL SENSOR (SOLAR SENSOR)

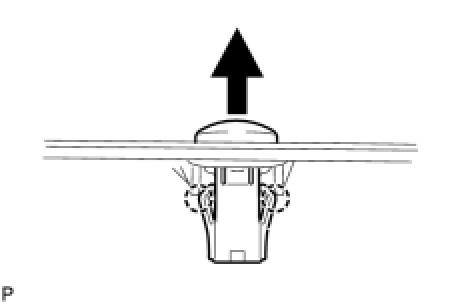

(a) Detach the 2 claws and remove the sensor.
HEATING / AIR CONDITIONING: SOLAR SENSOR: REMOVAL
1. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY Removal
2. REMOVE AUTOMATIC LIGHT CONTROL SENSOR (SOLAR SENSOR)
(a) Detach the 2 claws and remove the sensor.
