Home >> Lexus >> 2008 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Hose/Line HVAC >> Service and Repair

Hose/Line HVAC: Service and Repair

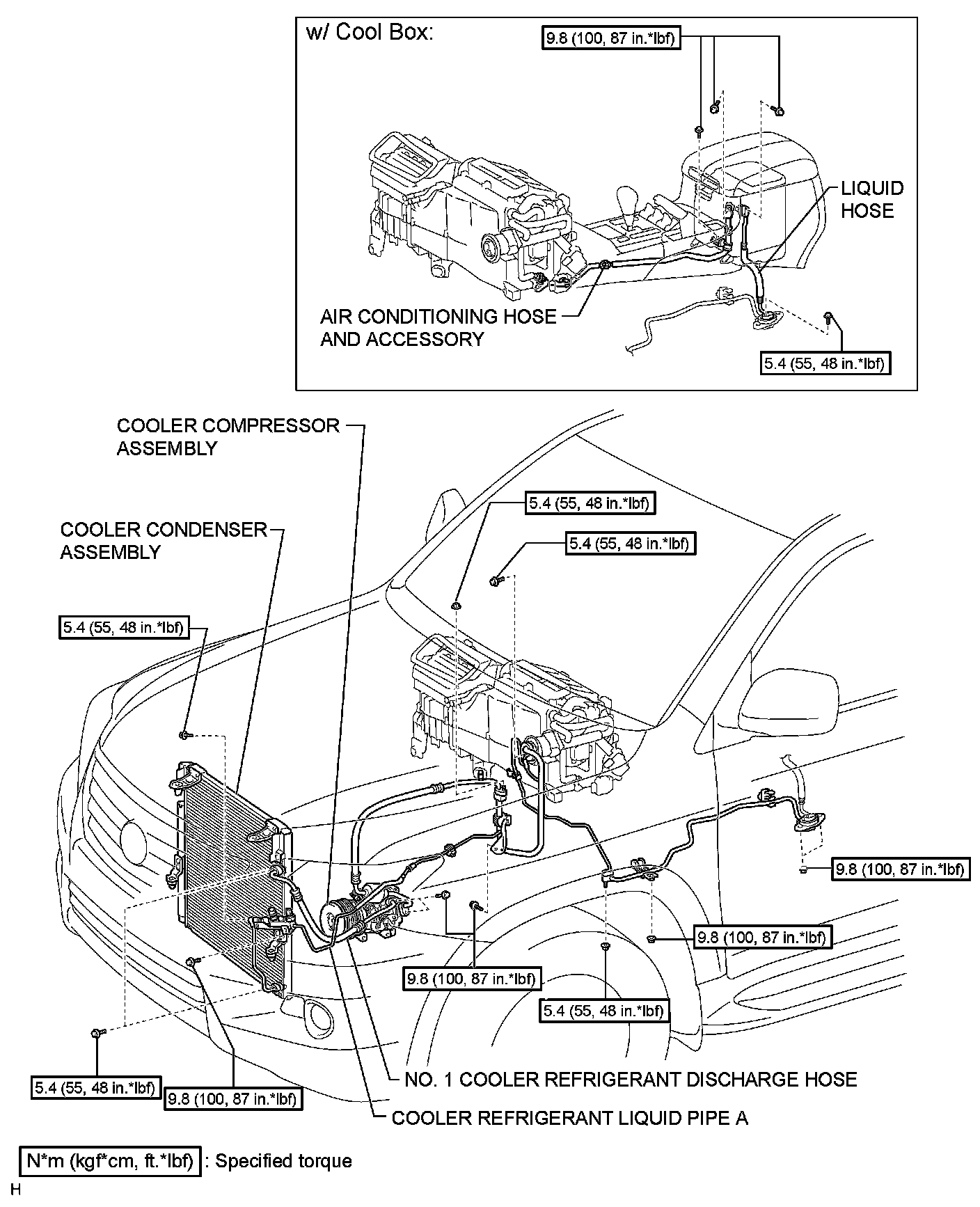

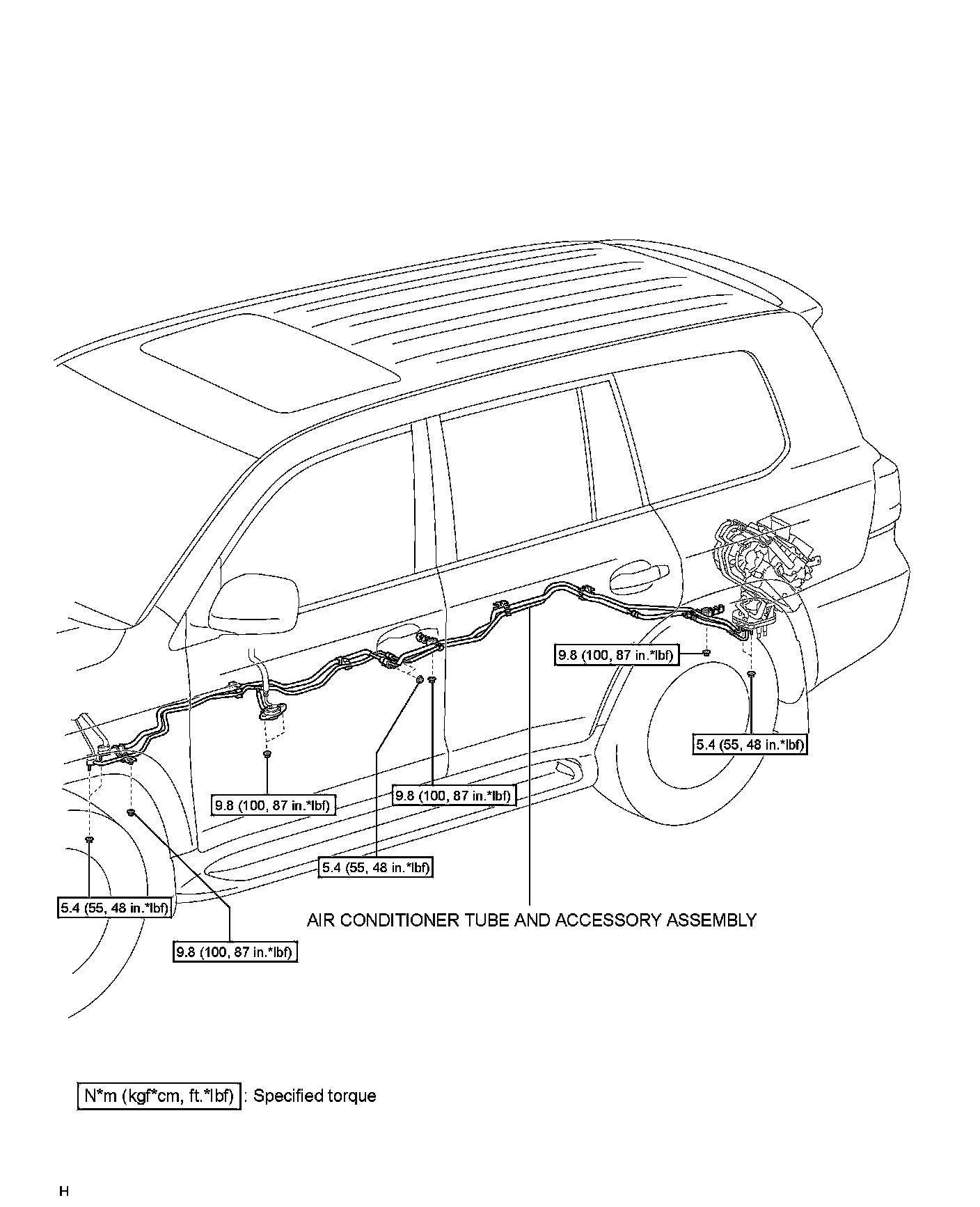

HEATING / AIR CONDITIONING: REFRIGERANT LINE: COMPONENTS
