Condenser Fan: Testing and Inspection

HEATING / AIR CONDITIONING: CONDENSER FAN: INSPECTION





1. INSPECT SHROUD BLOWER ASSEMBLY

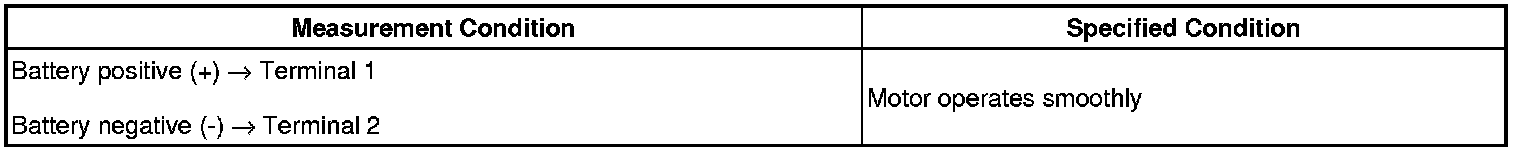

(a) Apply battery voltage and check operation of the motor, as shown in the table.
OK:





If the result is not as specified, replace the shroud blower assembly.
