Removal

HEATING / AIR CONDITIONING: REAR BLOWER MOTOR: REMOVAL

1. REMOVE REAR COOLING UNIT ASSEMBLY
(a) Remove the rear cooling unit assembly Removal.






2. REMOVE BLOWER WITH FAN (REAR) MOTOR SUB-ASSEMBLY
(a) Disconnect the connector.

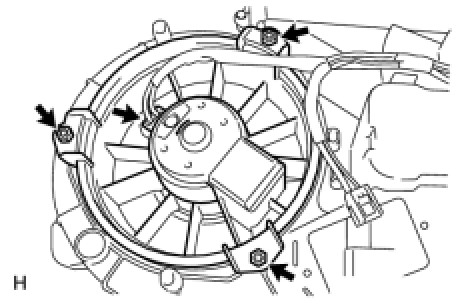

(b) Remove the 3 screws and motor.
