Disassembly

HEATING / AIR CONDITIONING: BLOWER UNIT: DISASSEMBLY

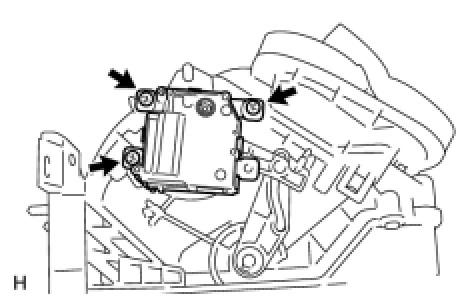

1. REMOVE DAMPER SERVO SUB-ASSEMBLY
(a) Remove the 3 screws and damper servo.

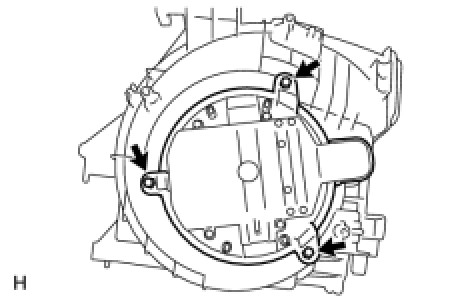

2. REMOVE BLOWER WITH FAN MOTOR SUB-ASSEMBLY
(a) Remove the 3 screws and motor.

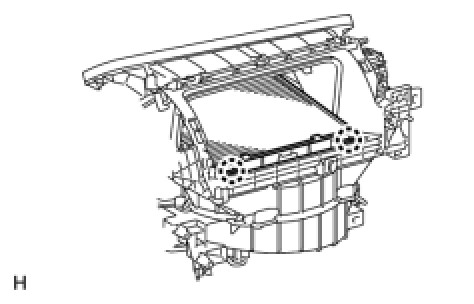

3. REMOVE AIR FILTER
(a) Detach the 2 claws and remove the filter.
