Removal

HEATING / AIR CONDITIONING: PTC HEATER ASSEMBLY: REMOVAL

1. REMOVE AIR CONDITIONING UNIT ASSEMBLY
(a) Remove the air conditioning unit Removal.
2. REMOVE PTC HEATER ASSEMBLY

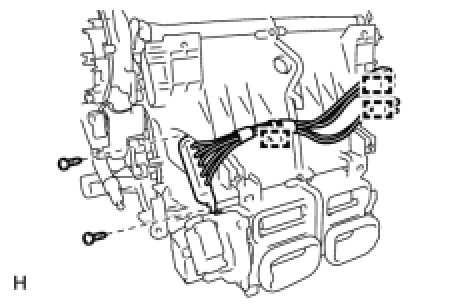

(a) Remove the 2 screws.






(b) Detach the 3 clamps and remove the PTC heater.
