3UR-FE LUBRICATION: OIL PRESSURE SENSOR: INSTALLATION

1. INSTALL OIL PRESSURE SENDER GAUGE ASSEMBLY

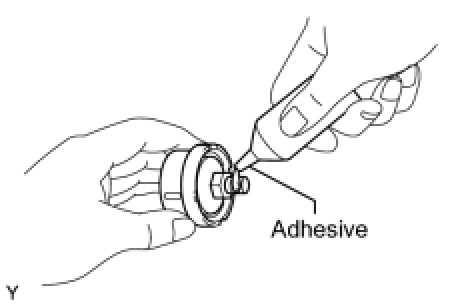

(a) Apply adhesive to 2 or 3 threads of the oil pressure sender gauge.





Adhesive:
Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent





NOTICE:

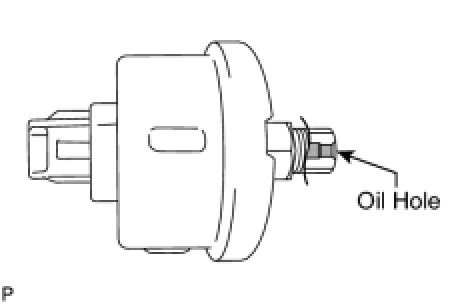

Do not allow adhesive to contact the oil hole.

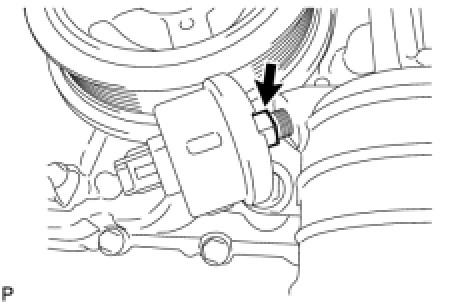

(b) Install the oil pressure sender gauge.
Torque: 15 Nm (153 kgf-cm, 11 ft-lbf)
NOTICE:
Do not start the engine within 1 hour after installation.

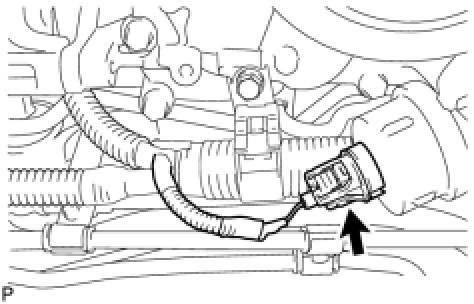

(c) Connect the sender gauge connector.
2. ADD ENGINE OIL Replacement

3. INSPECT FOR OIL LEAK Replacement

4. INSPECT ENGINE OIL LEVEL Testing and Inspection

5. INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY Installation

6. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Installation

7. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Installation
