Removal

3UR-FE ENGINE MECHANICAL: REAR CRANKSHAFT OIL SEAL: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
(a) Remove the automatic transmission Removal.
3. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY Removal

4. REMOVE REAR CRANKSHAFT OIL SEAL

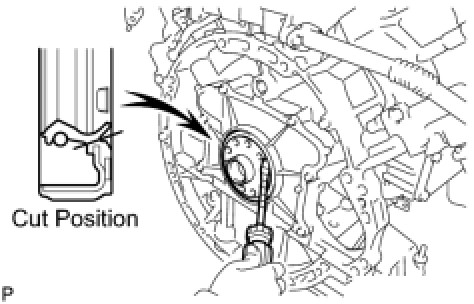

(a) Using a knife, cut off the lip of the oil seal.






(b) Using a screwdriver, pry out the oil seal.
HINT:
Tape the screwdriver tip before use.
NOTICE:
Do not damage the surface of the oil seal press fit hole and crankshaft.
