Installation

3UR-FE ENGINE MECHANICAL: REAR CRANKSHAFT OIL SEAL: INSTALLATION

1. INSTALL REAR CRANKSHAFT OIL SEAL
(a) Apply MP grease to the lip of a new oil seal.

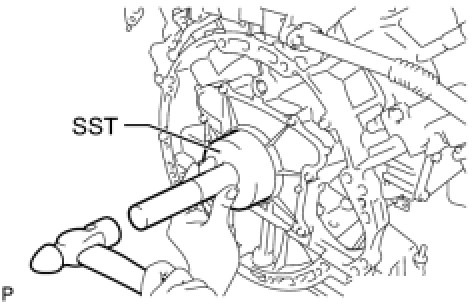

(b) Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.
SST: 09223-56010
NOTICE:

- Keep the lip free from foreign matter.
- Do not tap on the oil seal at an angle.


2. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY Installation

3. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
(a) Install the automatic transmission Installation.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
