Reassembly

3UR-FE LUBRICATION: ENGINE OIL COOLER: REASSEMBLY

1. INSTALL OIL PUMP RELIEF VALVE






(a) Coat the oil pump relief valve with engine oil.
(b) Install the relief valve and valve spring into the oil pump cover hole.

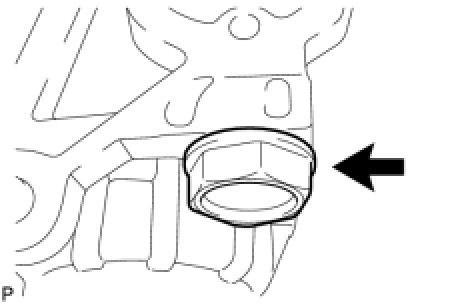

(c) Install a new gasket and the plug.
Torque: 37 Nm (375 kgf-cm, 27 ft-lbf)
