Seat Heater [Rear]

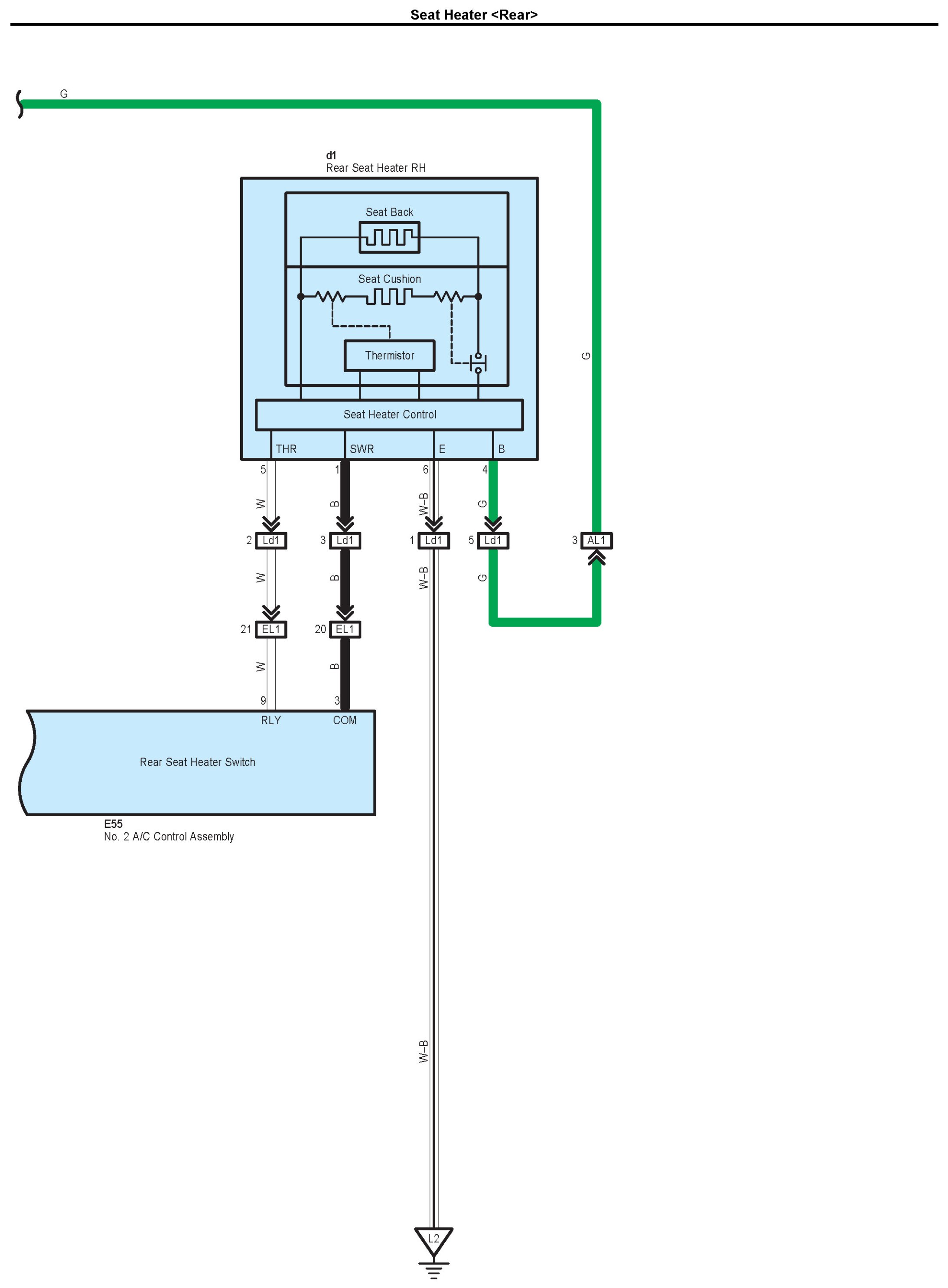

Seat Heater <Rear> Part 1:

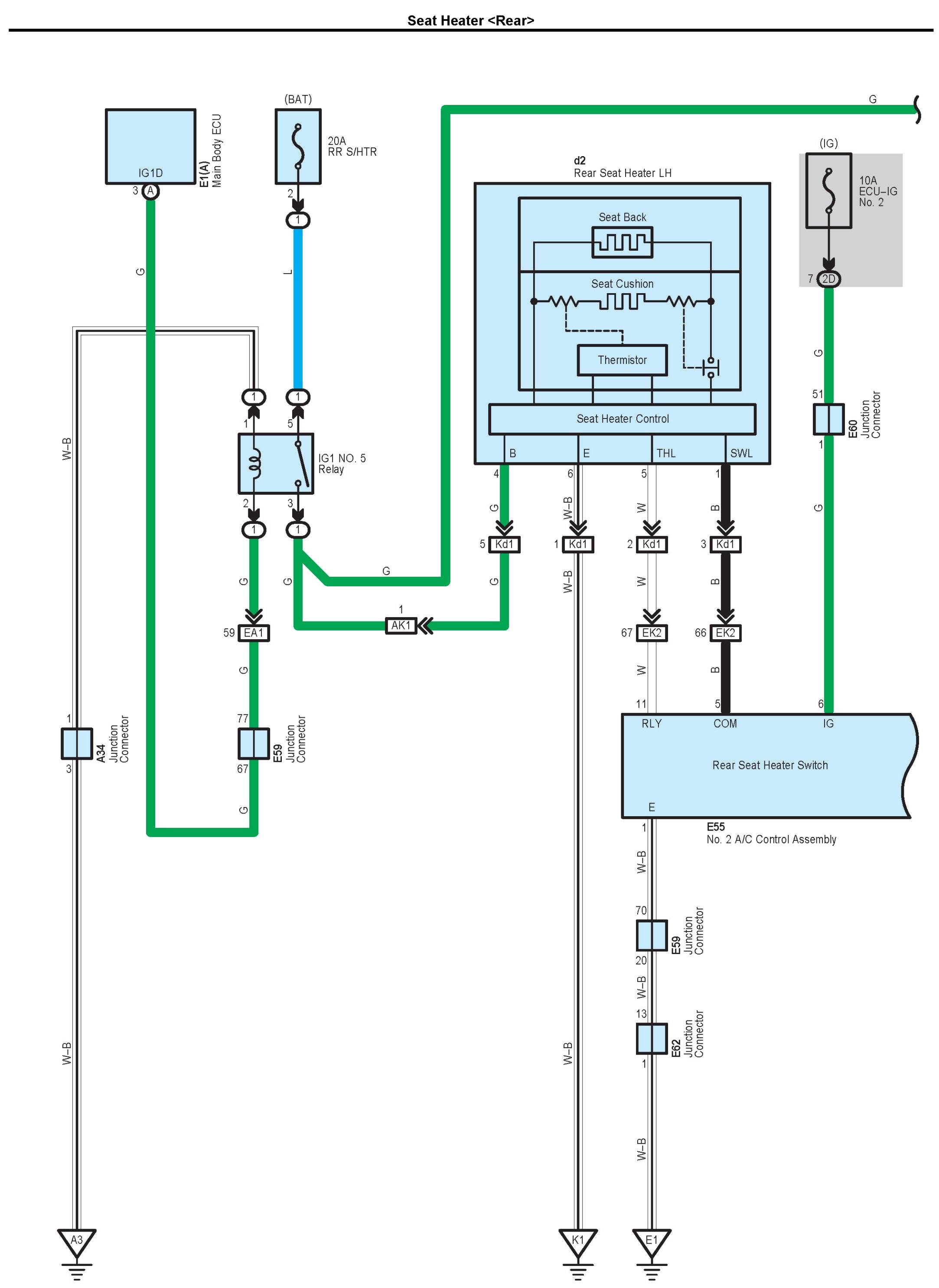

Seat Heater <Rear> Part 2:

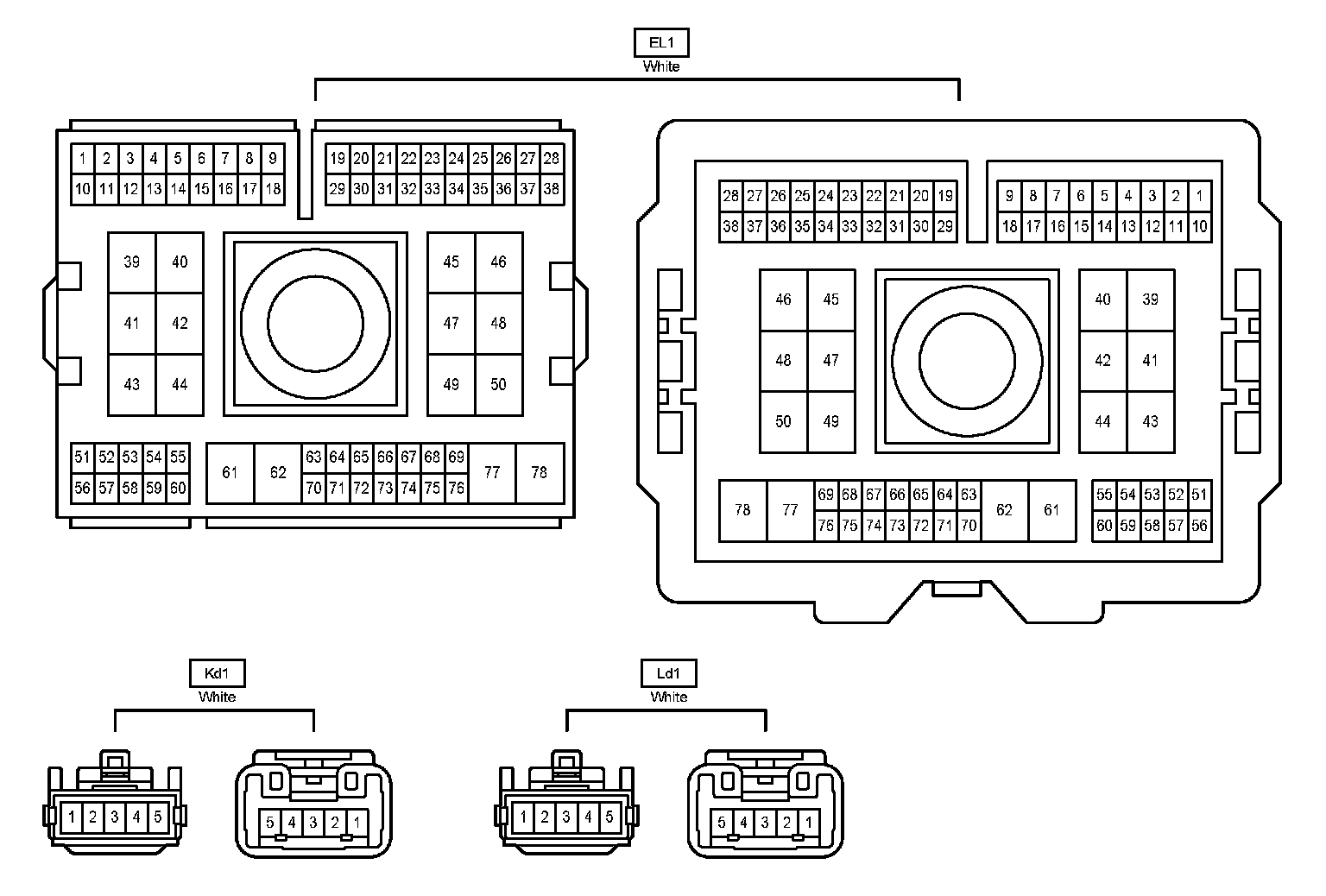

Connector Pin Outs Part 1:

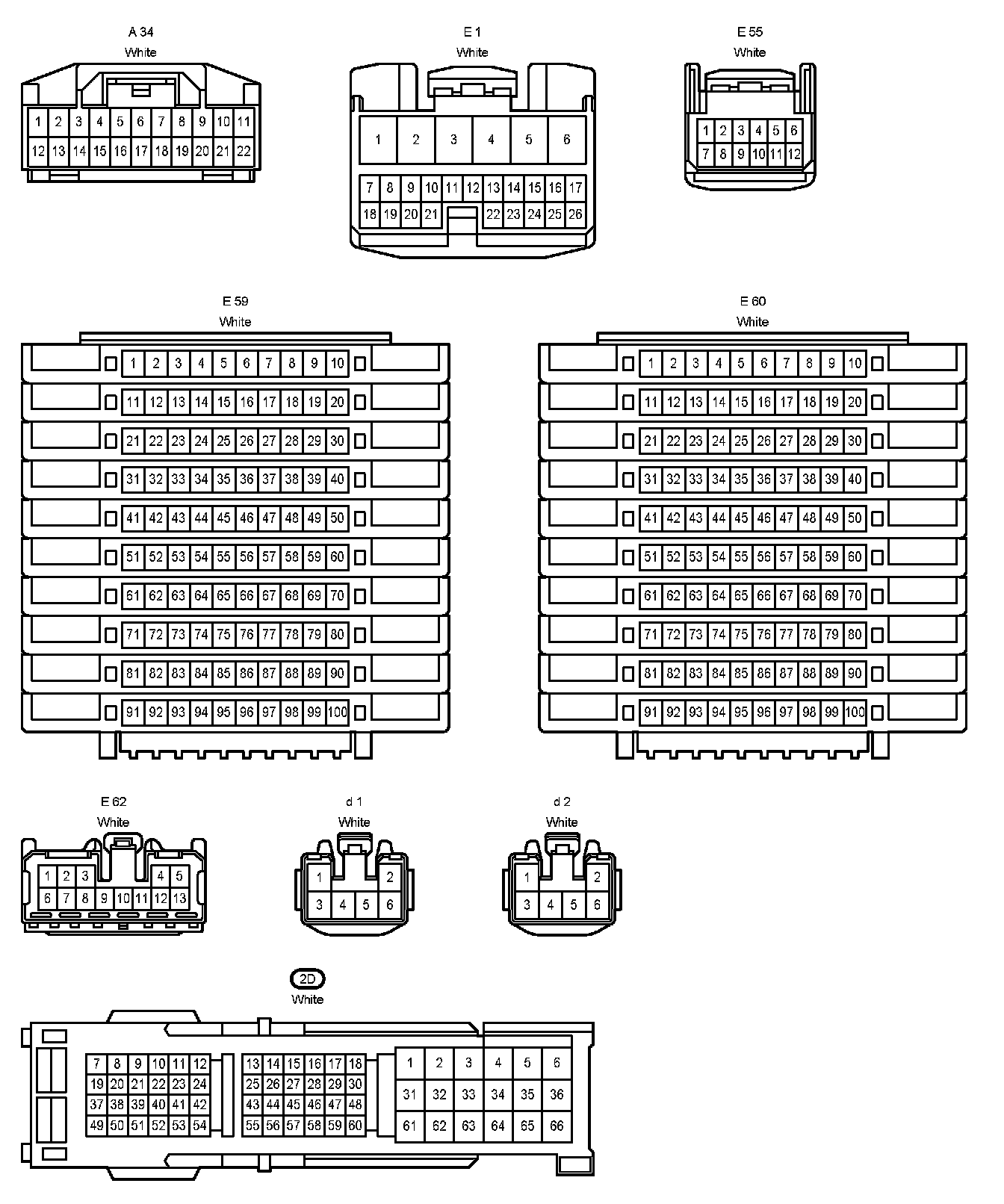

Connector Pin Outs Part 2:

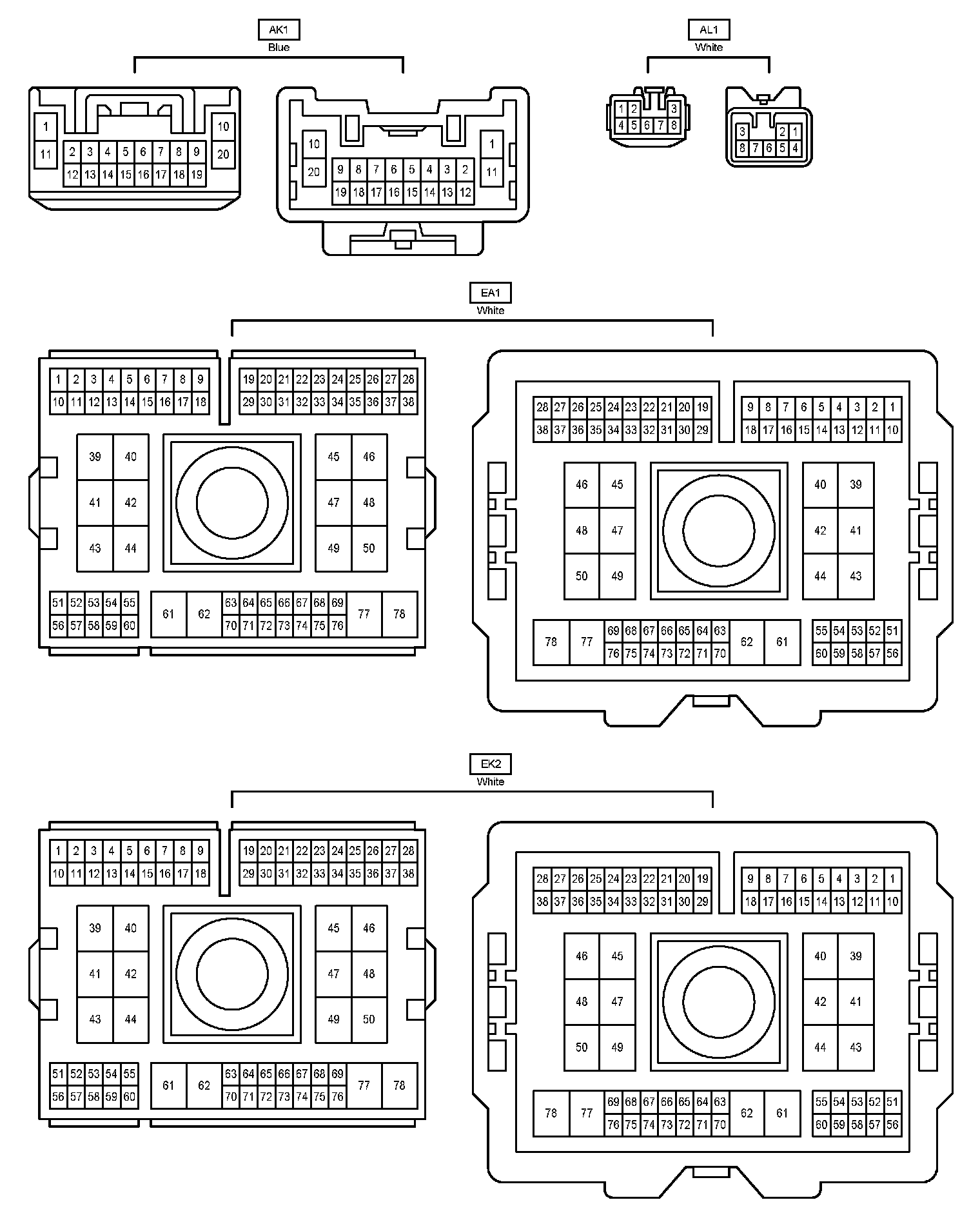

Connector Pin Outs Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
