Multiplex Communication System [CAN] Part 3

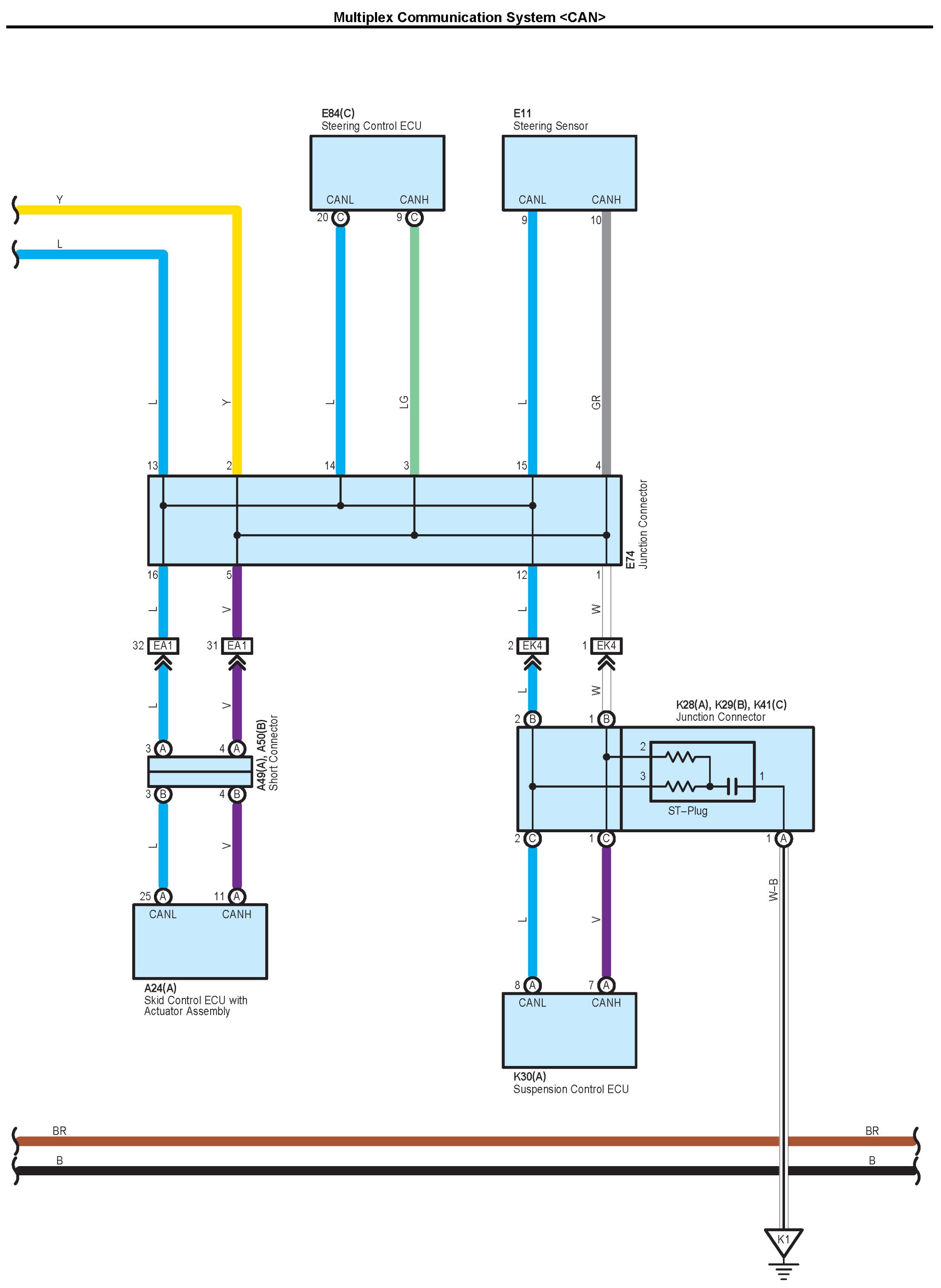

Multiplex Communication System <CAN> Part 3:

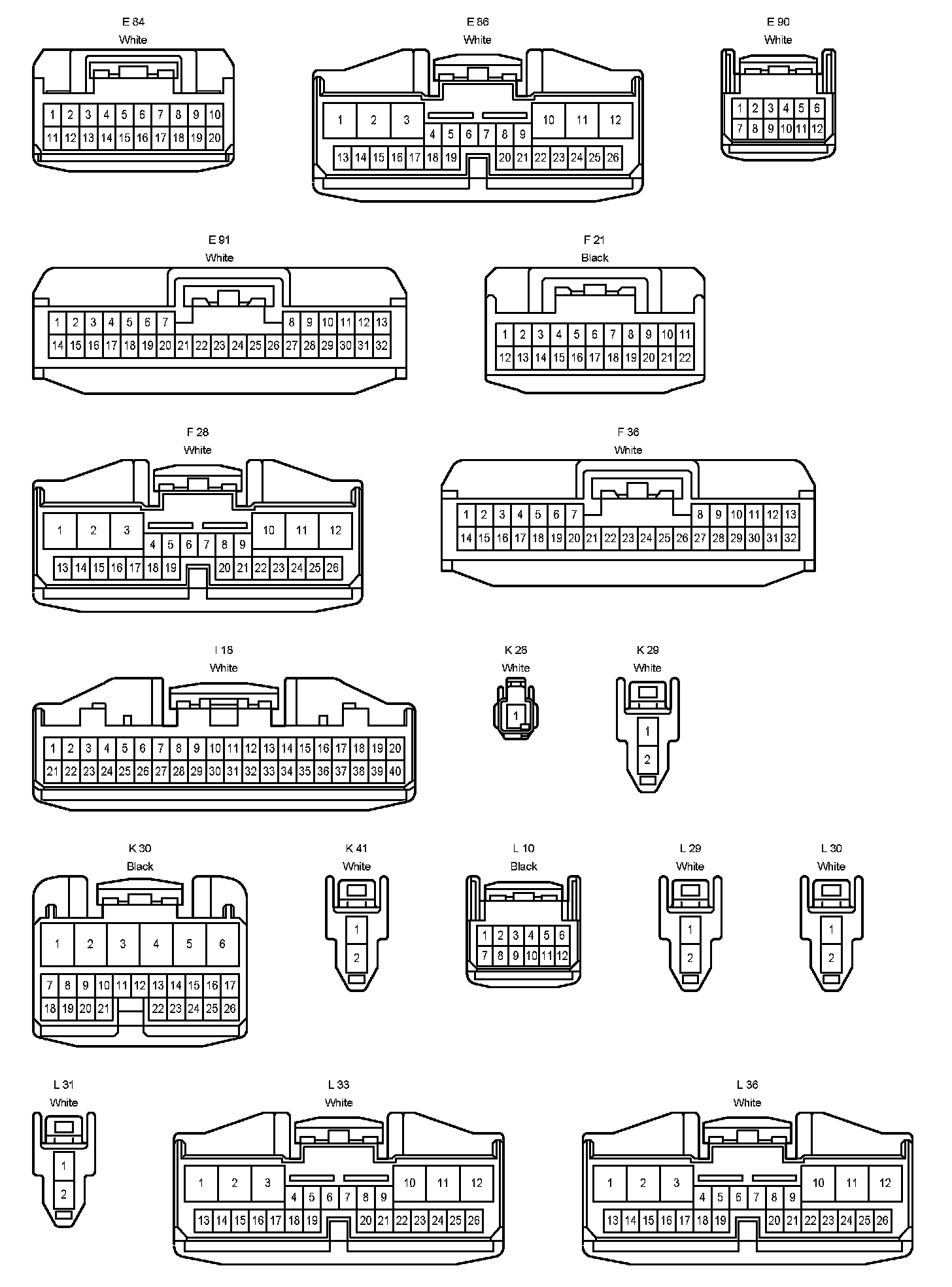

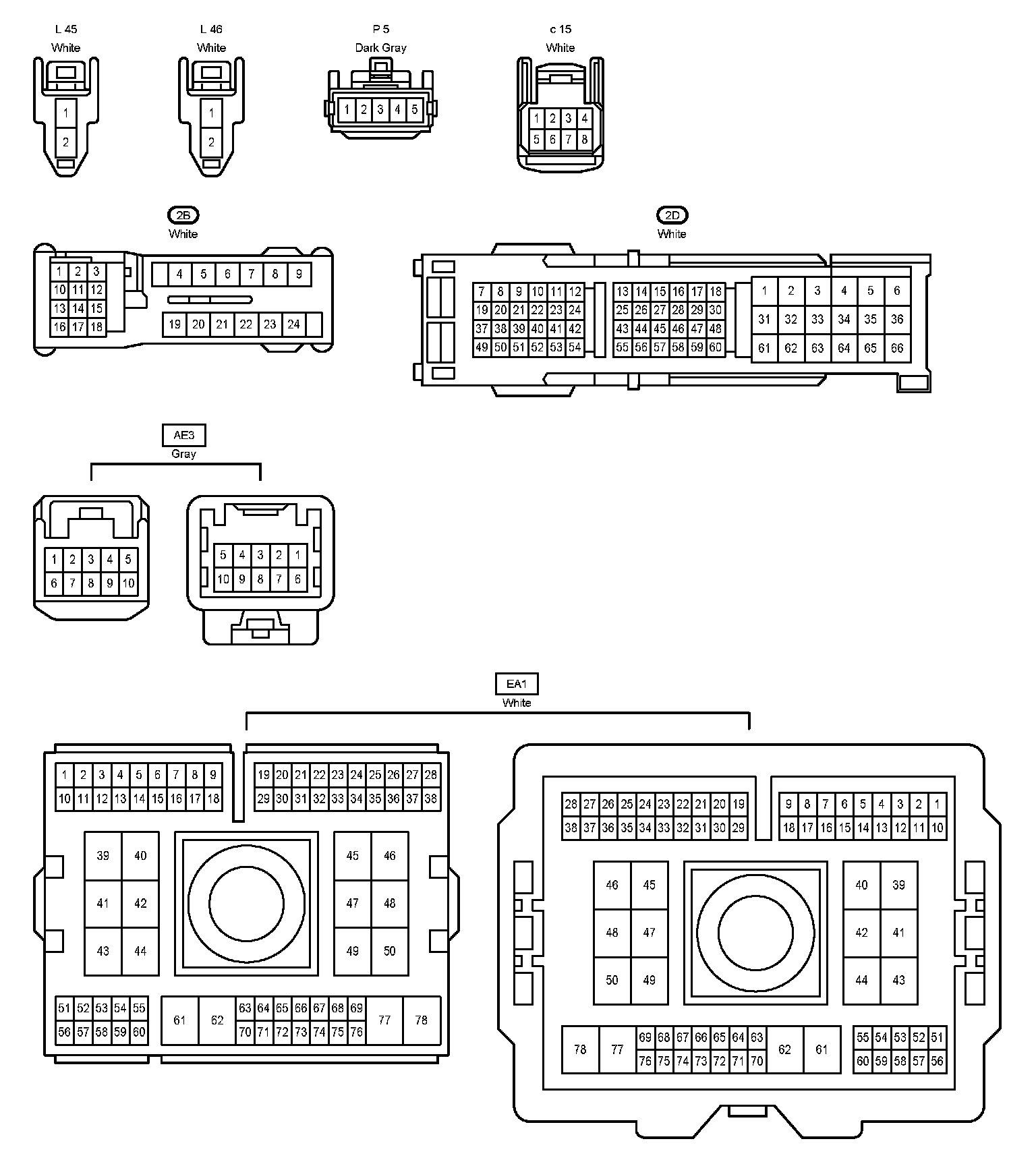

Connector Pin Outs Part 1:

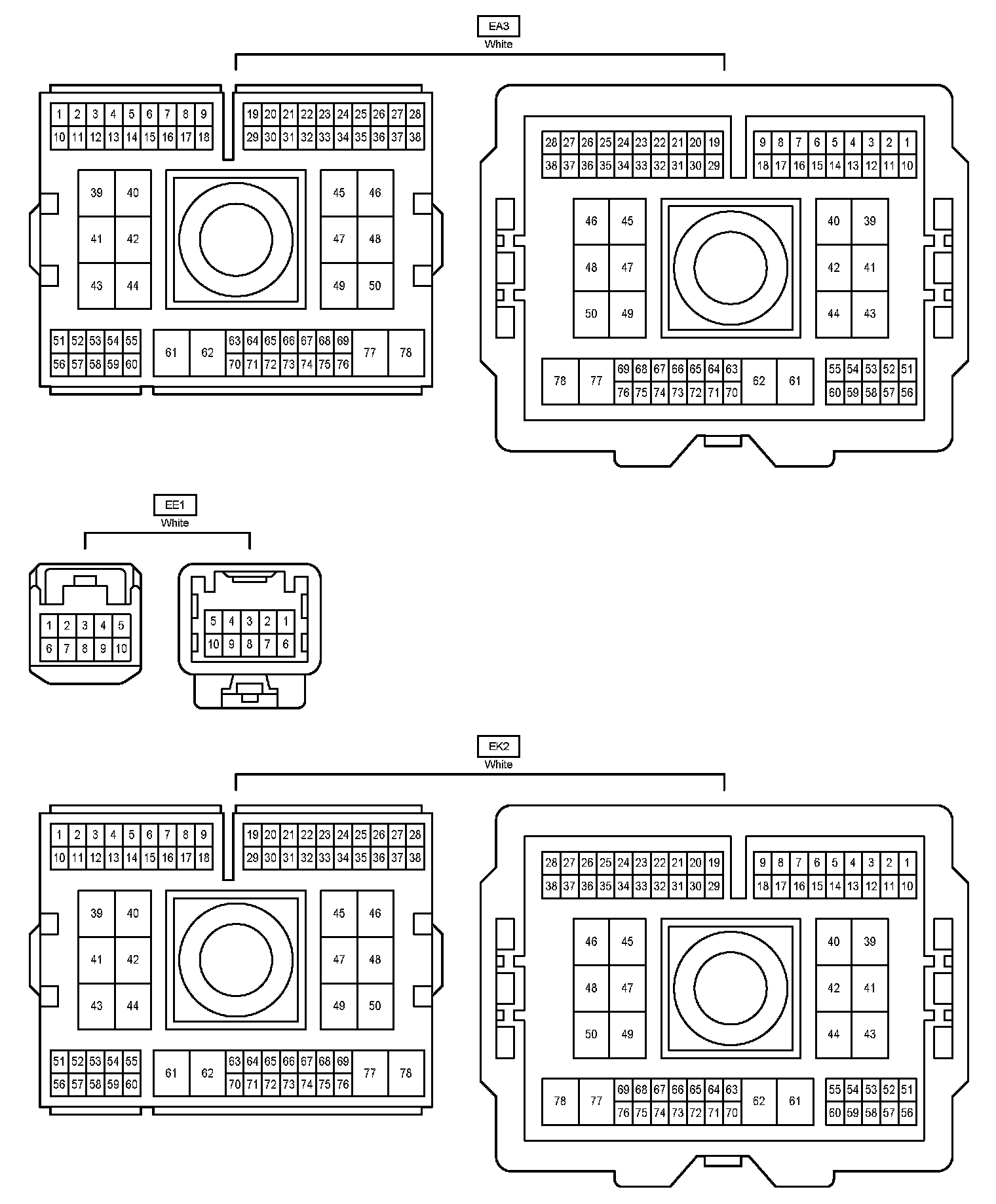

Connector Pin Outs Part 2:

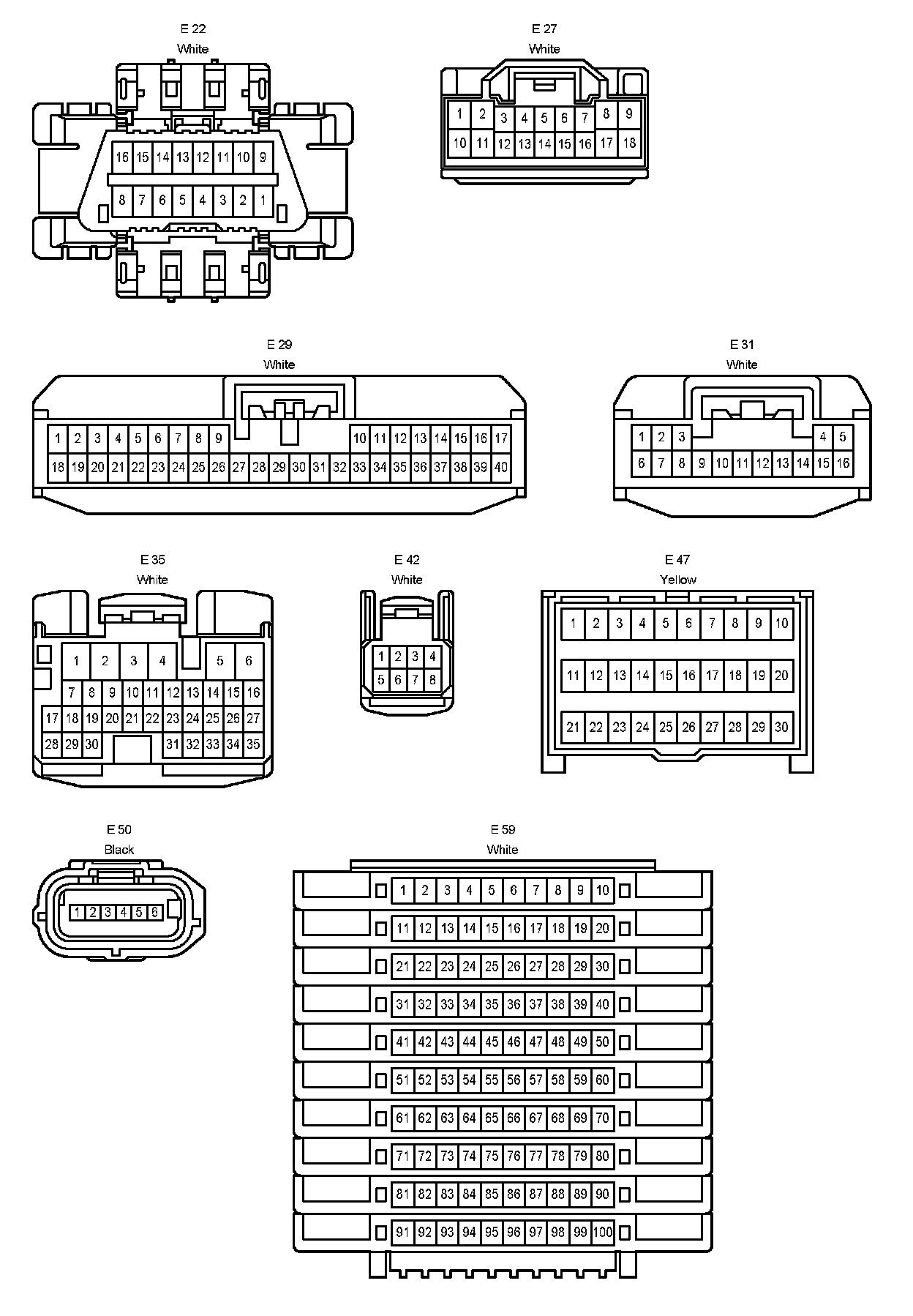

Connector Pin Outs Part 3:

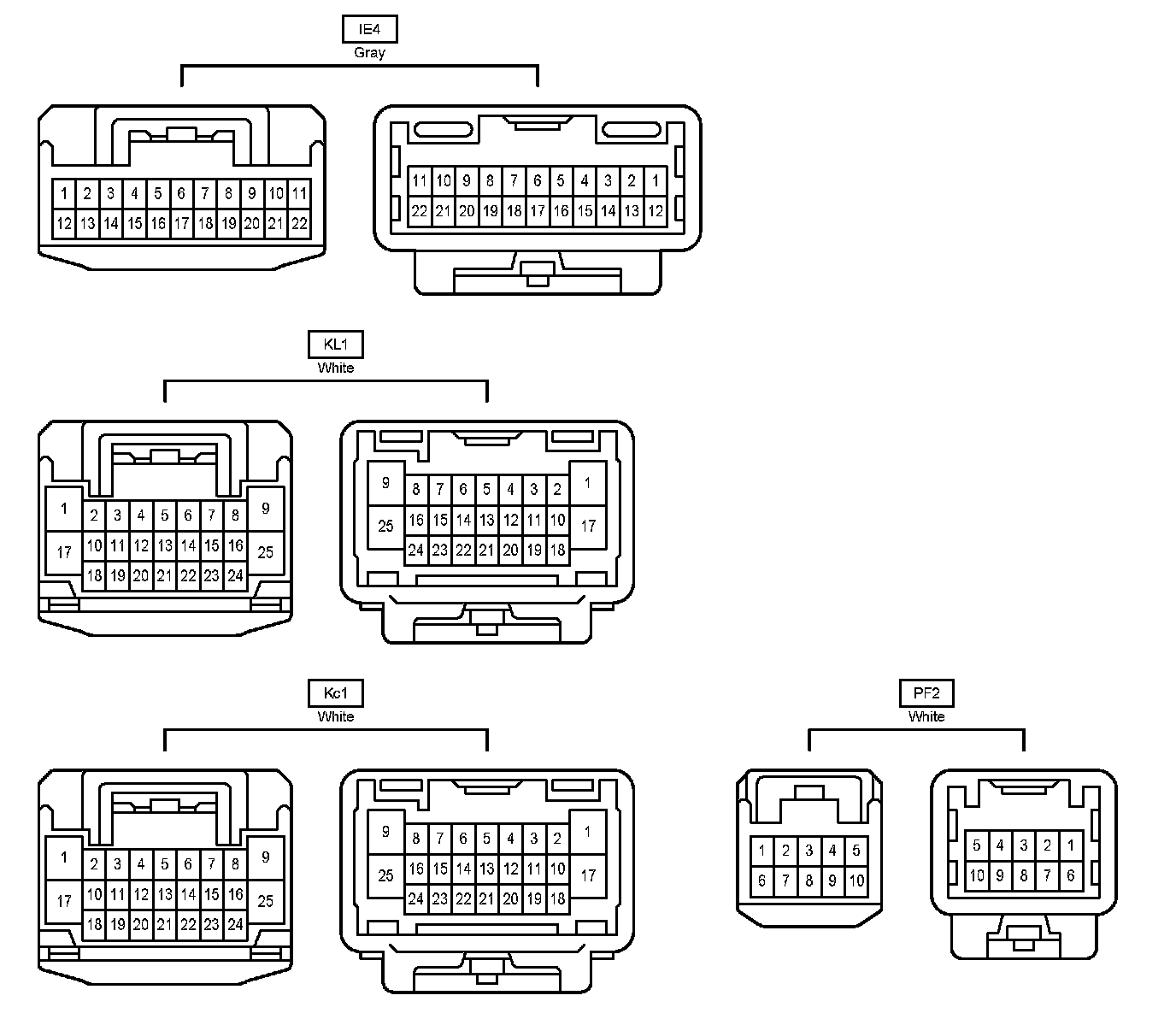

Connector Pin Outs Part 4:

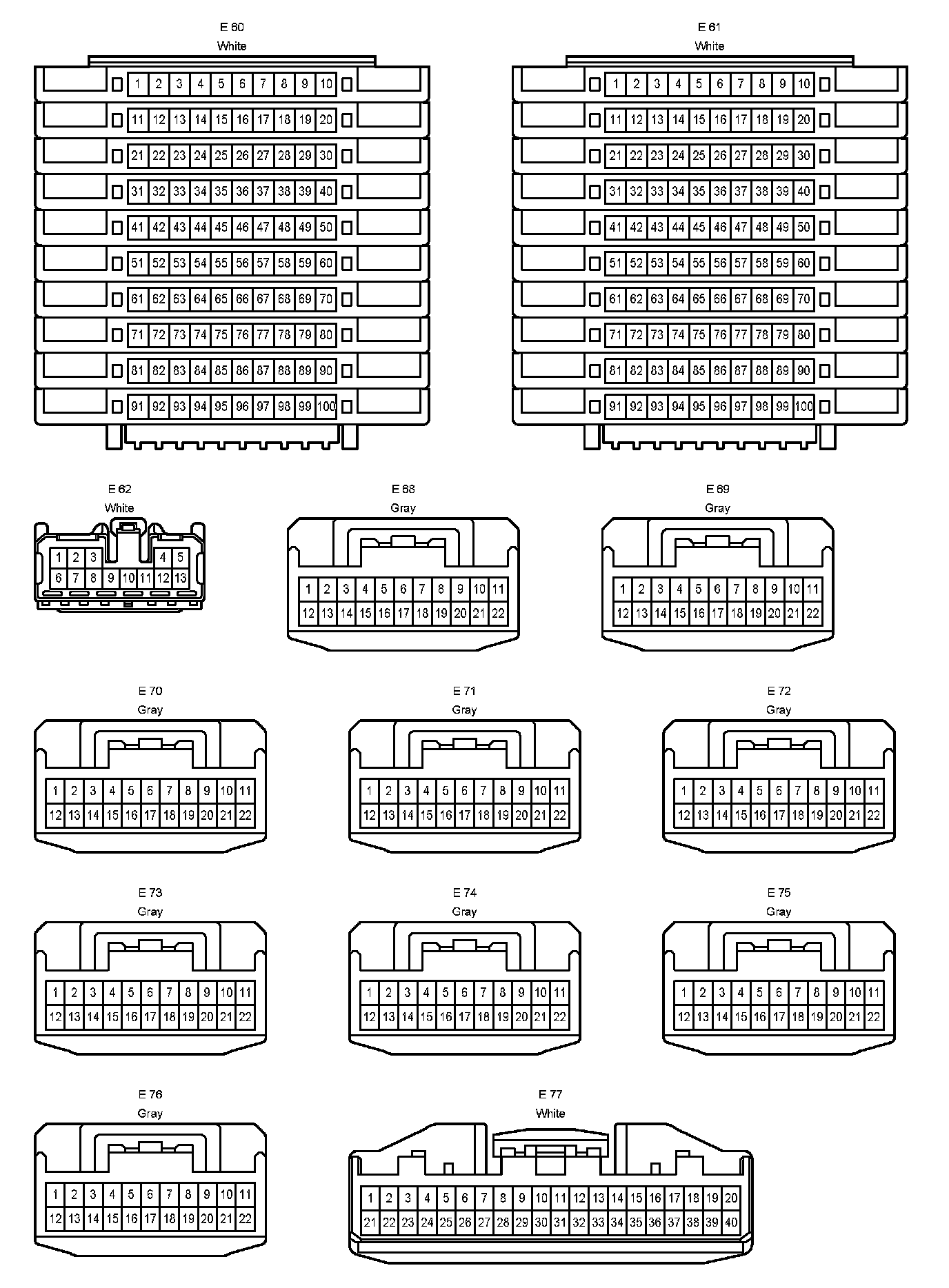

Connector Pin Outs Part 5:

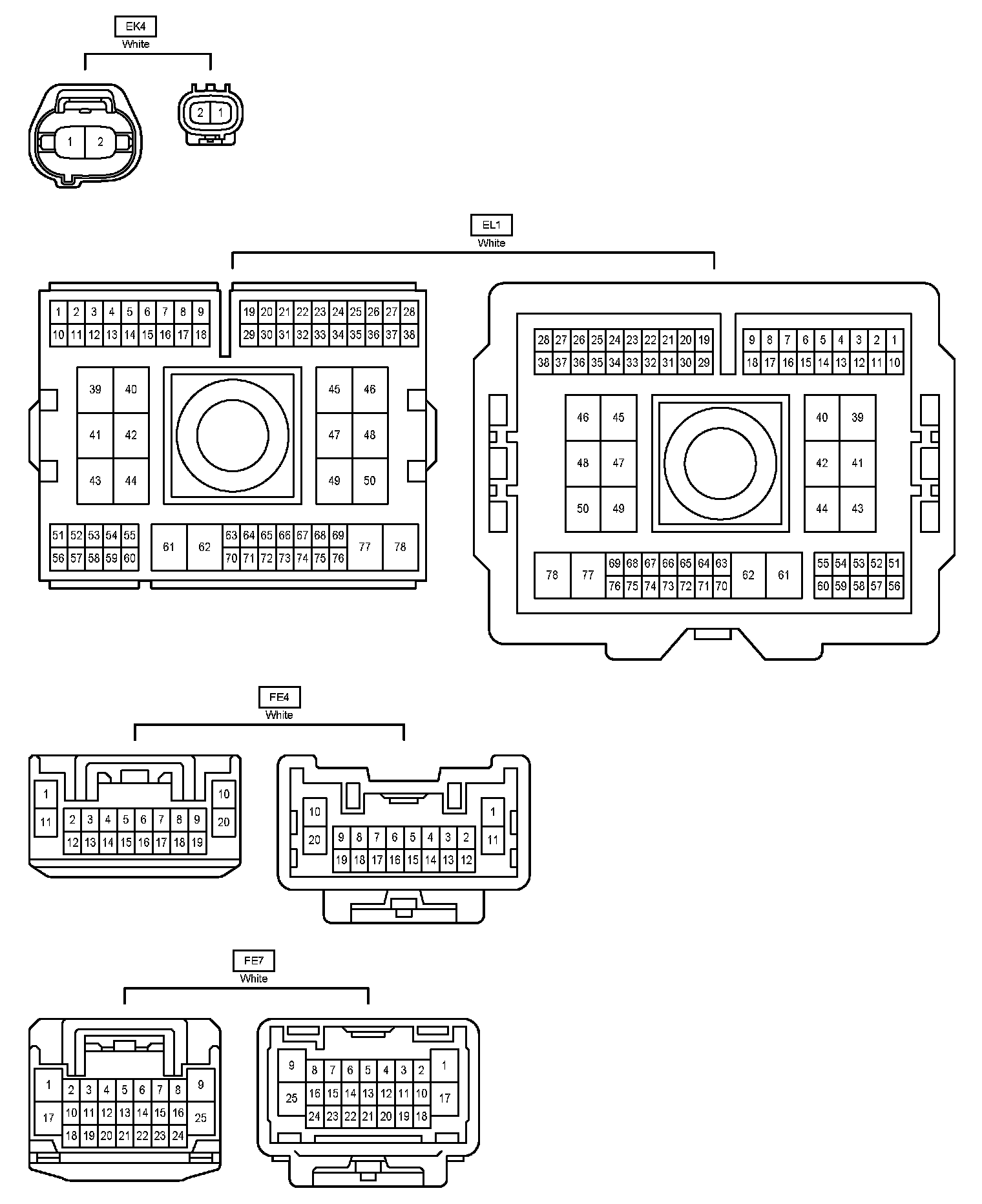

Connector Pin Outs Part 6:

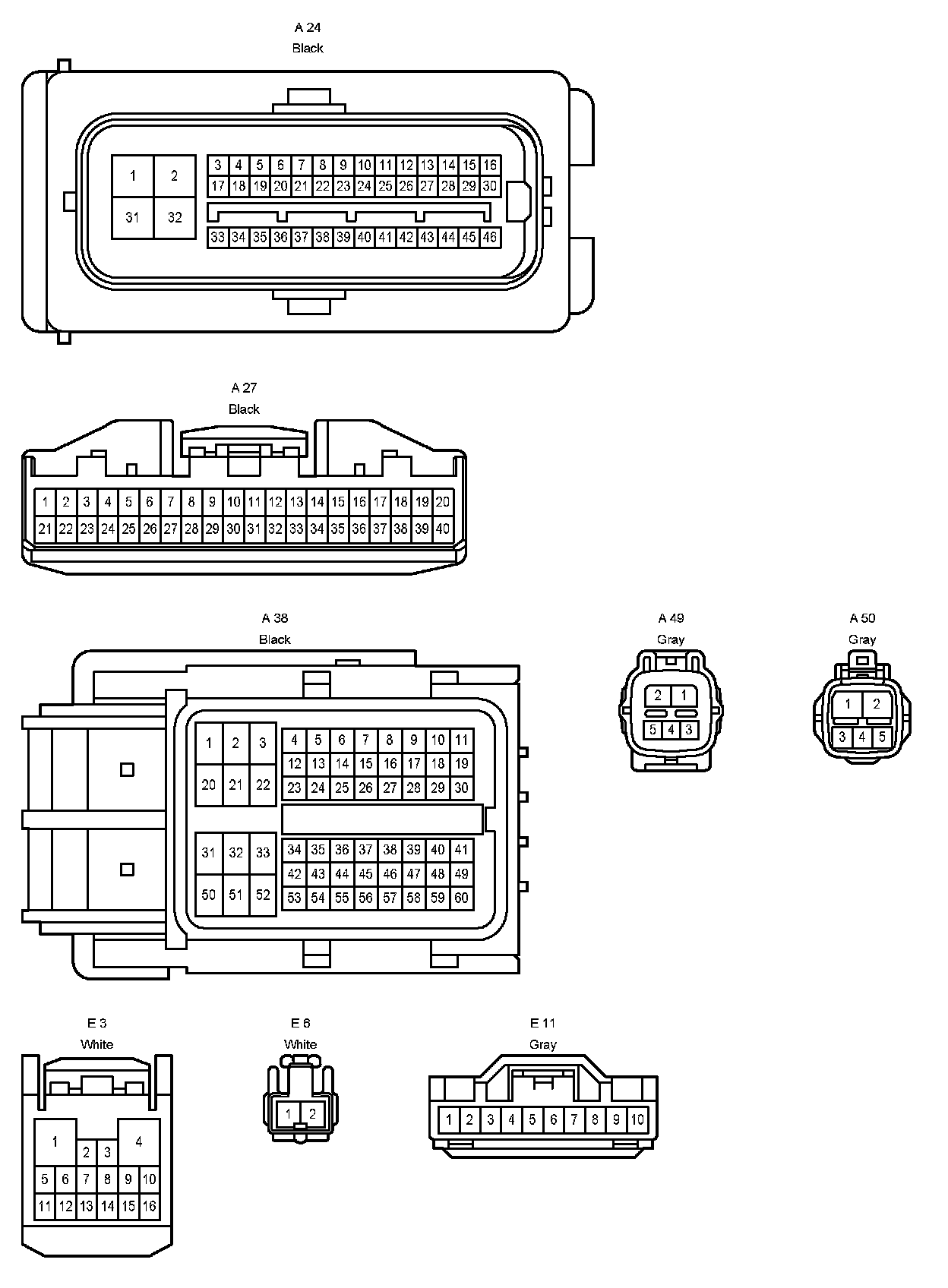

Connector Pin Outs Part 7:

Connector Pin Outs Part 8:

Next Diagram Multiplex Communication System [CAN] Part 4

Previous Diagram Multiplex Communication System [CAN] Part 2

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
