Multiplex Communication System [AVC-LAN]

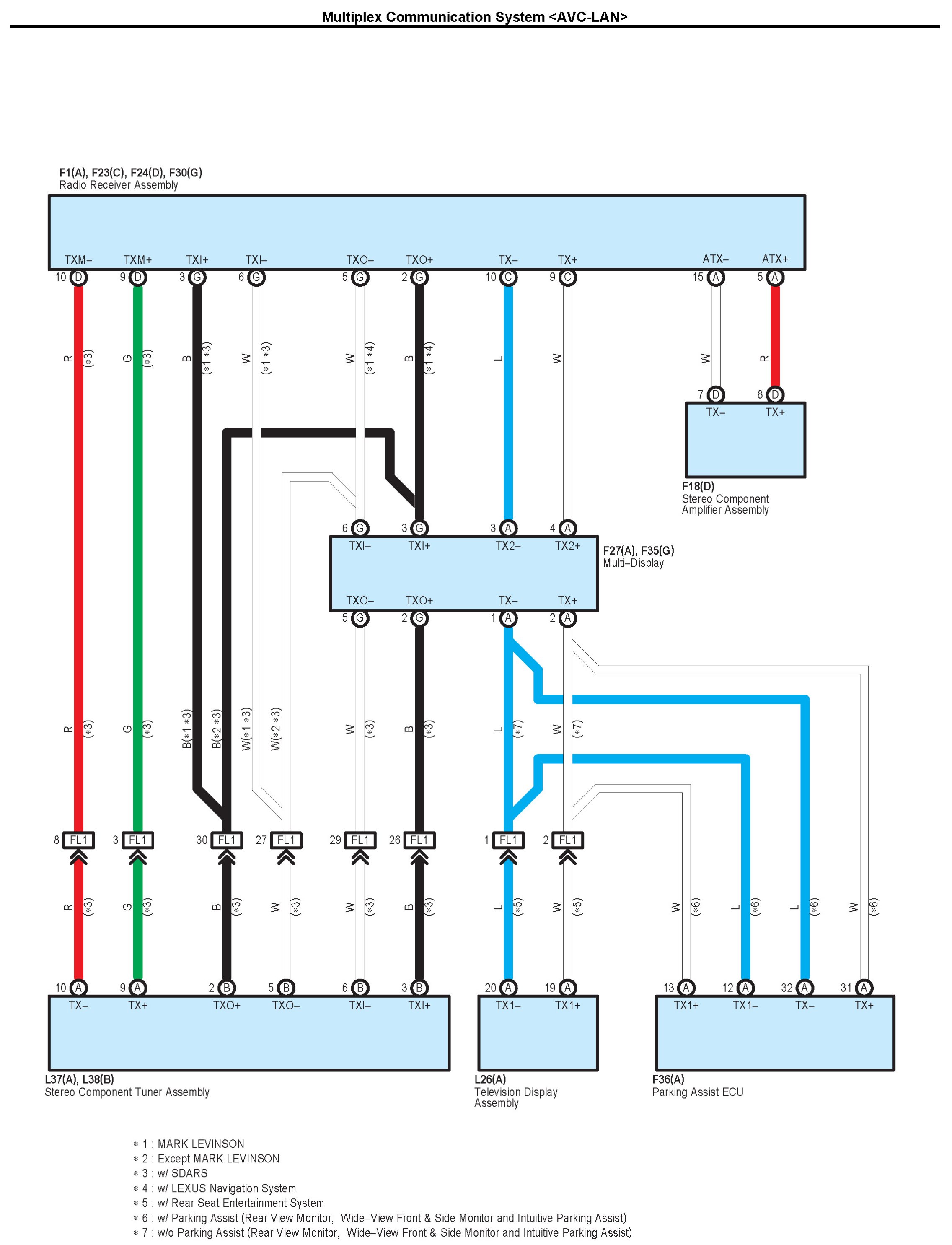

Multiplex Communication System <AVC-LAN>:

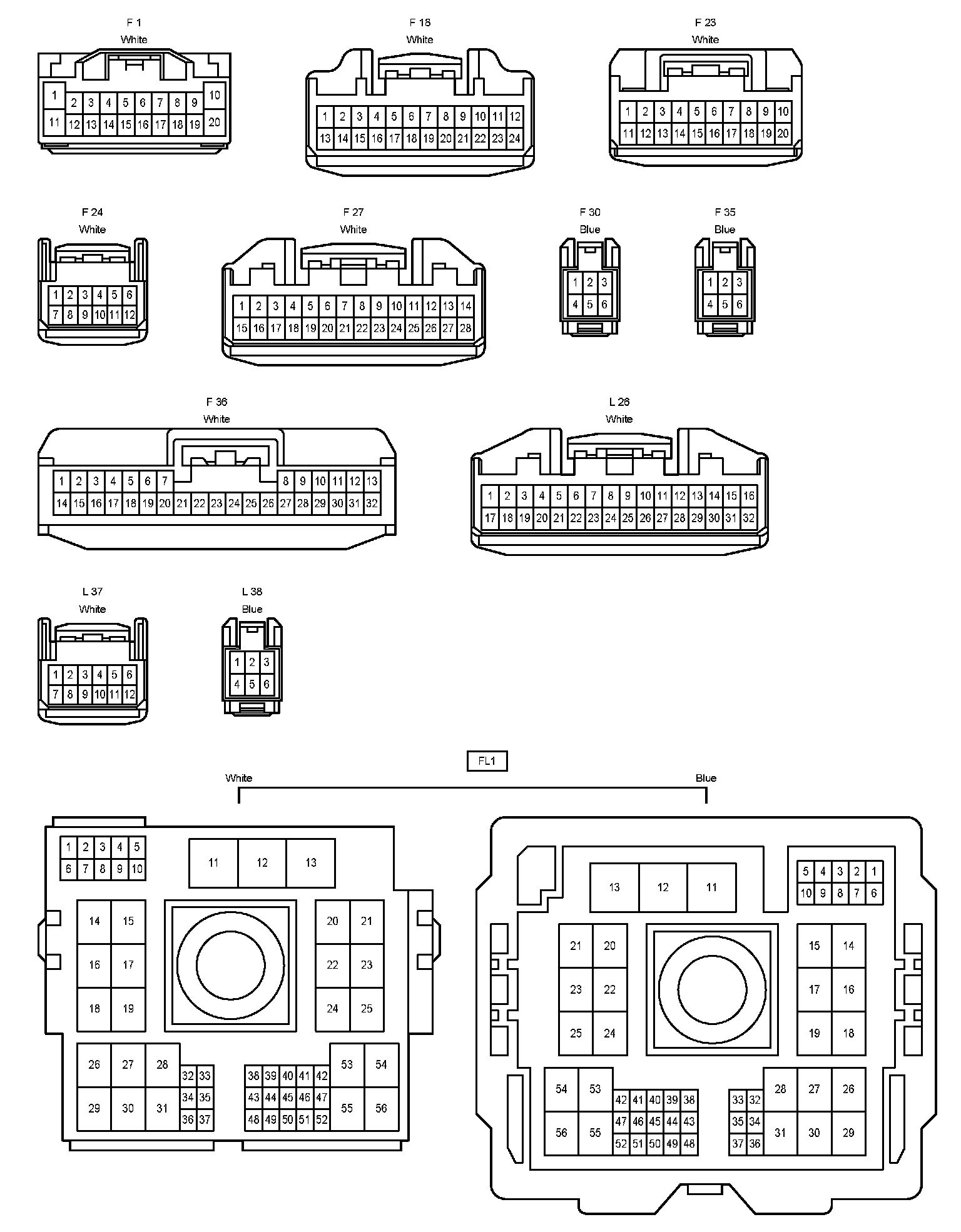

Connector Pin Outs:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
