Heated Element, Mirror

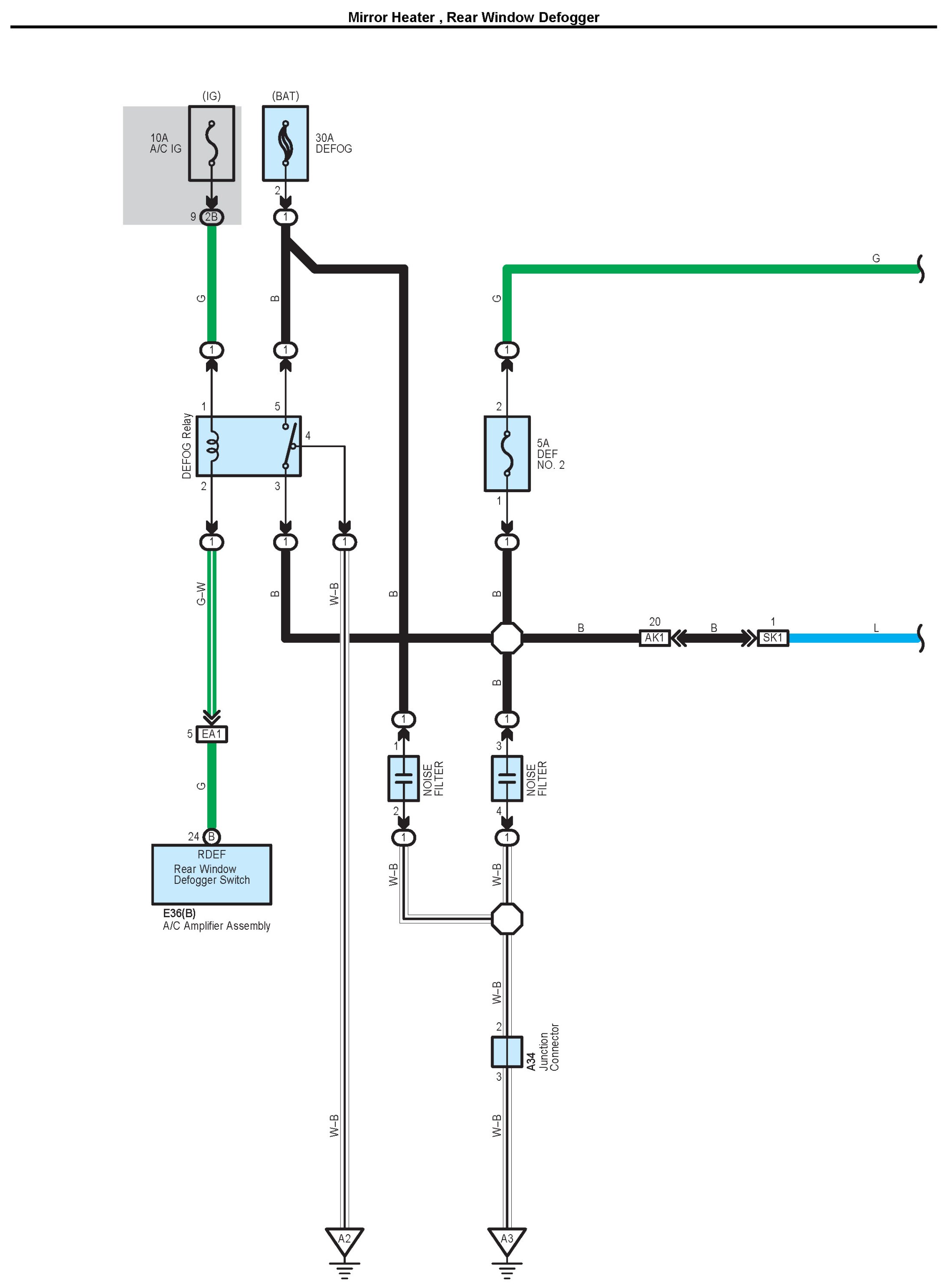

Mirror Heater, Rear Window Defogger Part 1:

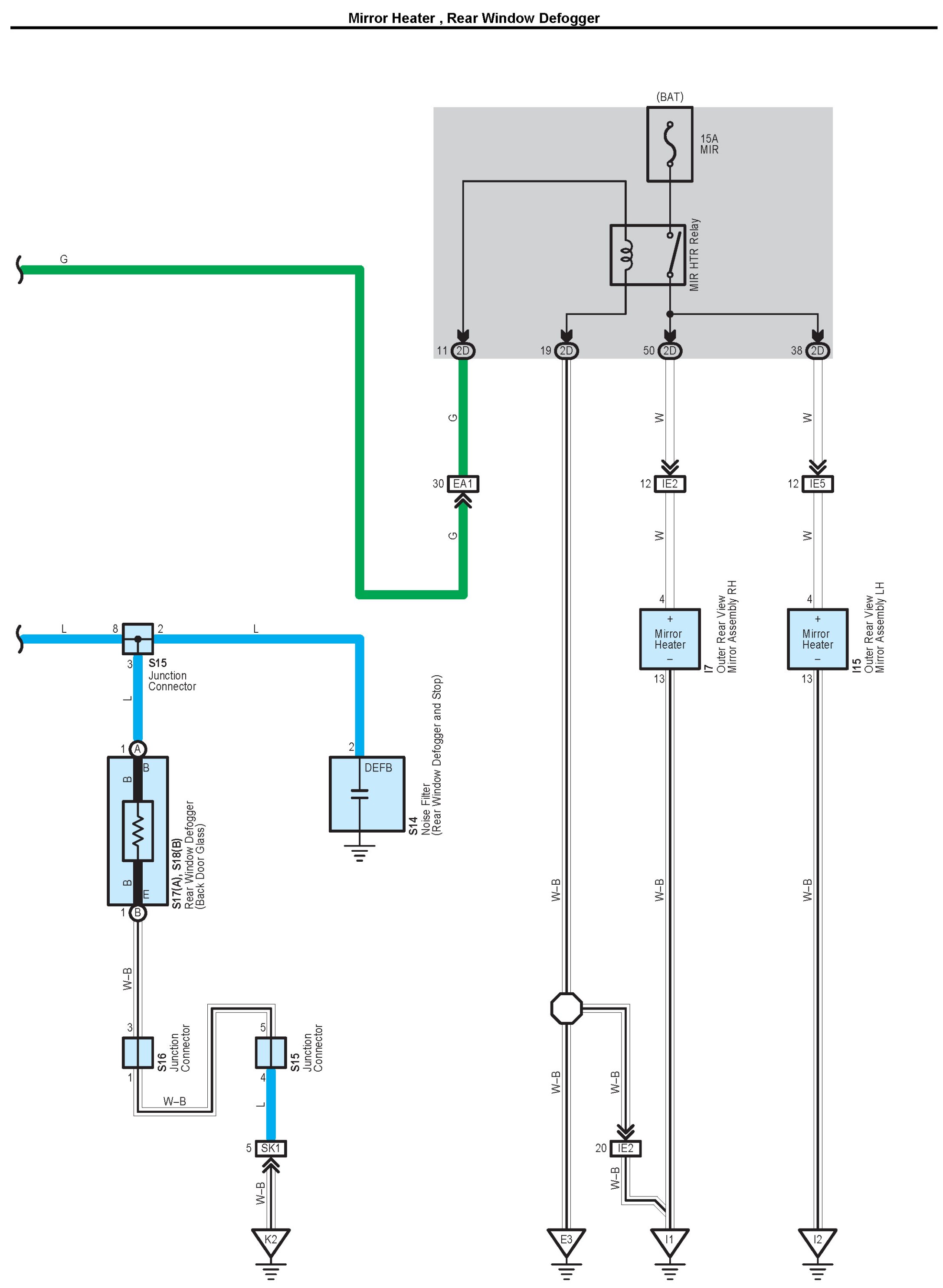

Mirror Heater, Rear Window Defogger Part 2:

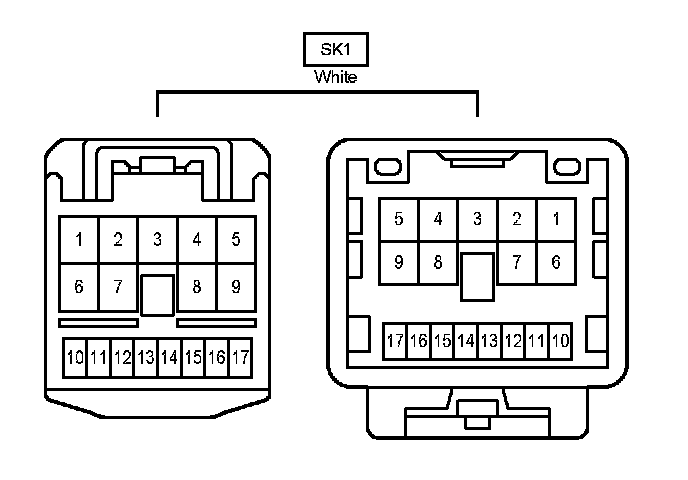

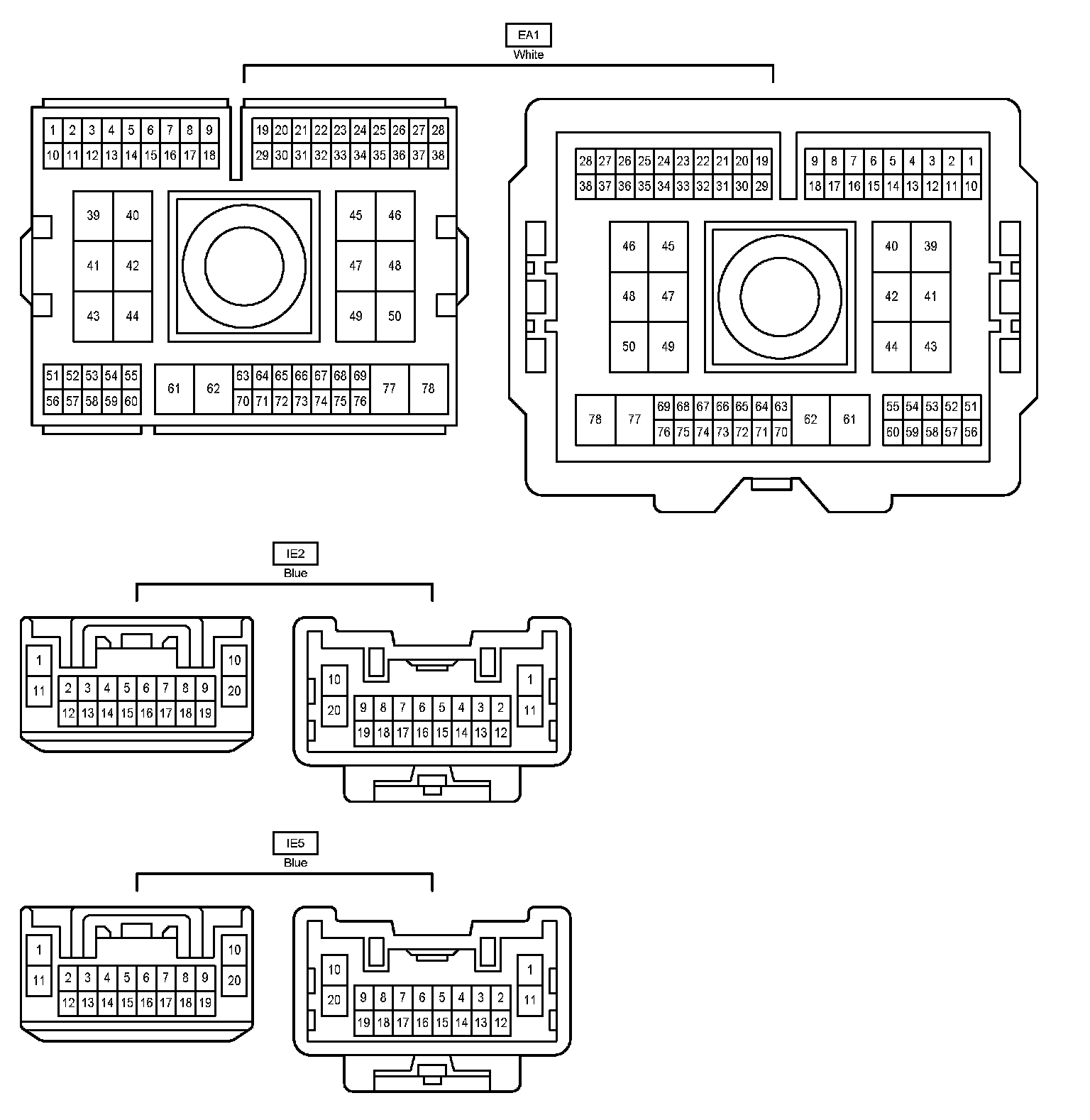

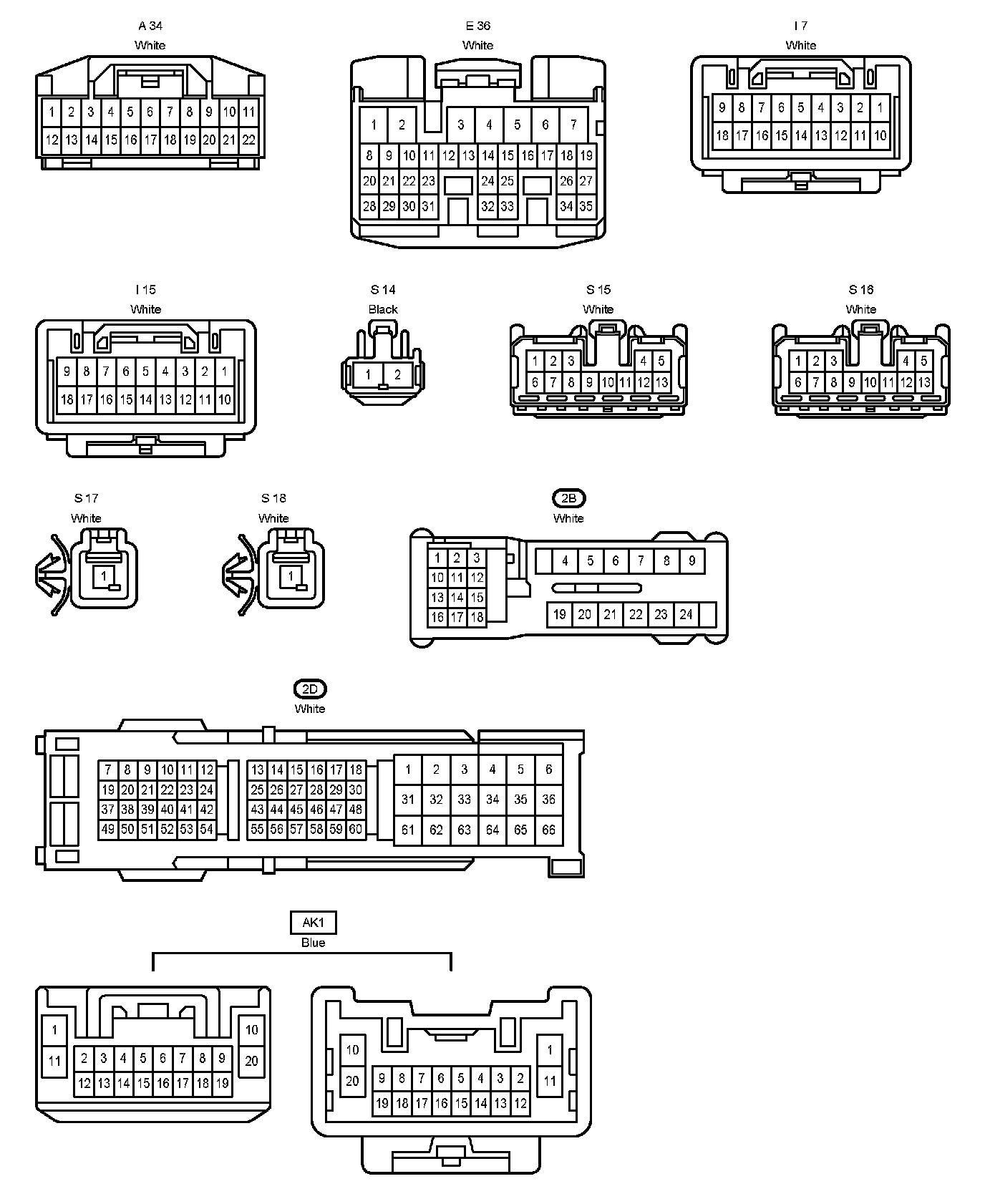

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
