System Diagram

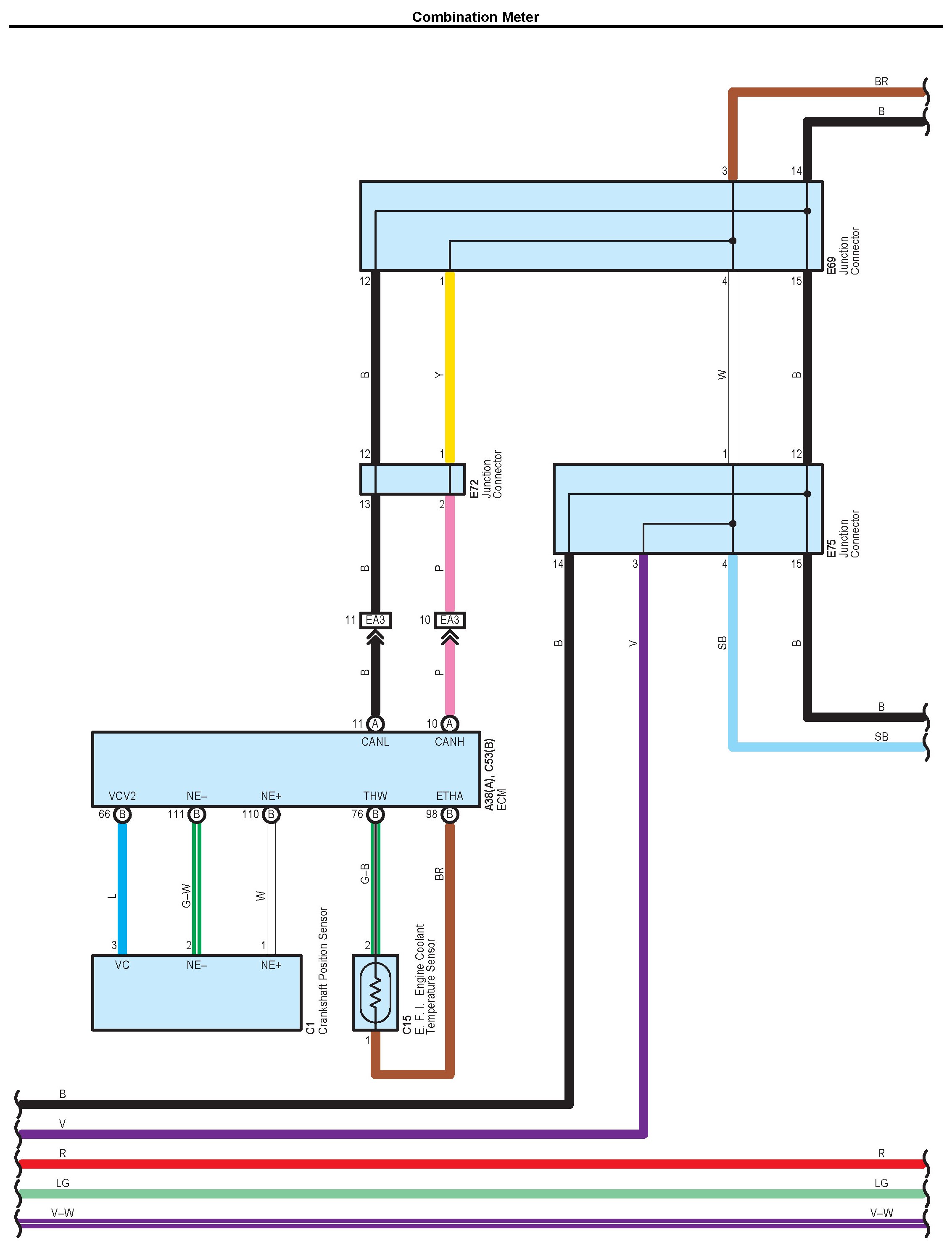

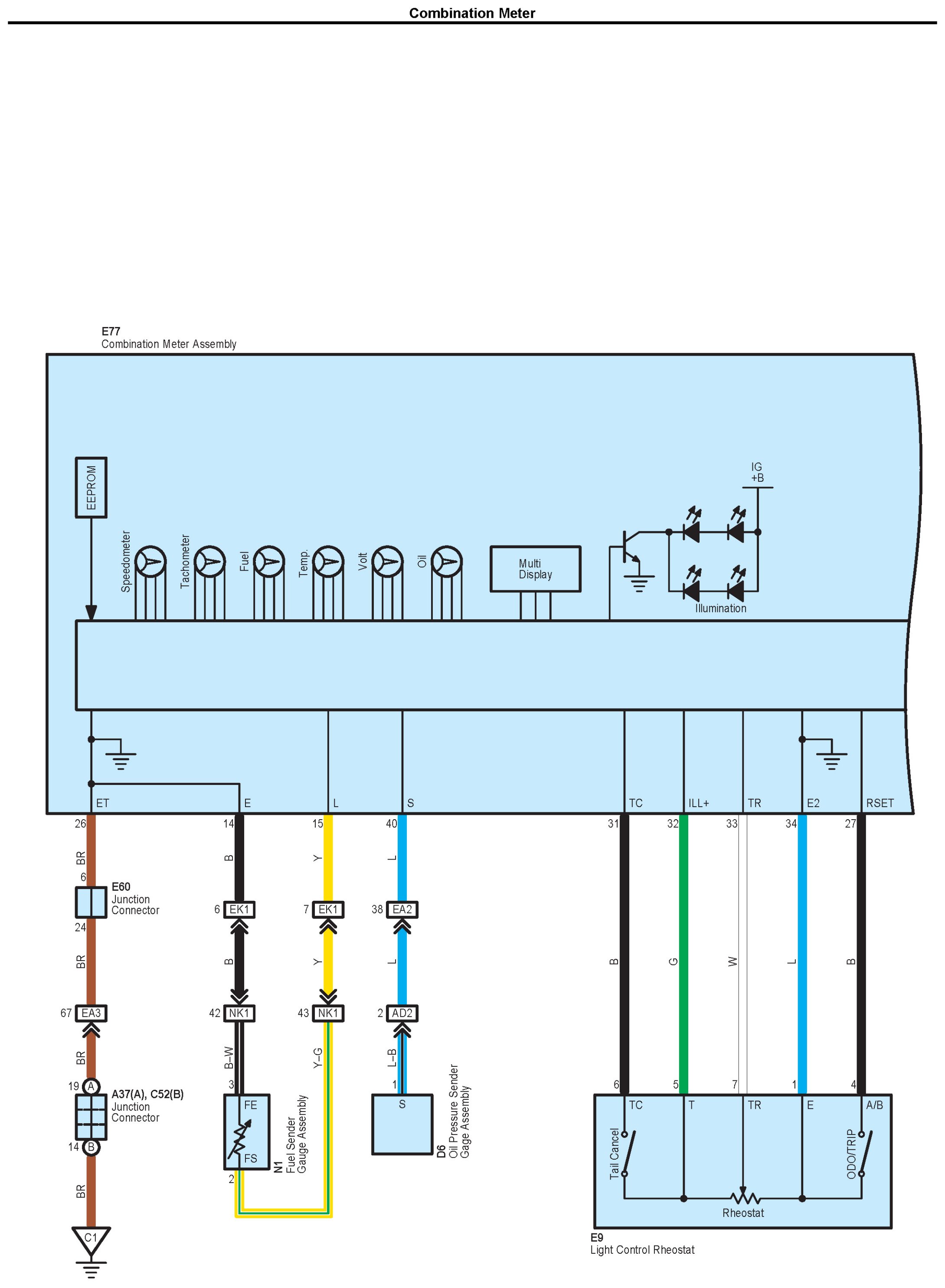

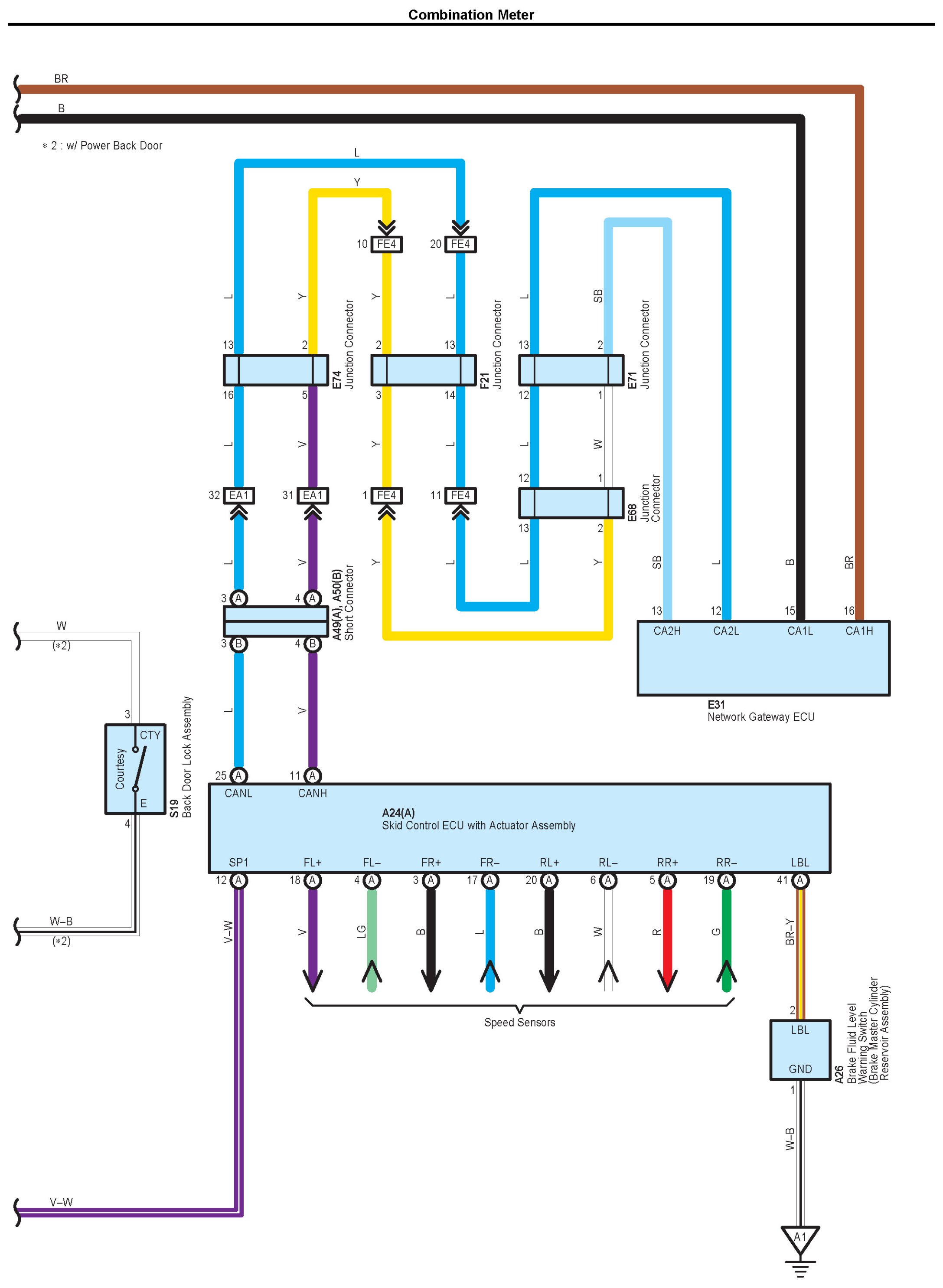

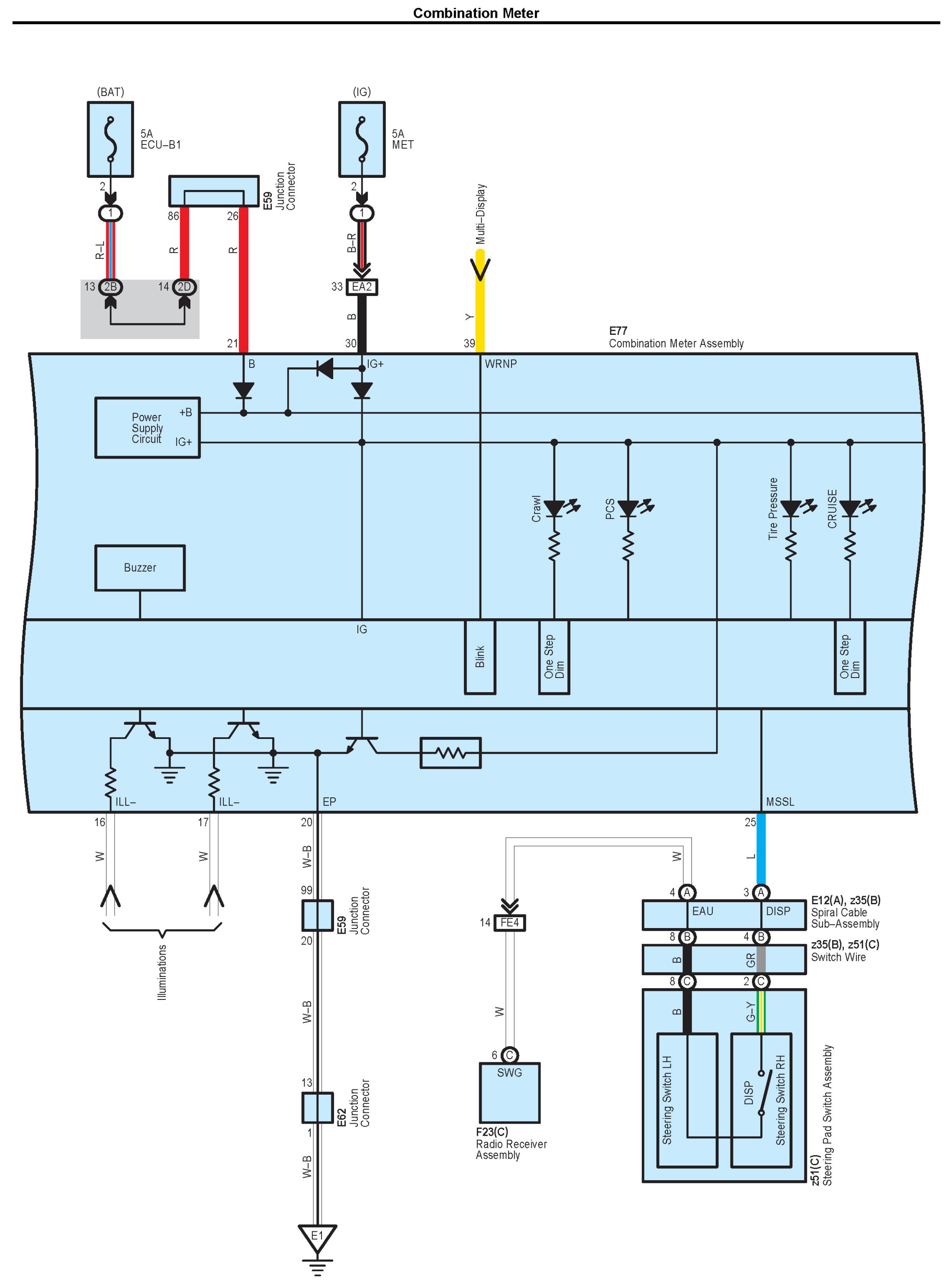

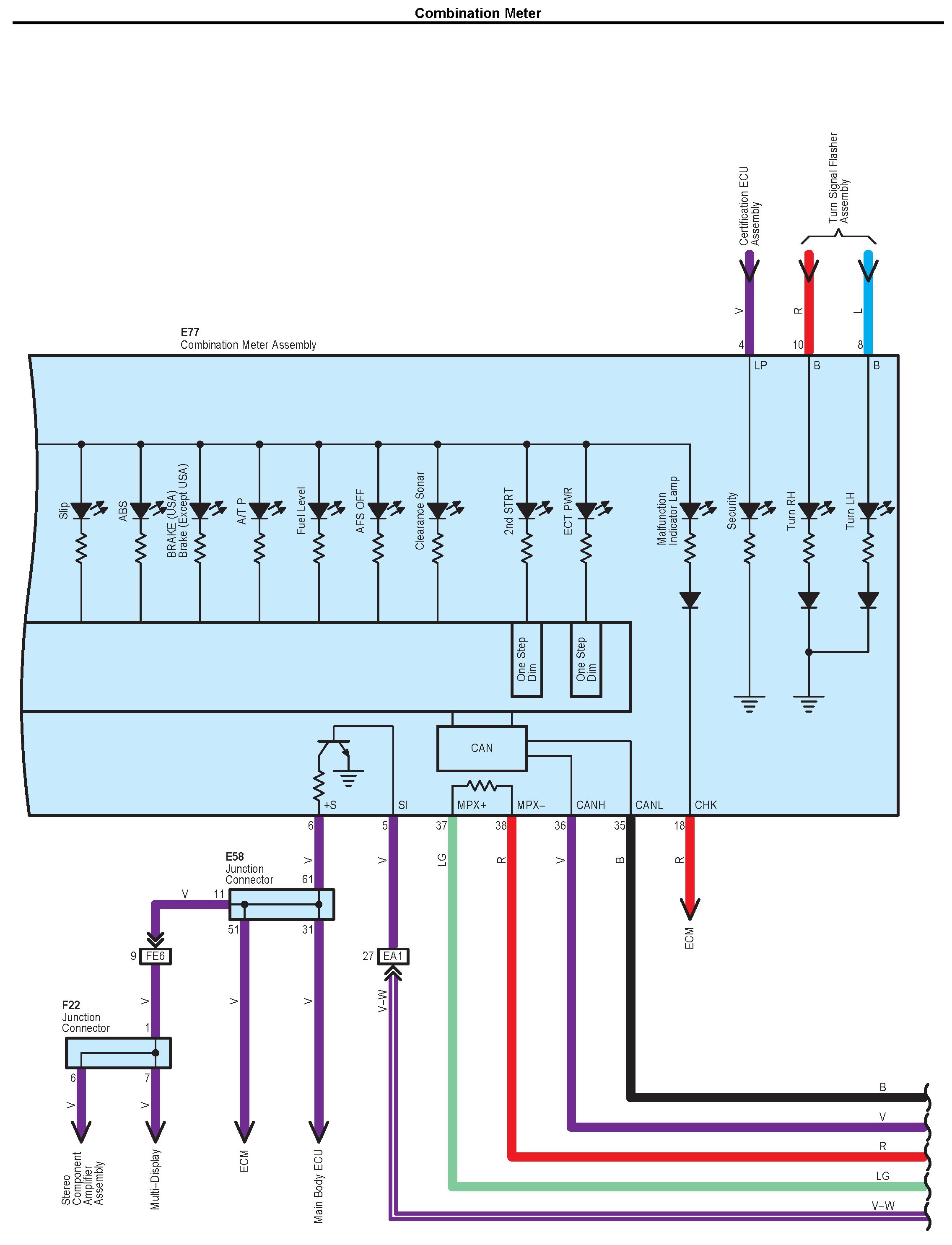

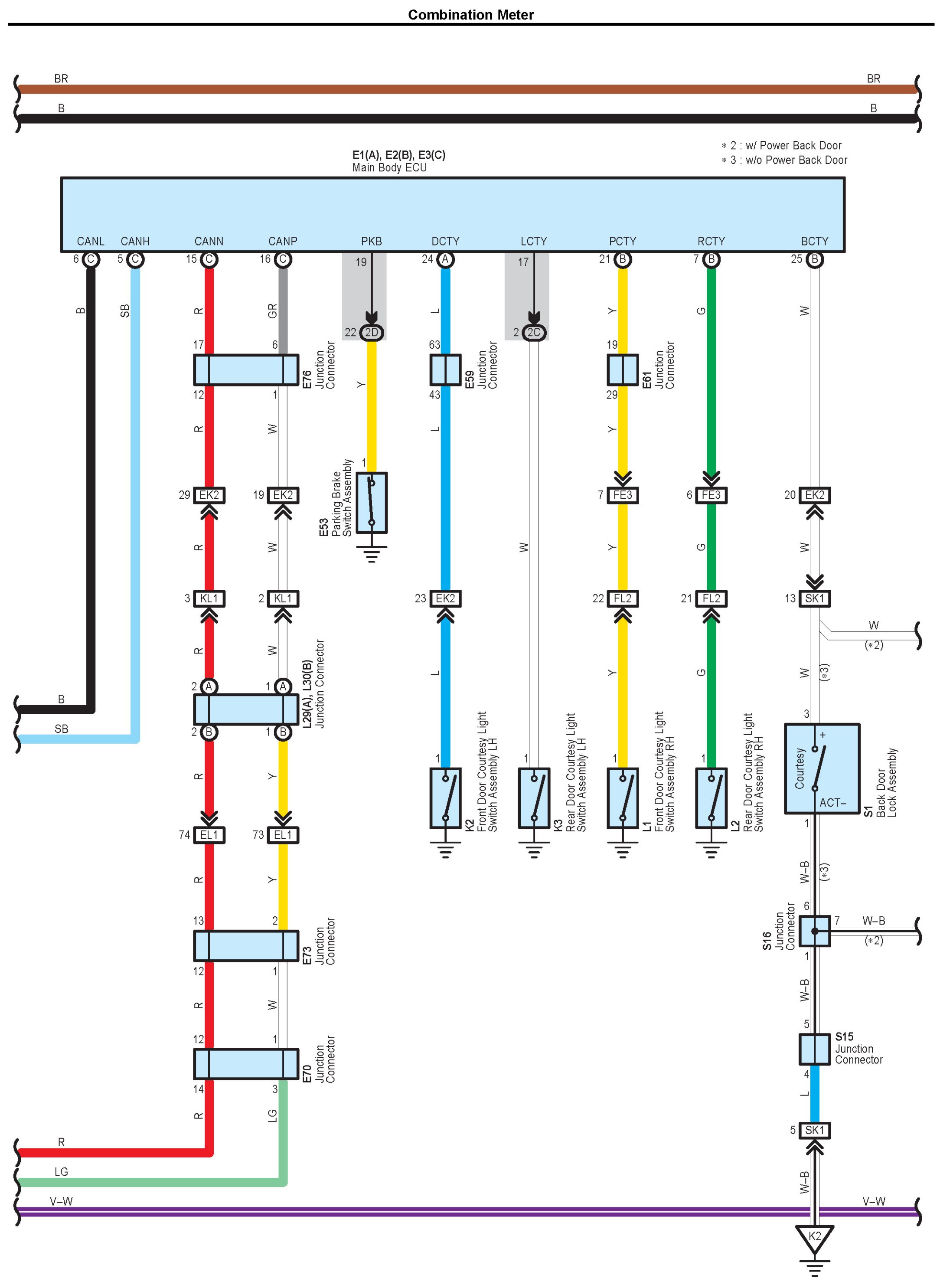

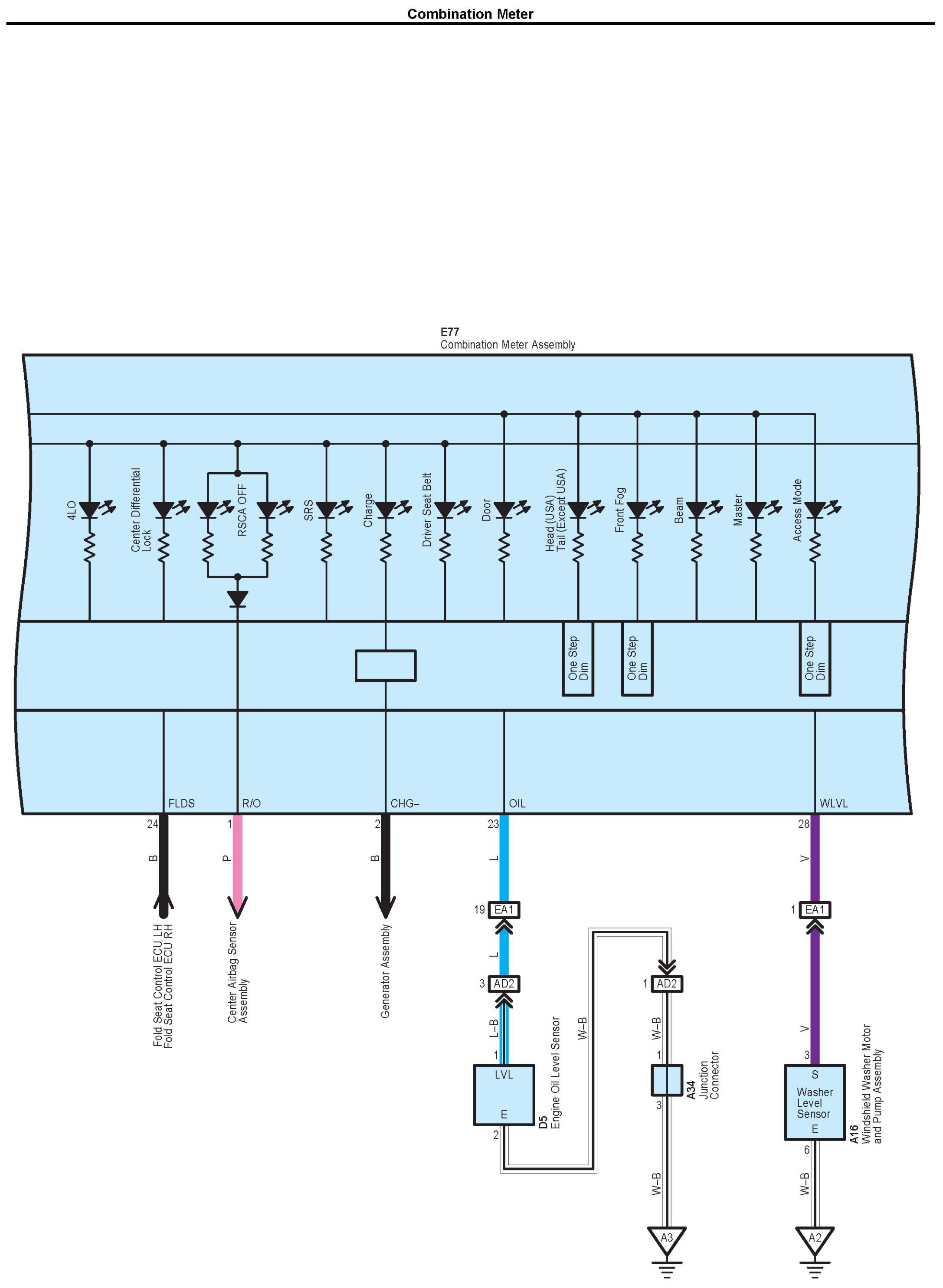

Combination Meter Part 1:

Combination Meter Part 2:

Combination Meter Part 3:

Combination Meter Part 4:

Combination Meter Part 5:

Combination Meter Part 6:

Combination Meter Part 7:

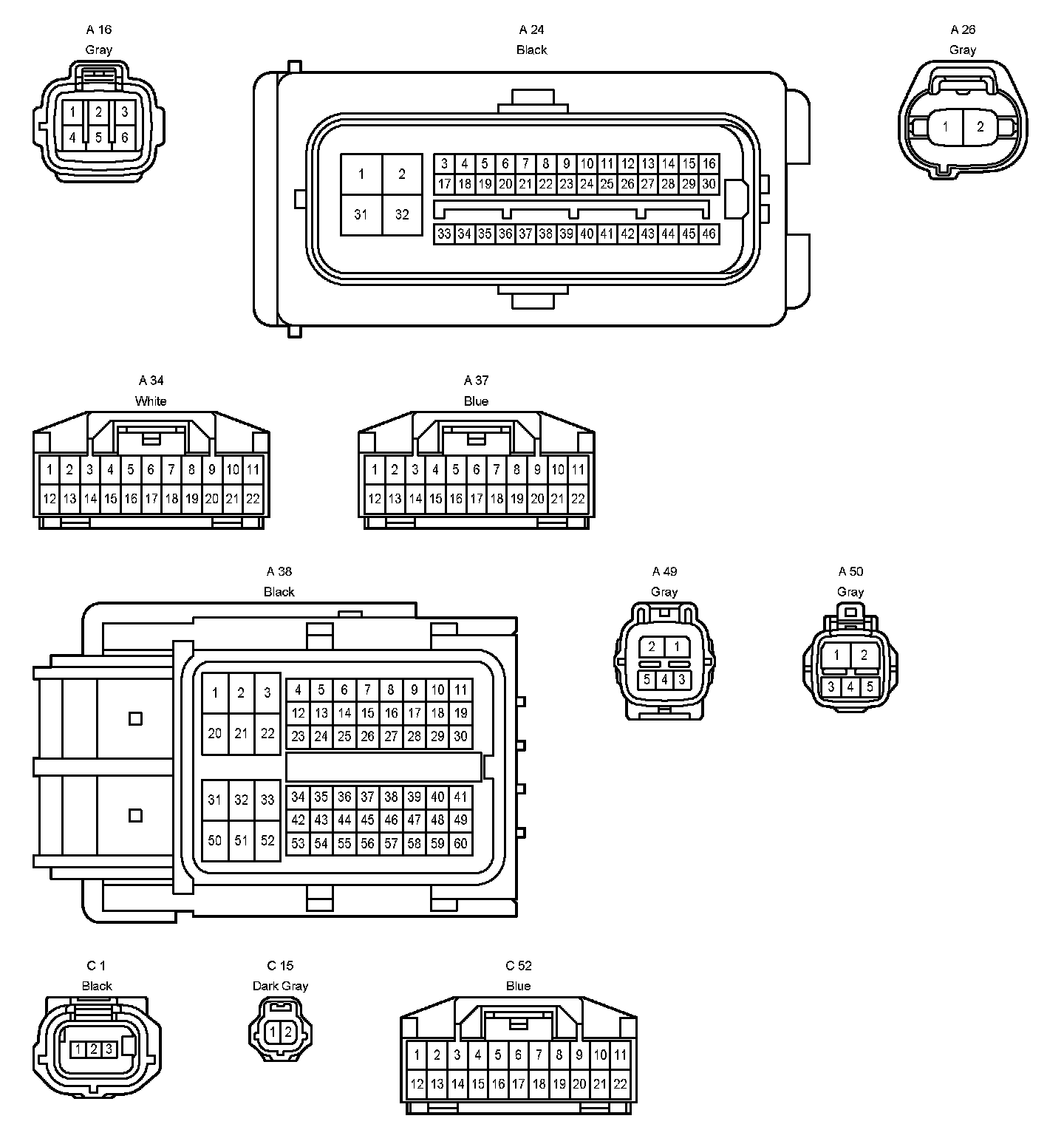

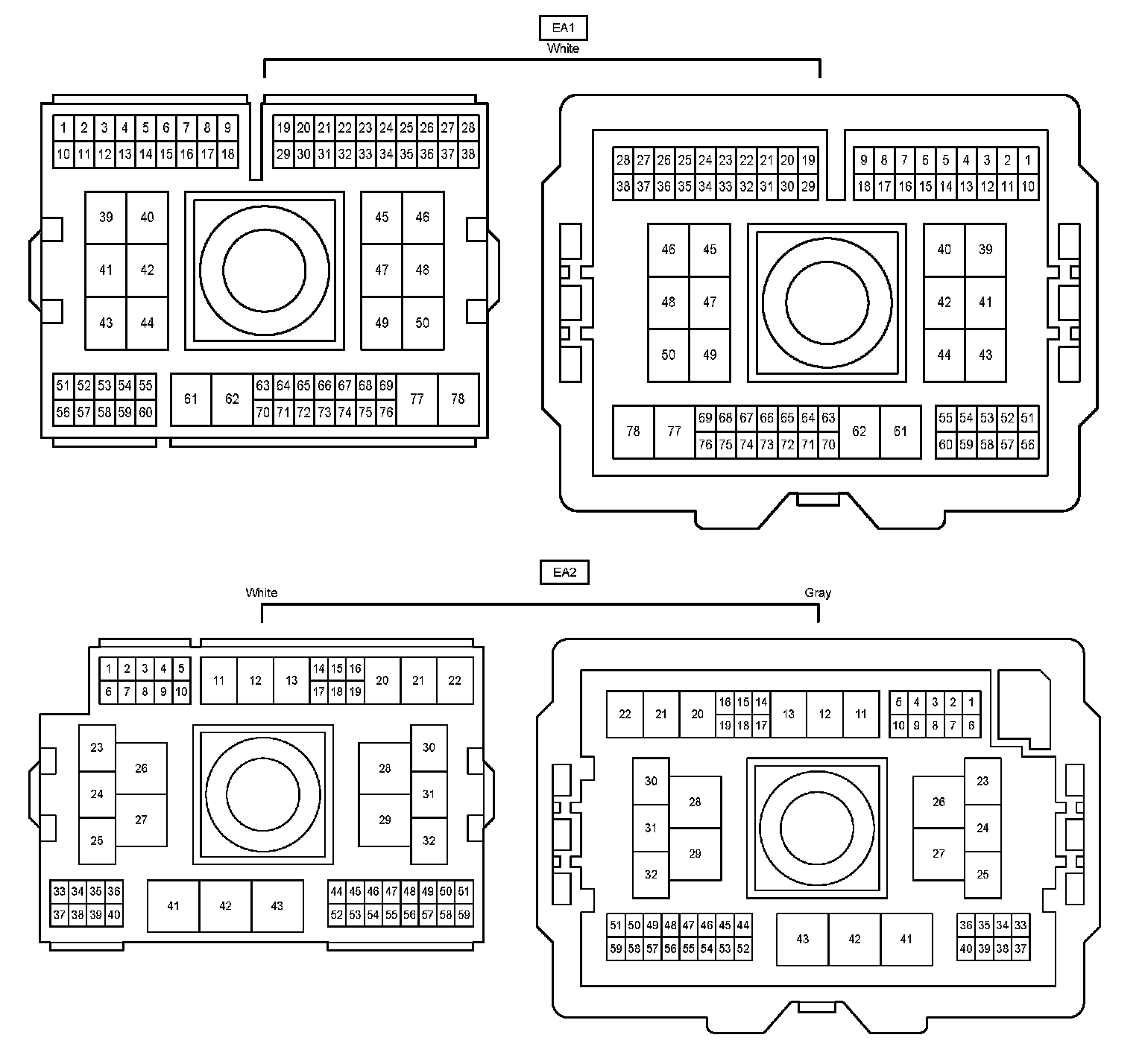

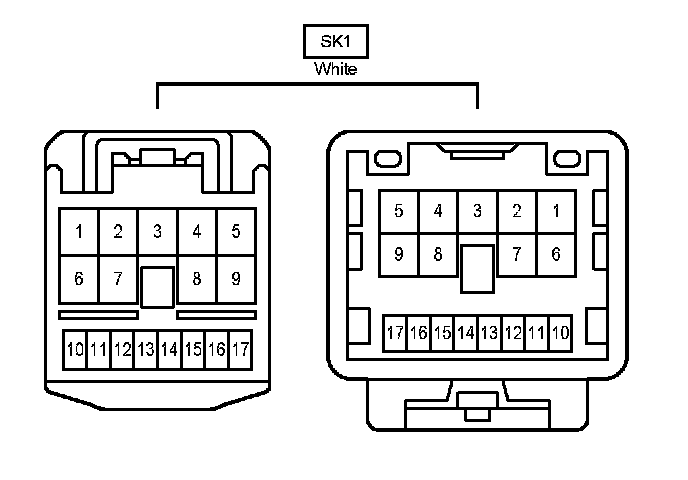

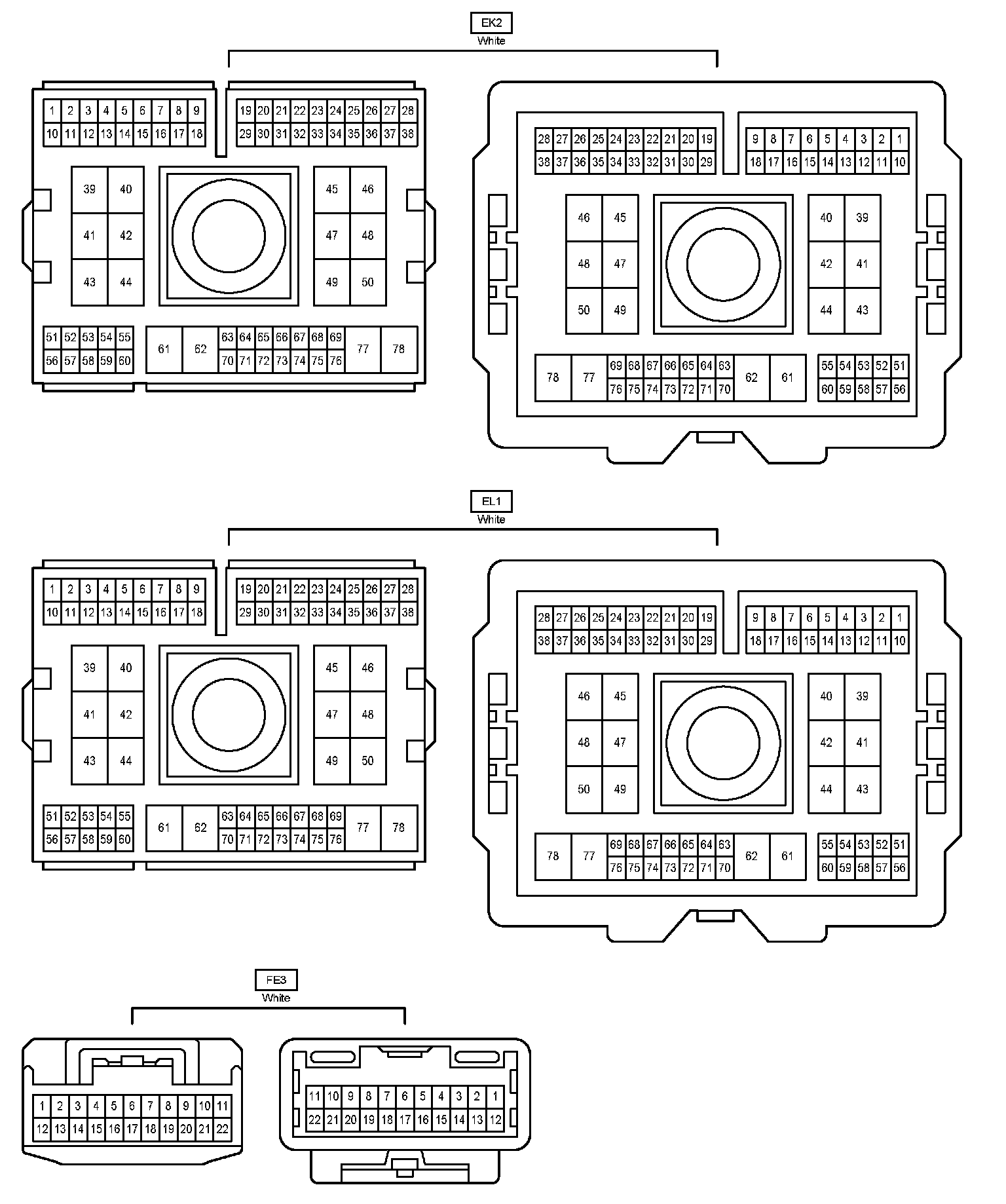

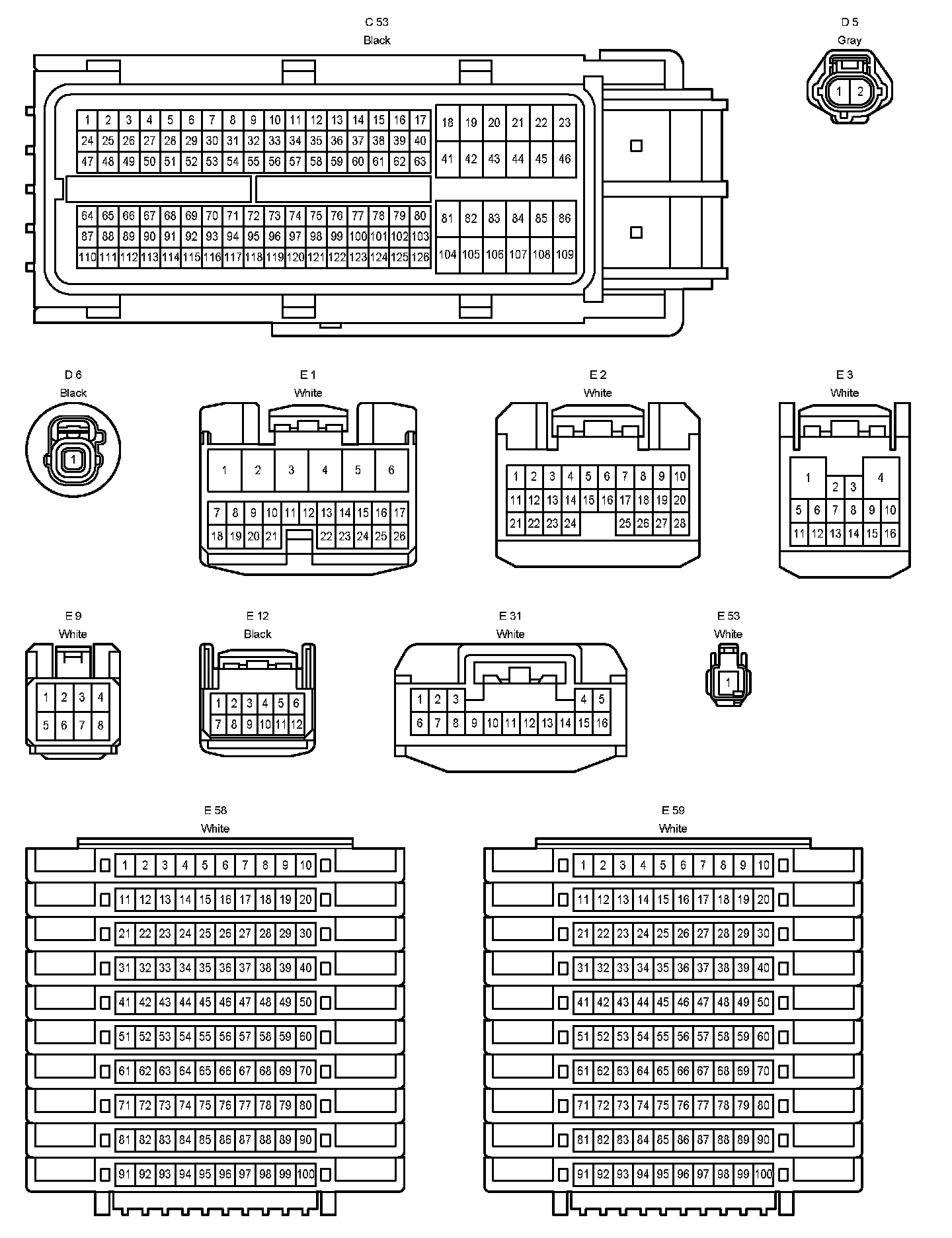

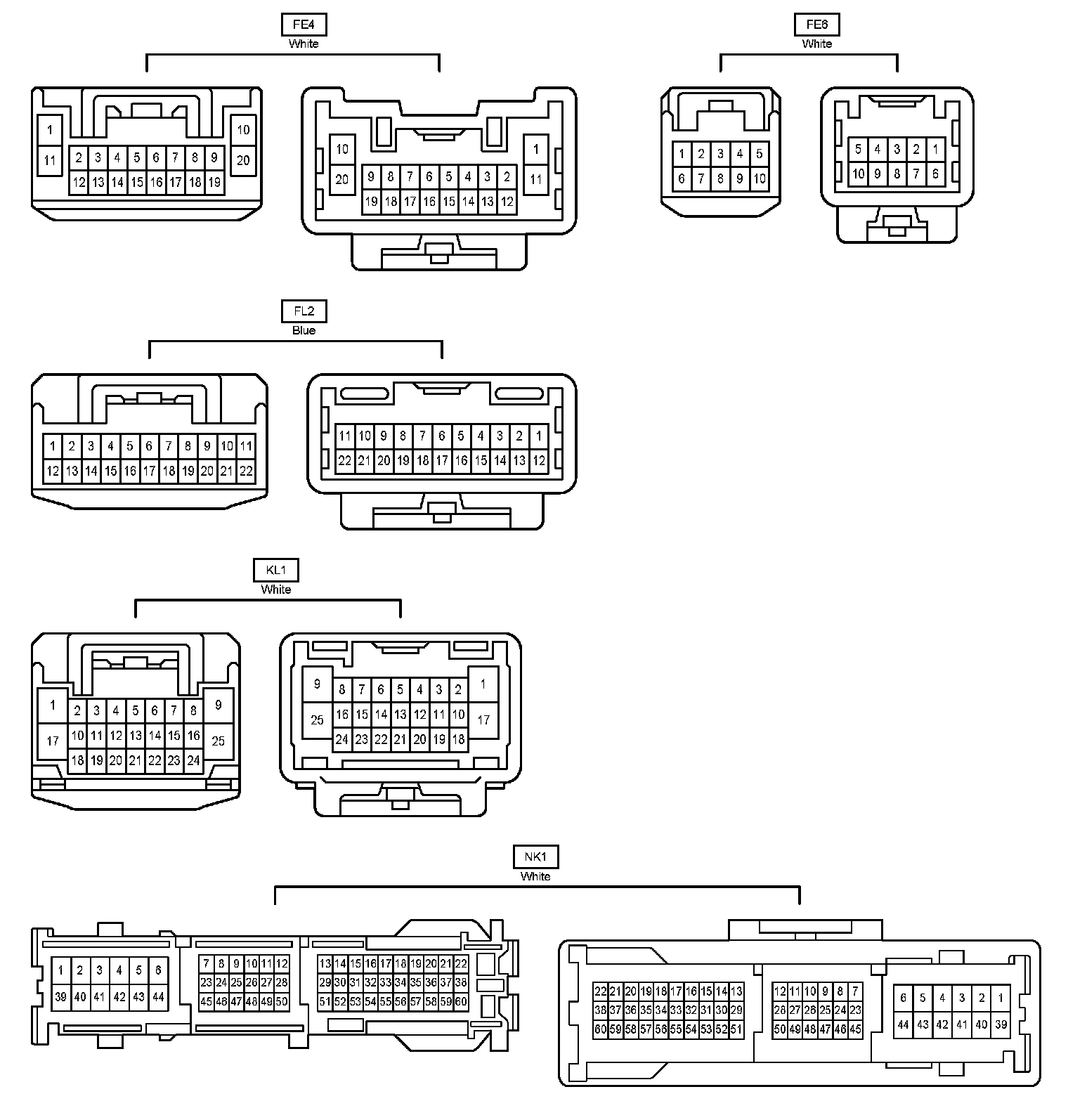

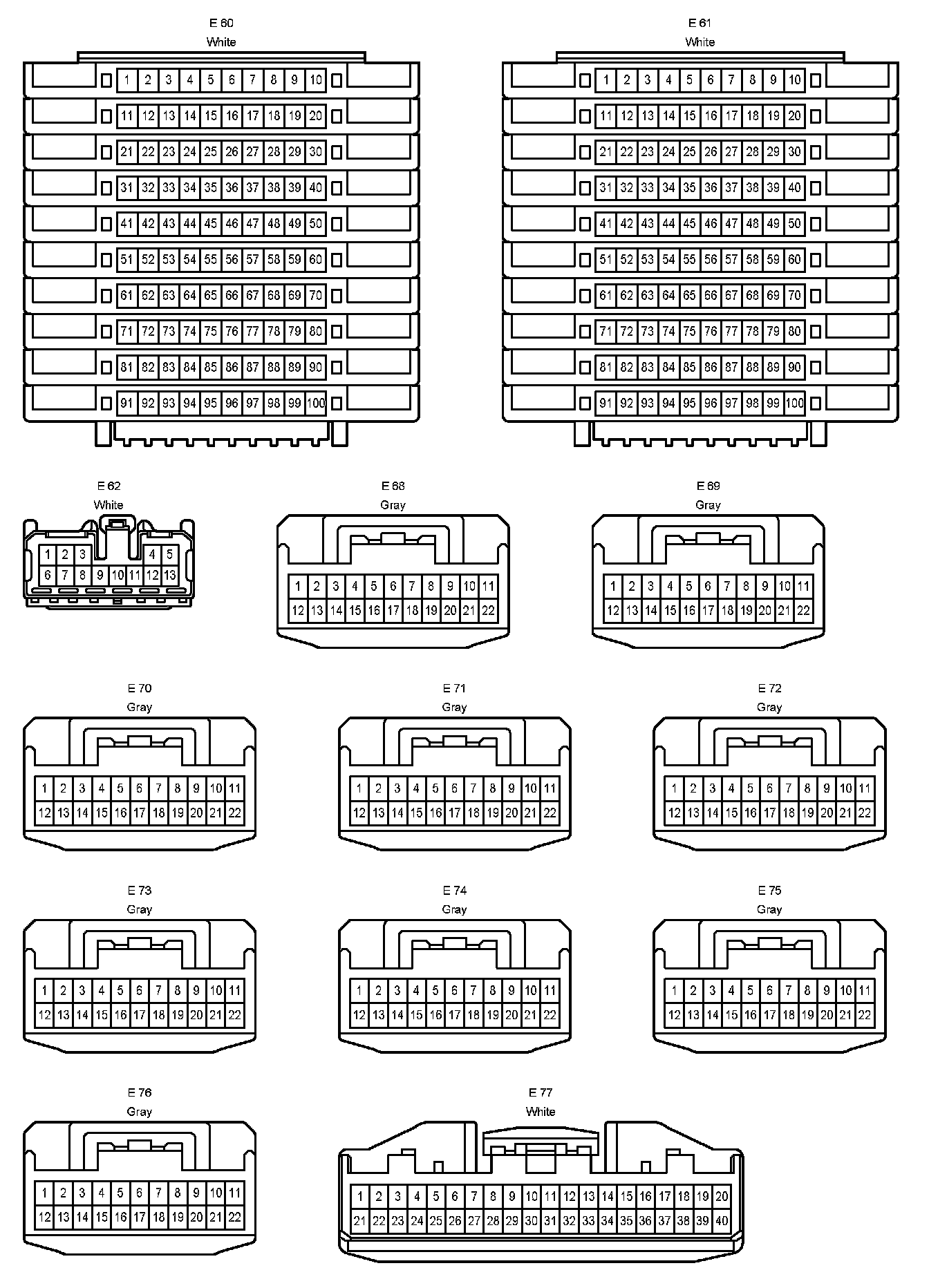

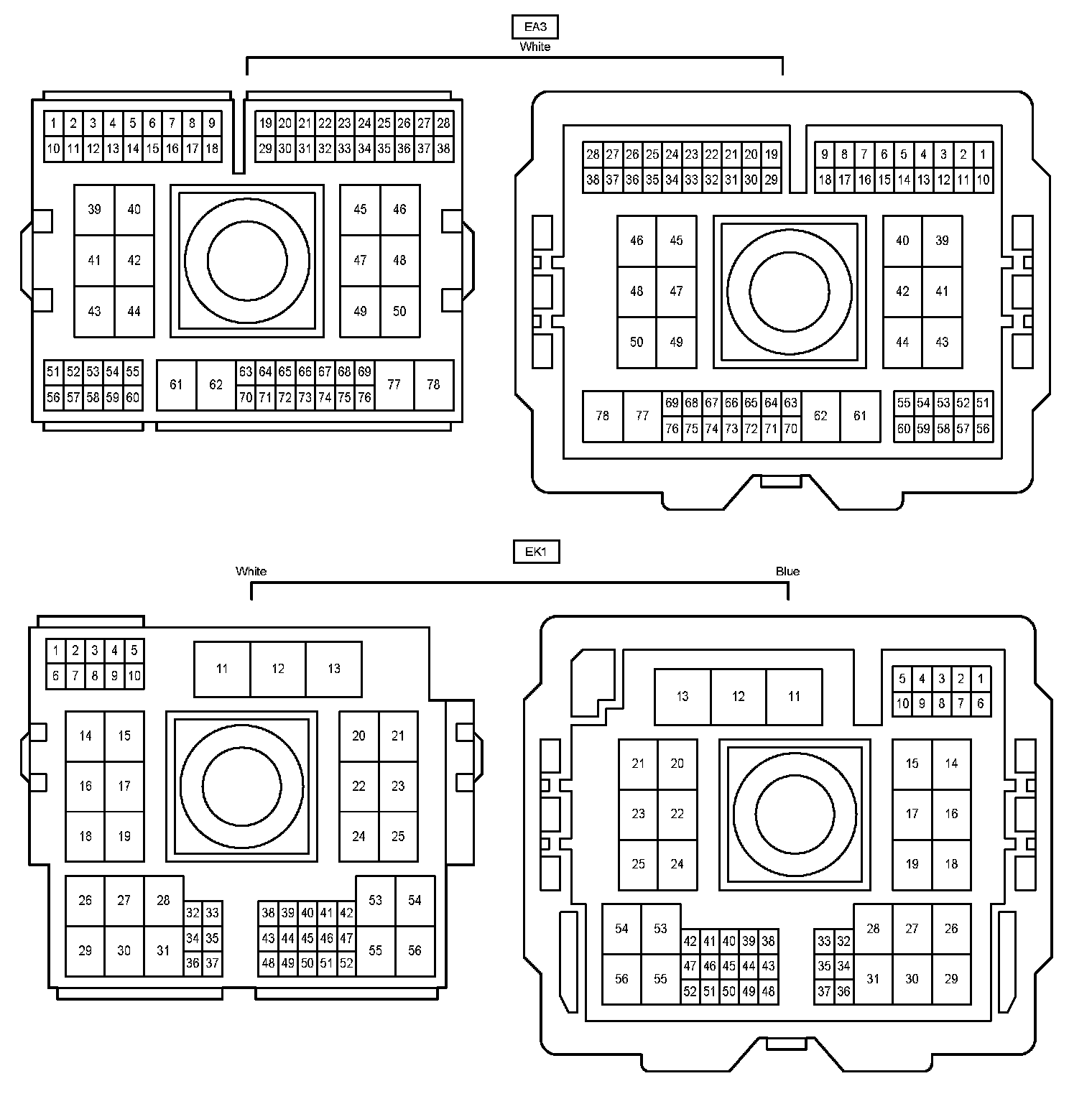

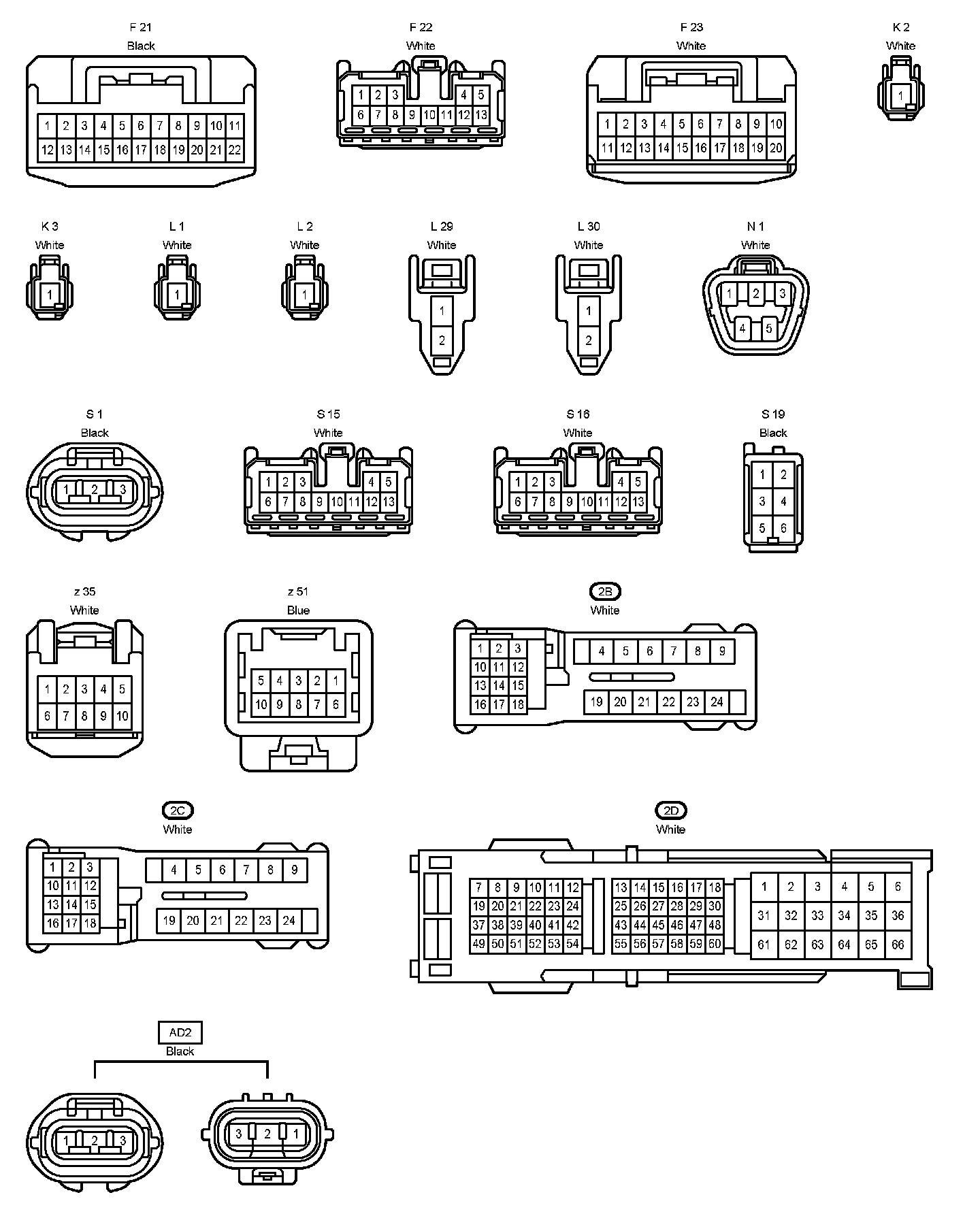

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Connector Pin Outs Part 8:

Connector Pin Outs Part 9:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
