Courtesy Lamp

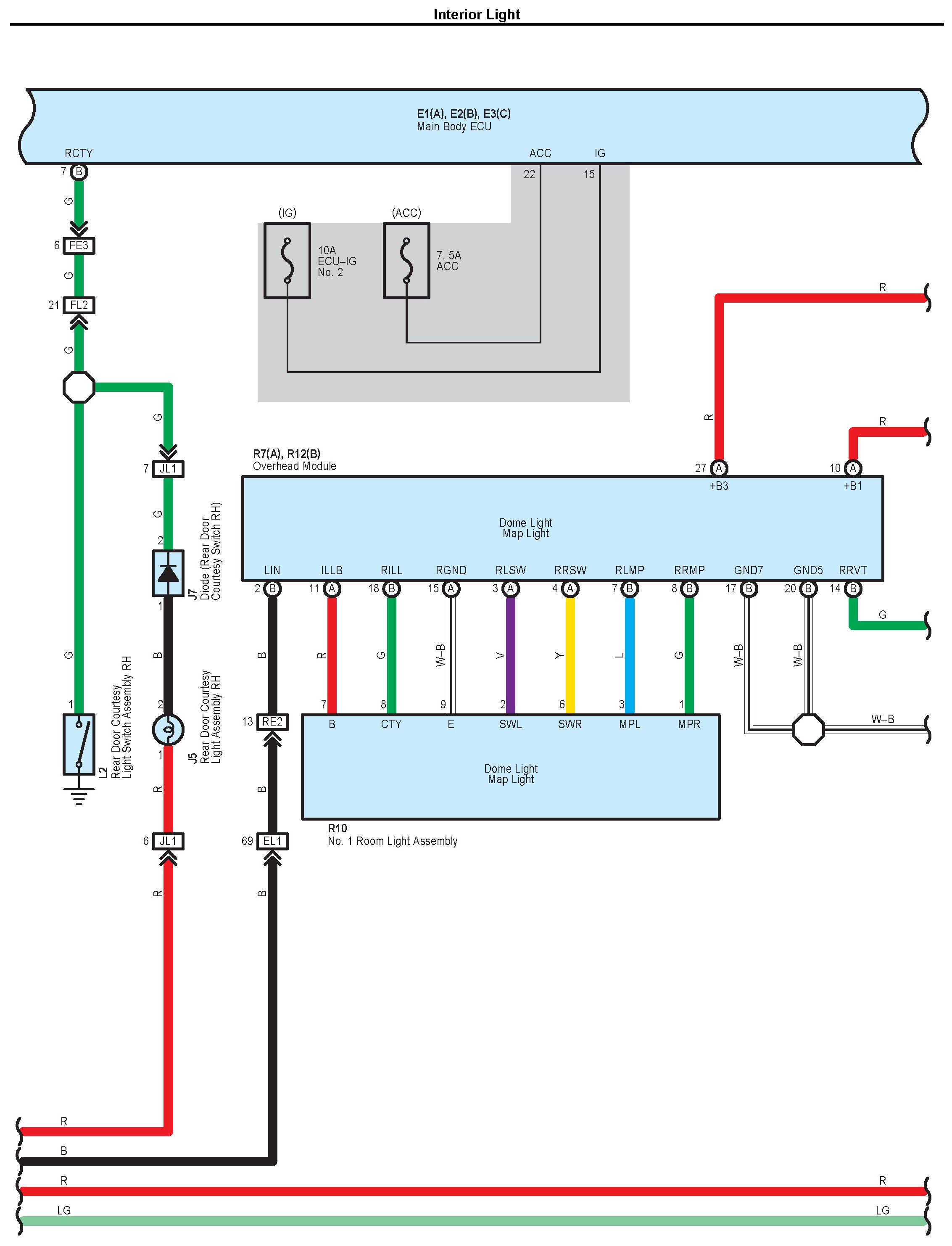

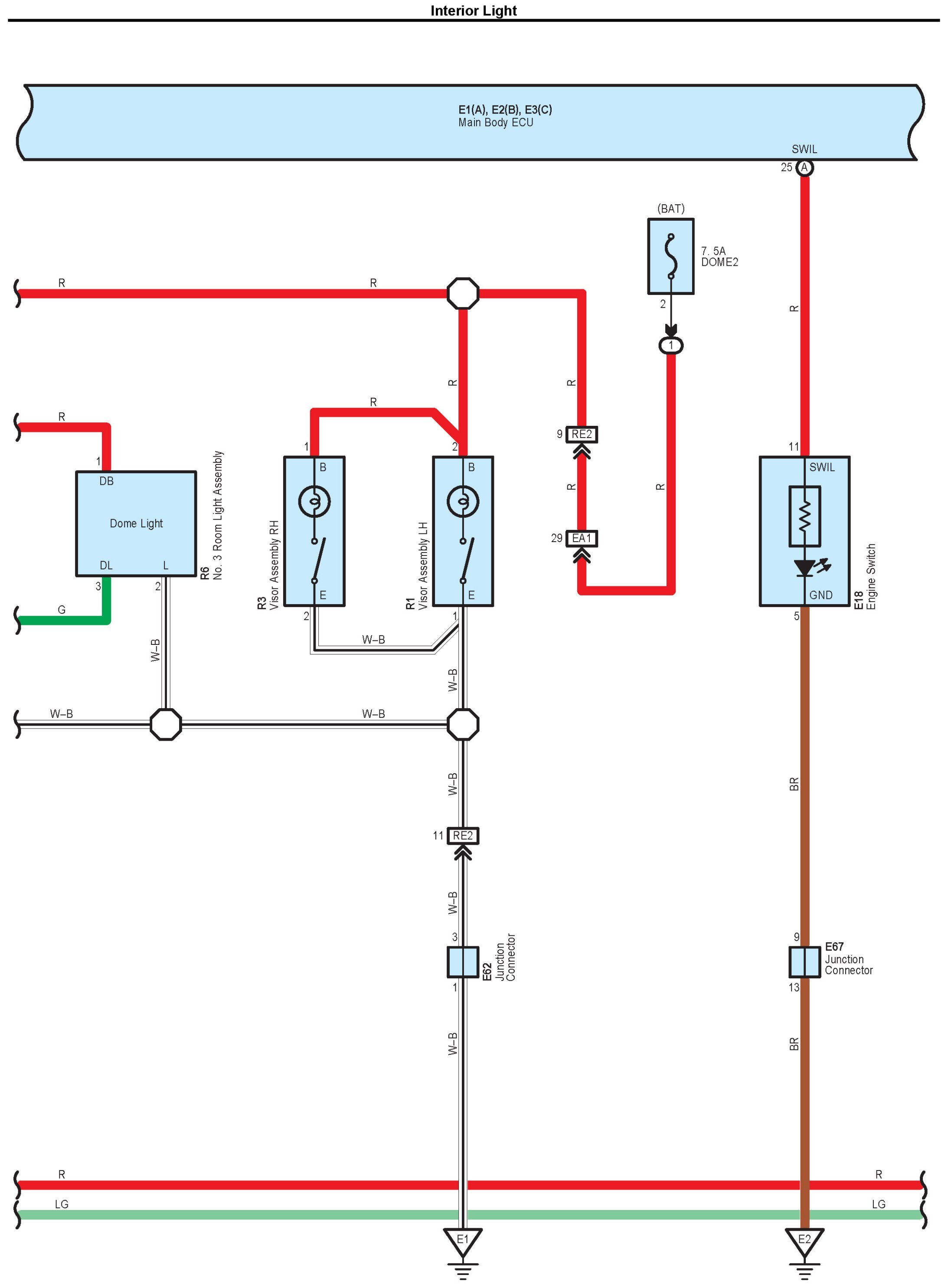

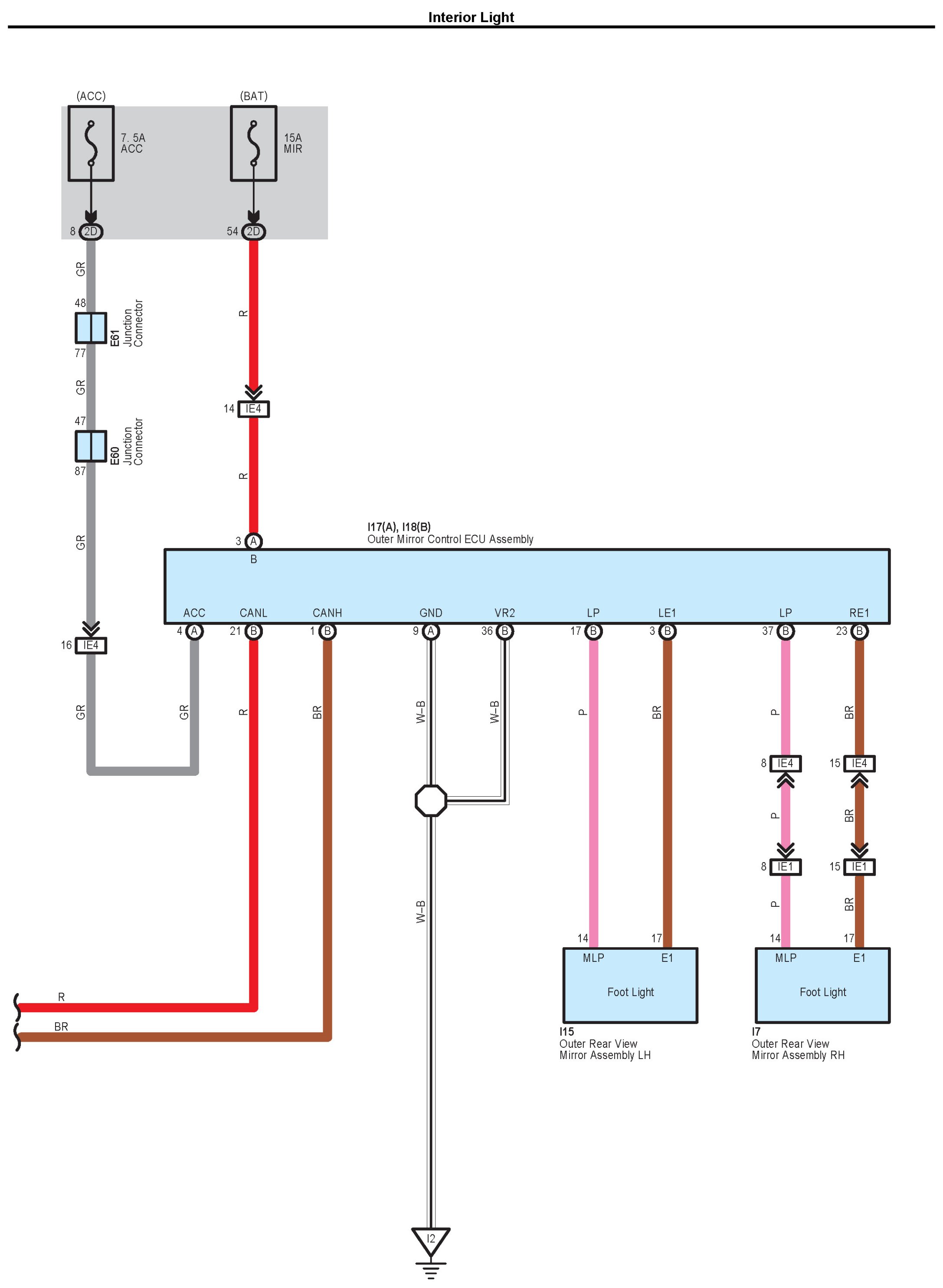

Interior Light Part 1:

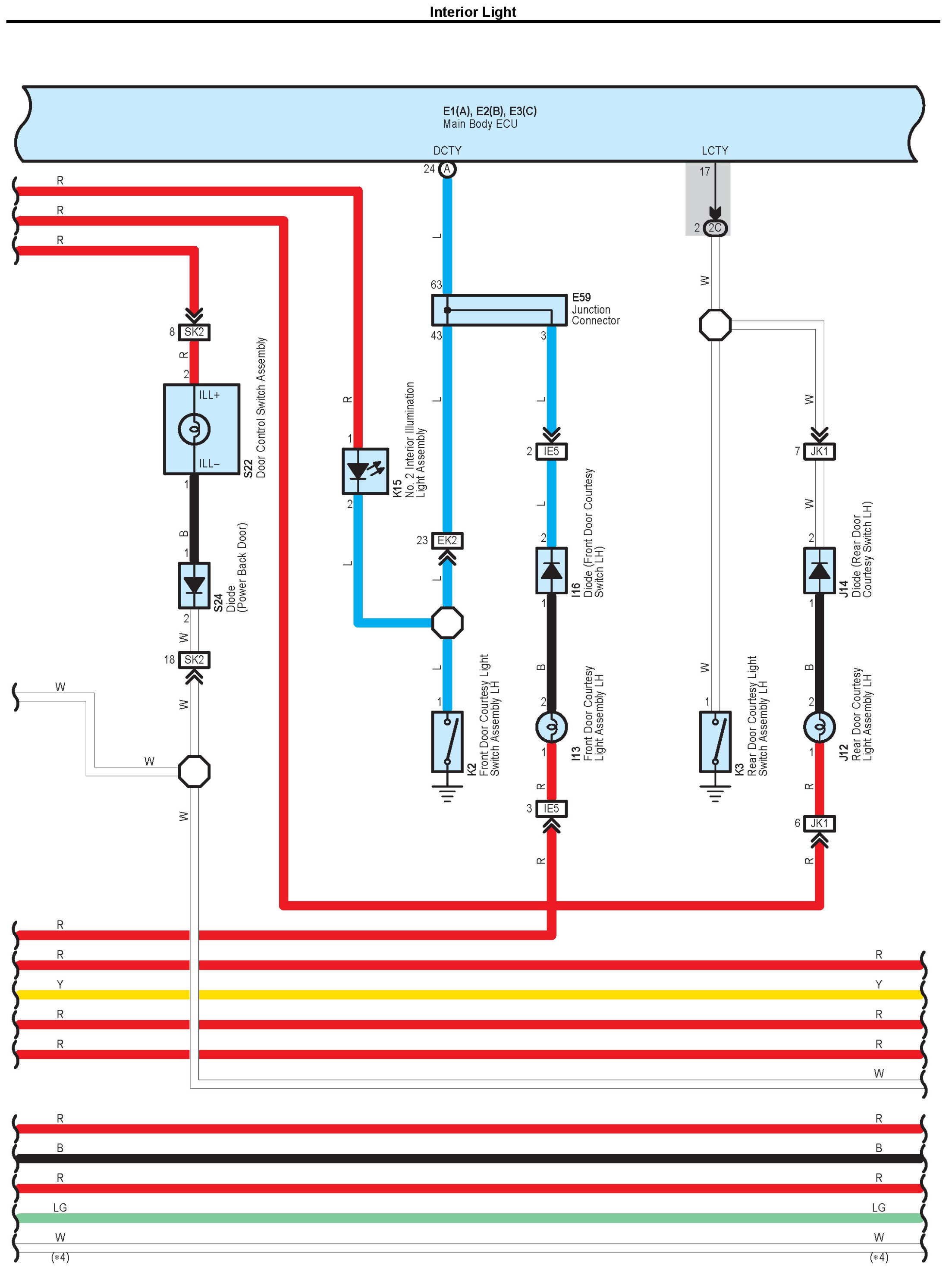

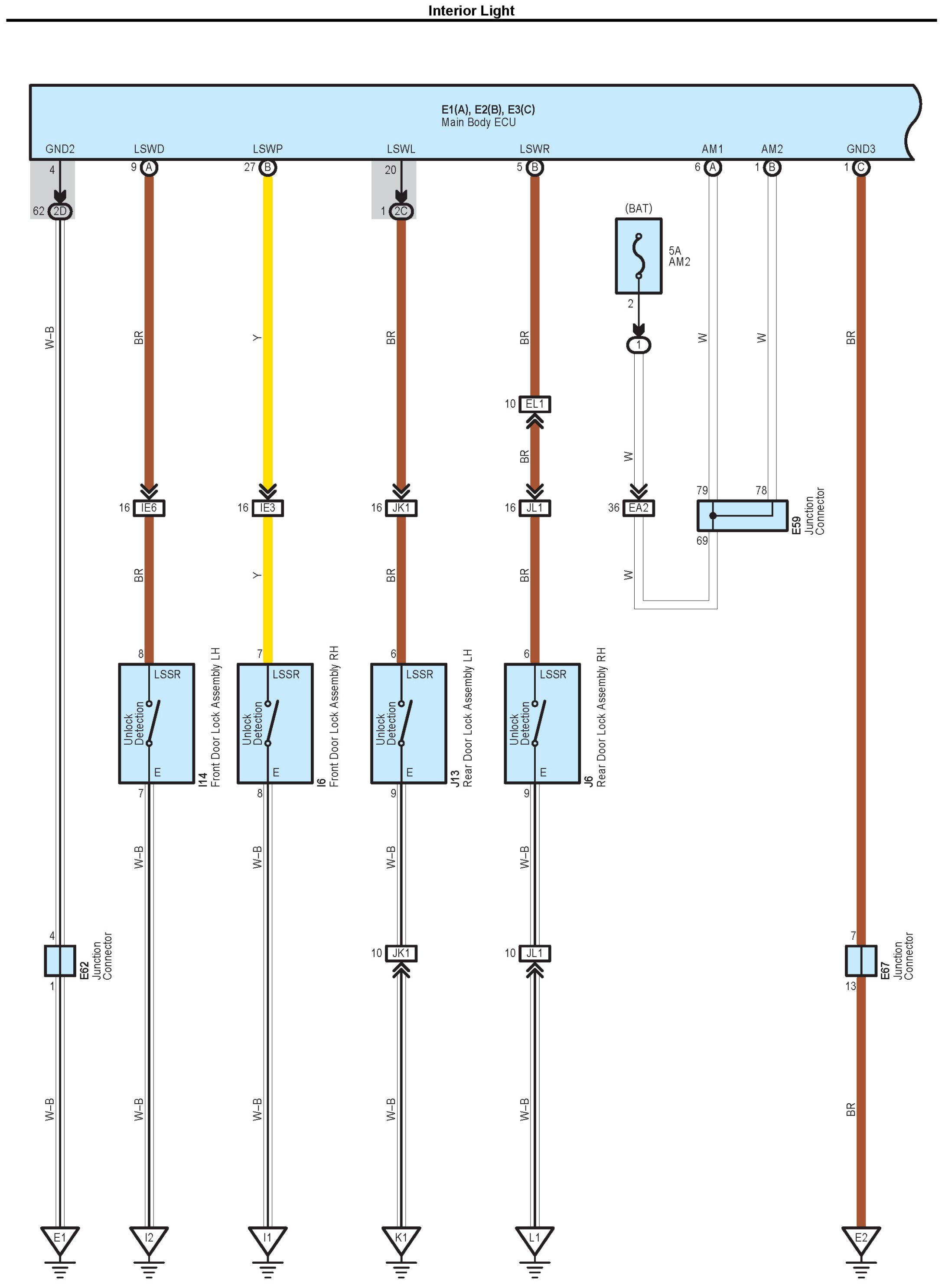

Interior Light Part 2:

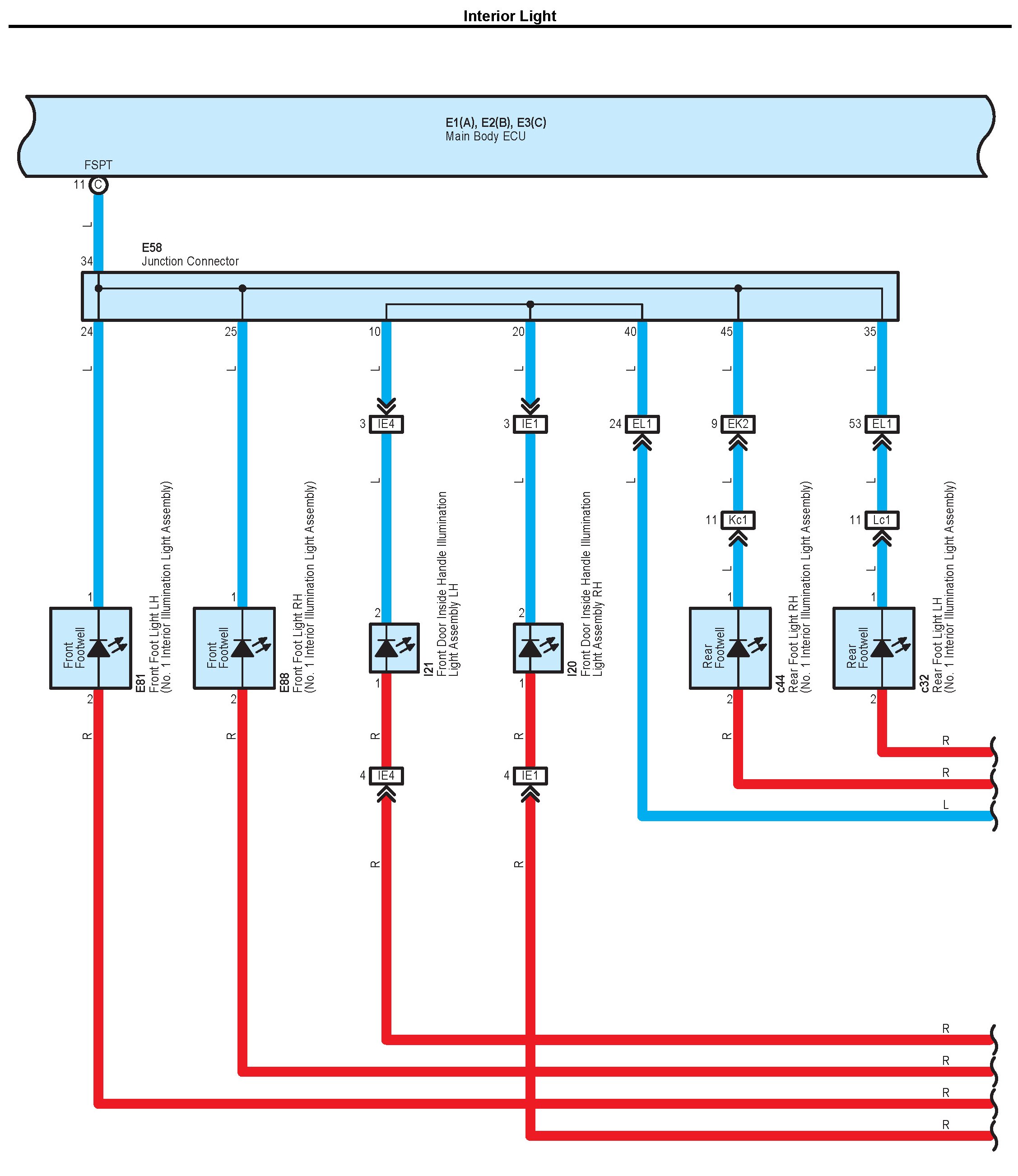

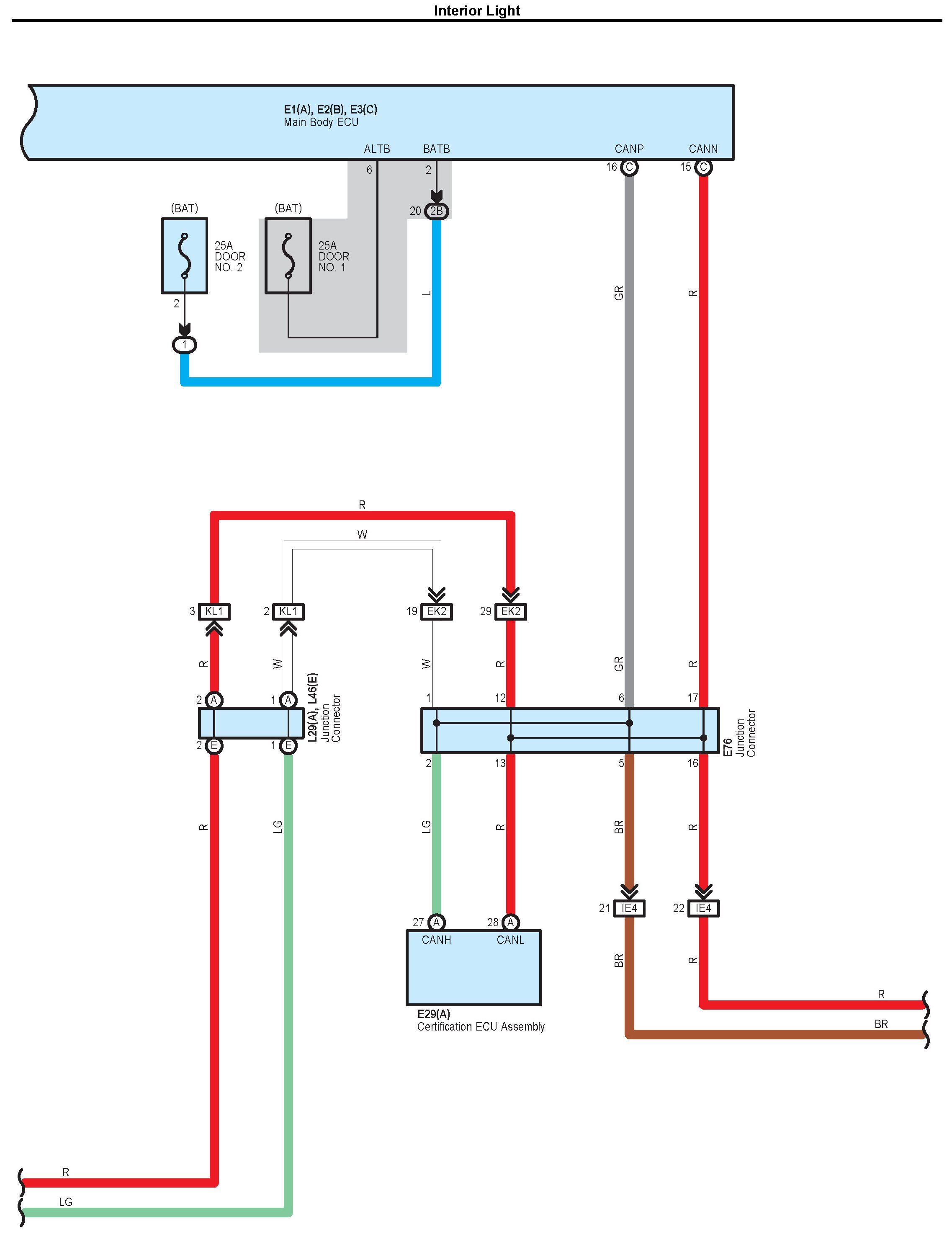

Interior Light Part 3:

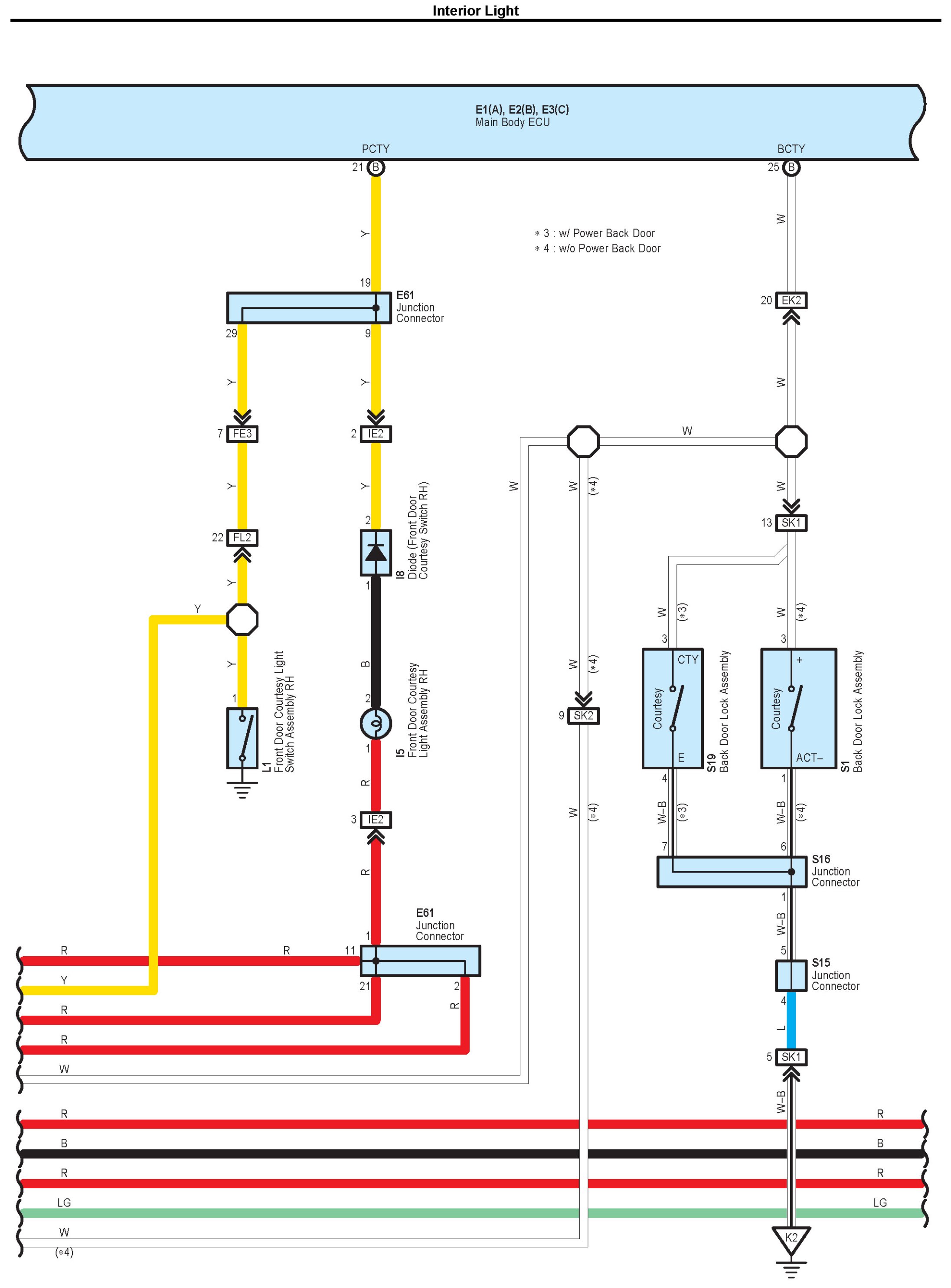

Interior Light Part 4:

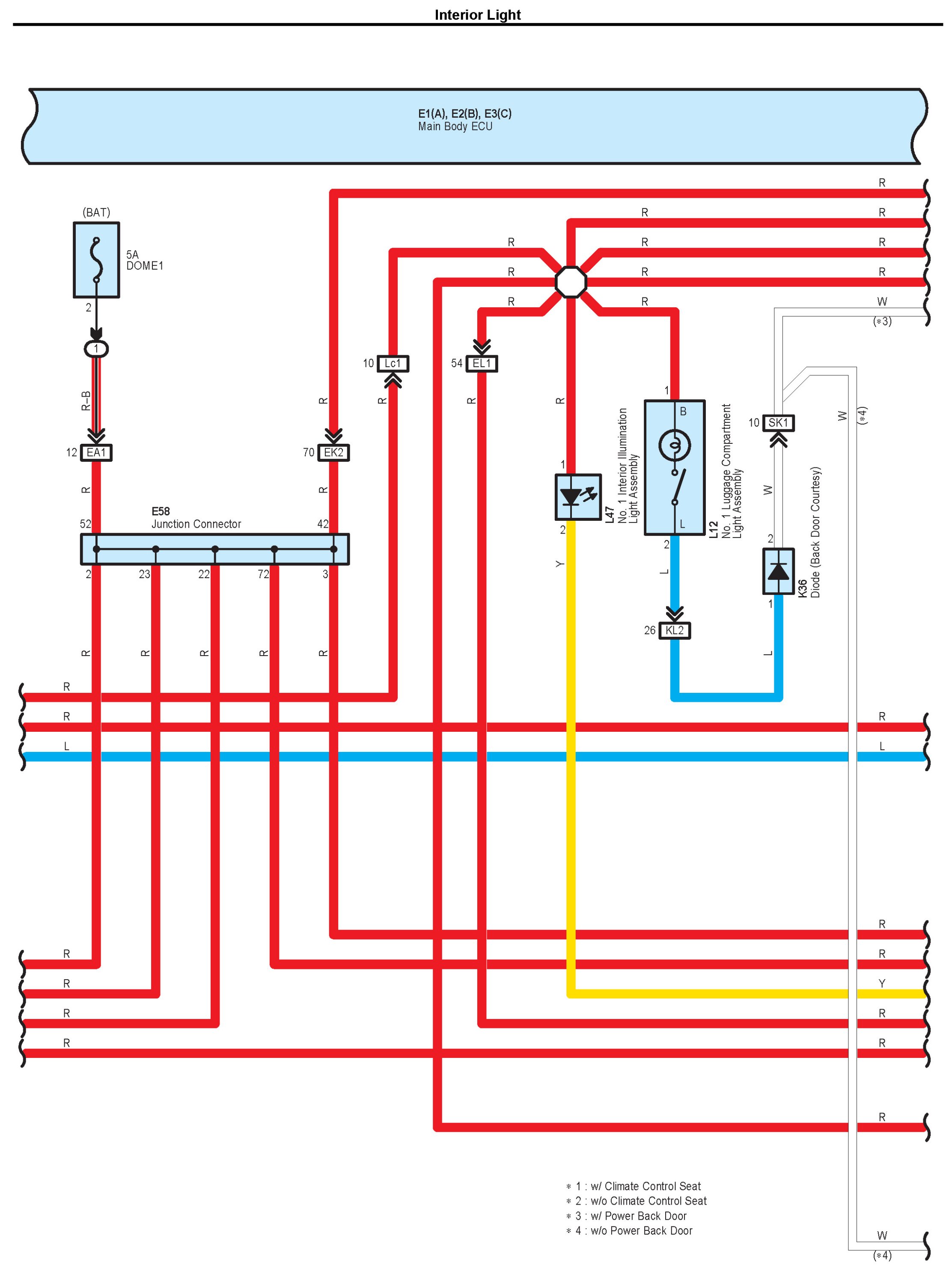

Interior Light Part 5:

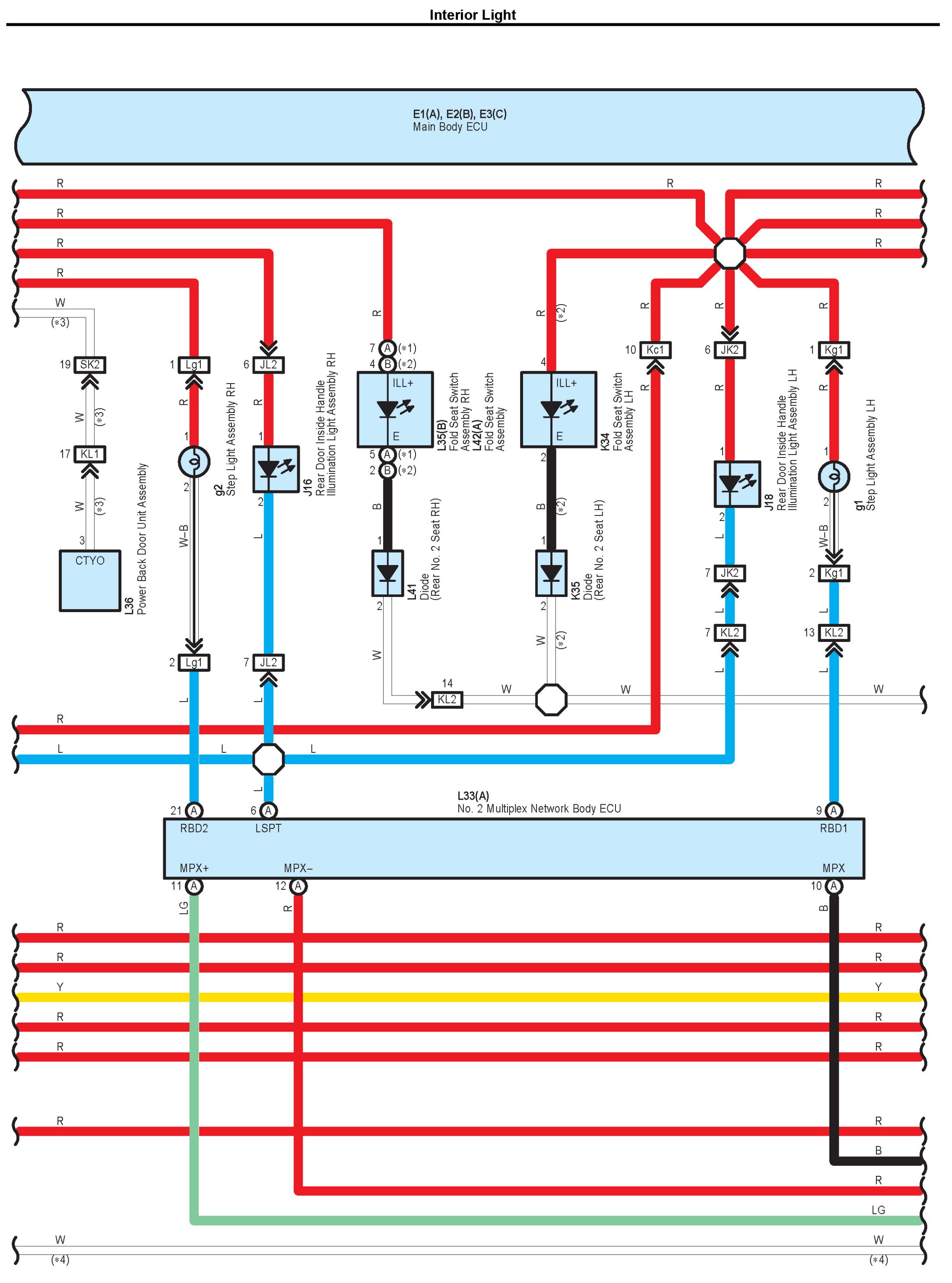

Interior Light Part 6:

Interior Light Part 7:

Interior Light Part 8:

Interior Light Part 9:

Interior Light Part 10:

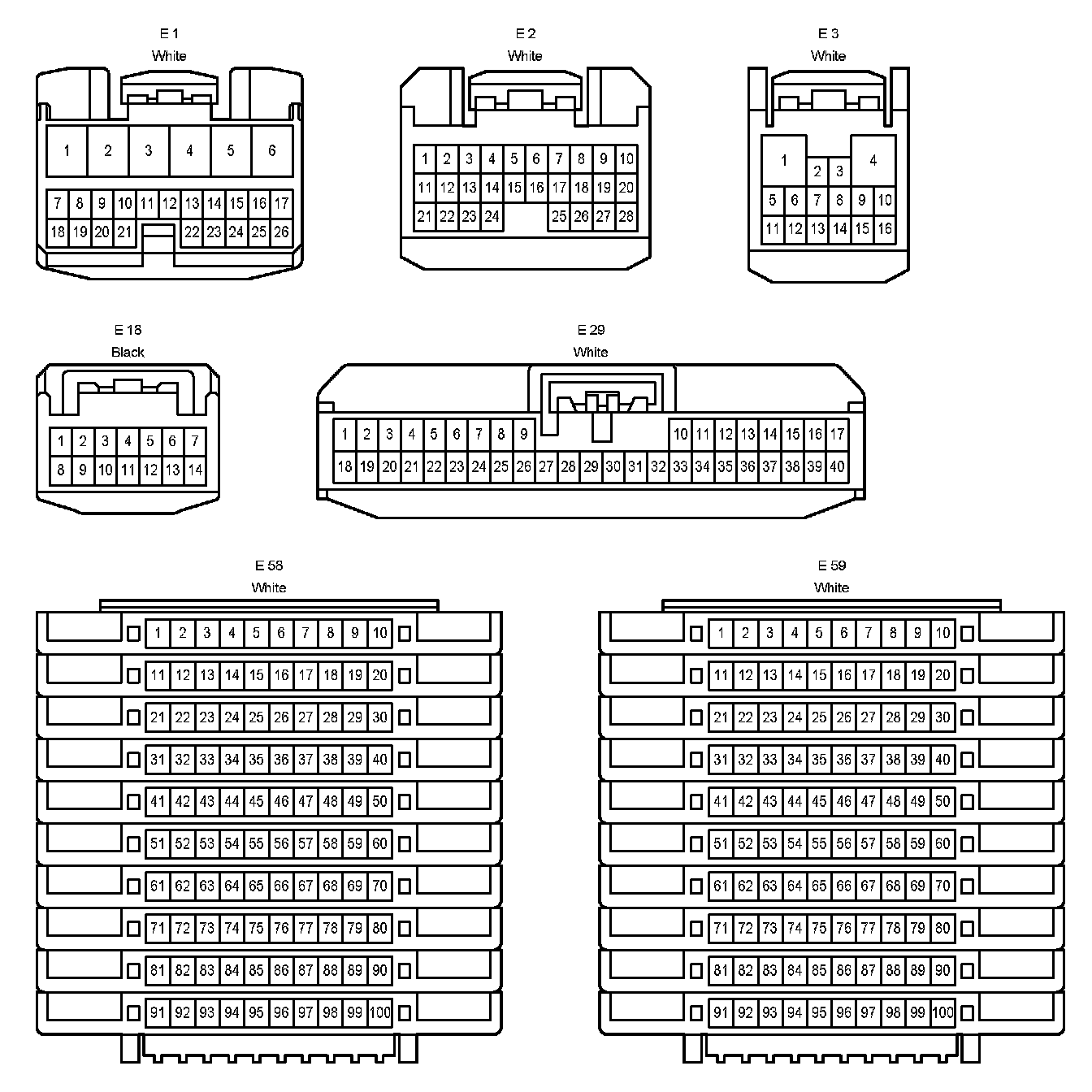

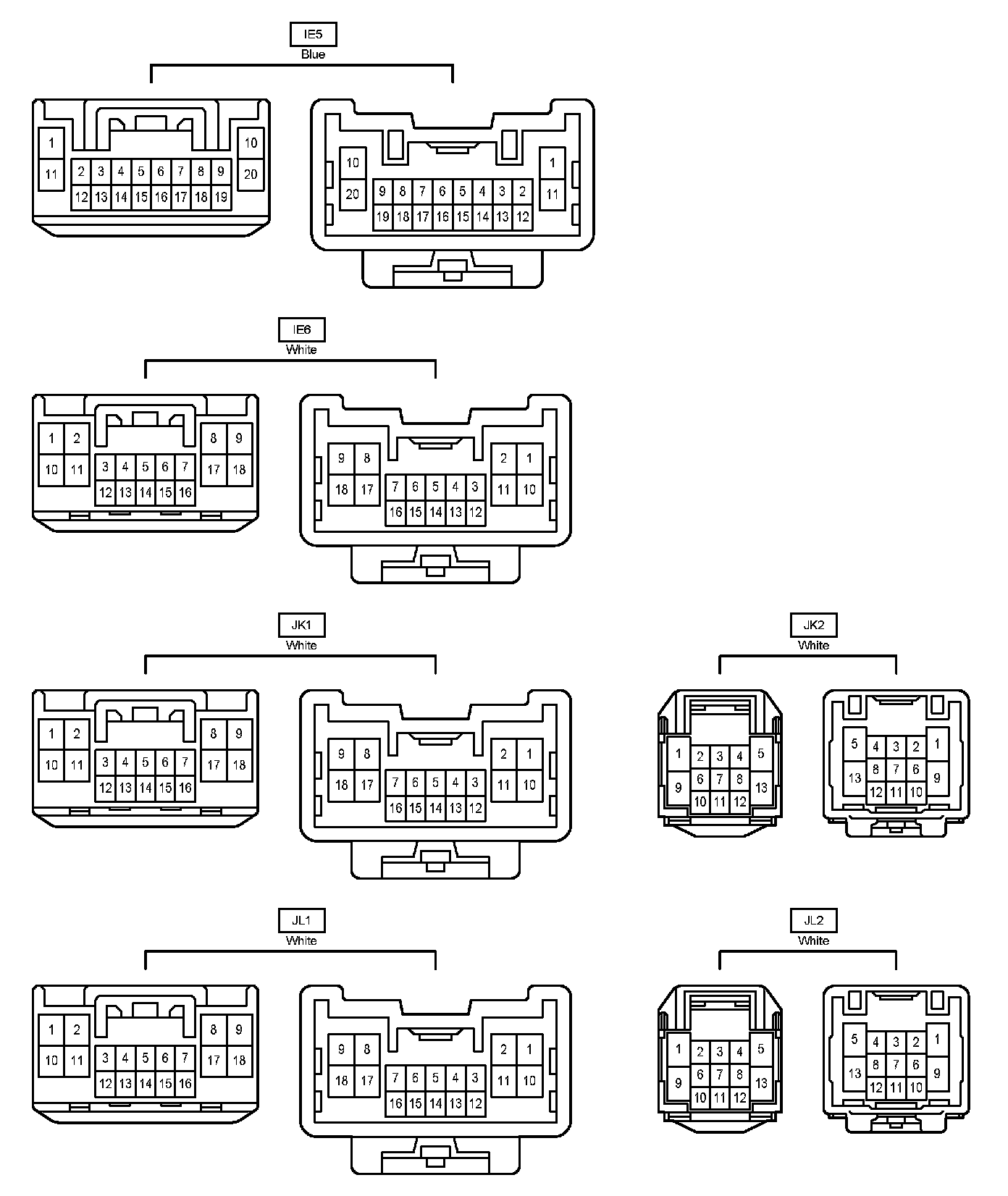

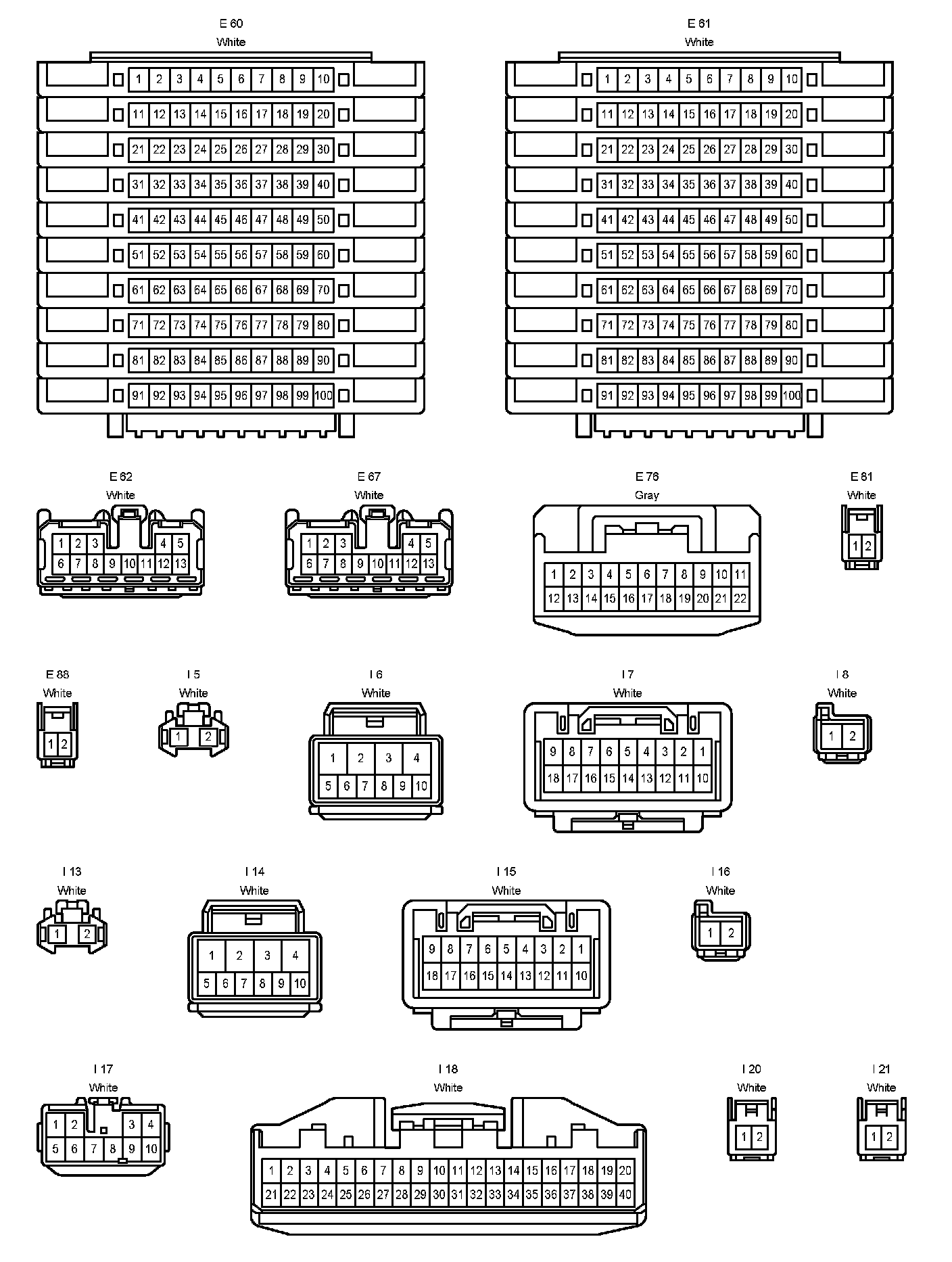

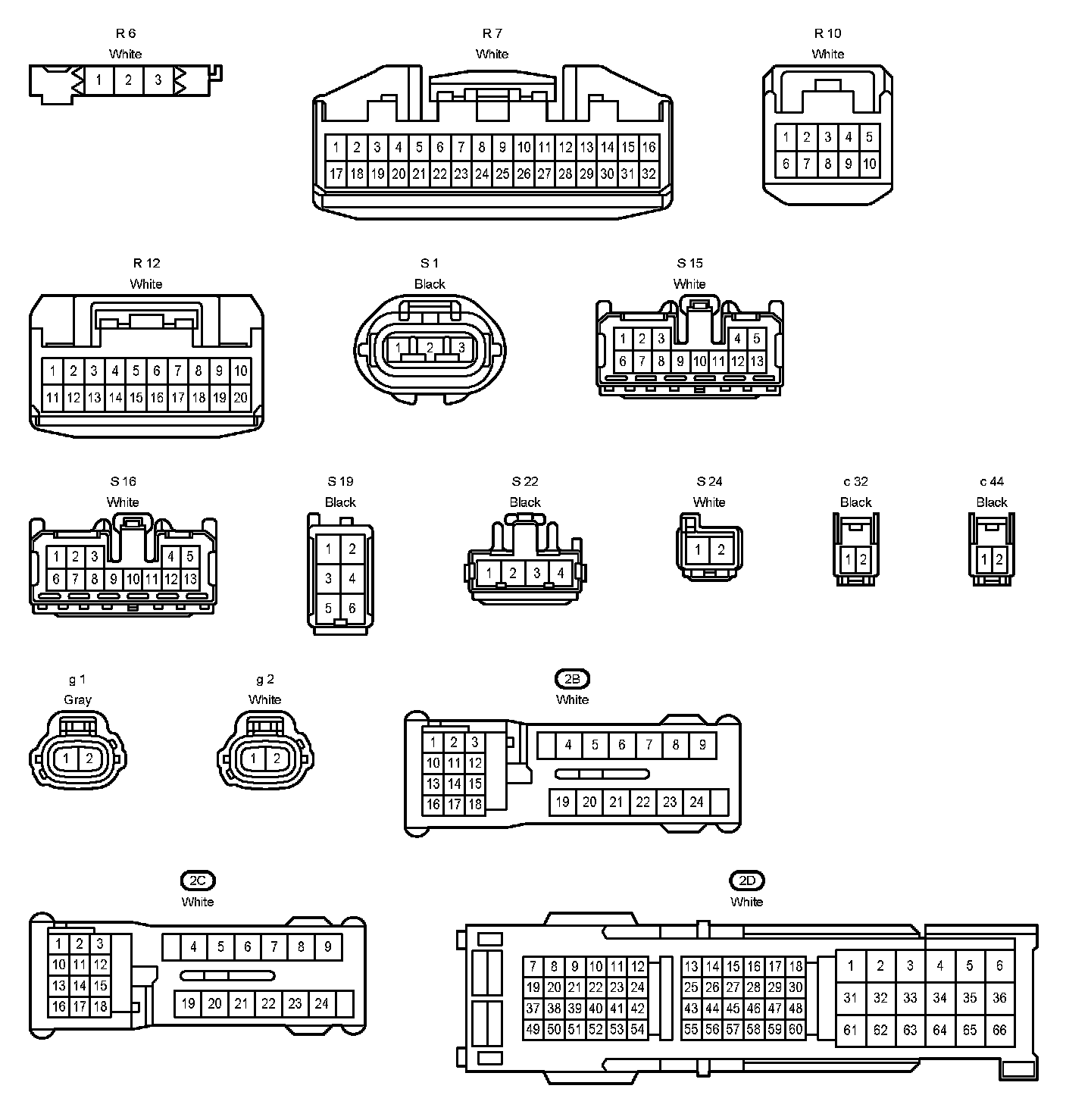

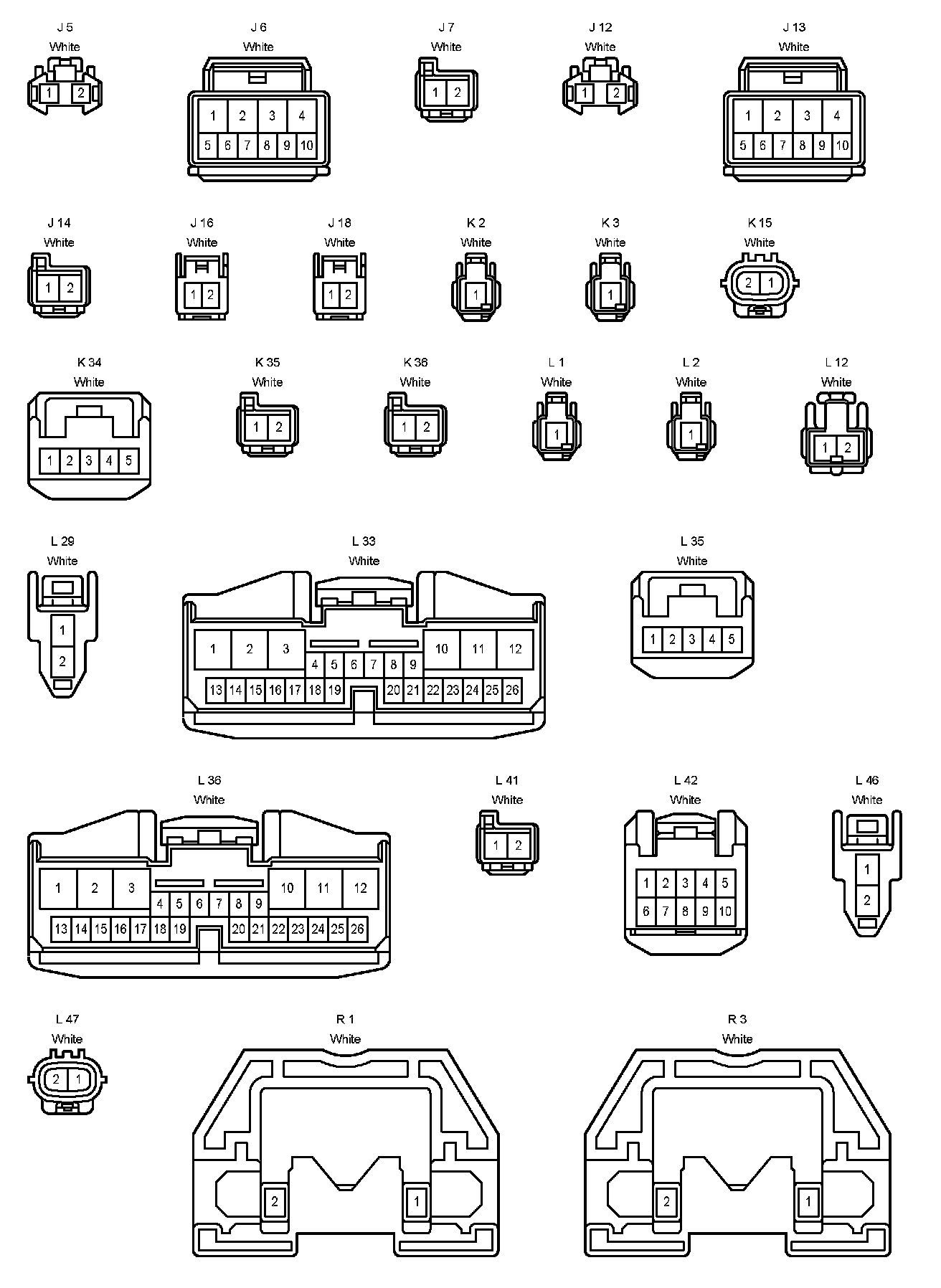

Connector Pin Outs Part 1:

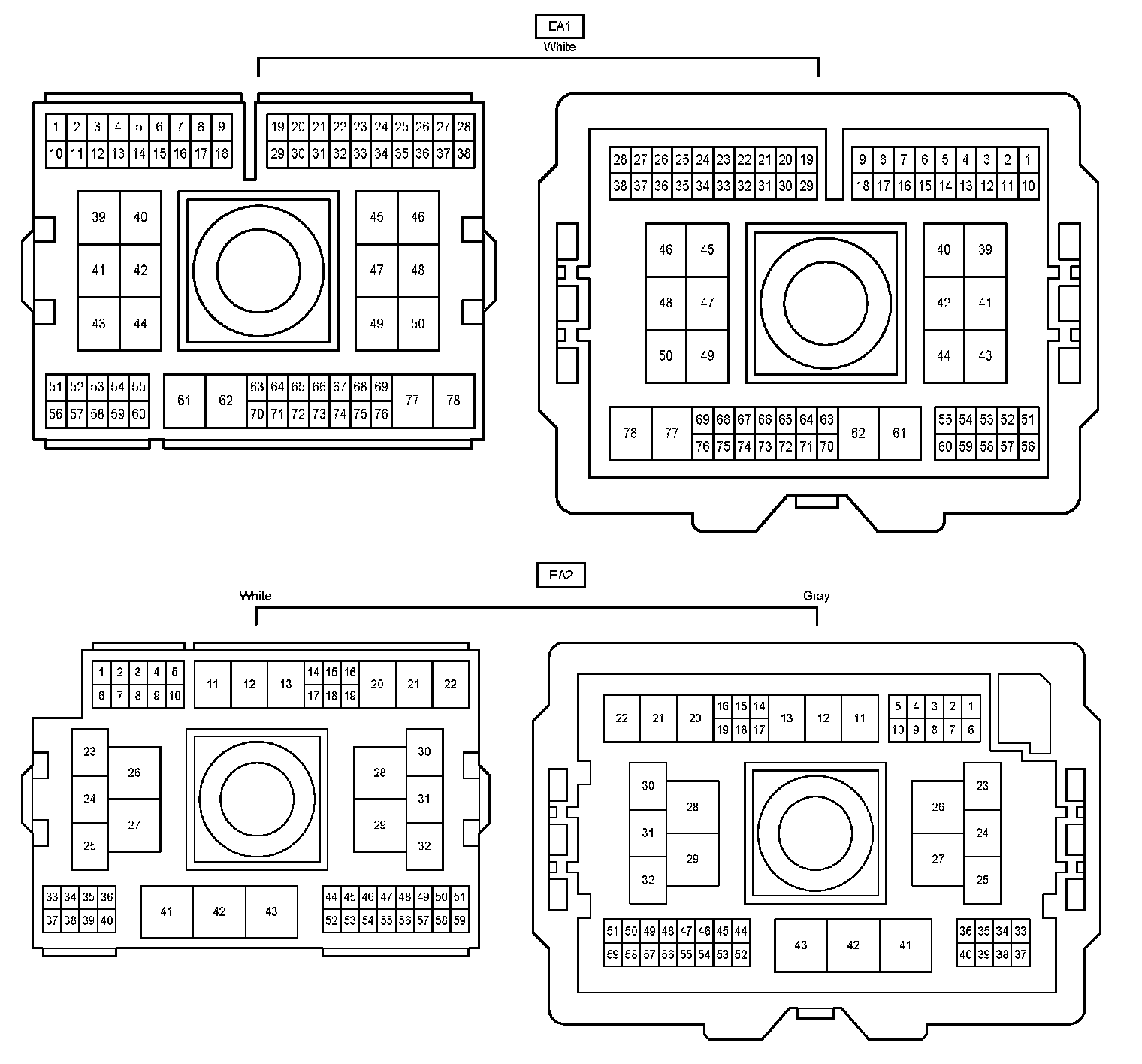

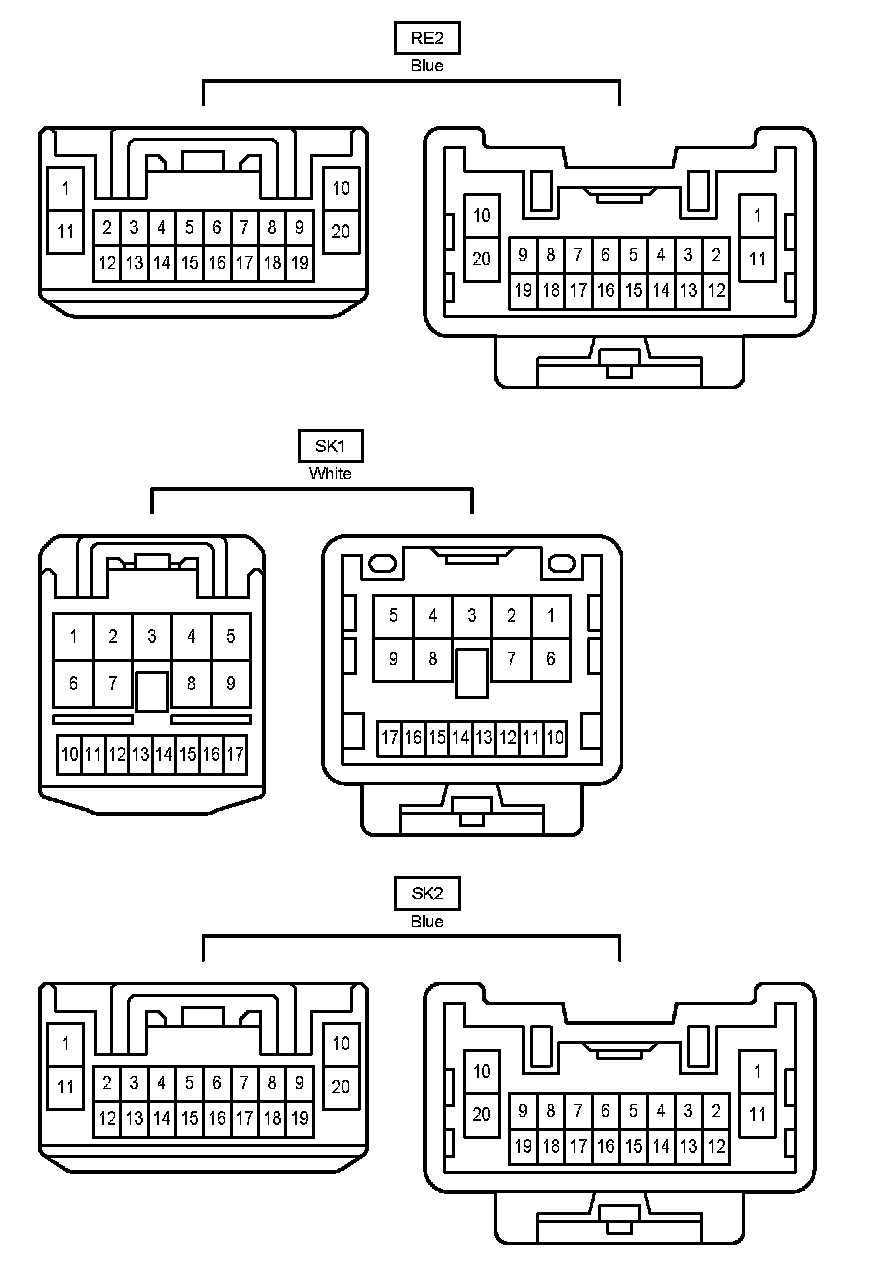

Connector Pin Outs Part 2:

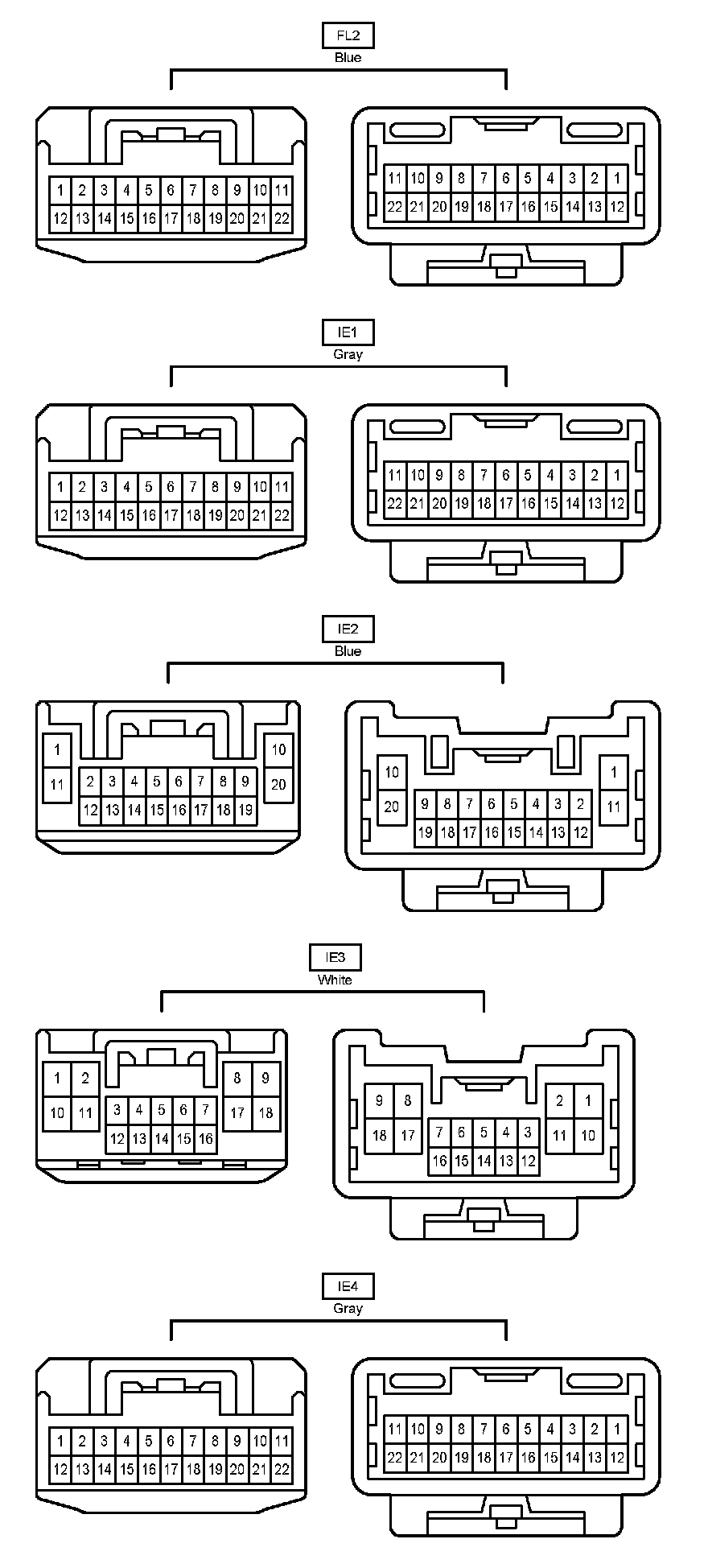

Connector Pin Outs Part 3:

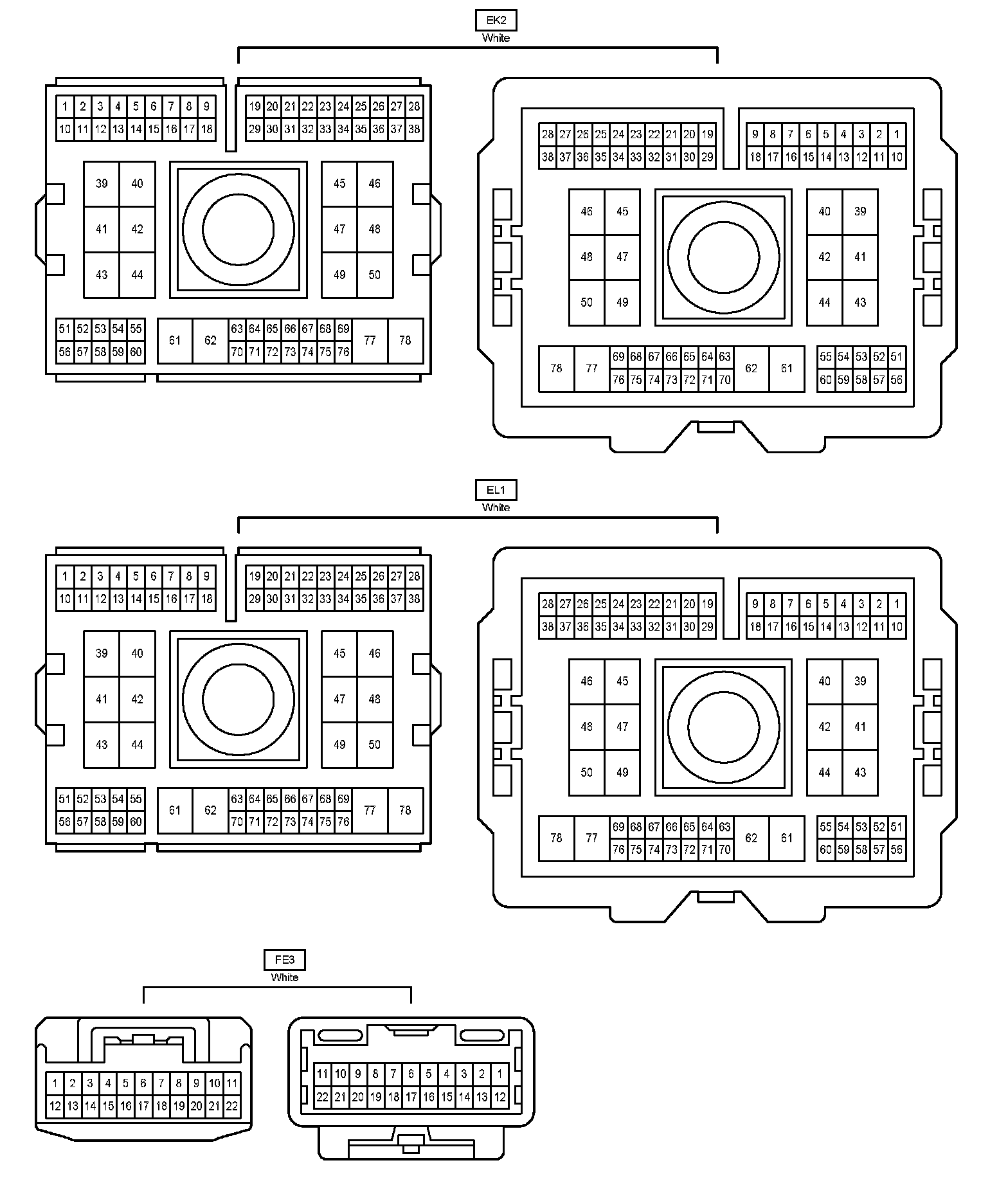

Connector Pin Outs Part 4:

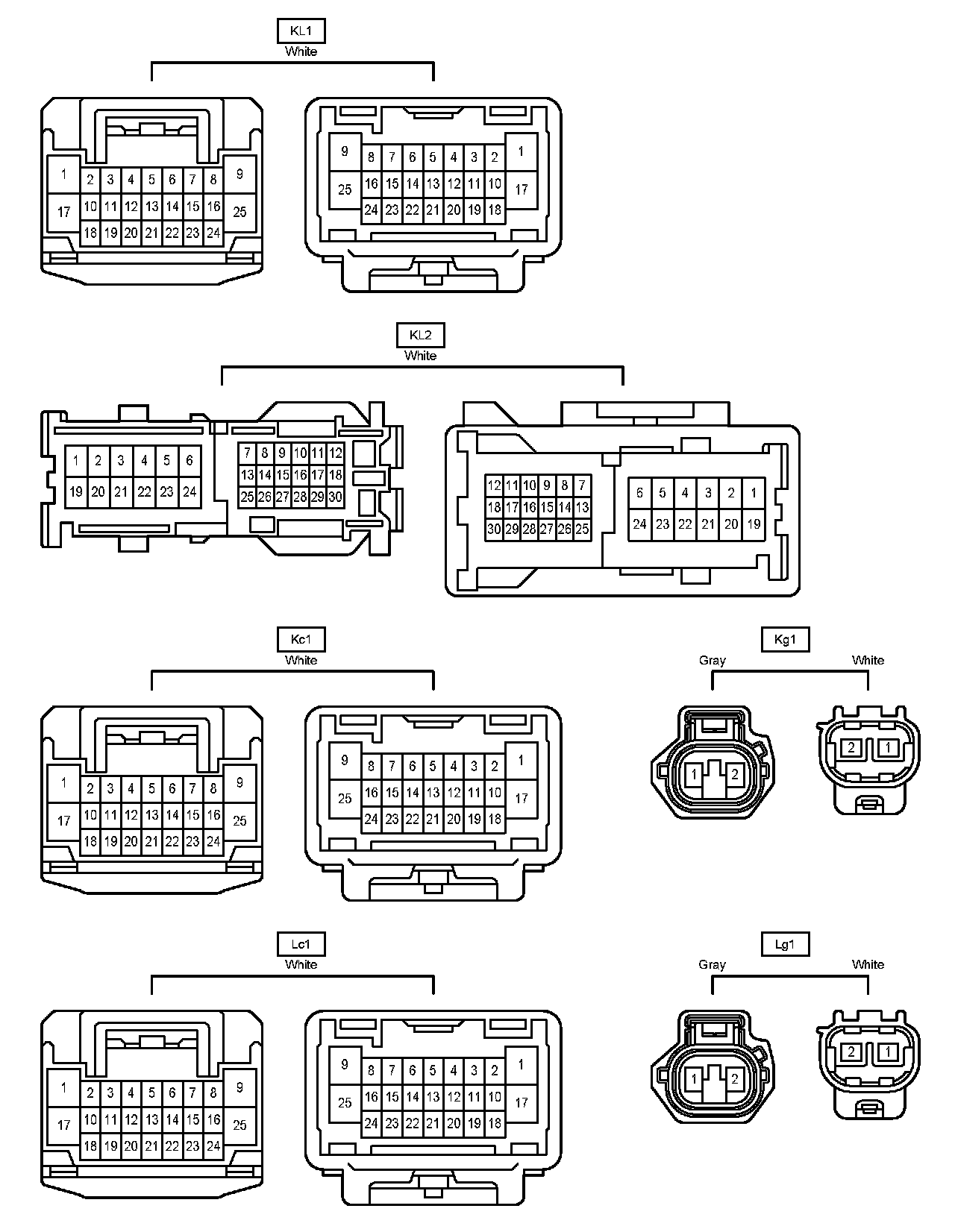

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Connector Pin Outs Part 8:

Connector Pin Outs Part 9:

Connector Pin Outs Part 10:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
