Voltage Check

VOLTAGE CHECK

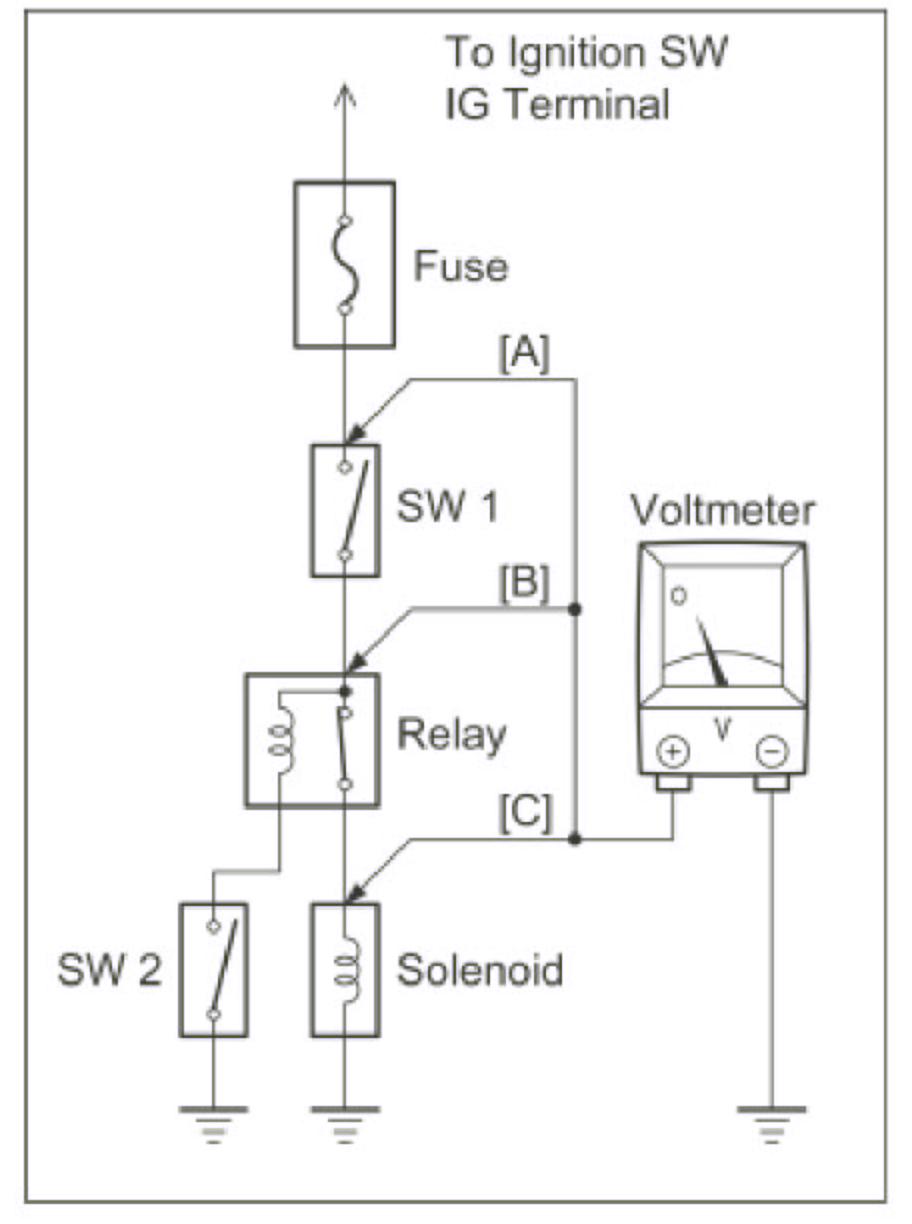

Establish conditions in which voltage is present at the check point.

Example:
- [A] - Ignition SW on
- [B] - Ignition SW and SW1 on
- [C] - Ignition SW, SW1 and Relay on (SW2 off)

Using a voltmeter, connect the negative lead to a good ground point or negative battery terminal, and the positive lead to the connector or component terminal.

This check can be done with a test light instead of a voltmeter.
