Parking Assist Control Module
Parking Assist Control Module

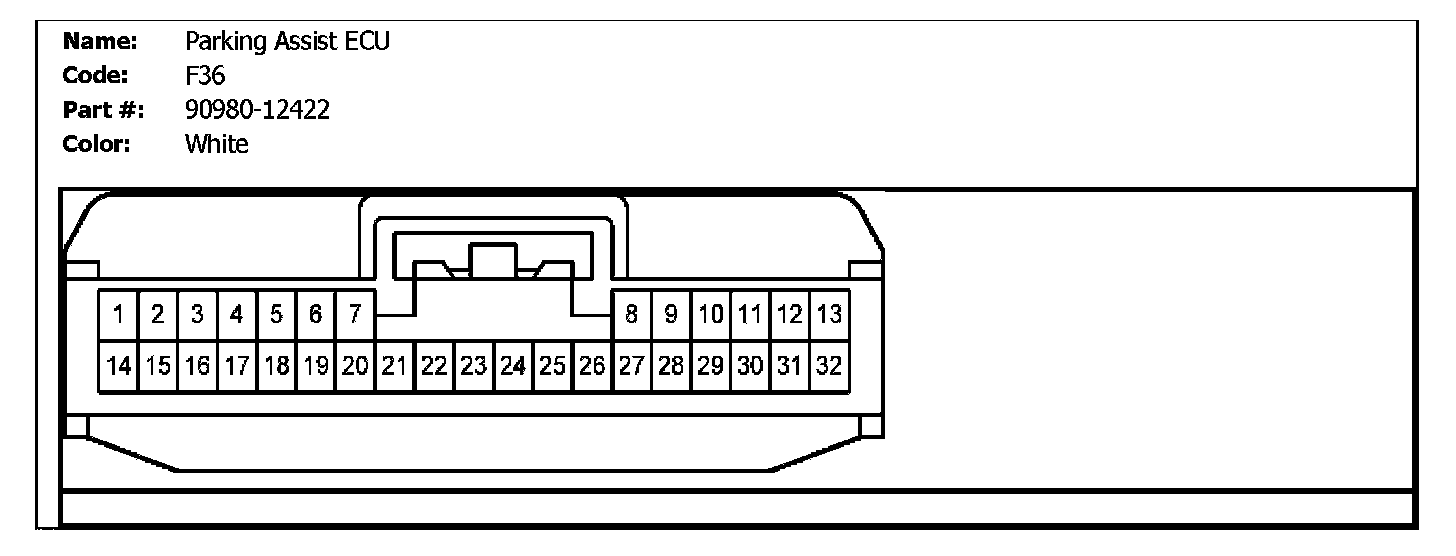

F36 (Parking Assist ECU):

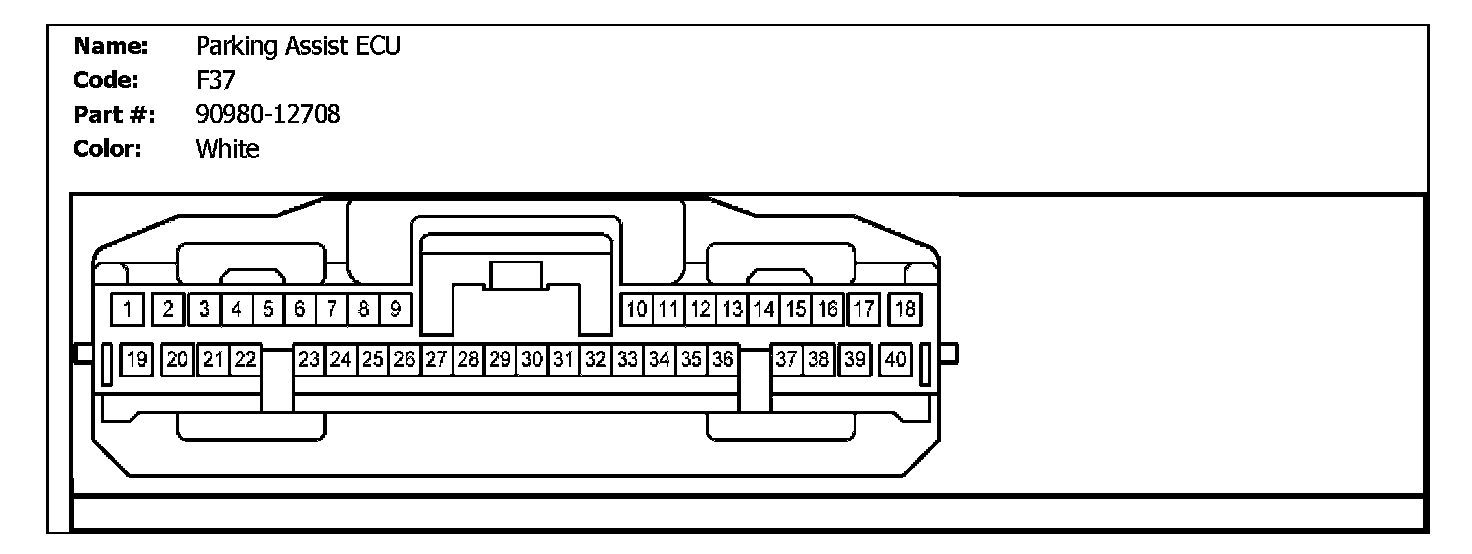

F37 (Parking Assist ECU):

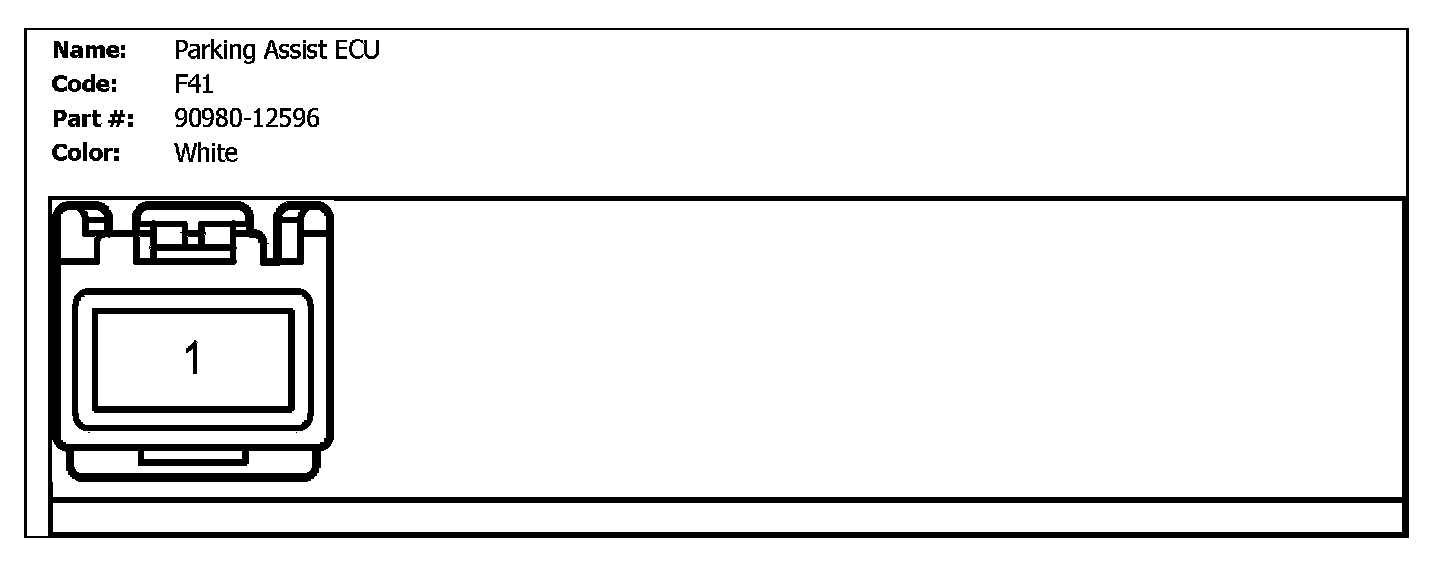

F41 (Parking Assist ECU):

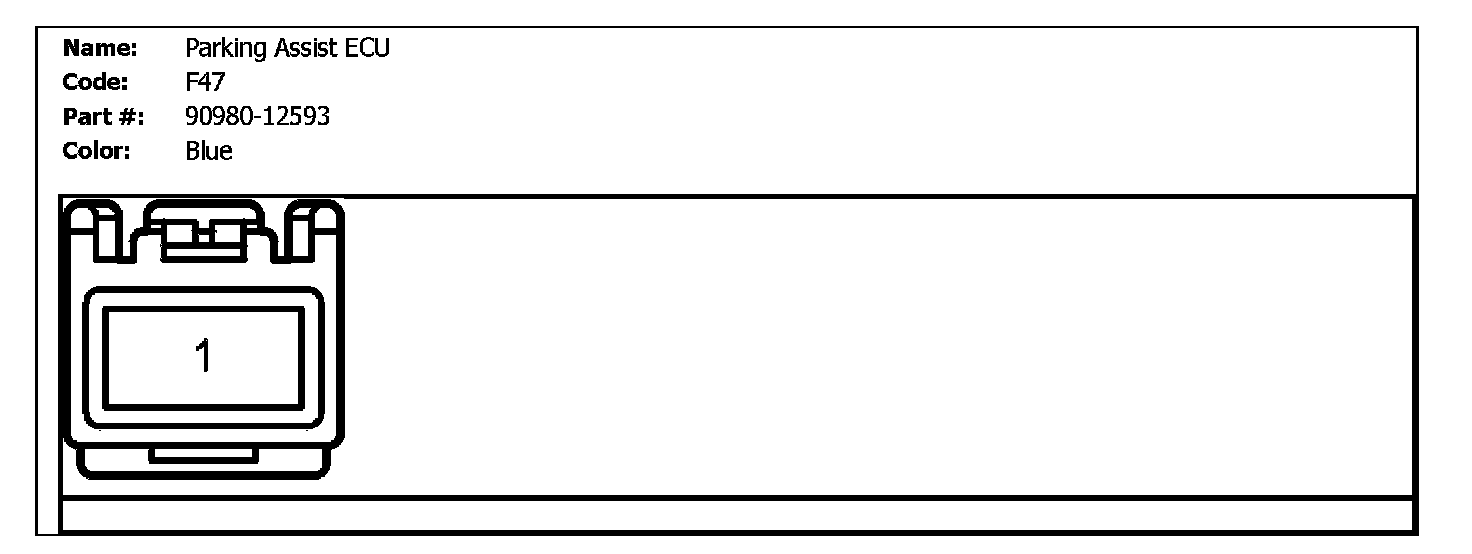

F47 (Parking Assist ECU):
