Rear Door Wire

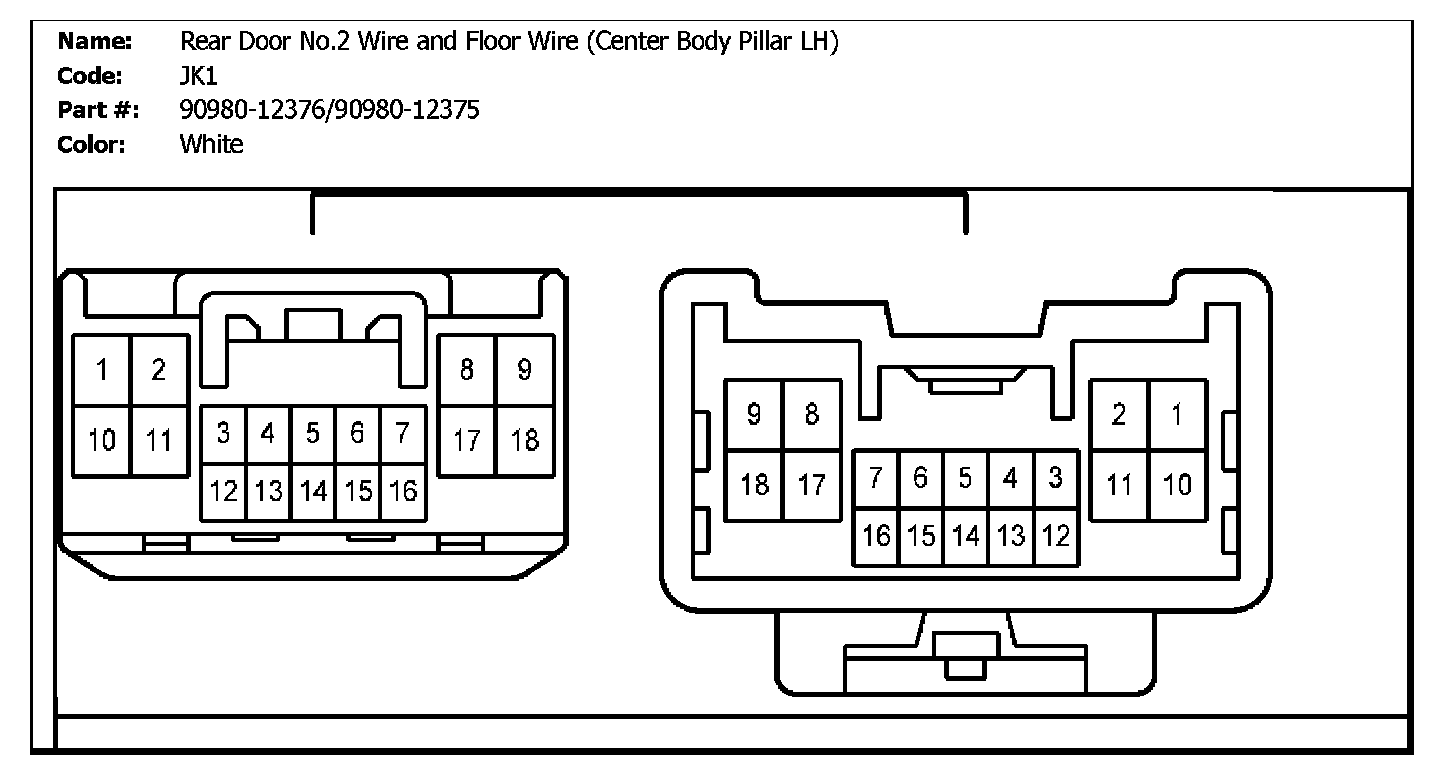

JK1 (Rear Door No.2 Wire And Floor Wire (Center Body Pillar LH)):

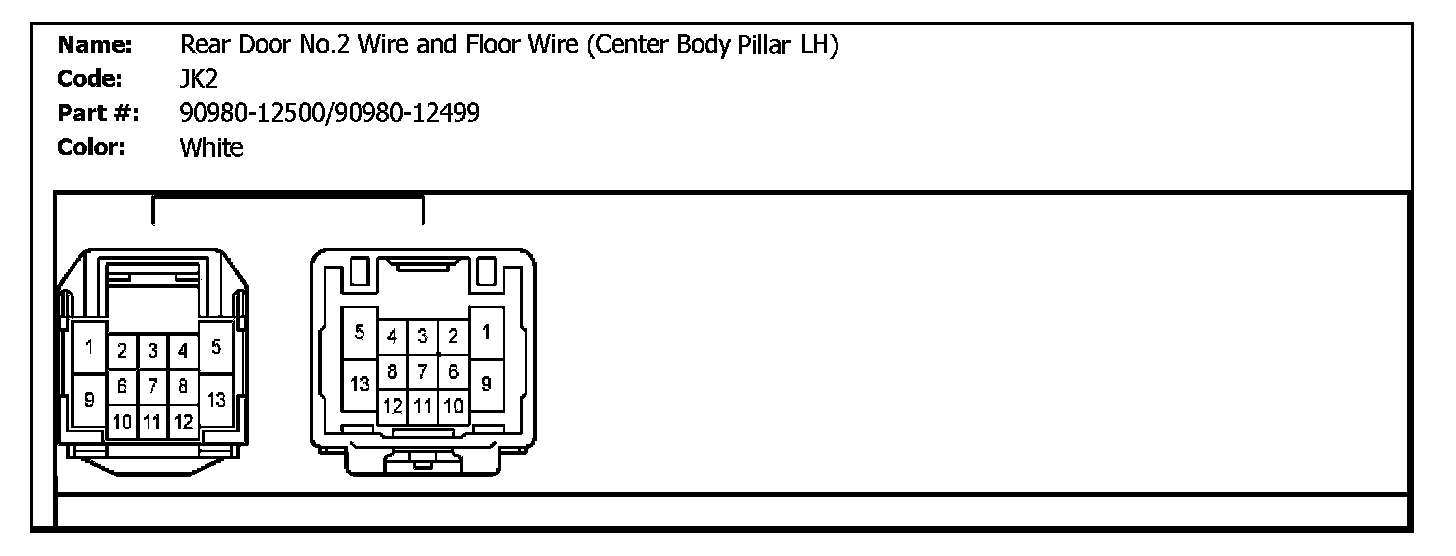

JK2 (Rear Door No.2 Wire And Floor Wire (Center Body Pillar LH)):

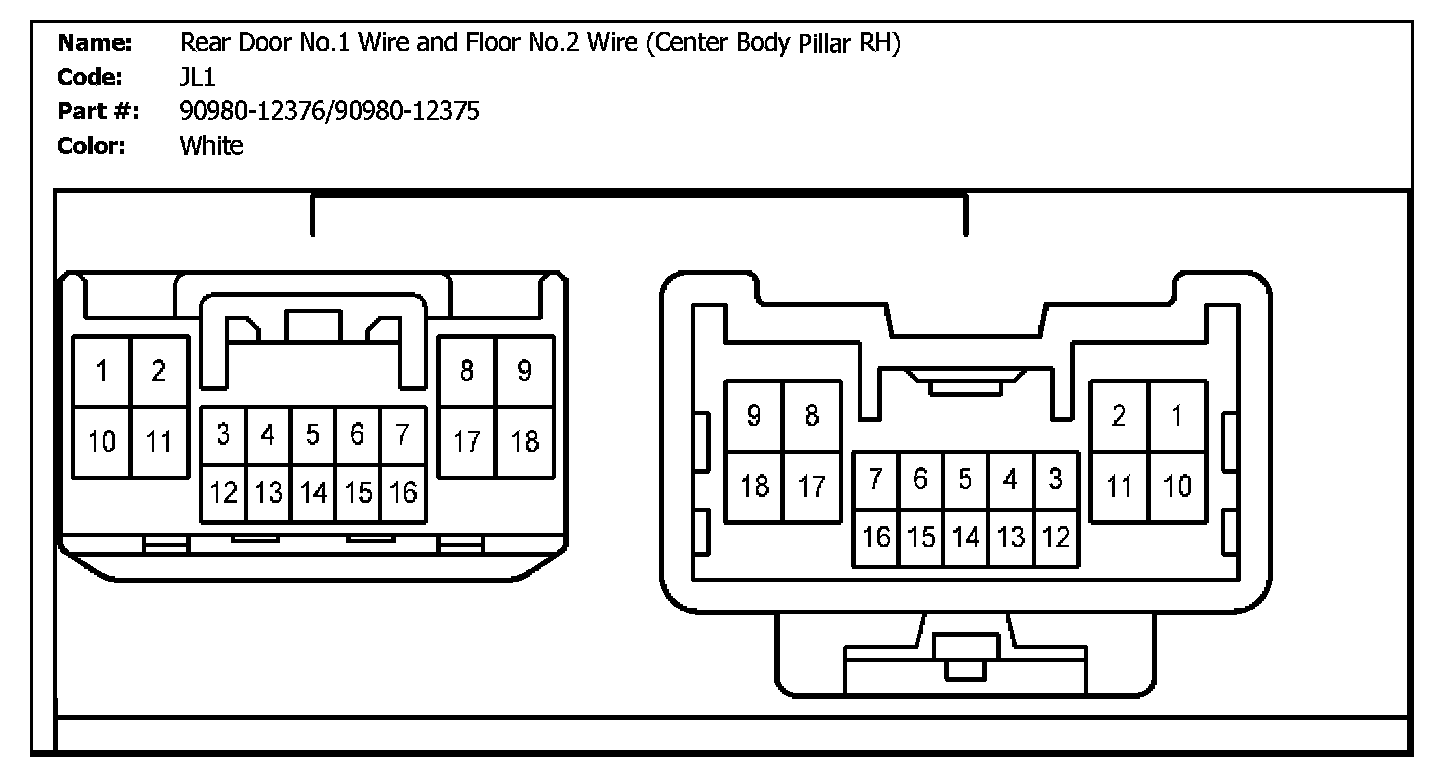

JL1 (Rear Door No.1 Wire And Floor No.2 Wire (Center Body Pillar RH)):

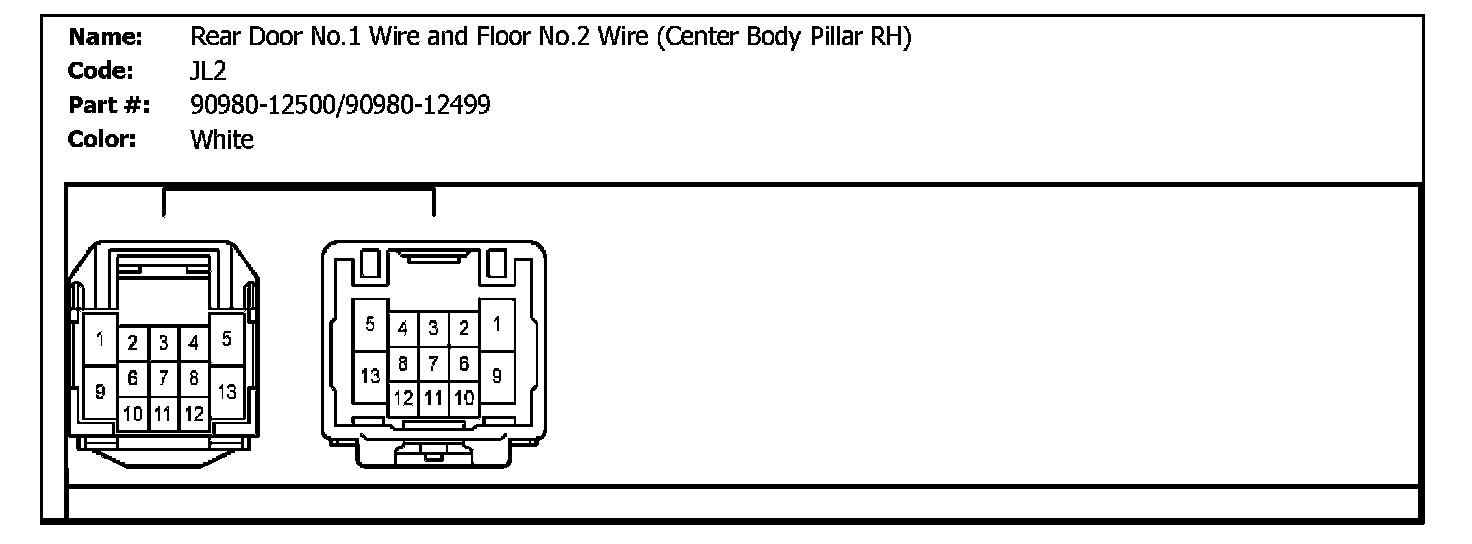

JL2 (Rear Door No.1 Wire And Floor No.2 Wire (Center Body Pillar RH)):
