LX 570 V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Switch
Power Mirror Switch

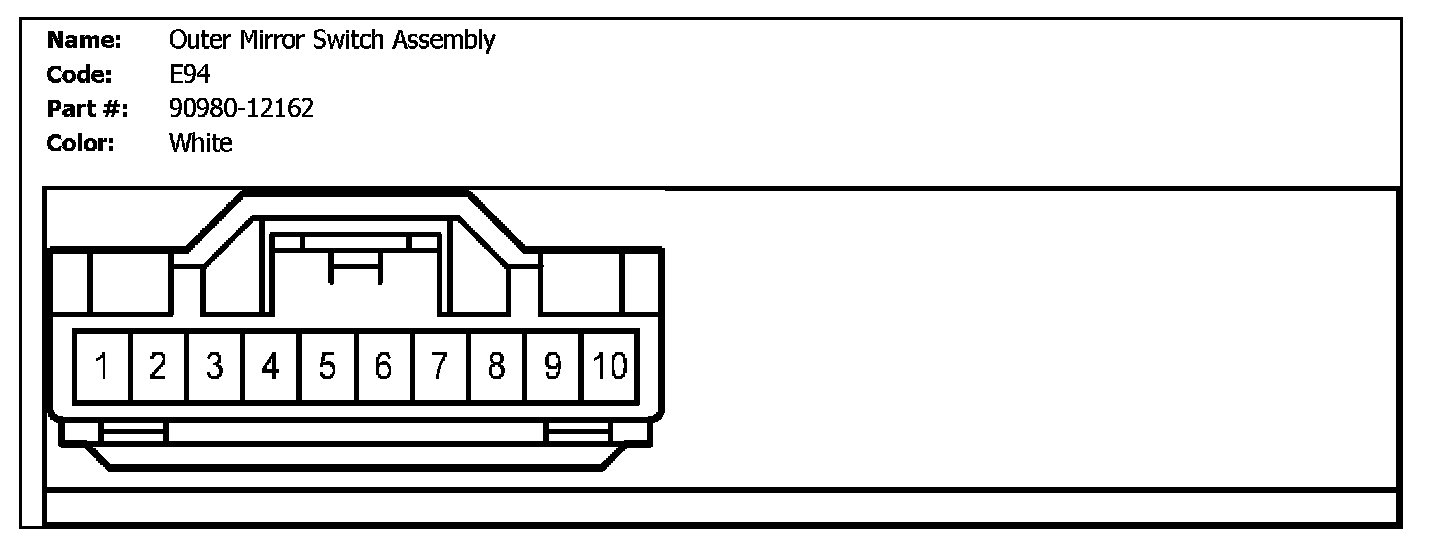

E94 (Outer Mirror Switch Assembly):

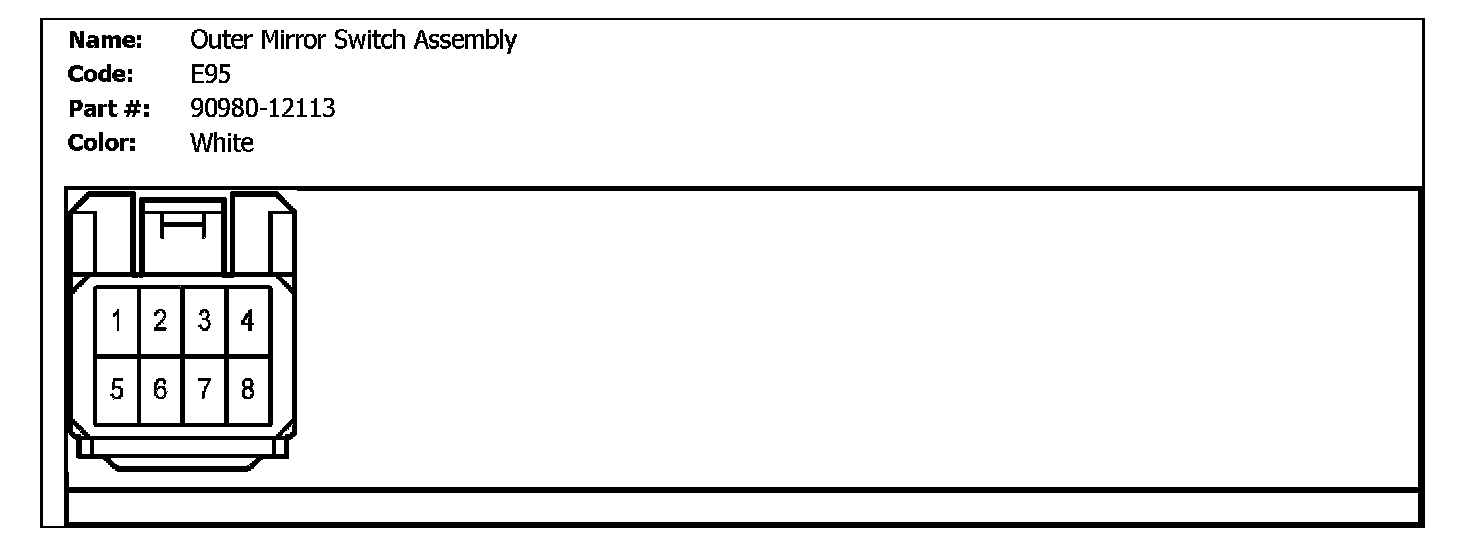

E95 (Outer Mirror Switch Assembly):
