Keyless Entry Receiver

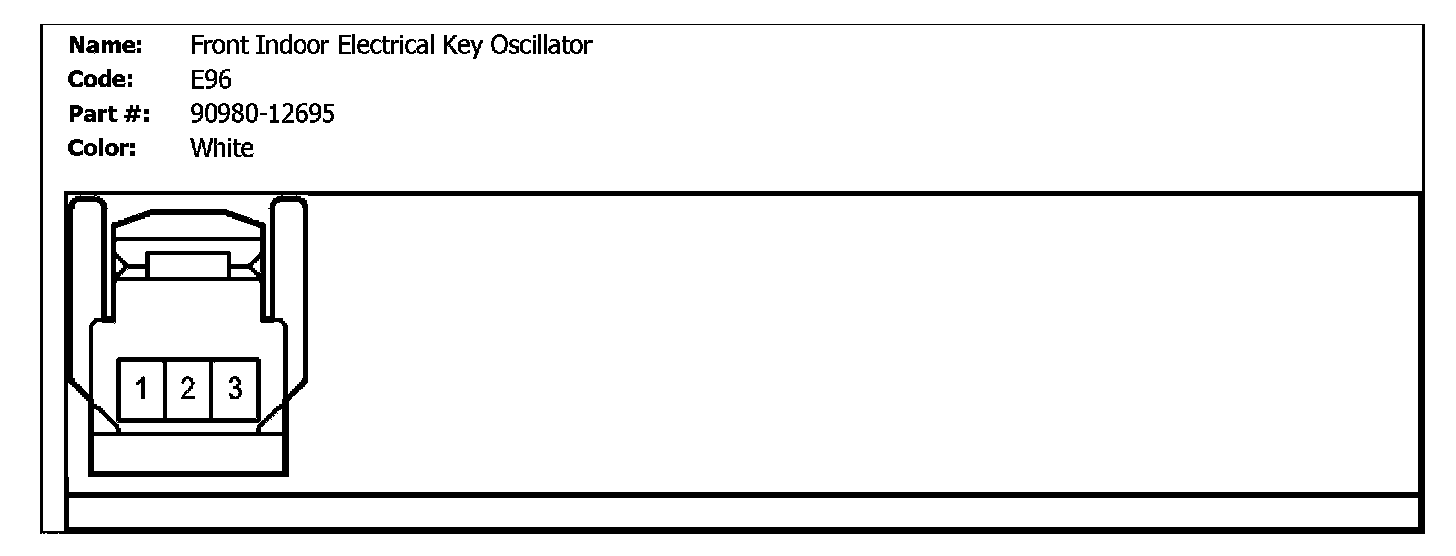

E96 (Front Indoor Electrical Key Oscillator):



L21 (Door Control Receiver):

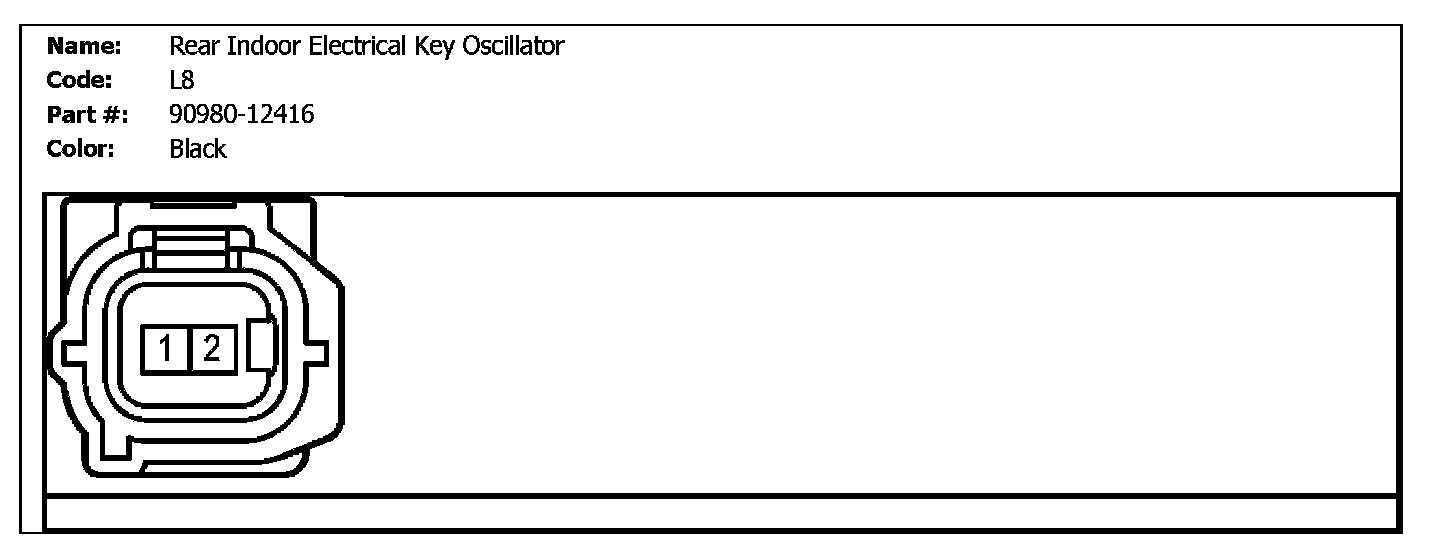

L8 (Rear Indoor Electrical Key Oscillator):

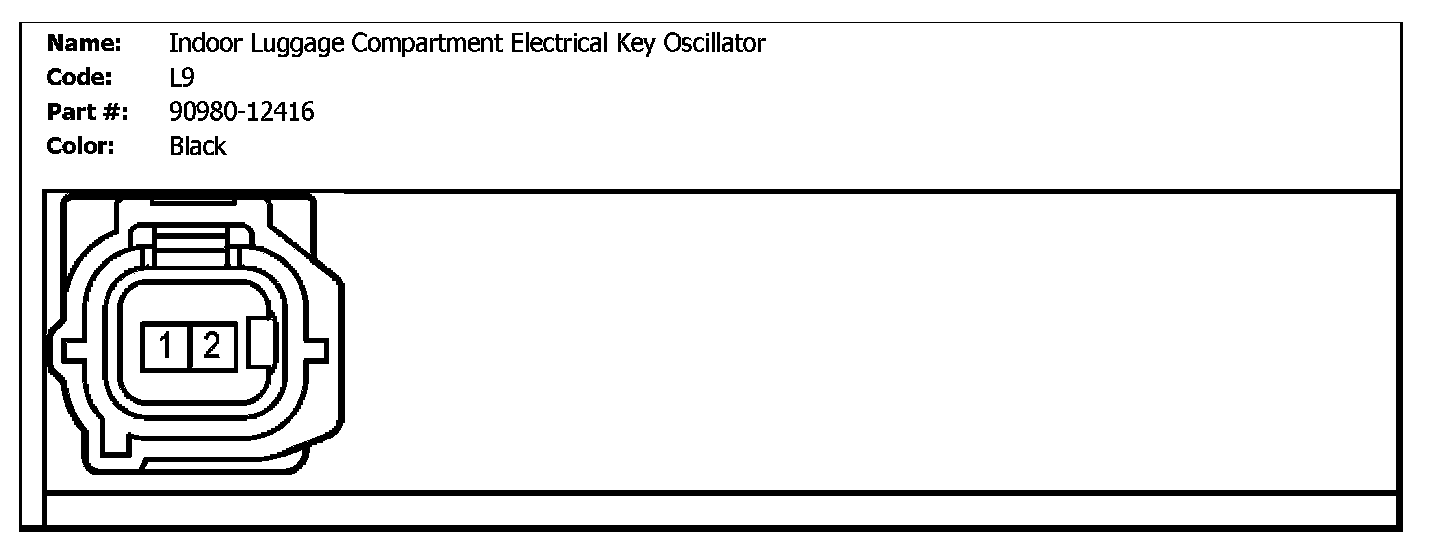

L9 (Indoor Luggage Compartment Electrical Key Oscillator):

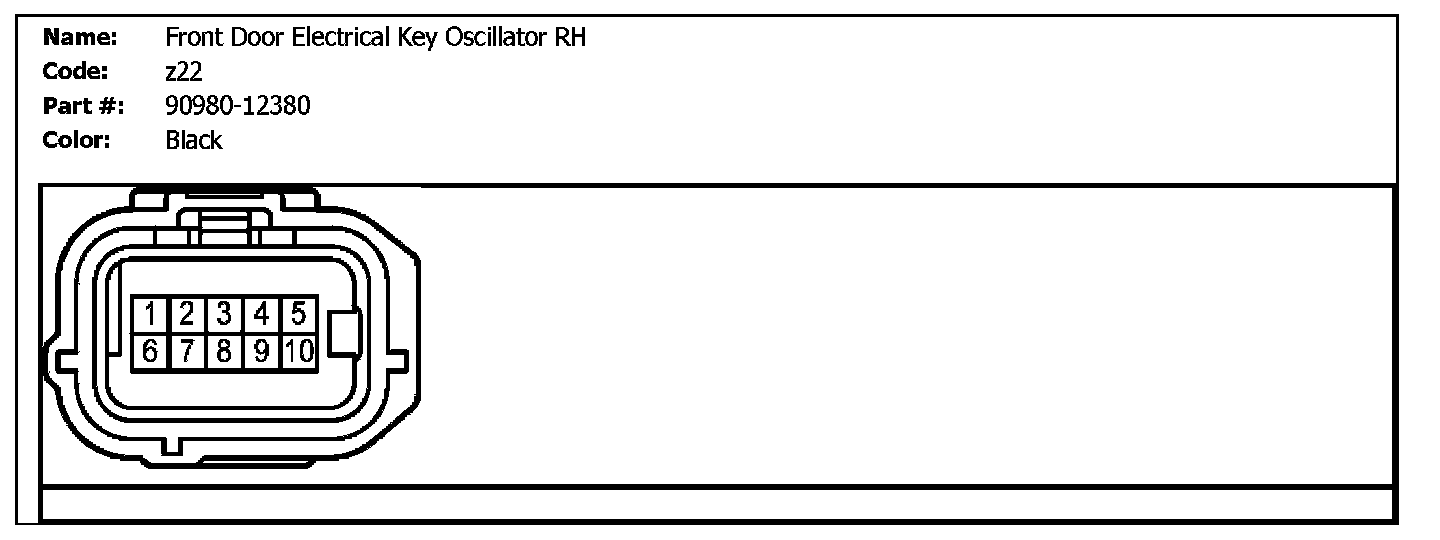

z22 (Front Door Electrical Key Oscillator RH):



z24 (Front Door Electrical Key Oscillator LH):

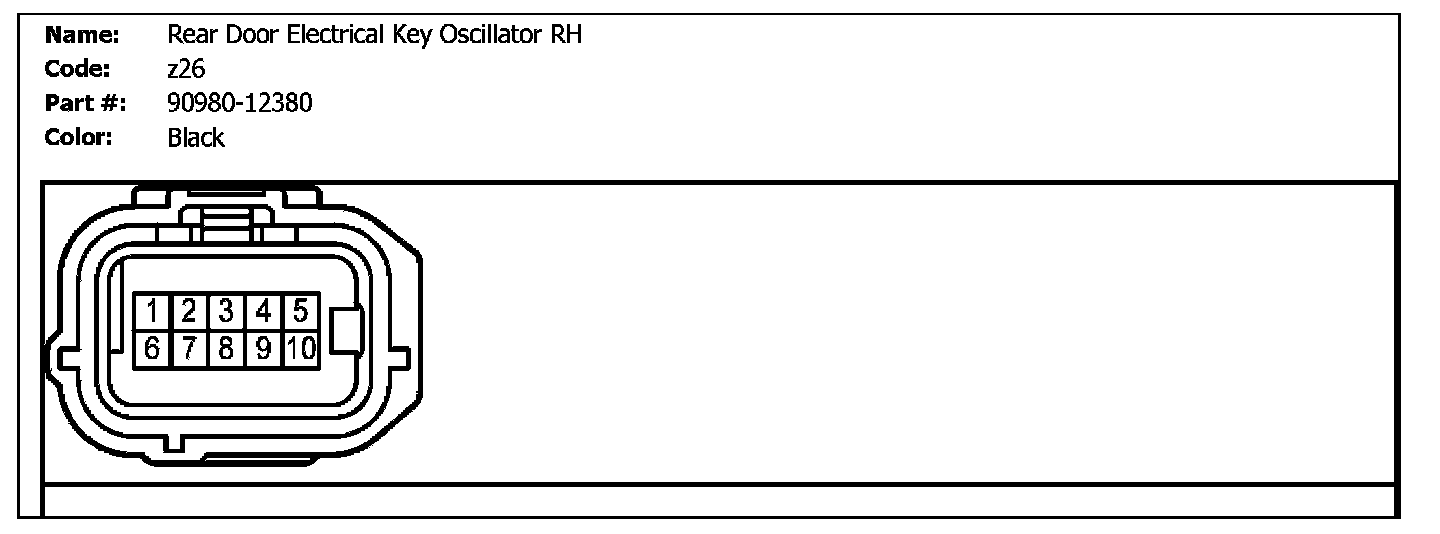

z26 (Rear Door Electrical Key Oscillator RH):



z28 (Rear Door Electrical Key Oscillator LH):
