Heated Glass Element
Heated Glass Element

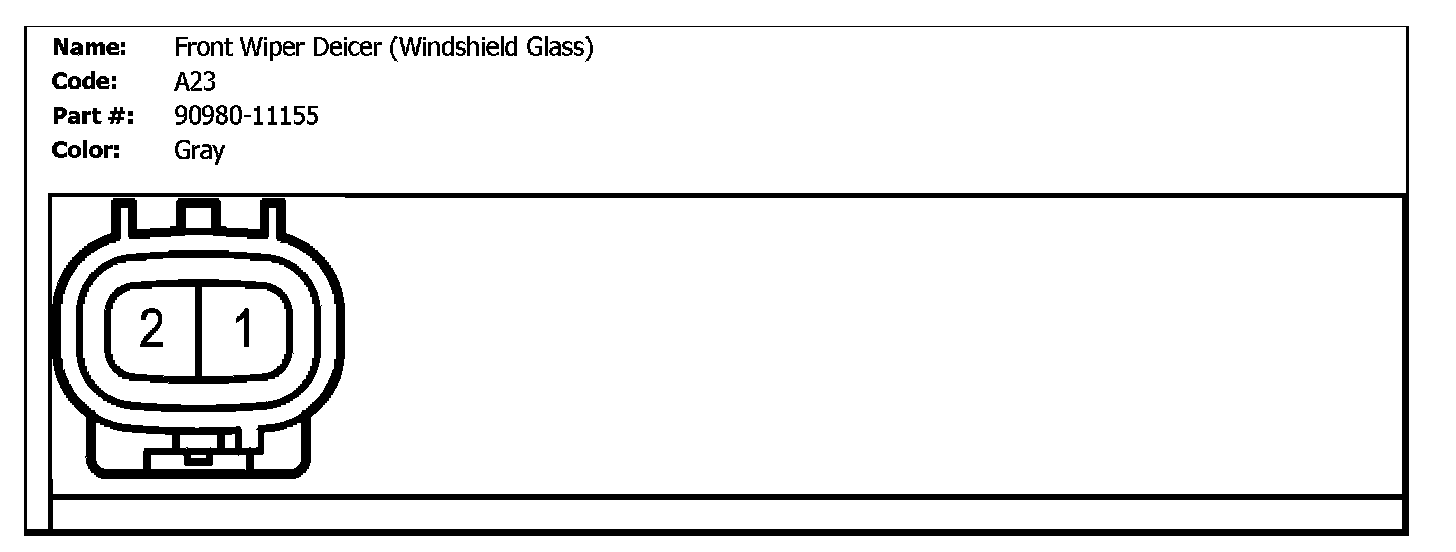

A23 (Front Wiper Deicer (Windshield Glass)):

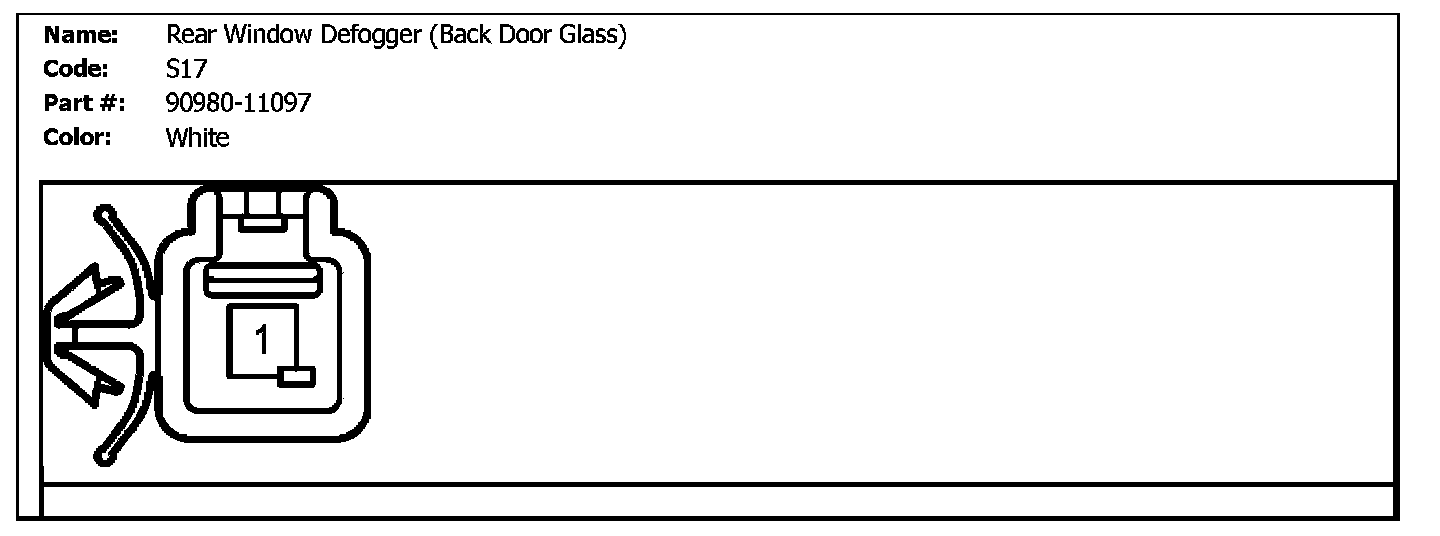

S17 (Rear Window Defogger (Back Door Glass)):

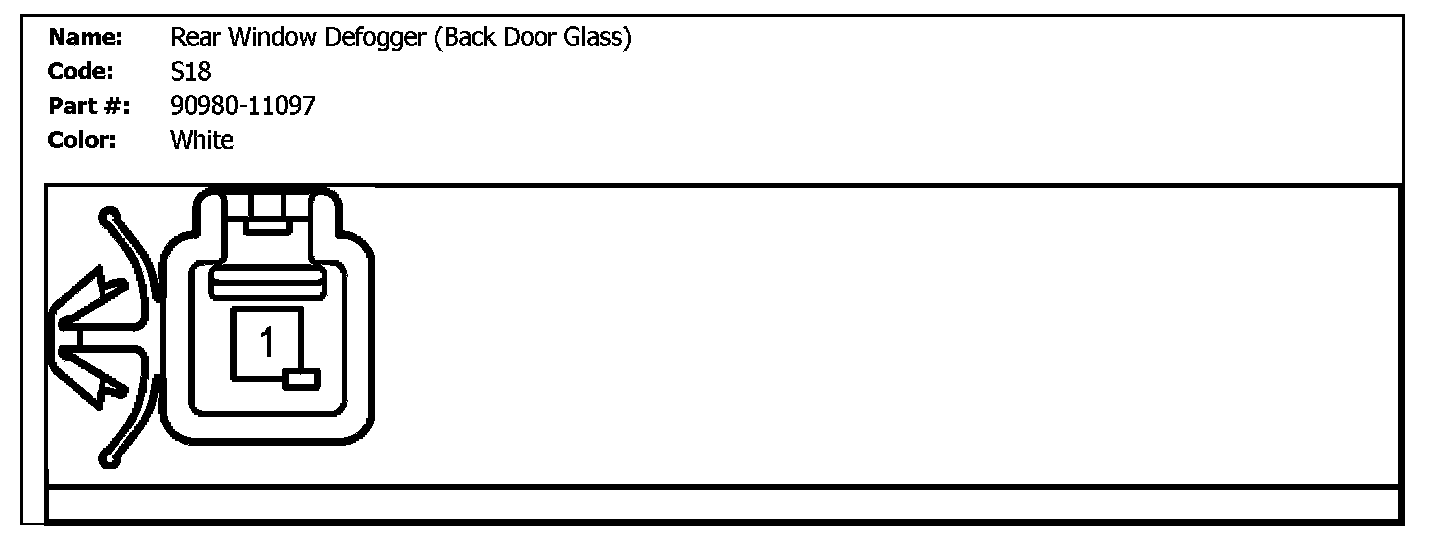

S18 (Rear Window Defogger (Back Door Glass)):
