Electronic Noise Suppressor
Electronic Noise Suppressor

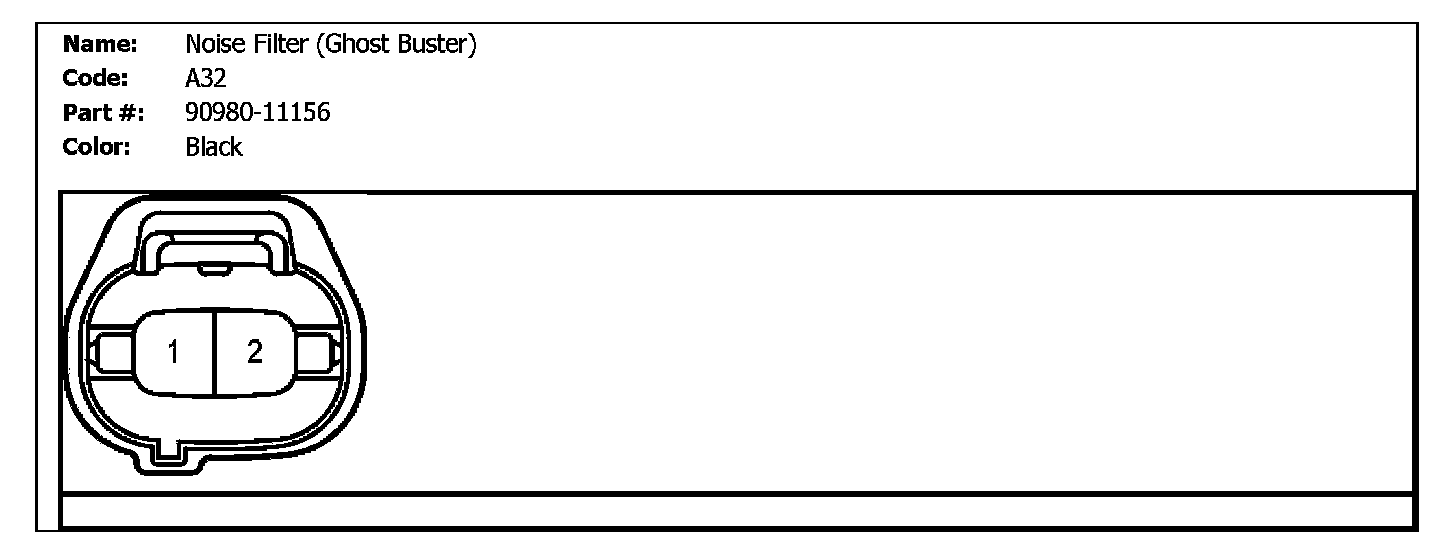

A32 (Noise Filter (Ghost Buster)):

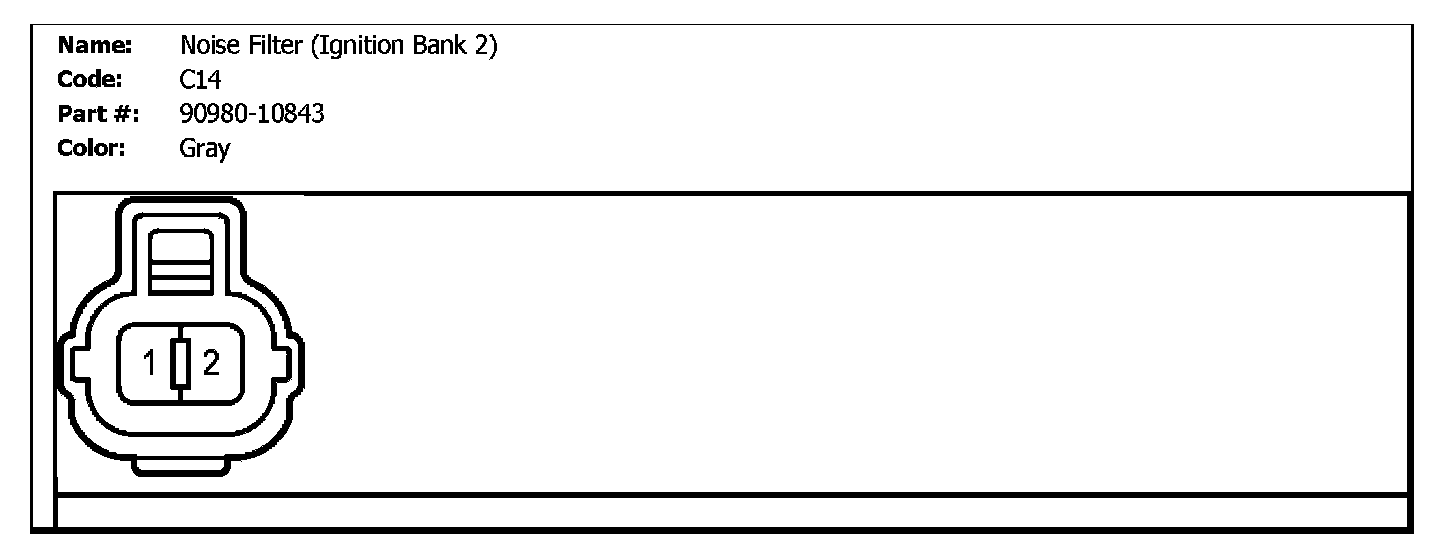

C14 (Noise Filter (Ignition Bank 2)):

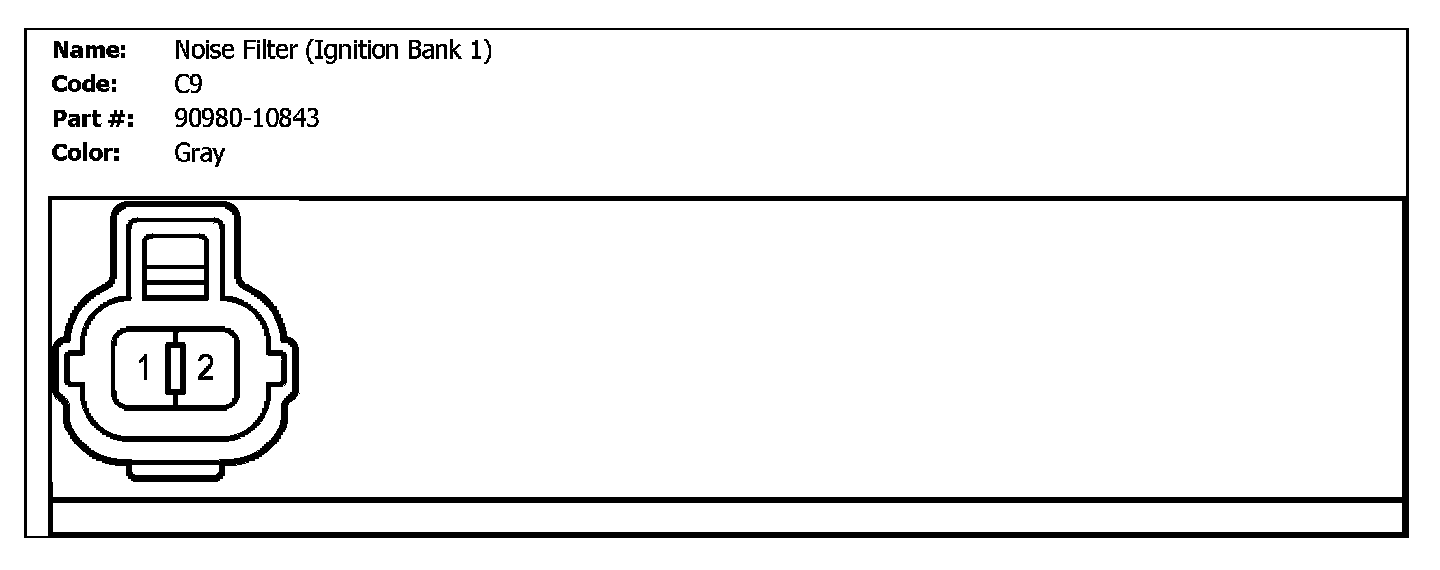

C9 (Noise Filter (Ignition Bank 1)):

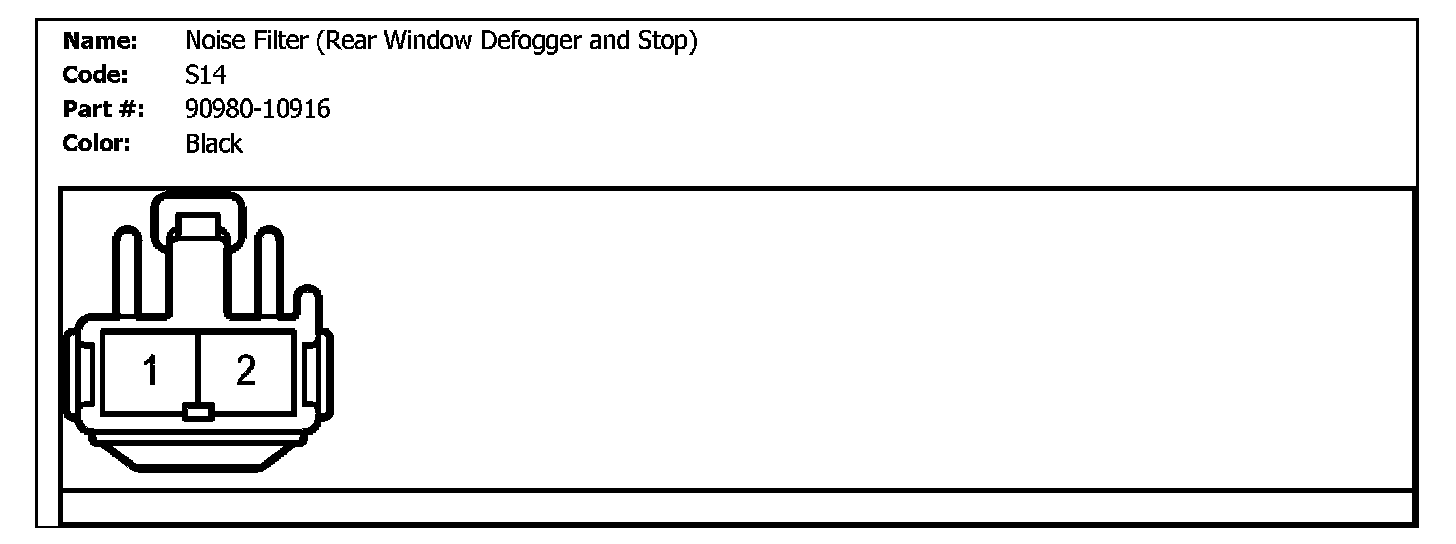

S14 (Noise Filter (Rear Window Defogger And Stop)):
