N4 (Rear Height Control Sensor Sub-Assembly RH)

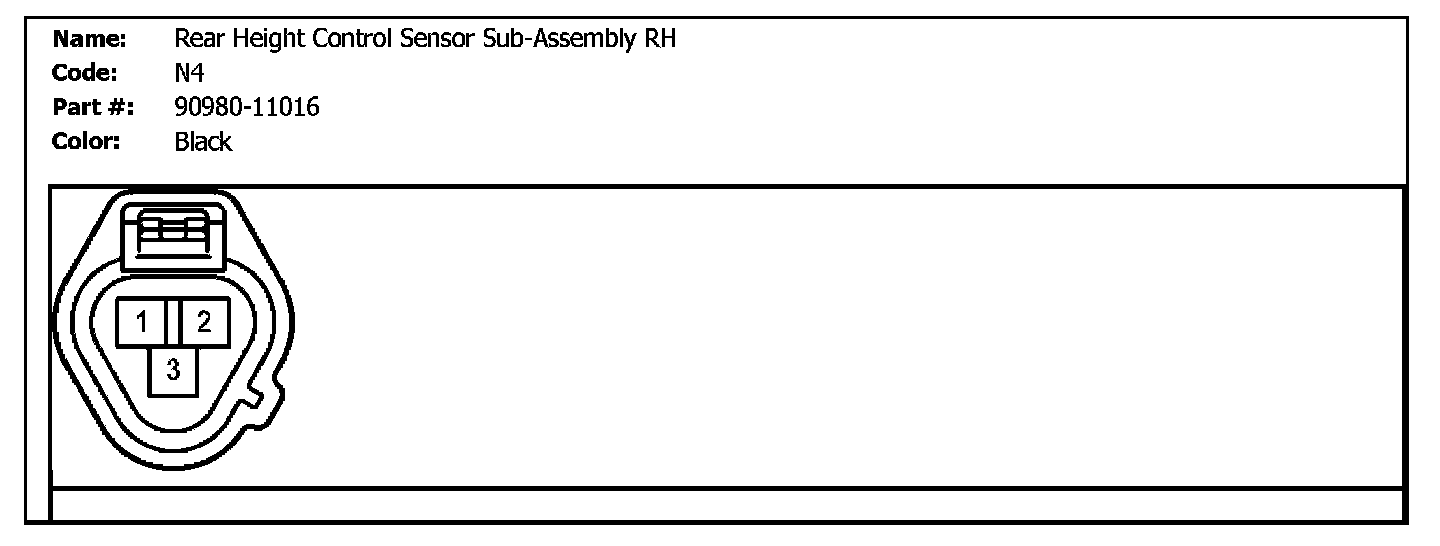

N4 (Rear Height Control Sensor Sub-Assembly RH):

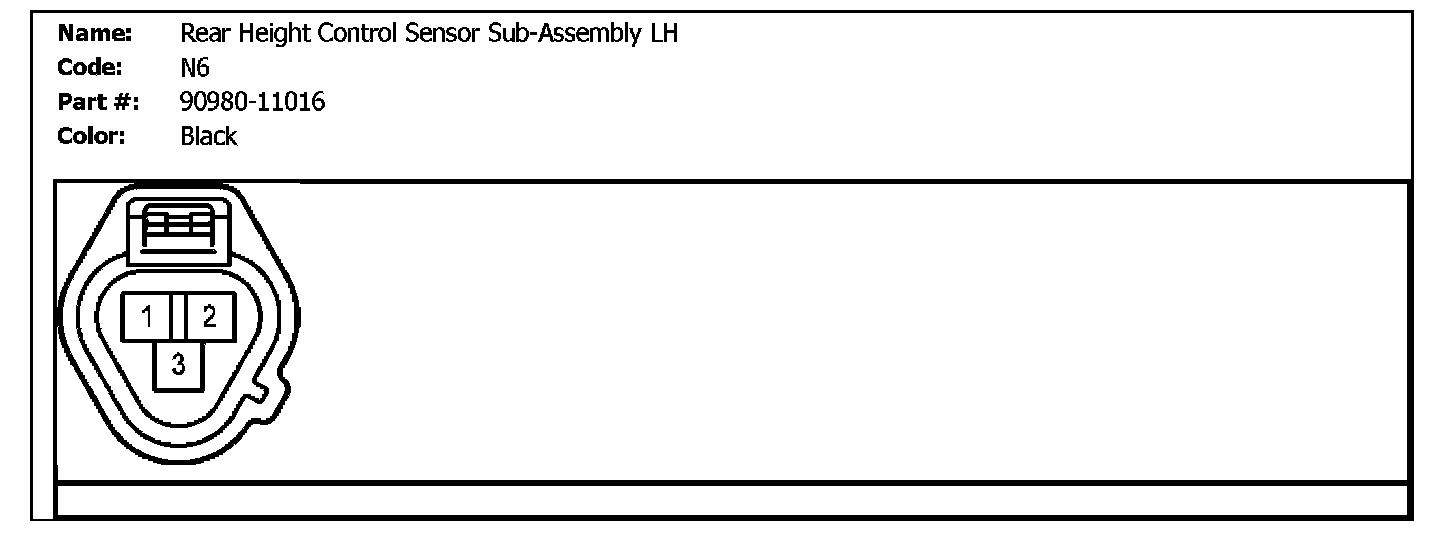

N6 (Rear Height Control Sensor Sub-Assembly LH):

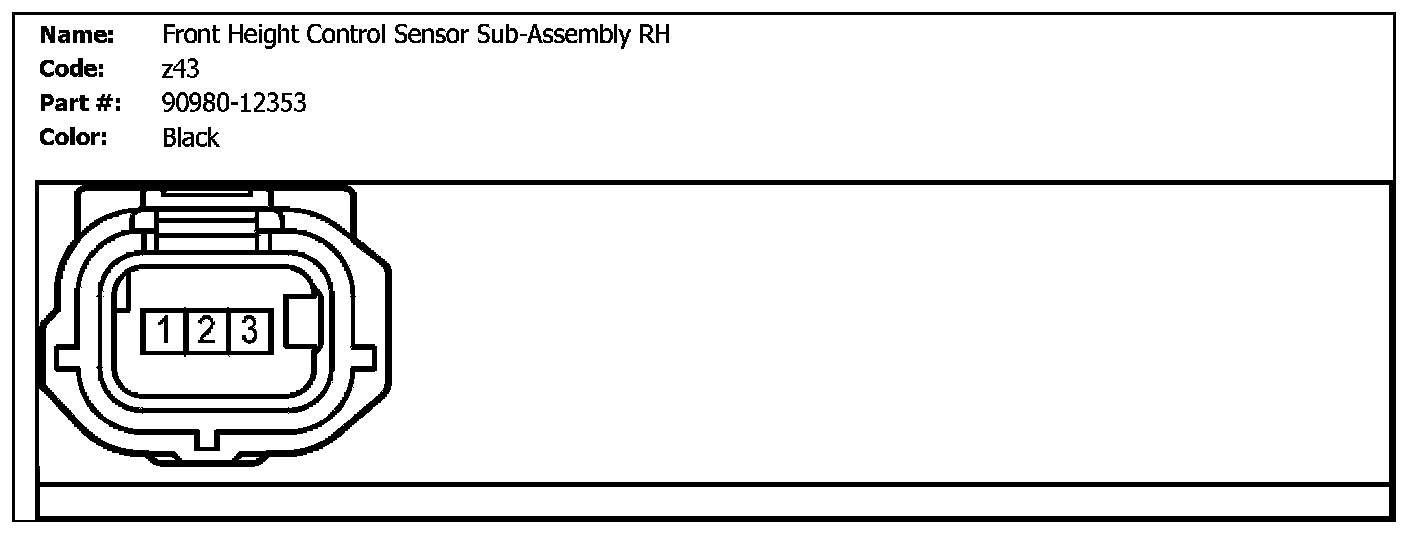

Z43 (Front Height Control Sensor Sub-Assembly RH):

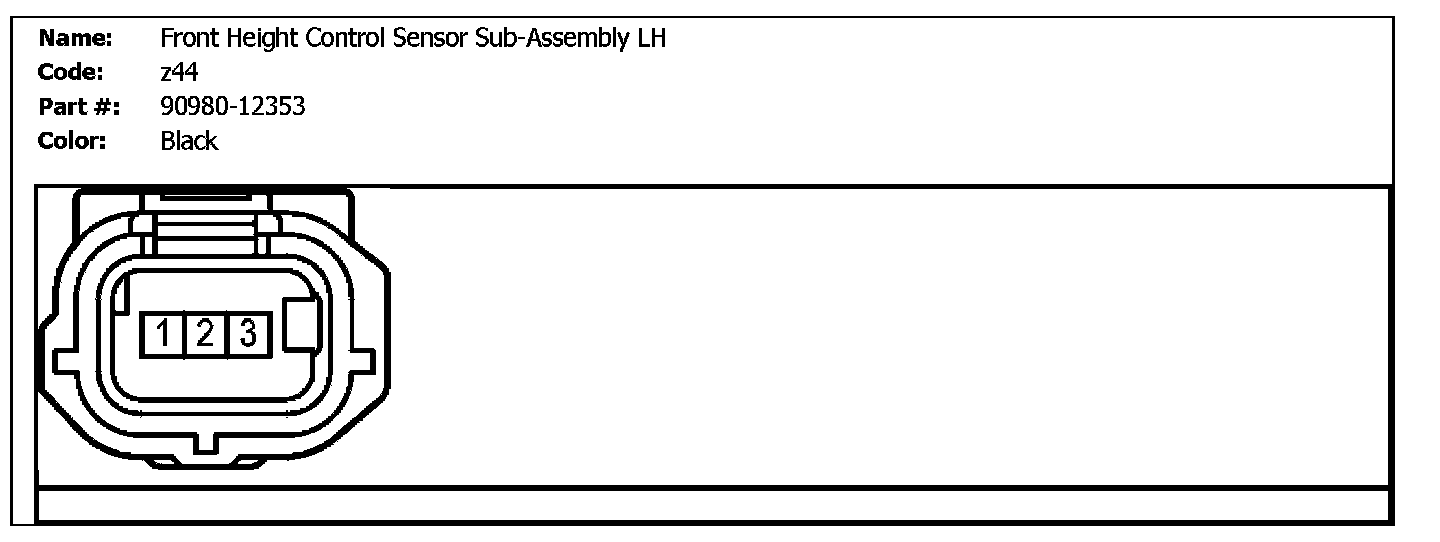

z44 (Front Height Control Sensor Sub-Assembly LH):
