N10 (Front Shock Absorber Assembly LH)

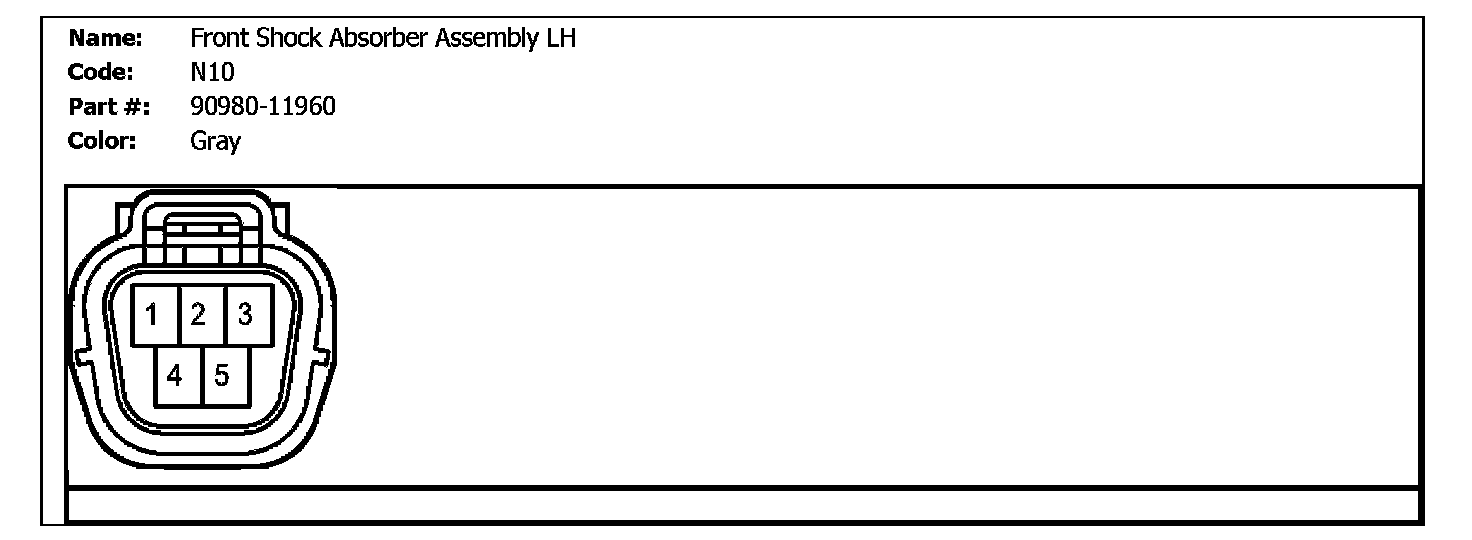

N10 (Front Shock Absorber Assembly LH):

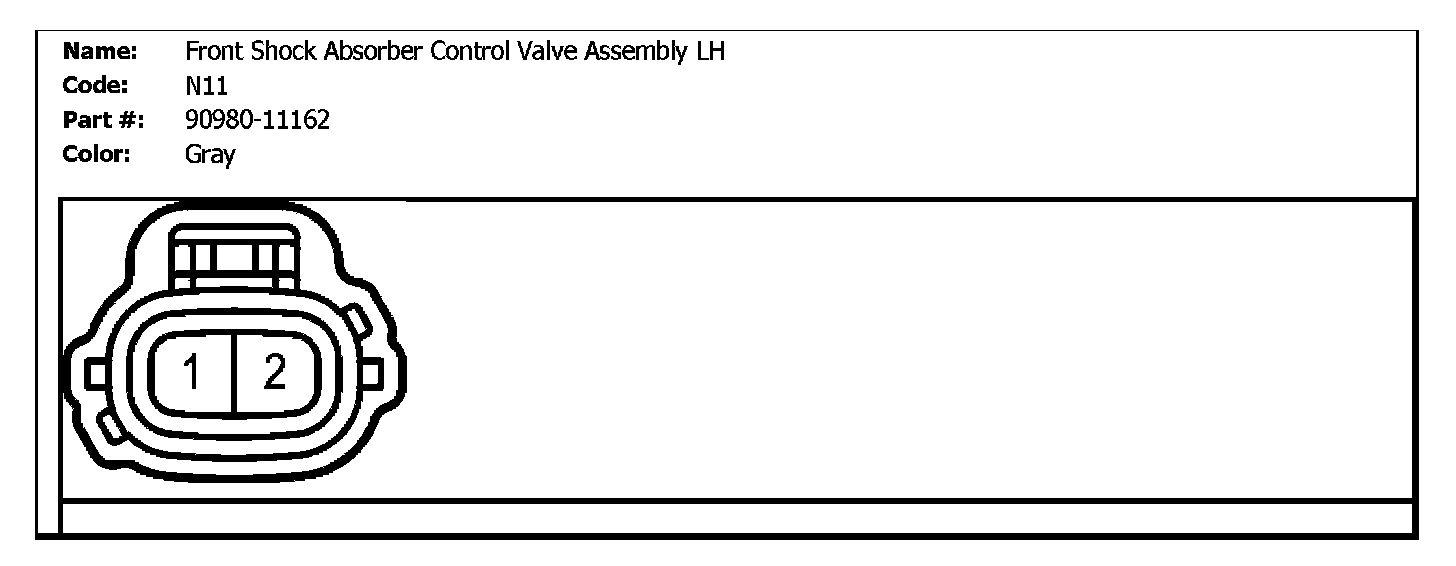

N11 (Front Shock Absorber Control Valve Assembly LH):

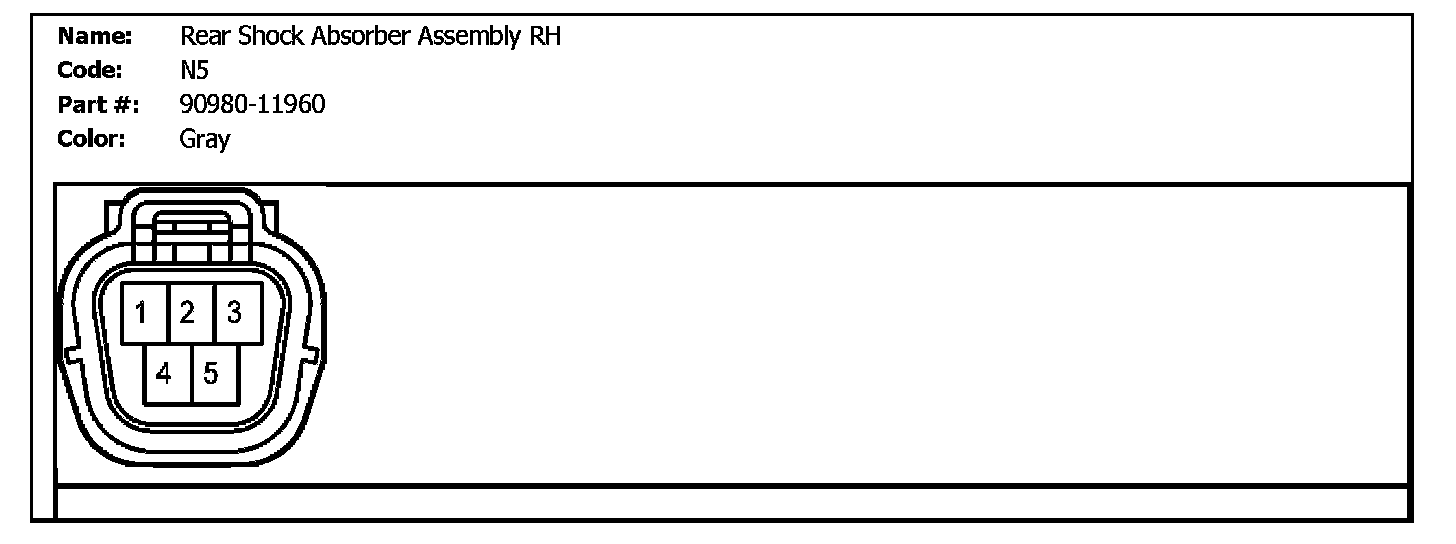

N5 (Rear Shock Absorber Assembly RH):

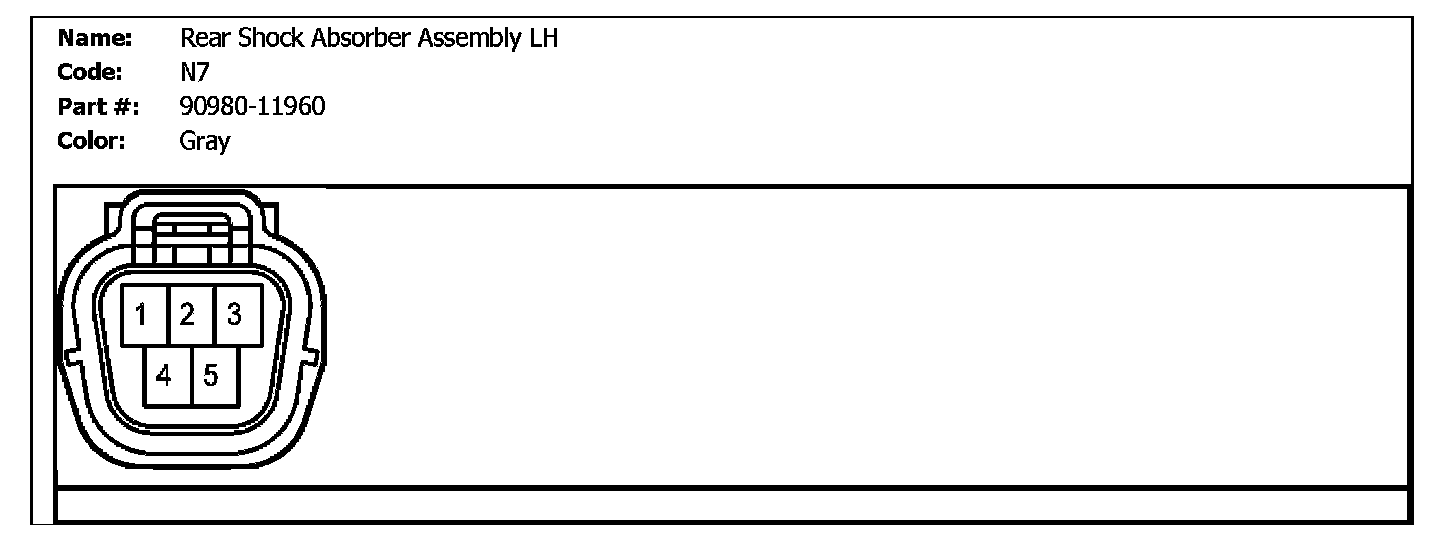

N7 (Rear Shock Absorber Assembly LH):

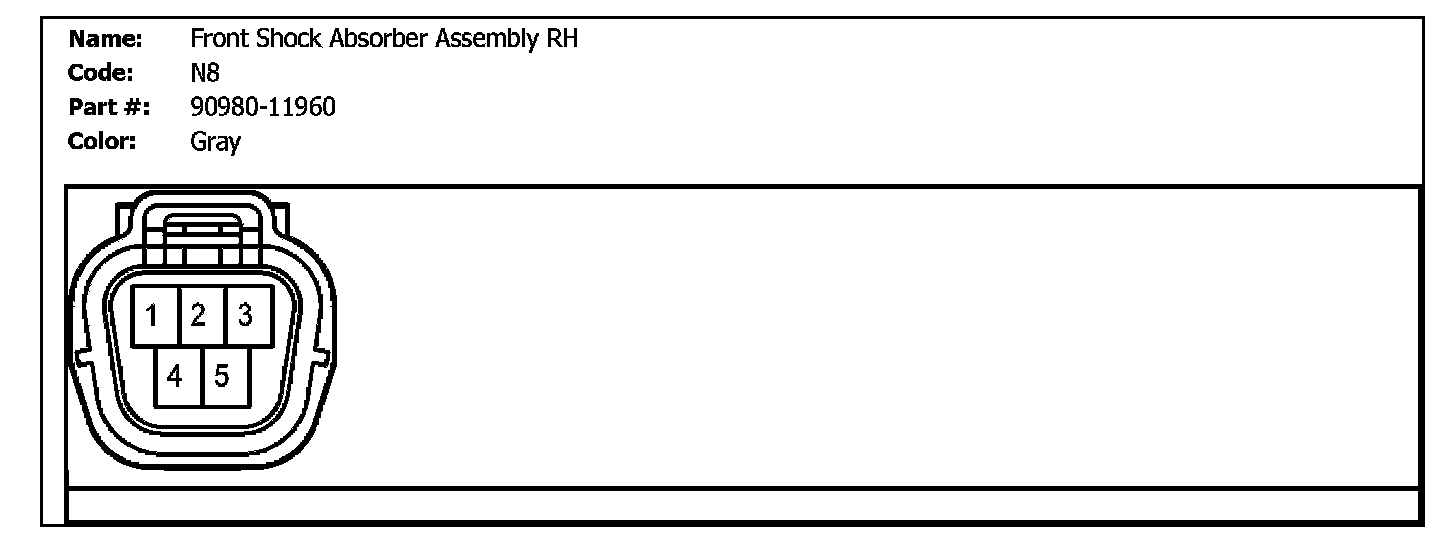

N8 (Front Shock Absorber Assembly RH):

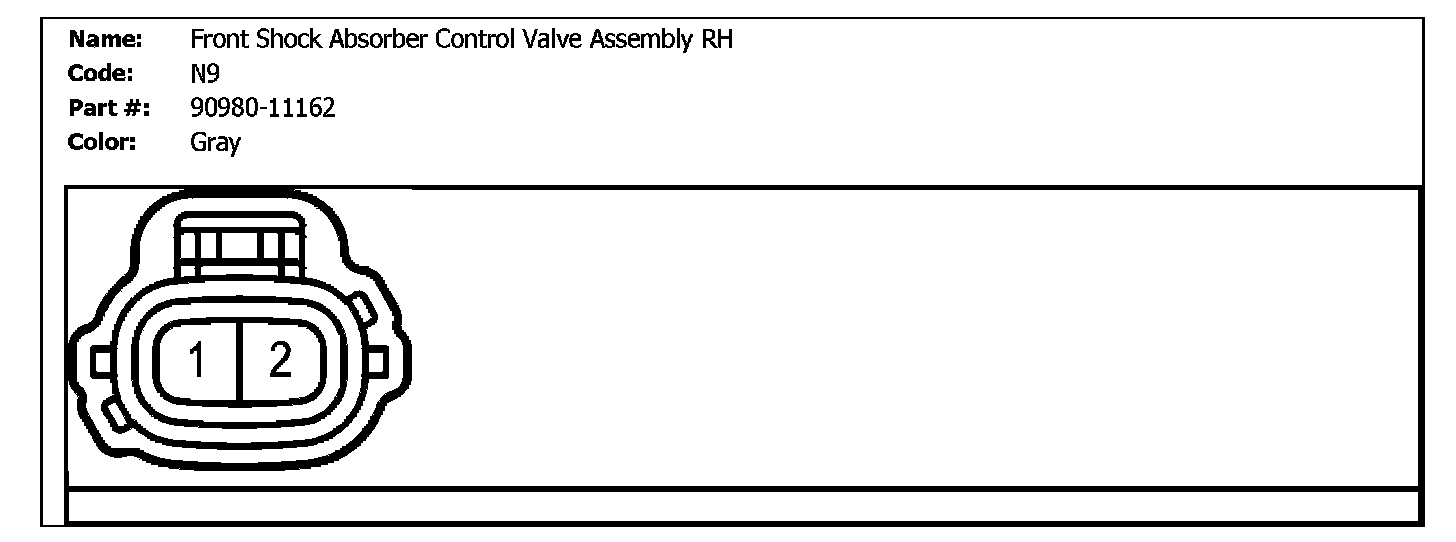

N9 (Front Shock Absorber Control Valve Assembly RH):
