E1 (Main Body ECU)

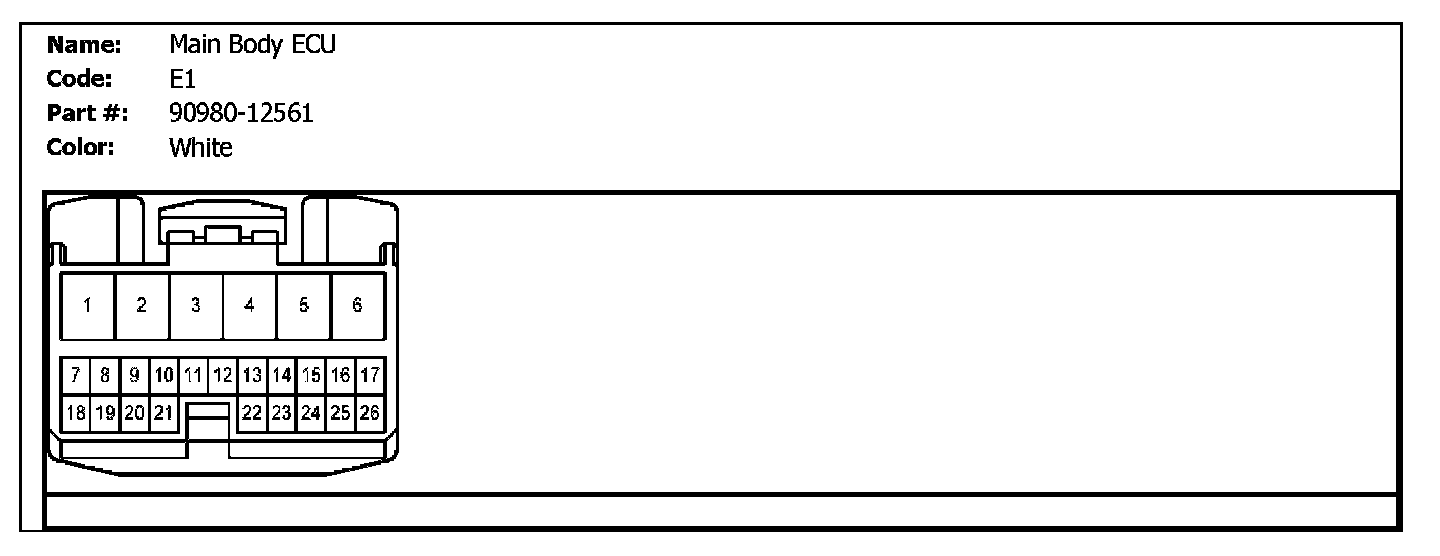

E1 (Main Body ECU):

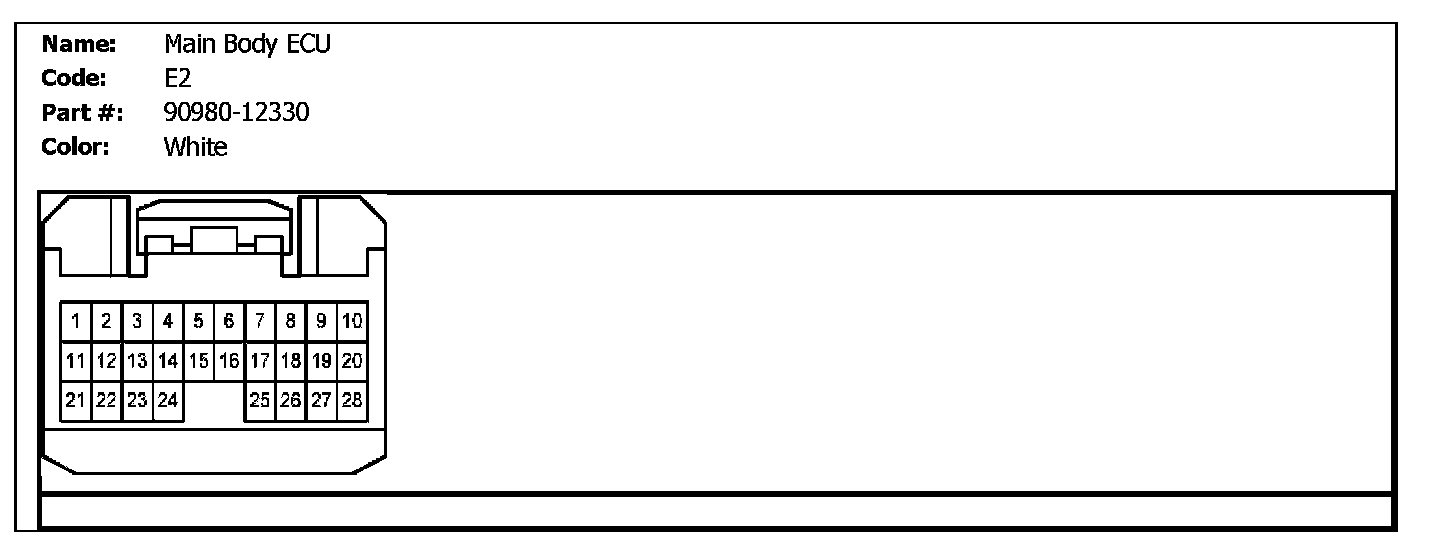

E2 (Main Body ECU):

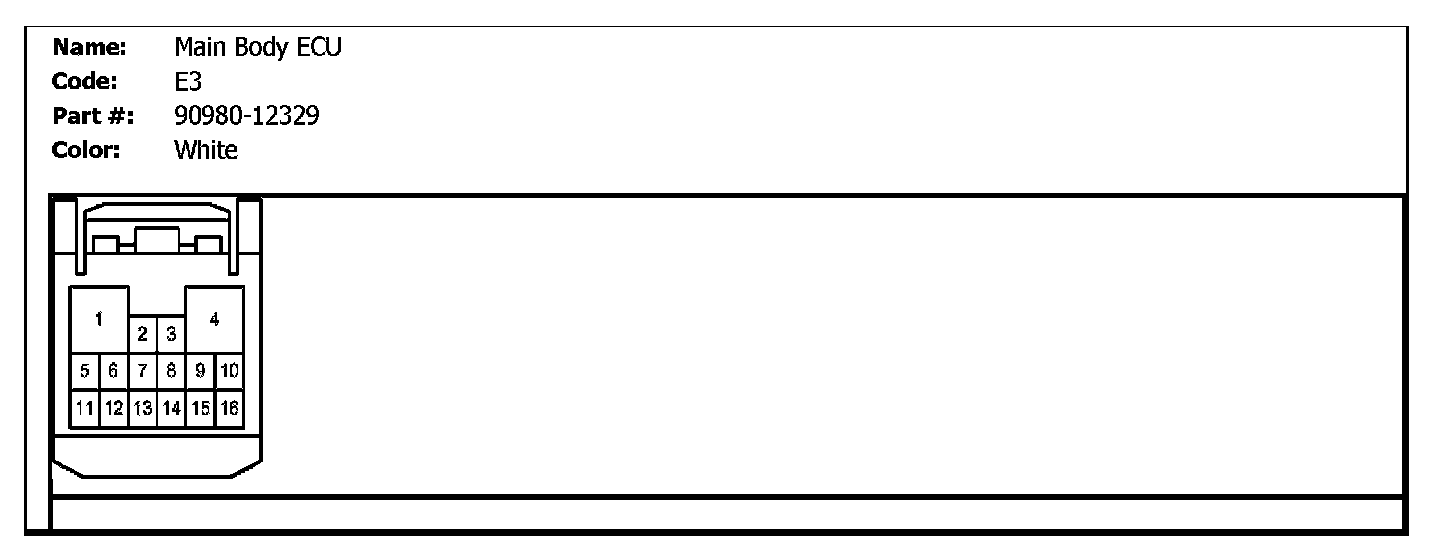

E3 (Main Body ECU):

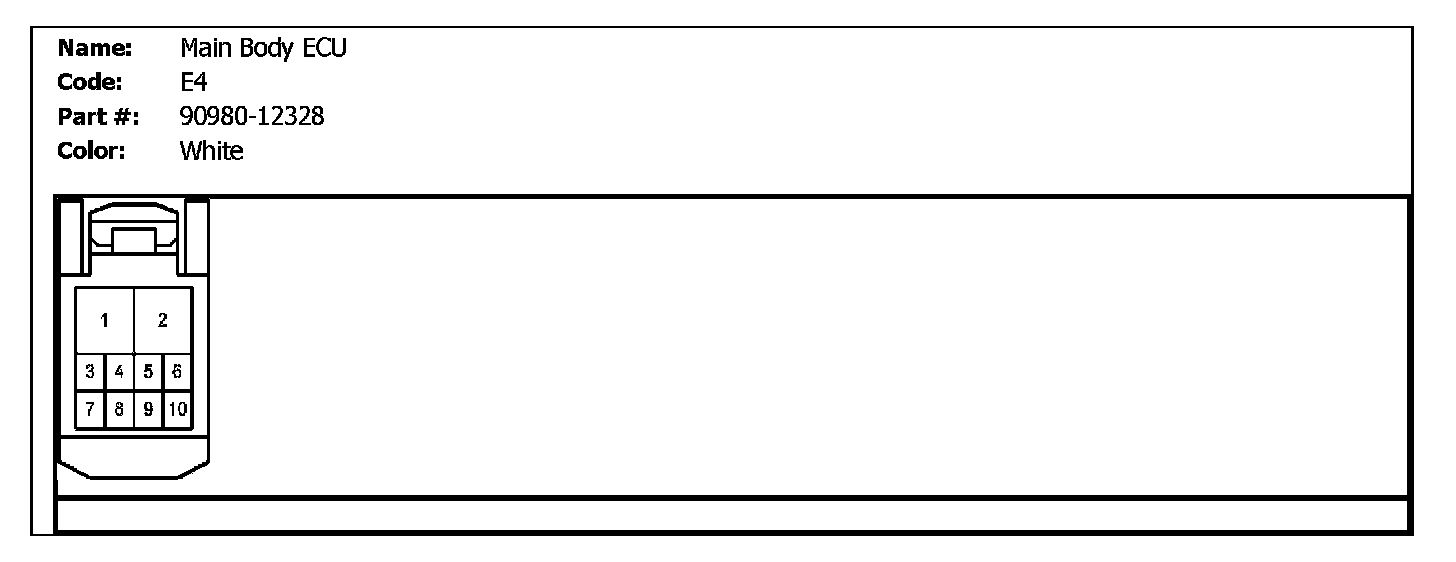

E4 (Main Body ECU):

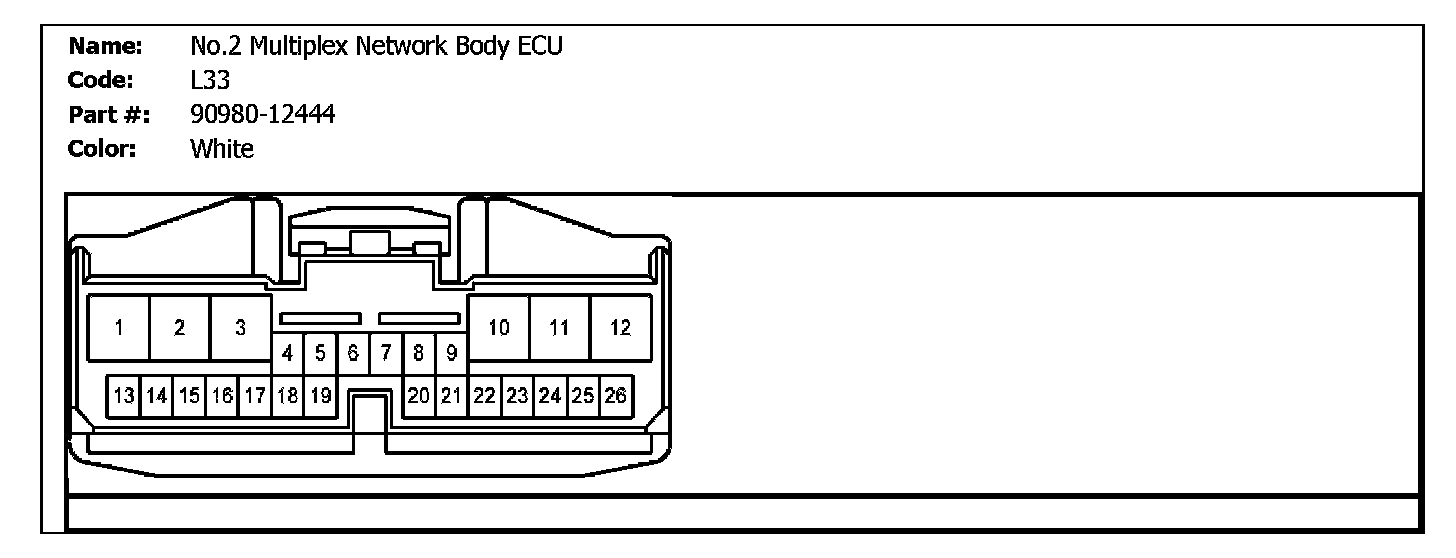

L33 (No.2 Multiplex Network Body ECU):

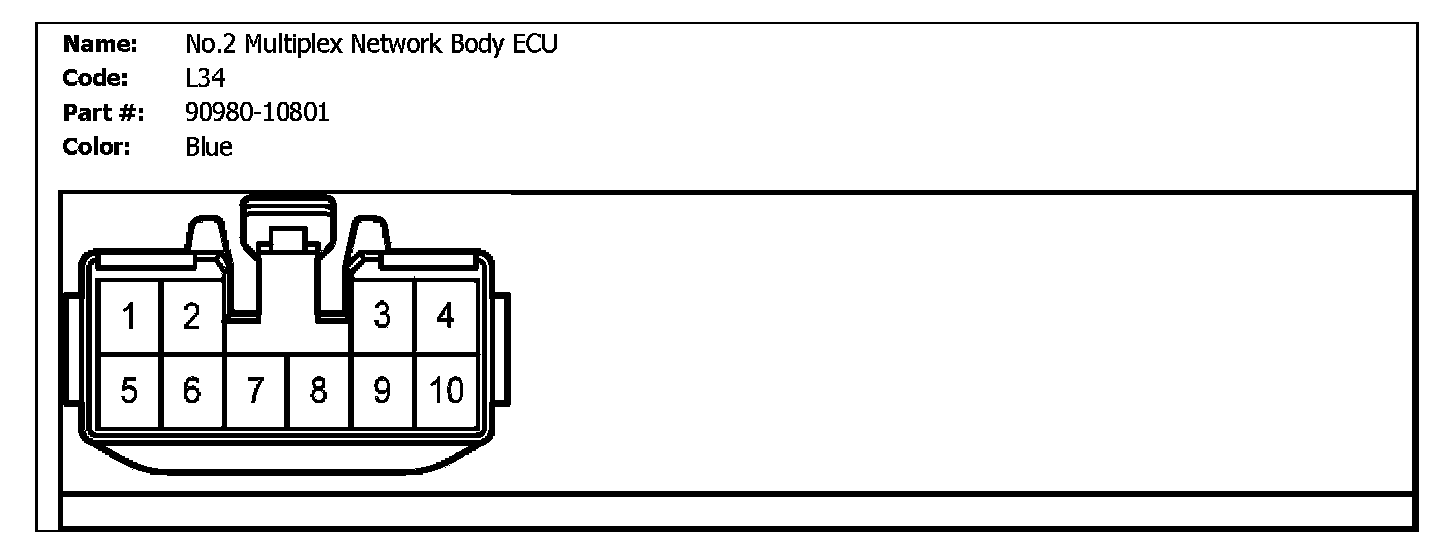

L34 (No.2 Multiplex Network Body ECU):
