b1 (Front Passenger Side Squib Circuit)

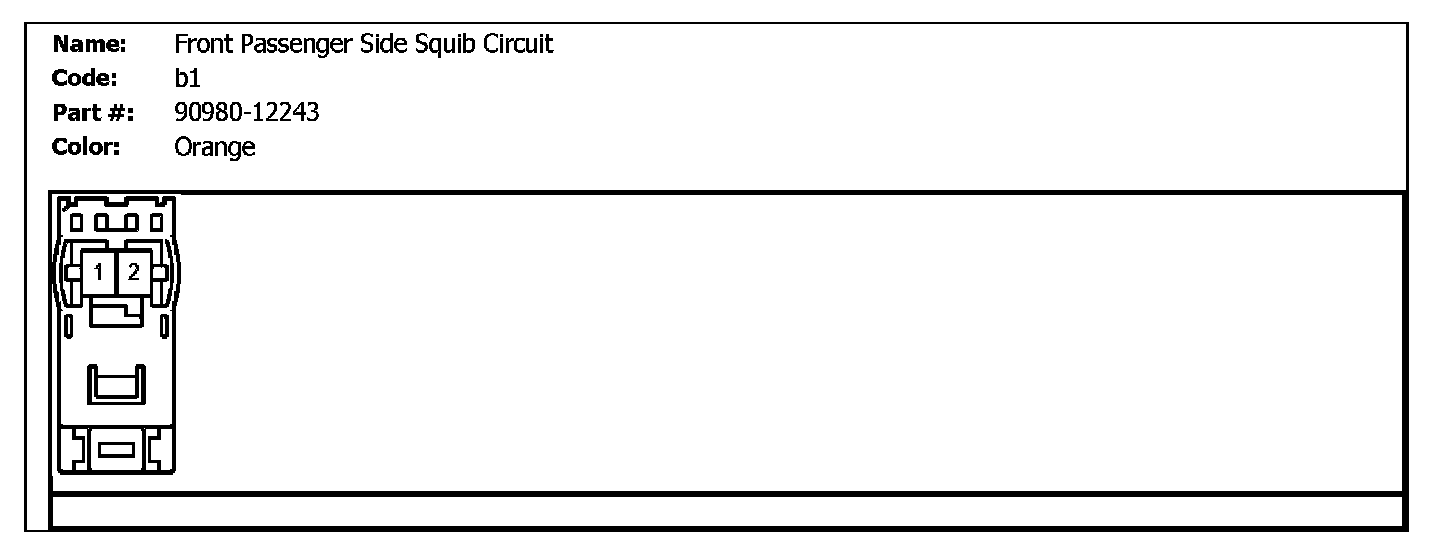

b1 (Front Passenger Side Squib Circuit):



b2 (Front Passenger Side Squib Circuit):

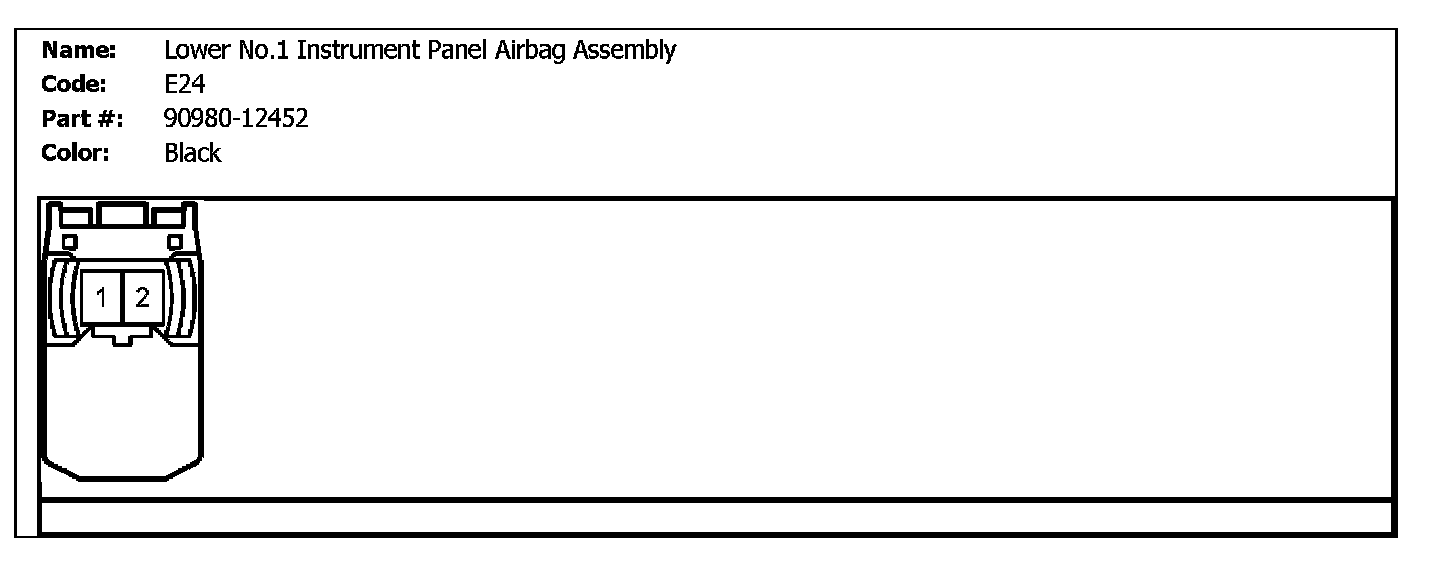

E24 (Lower No.1 Instrument Panel Airbag Assembly):

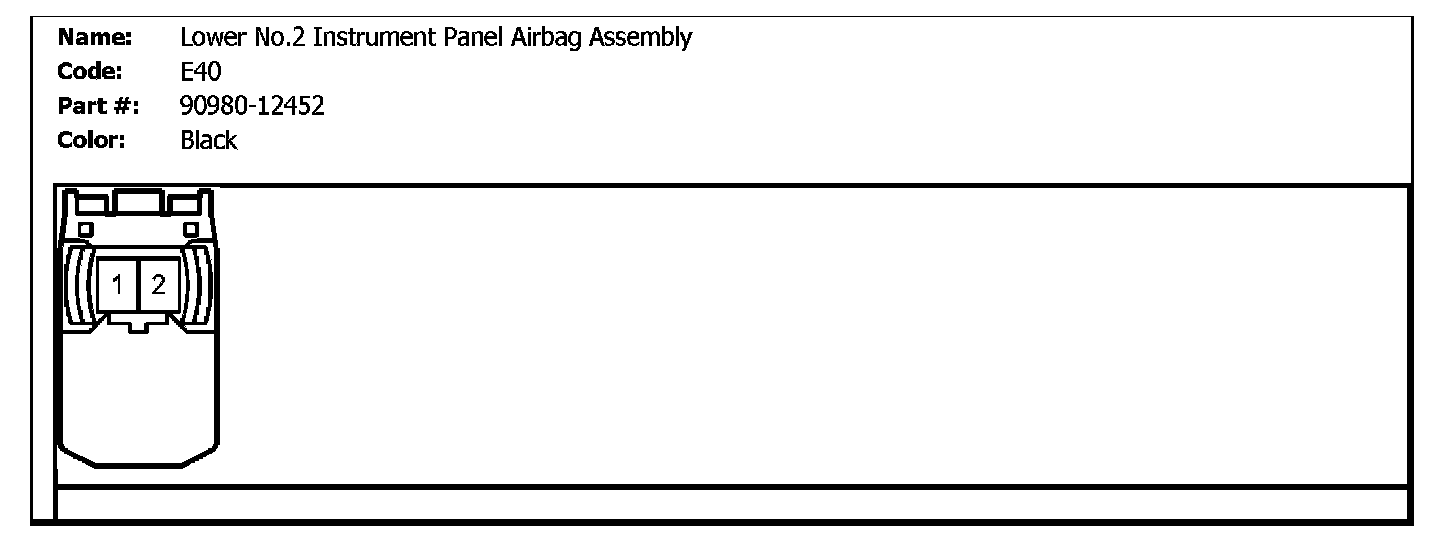

E40 (Lower No.2 Instrument Panel Airbag Assembly):



K14 (Rear Side Airbag Squib Circuit LH):

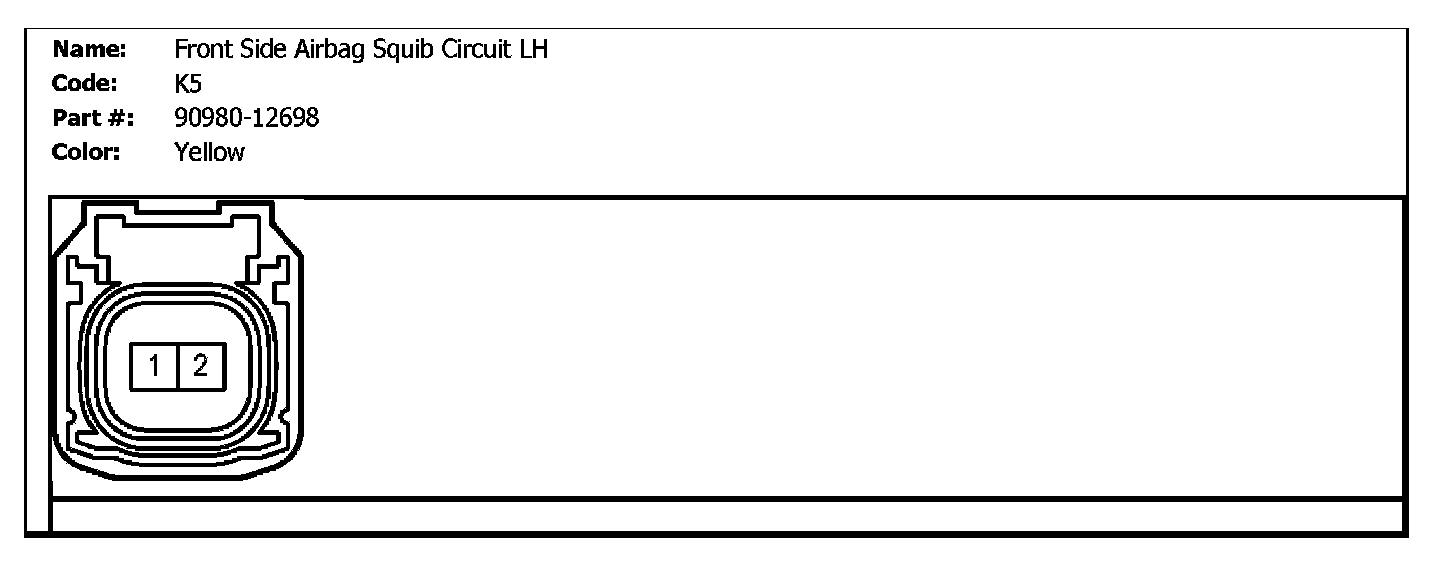

K5 (Front Side Airbag Squib Circuit LH):

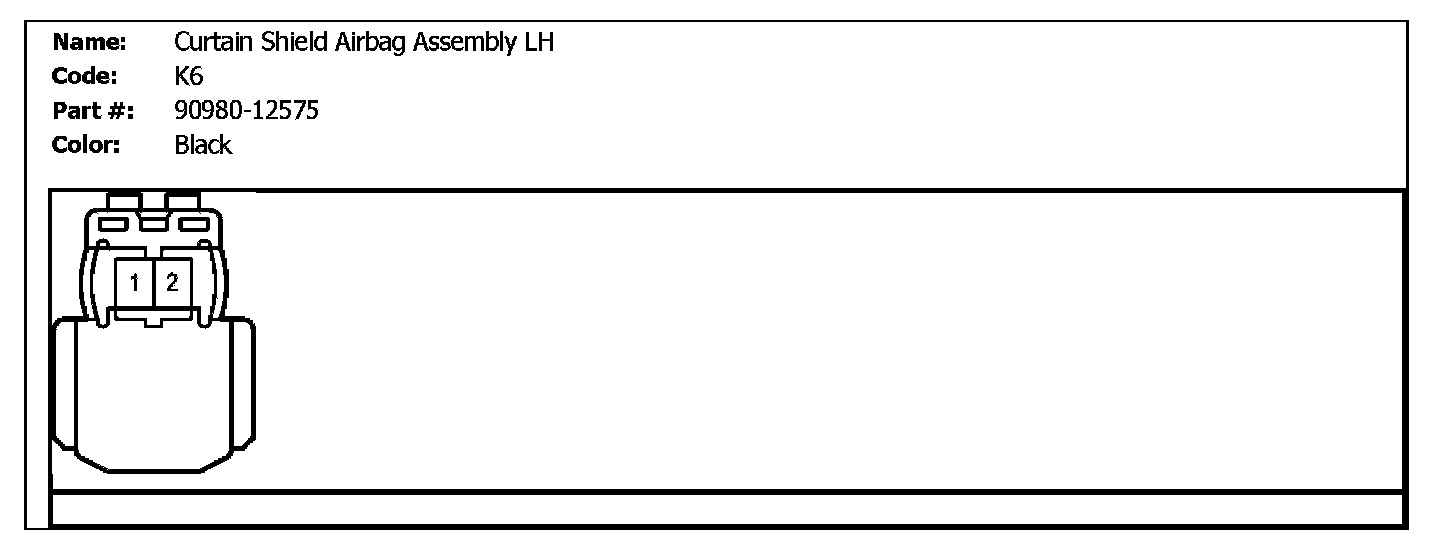

K6 (Curtain Shield Airbag Assembly LH):

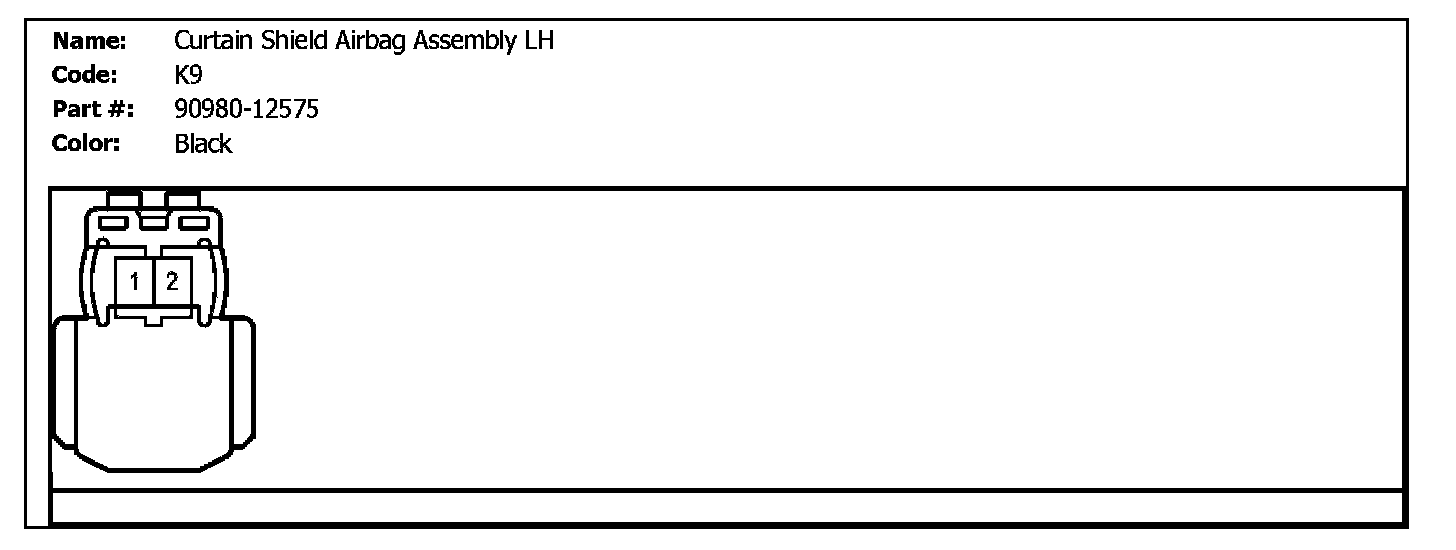

K9 (Curtain Shield Airbag Assembly LH):

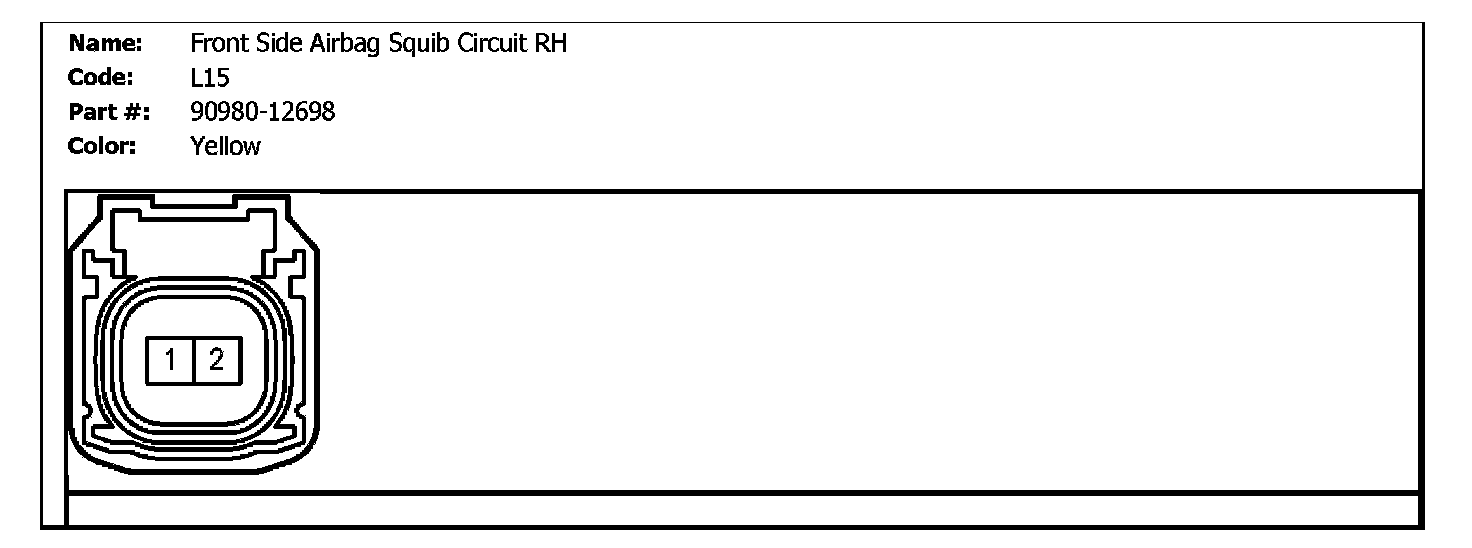

L15 (Front Side Airbag Squib Circuit RH):



L16 (Rear Side Airbag Squib Circuit RH):

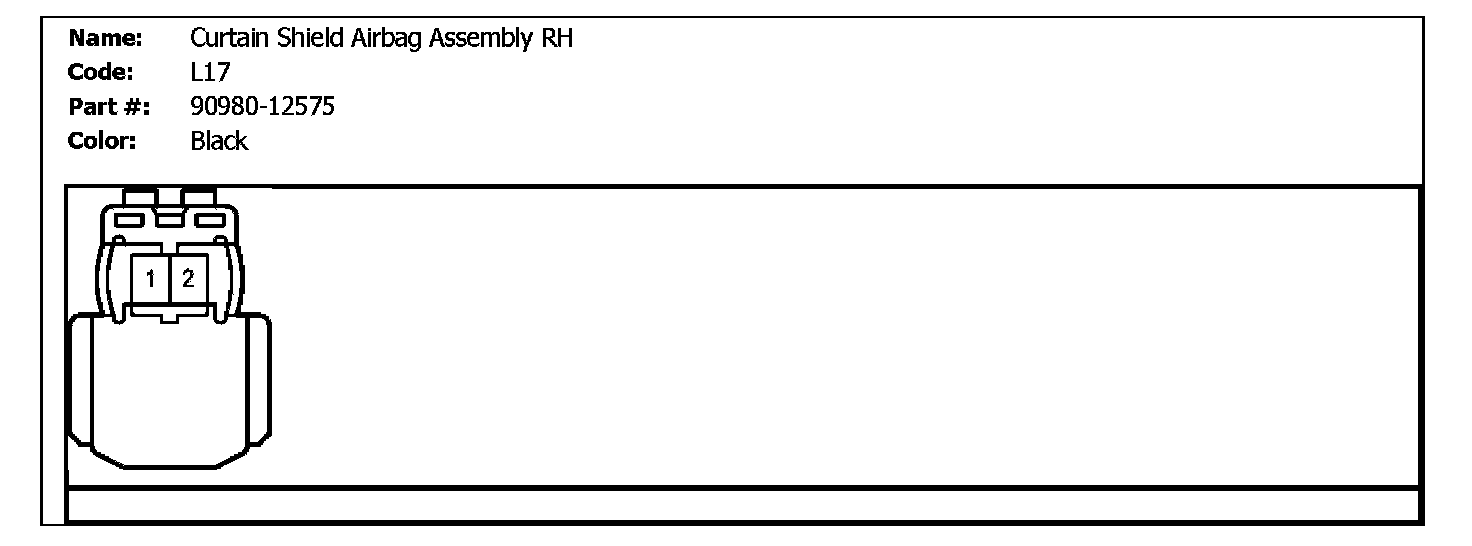

L17 (Curtain Shield Airbag Assembly RH):

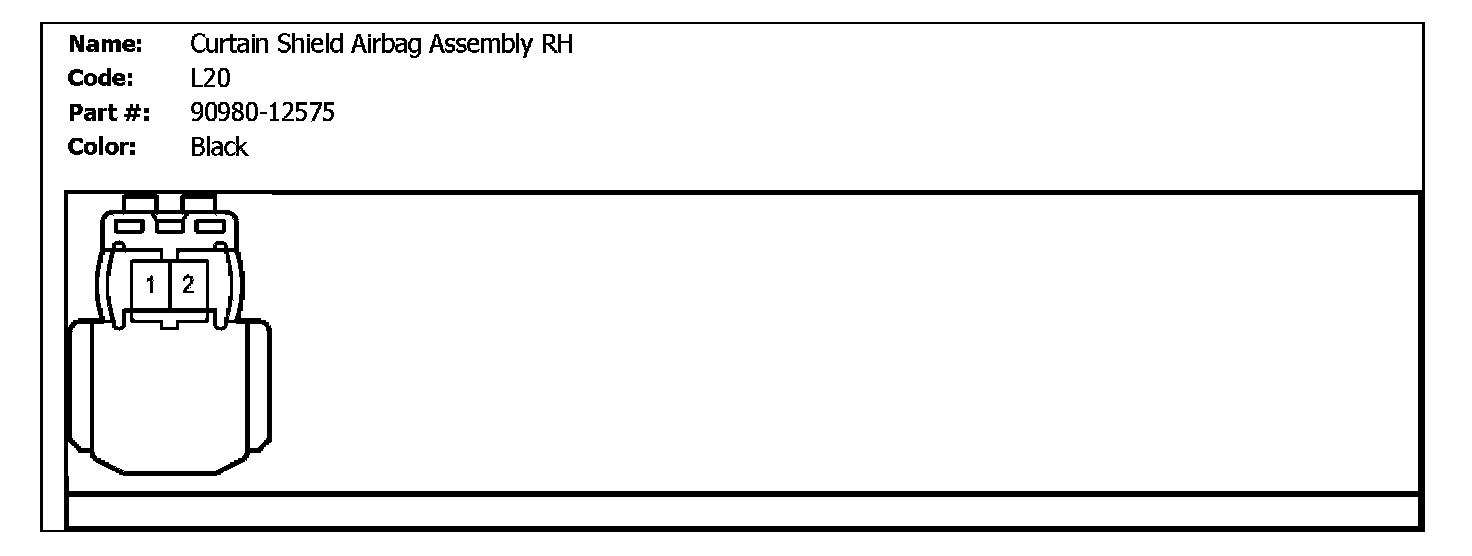

L20 (Curtain Shield Airbag Assembly RH):



z47 (Driver Side Squib 2nd Step Circuit, Spiral Cable Sub-Assembly):

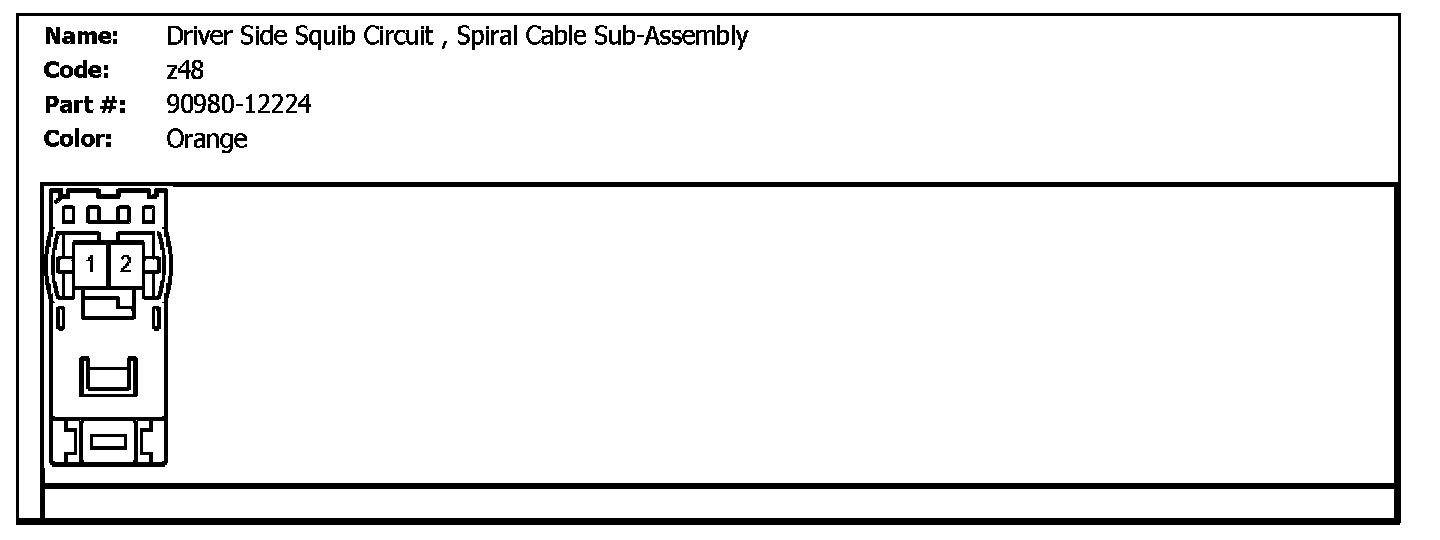

z48 (Driver Side Squib Circuit, Spiral Cable Sub-Assembly):
