Position of Parts In Seat [Rear No.1 Seat]
Position of Parts In Seat [Rear No.1 Seat]

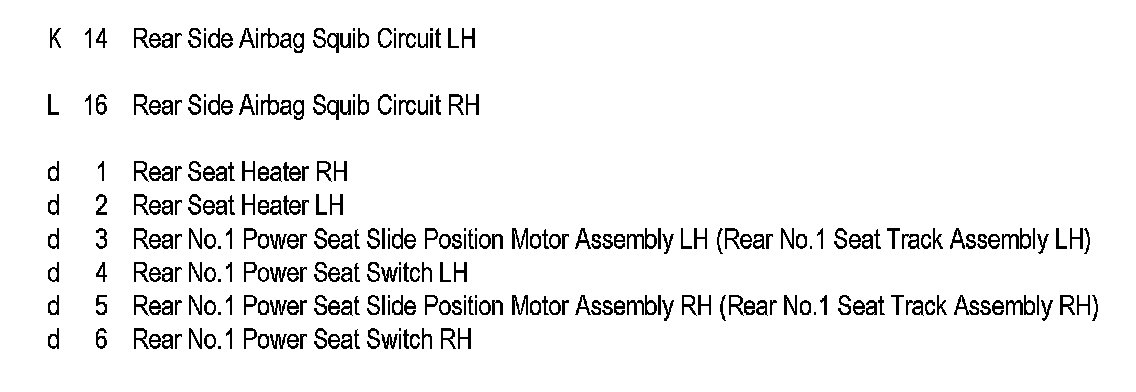

Position of Parts in Seat <Rear No.1 Seat>:

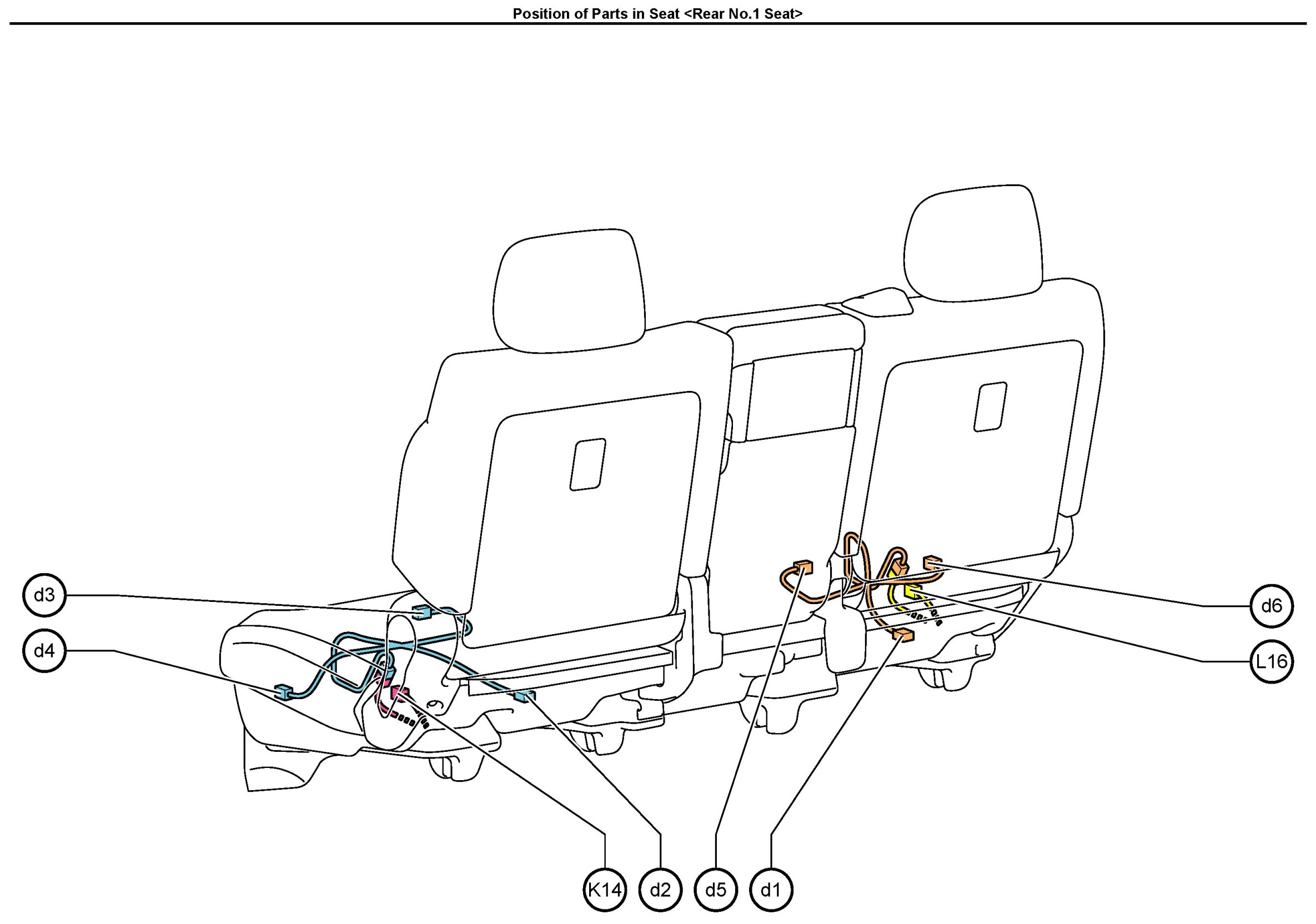

Position of Parts in Seat <Rear No.1 Seat>:

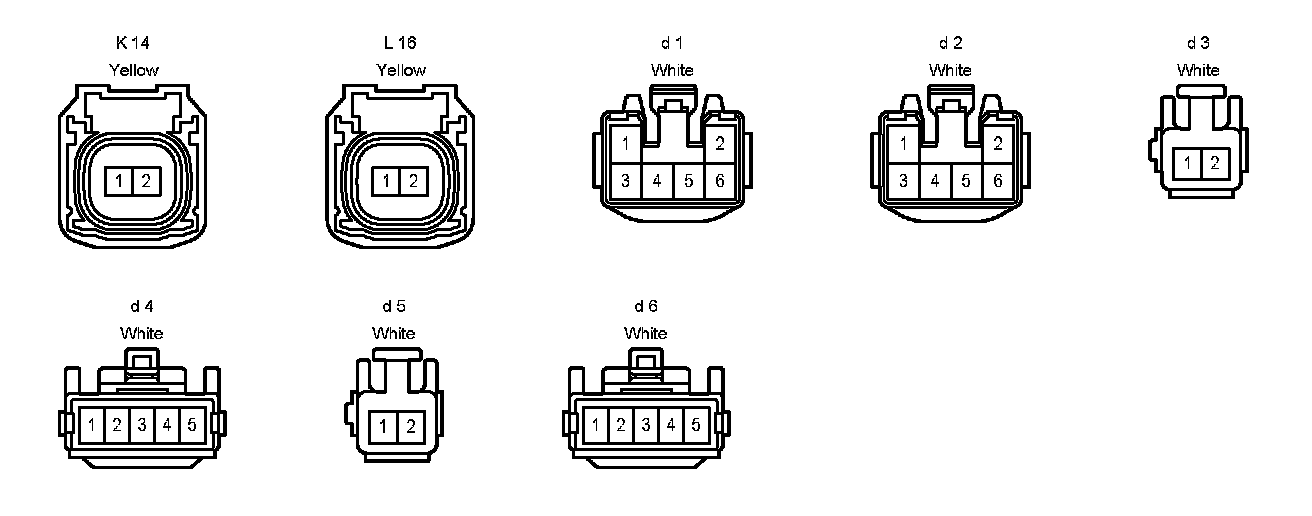

Position of Parts in Seat <Rear No.1 Seat>:
