Dynamic Radar Cruise Control

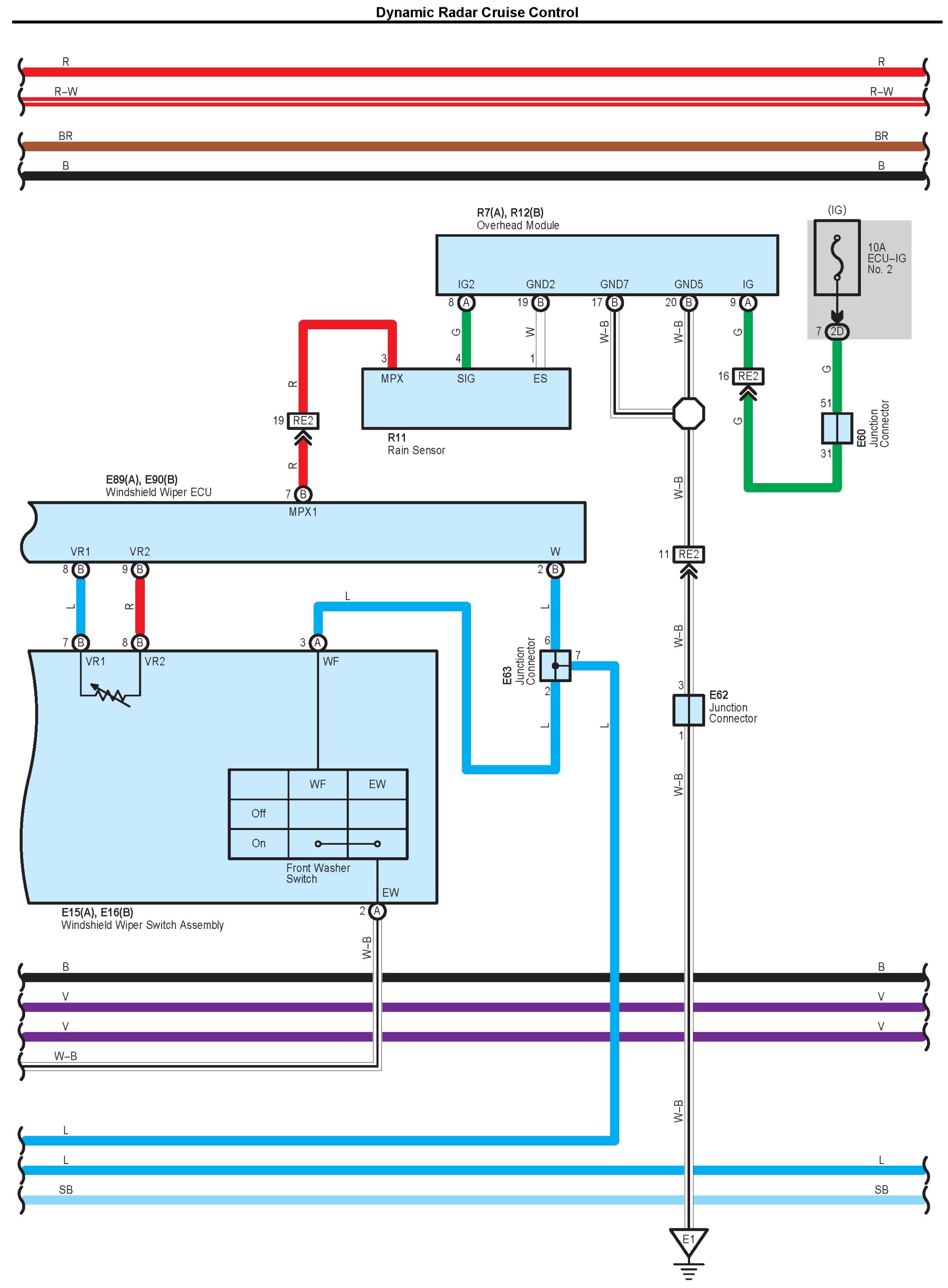

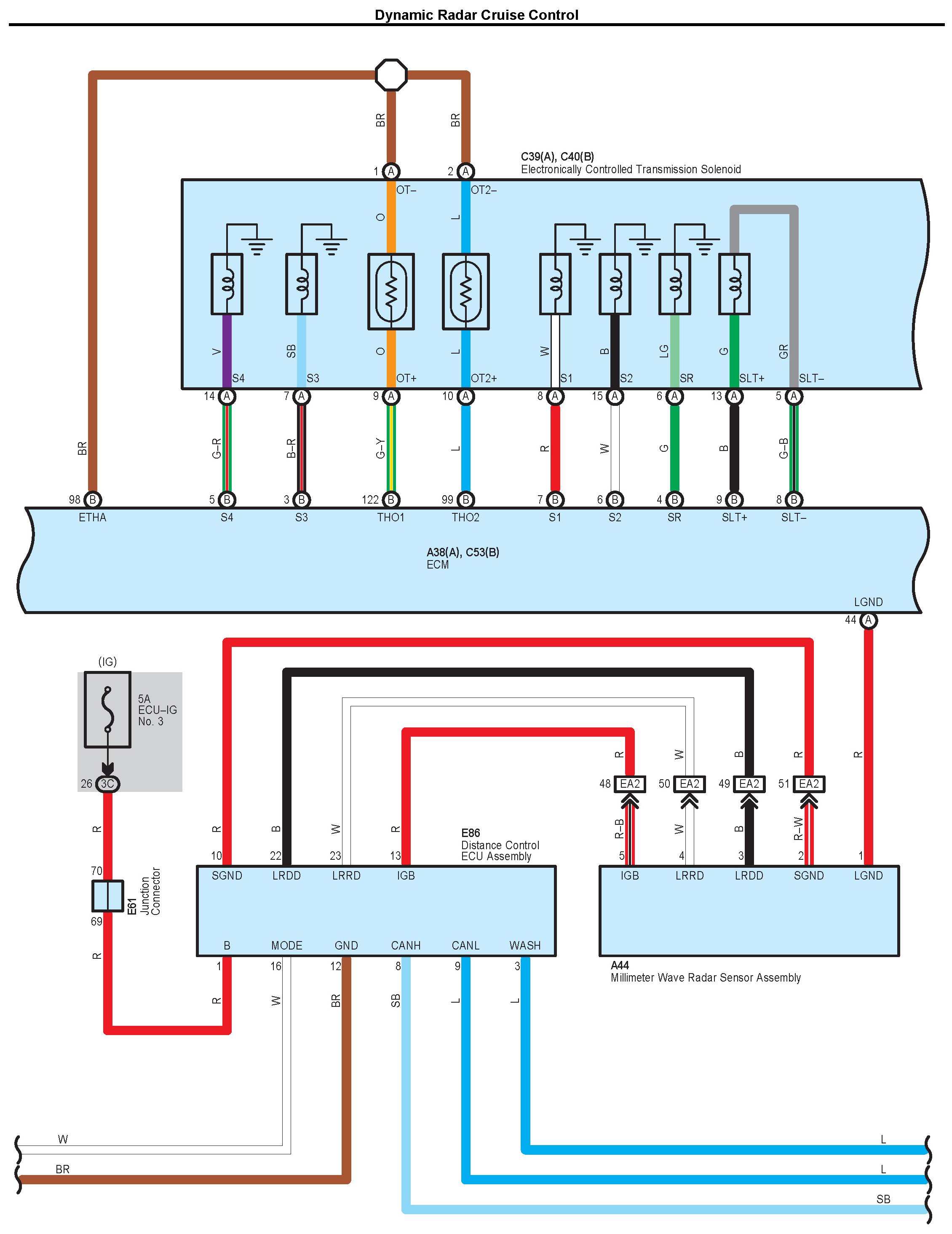

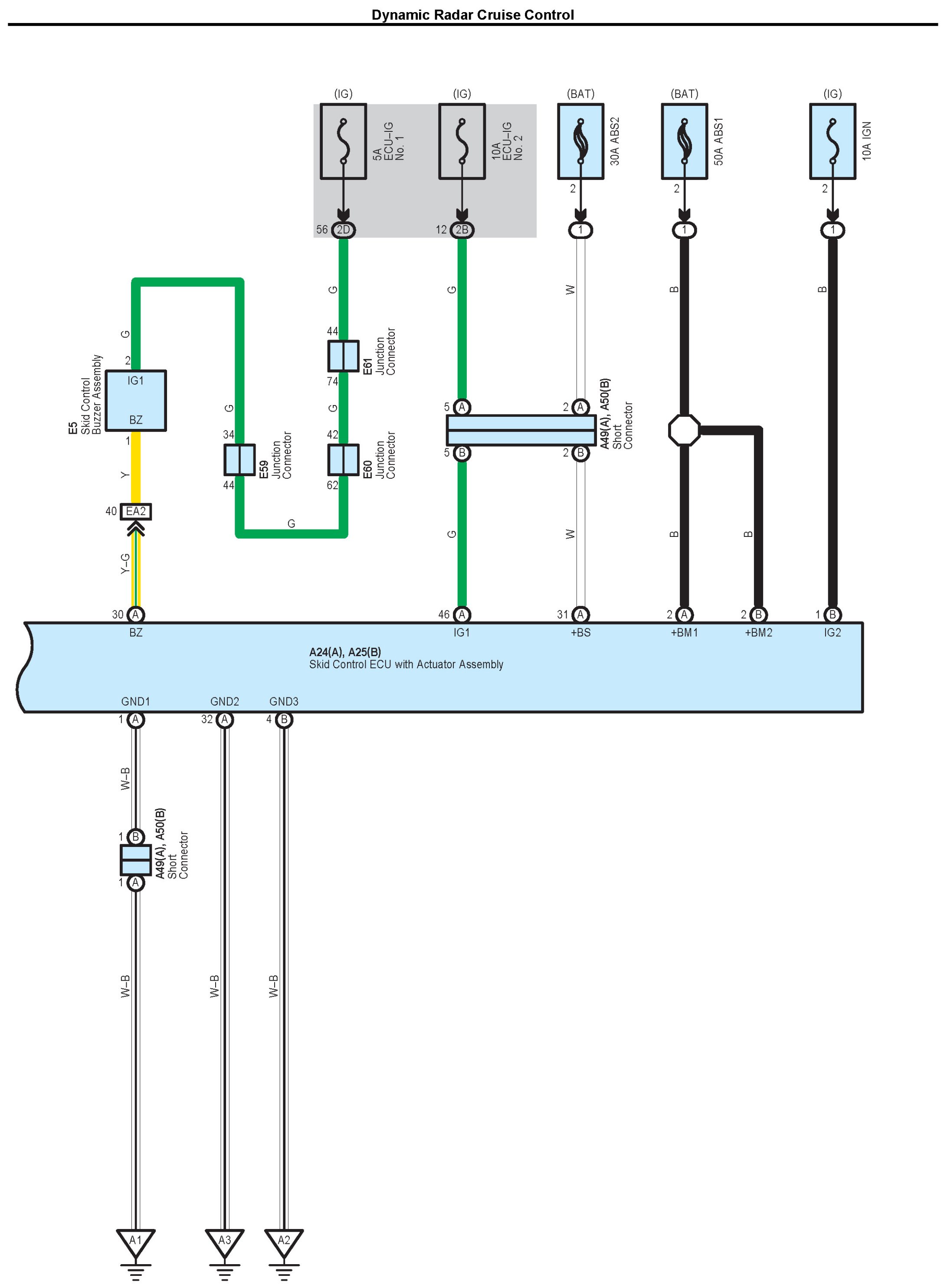

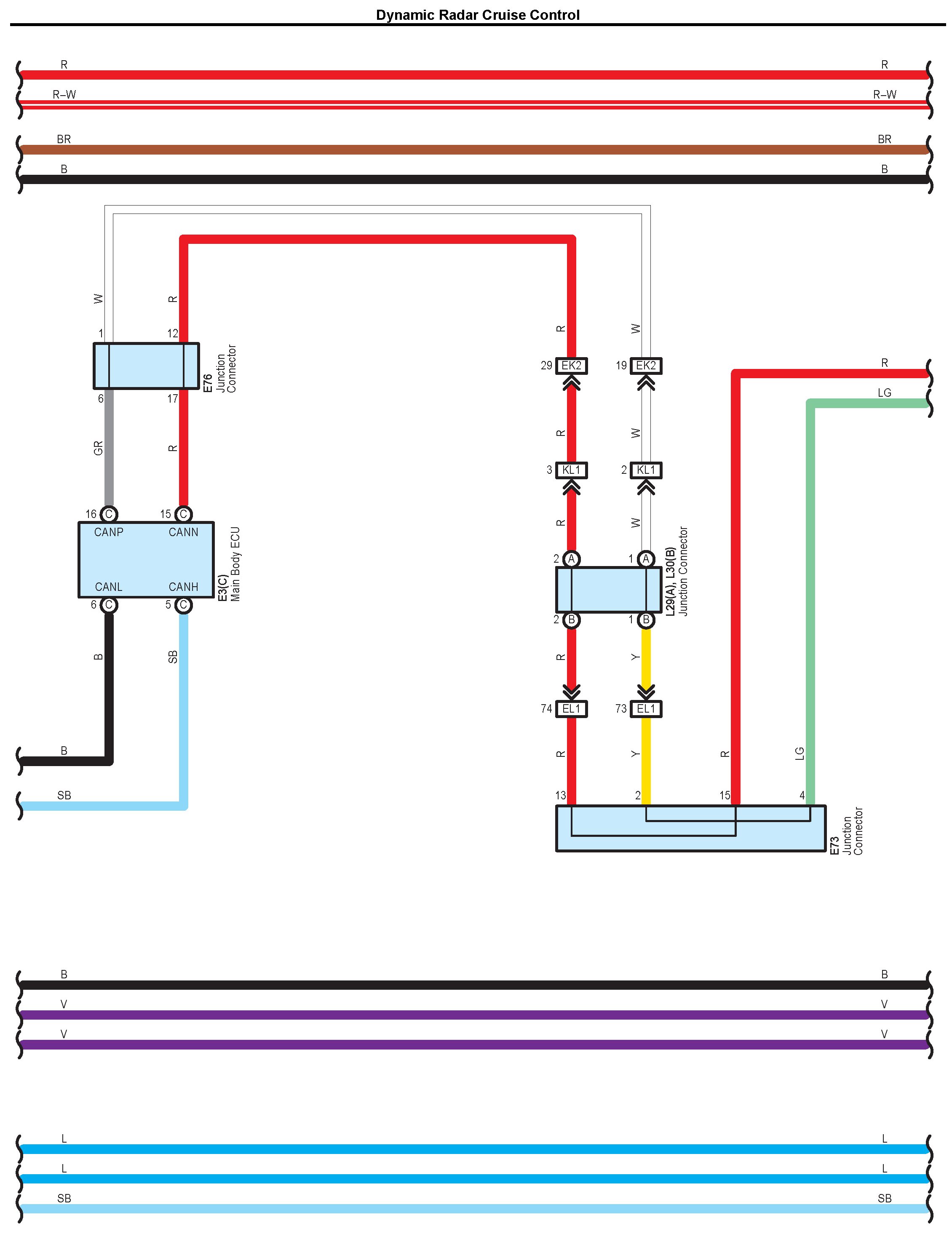

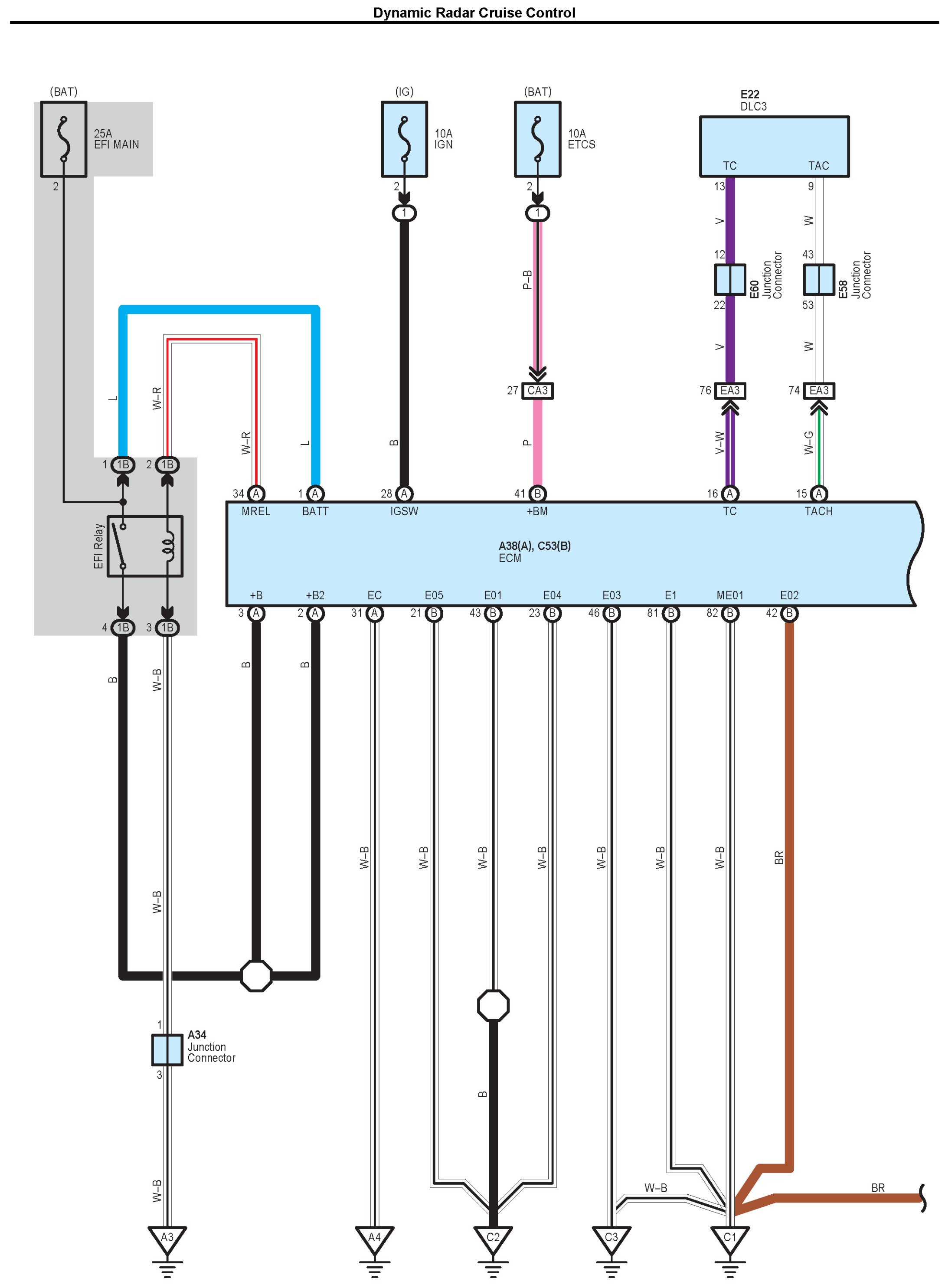

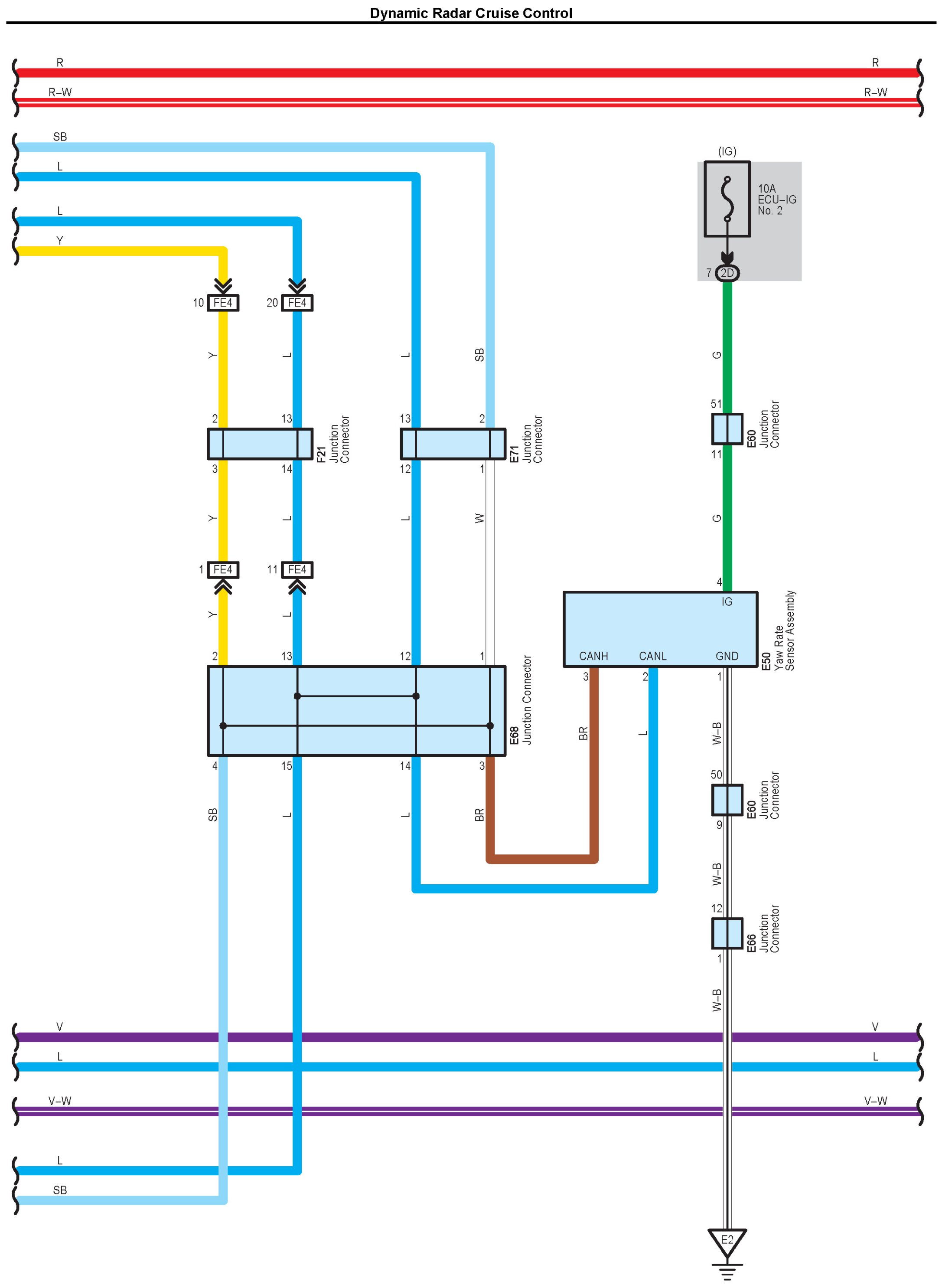

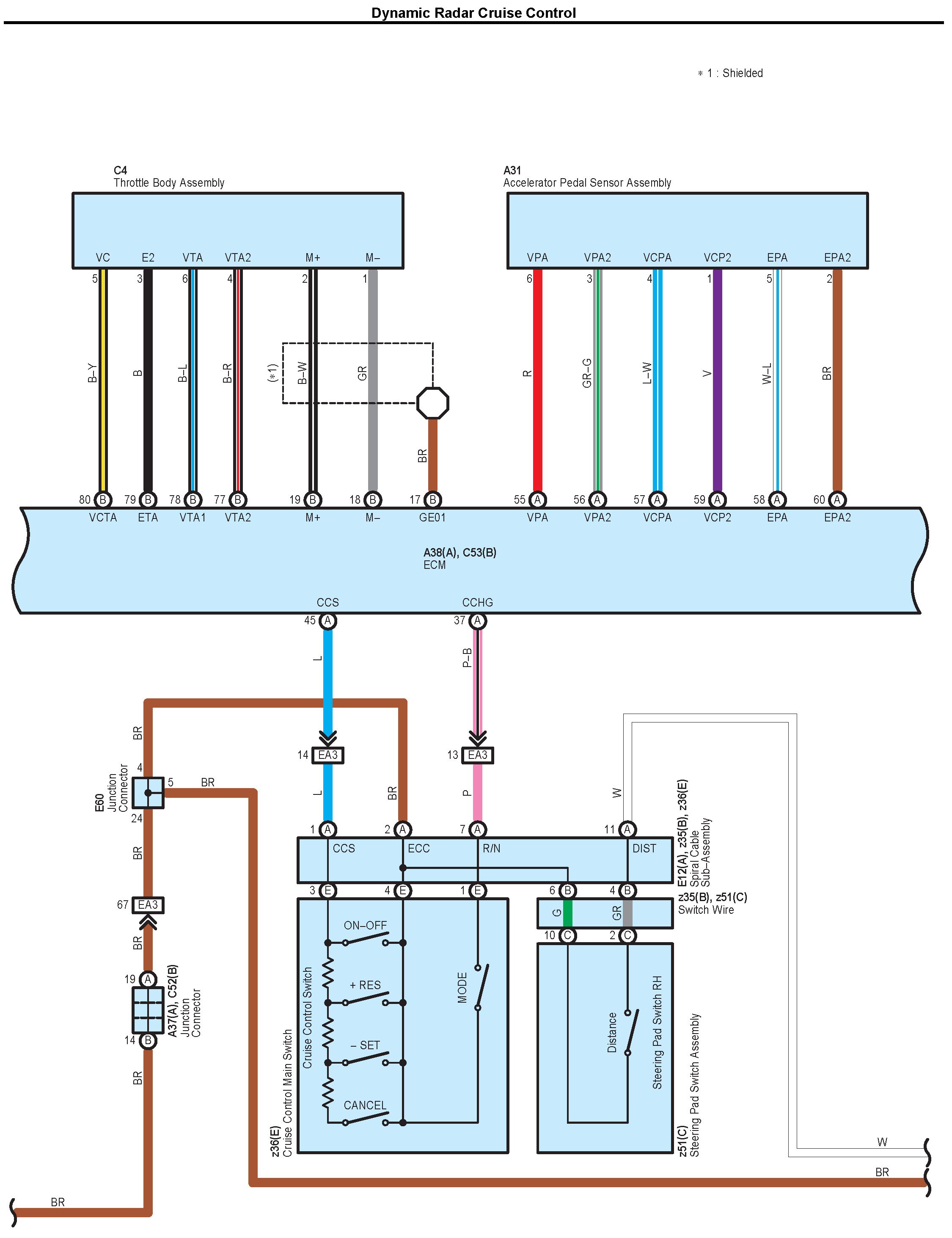

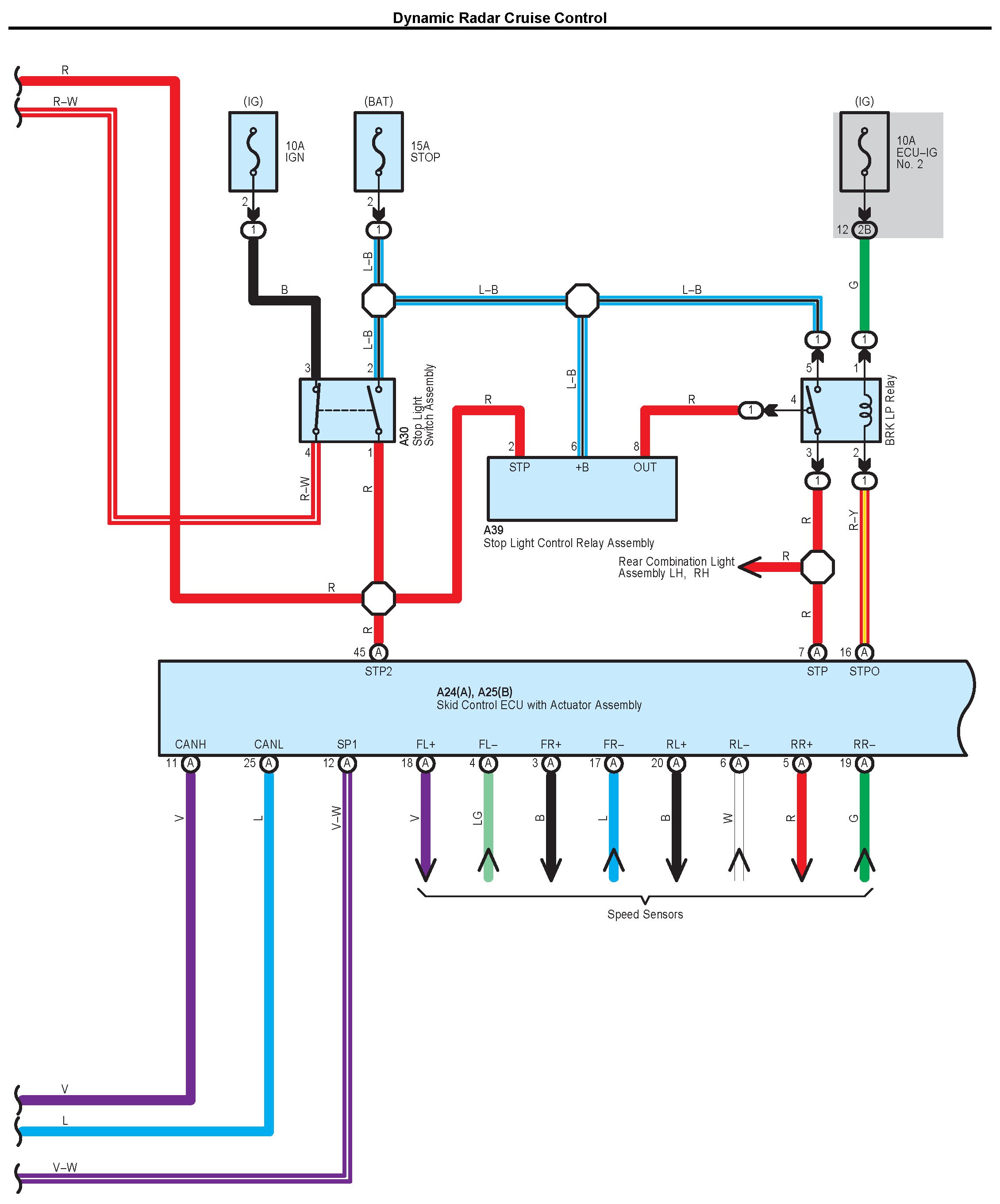

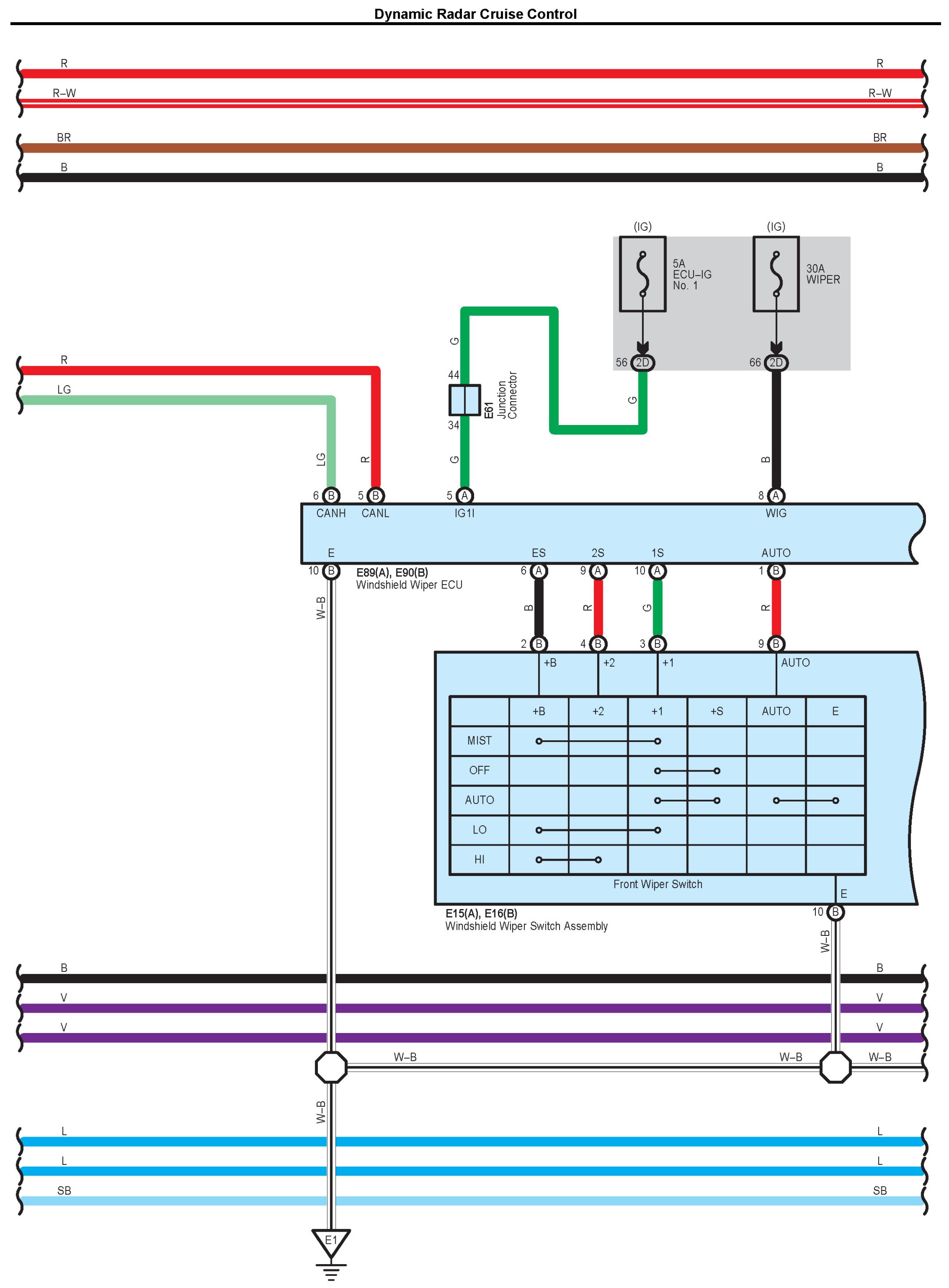

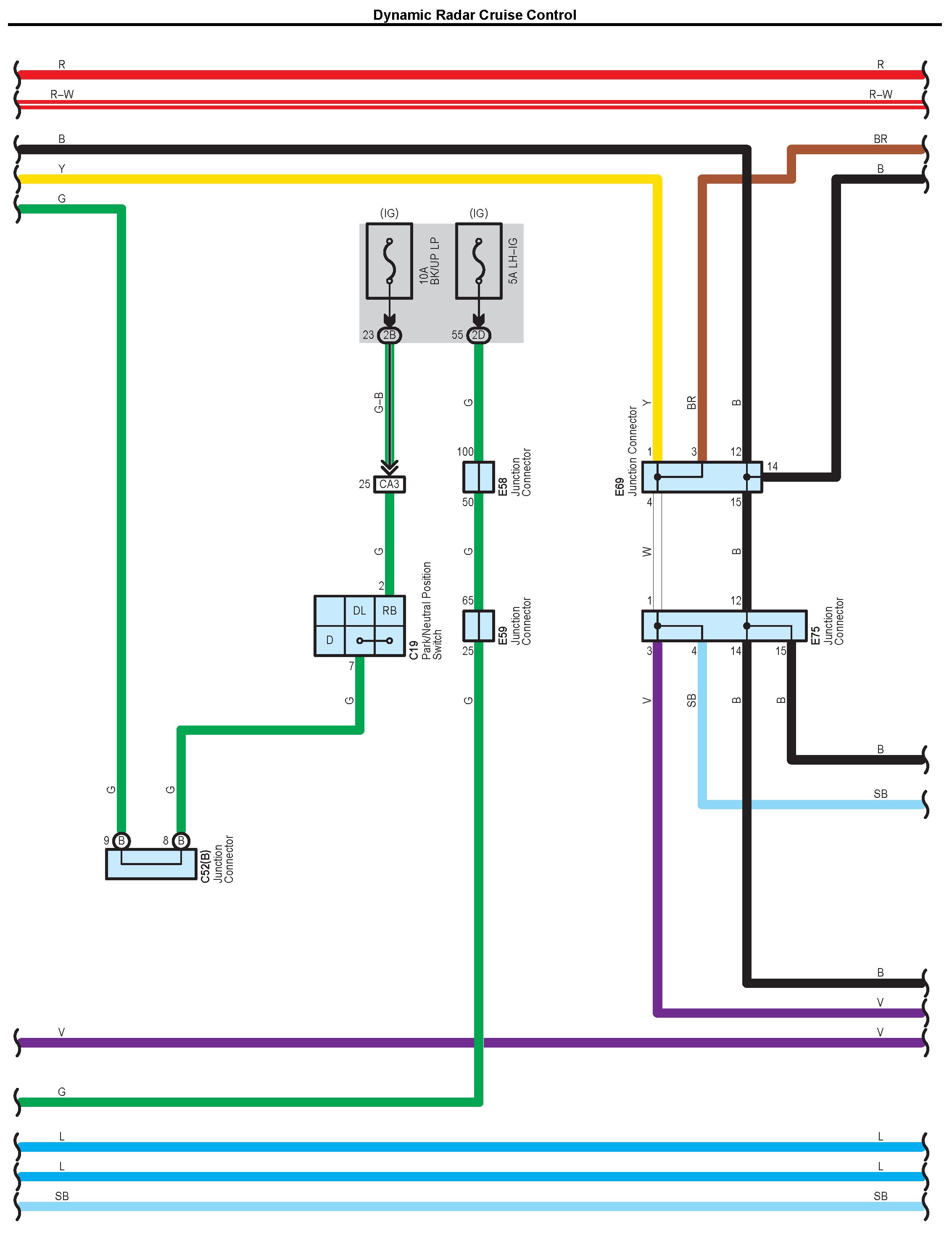

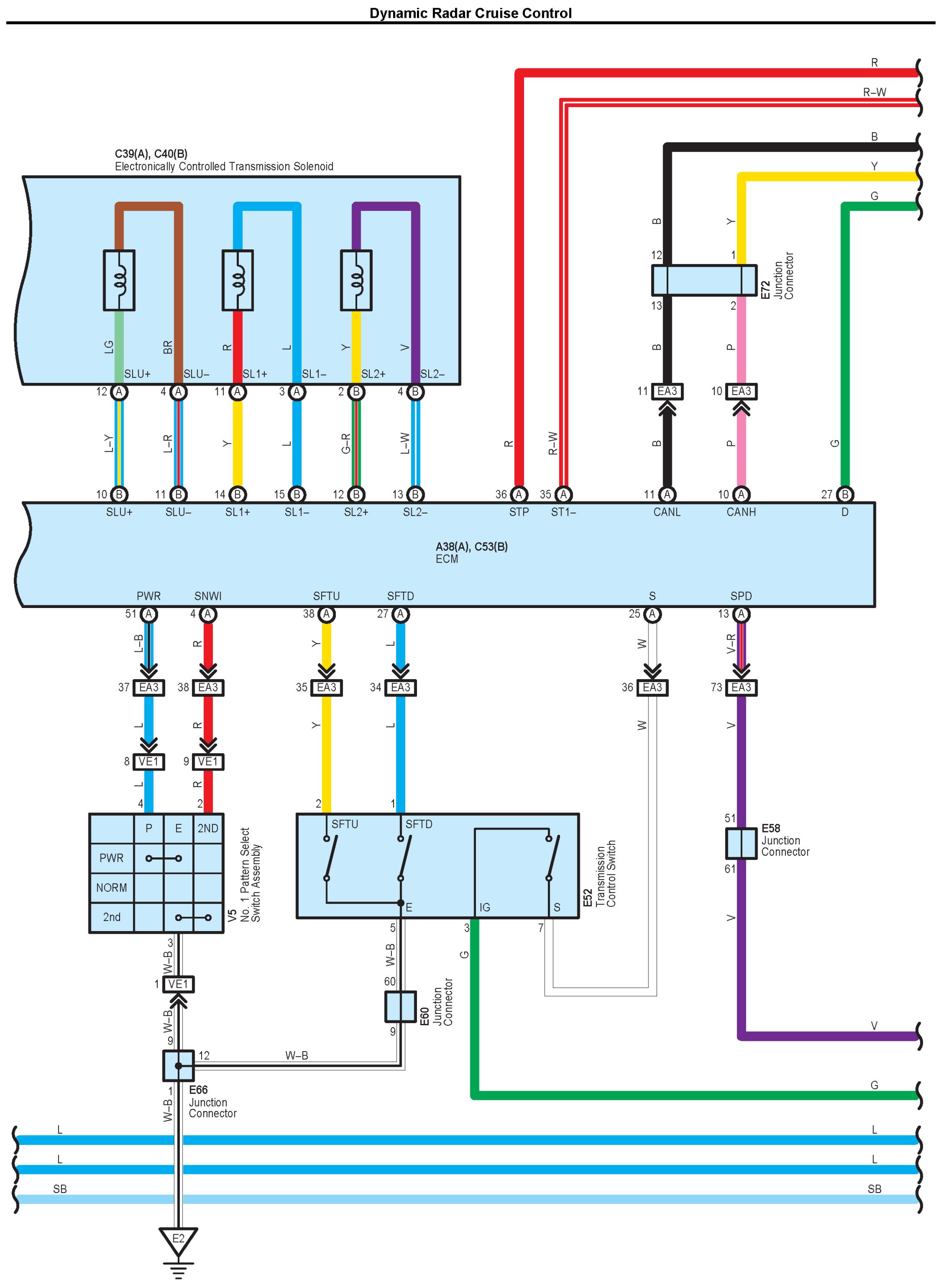

Dynamic Radar Cruise Control Part 1:

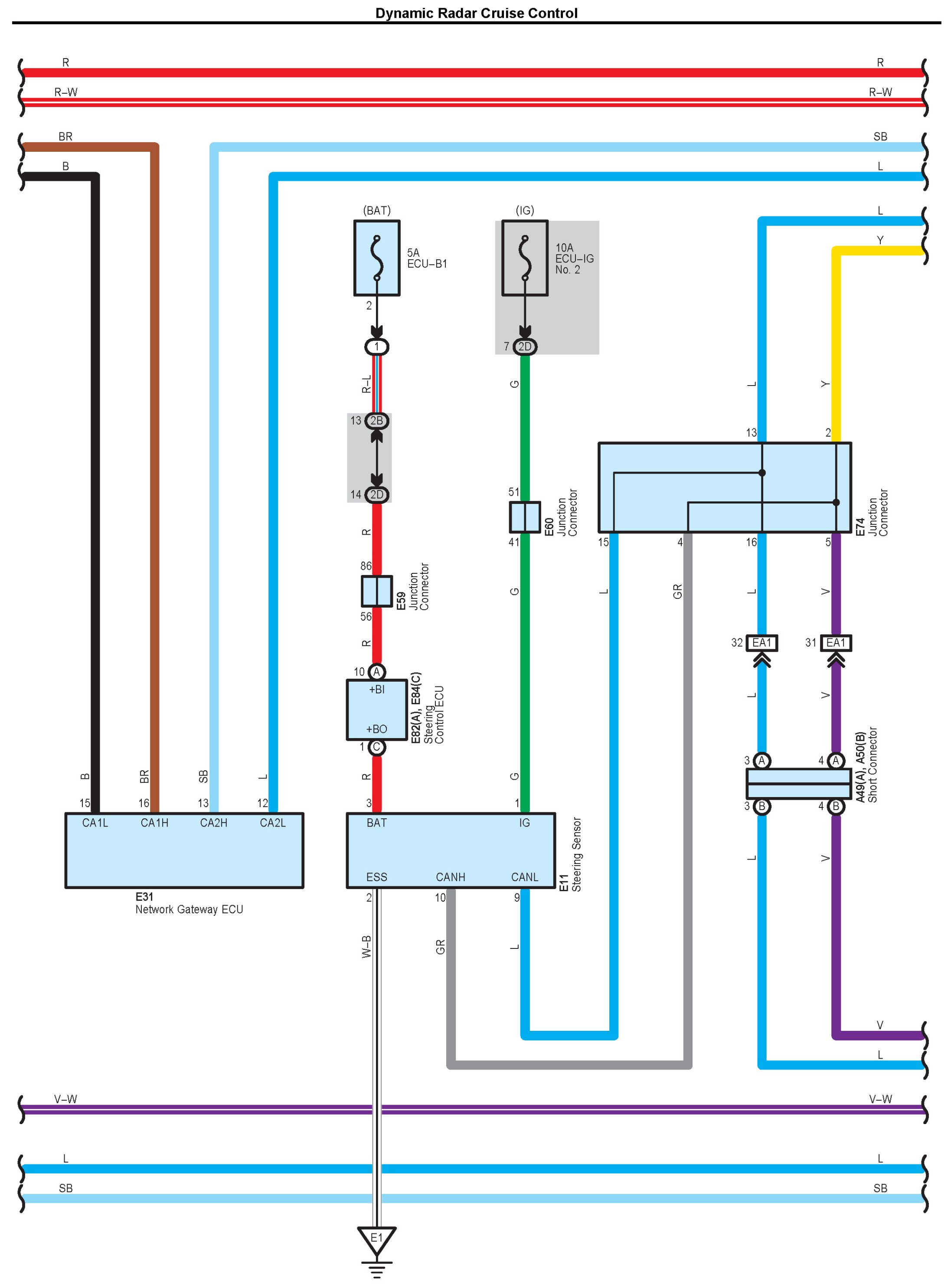

Dynamic Radar Cruise Control Part 2:

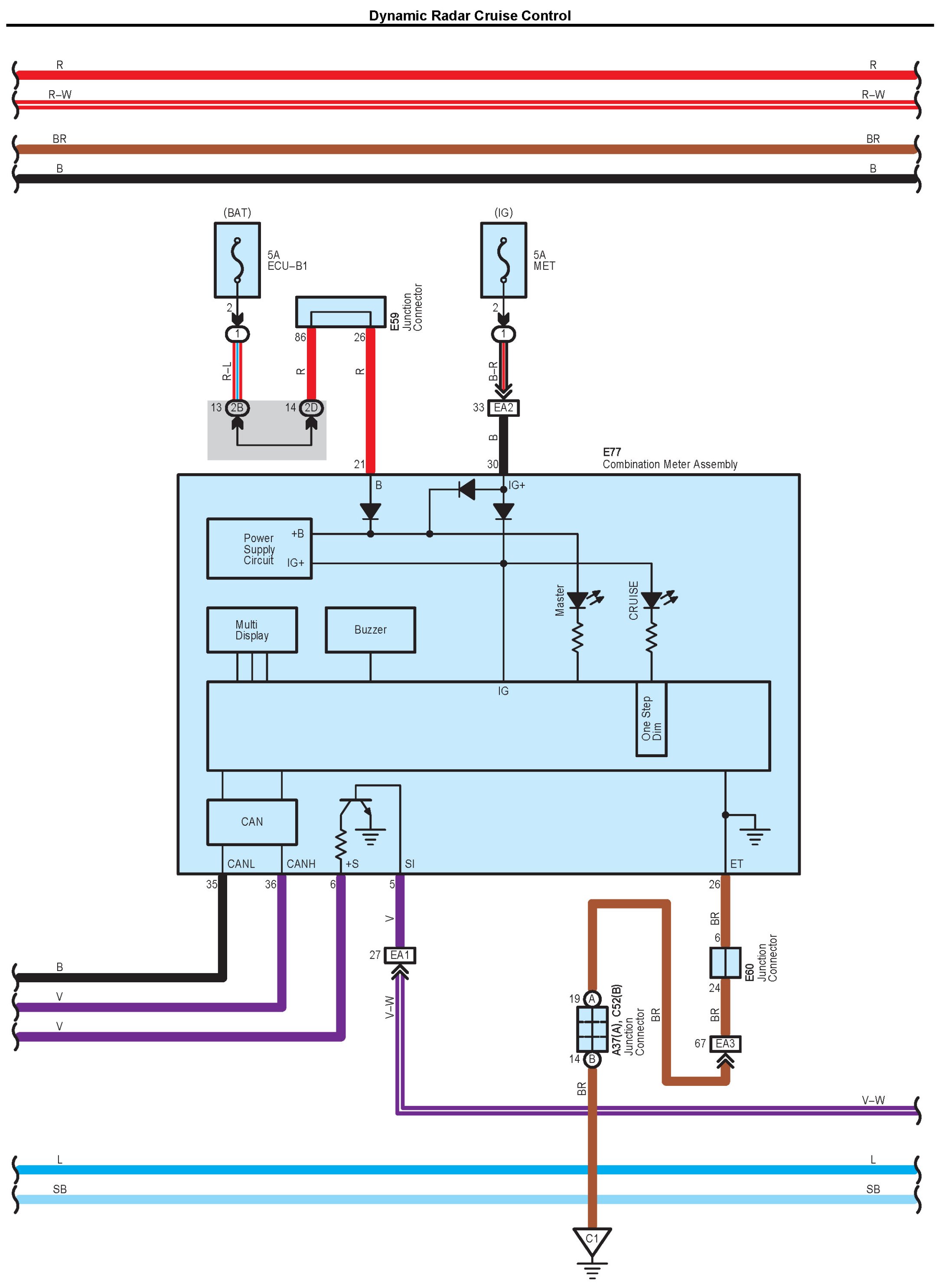

Dynamic Radar Cruise Control Part 3:

Dynamic Radar Cruise Control Part 4:

Dynamic Radar Cruise Control Part 5:

Dynamic Radar Cruise Control Part 6:

Dynamic Radar Cruise Control Part 7:

Dynamic Radar Cruise Control Part 8:

Dynamic Radar Cruise Control Part 9:

Dynamic Radar Cruise Control Part 10:

Dynamic Radar Cruise Control Part 11:

Dynamic Radar Cruise Control Part 12:

Dynamic Radar Cruise Control Part 13:

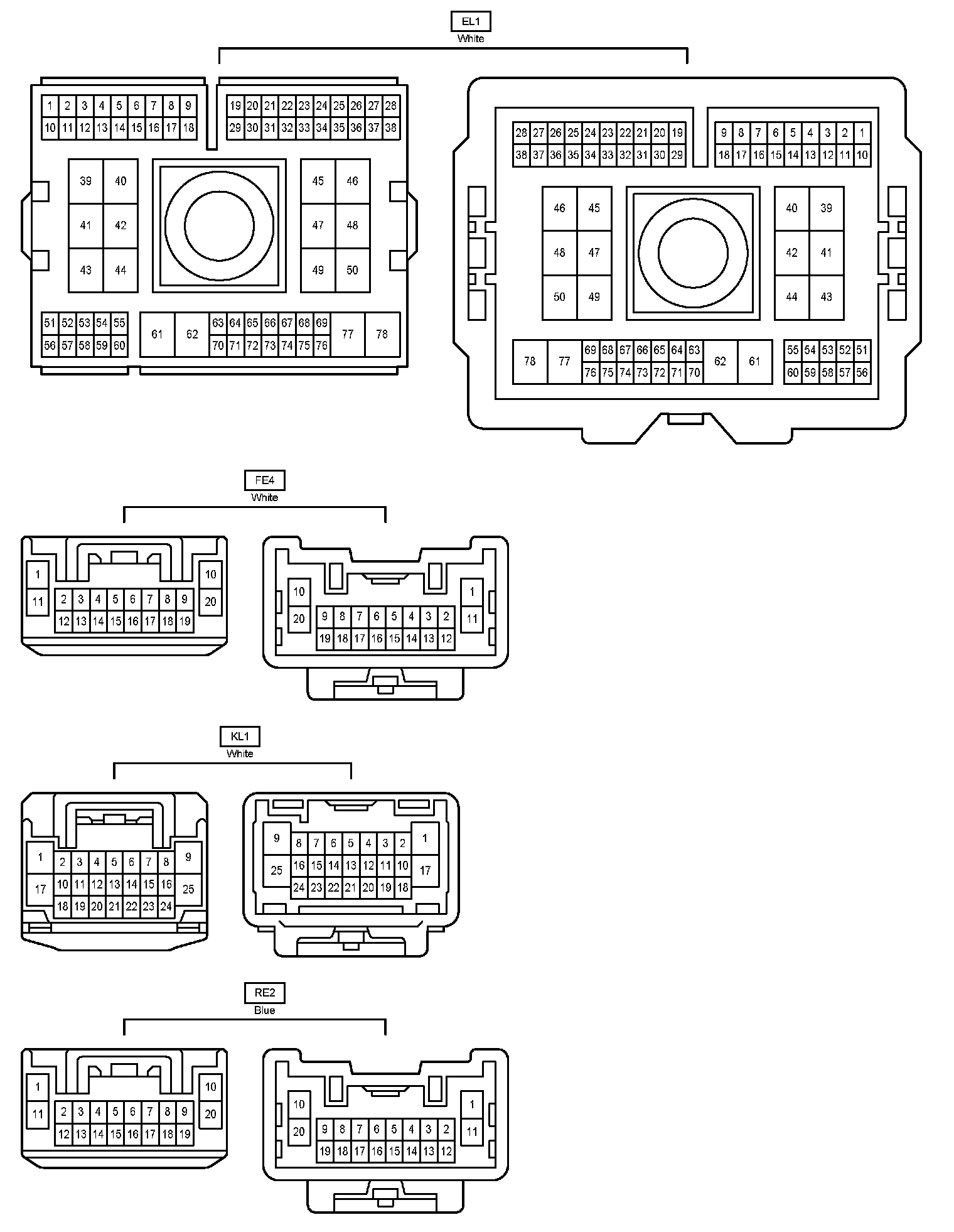

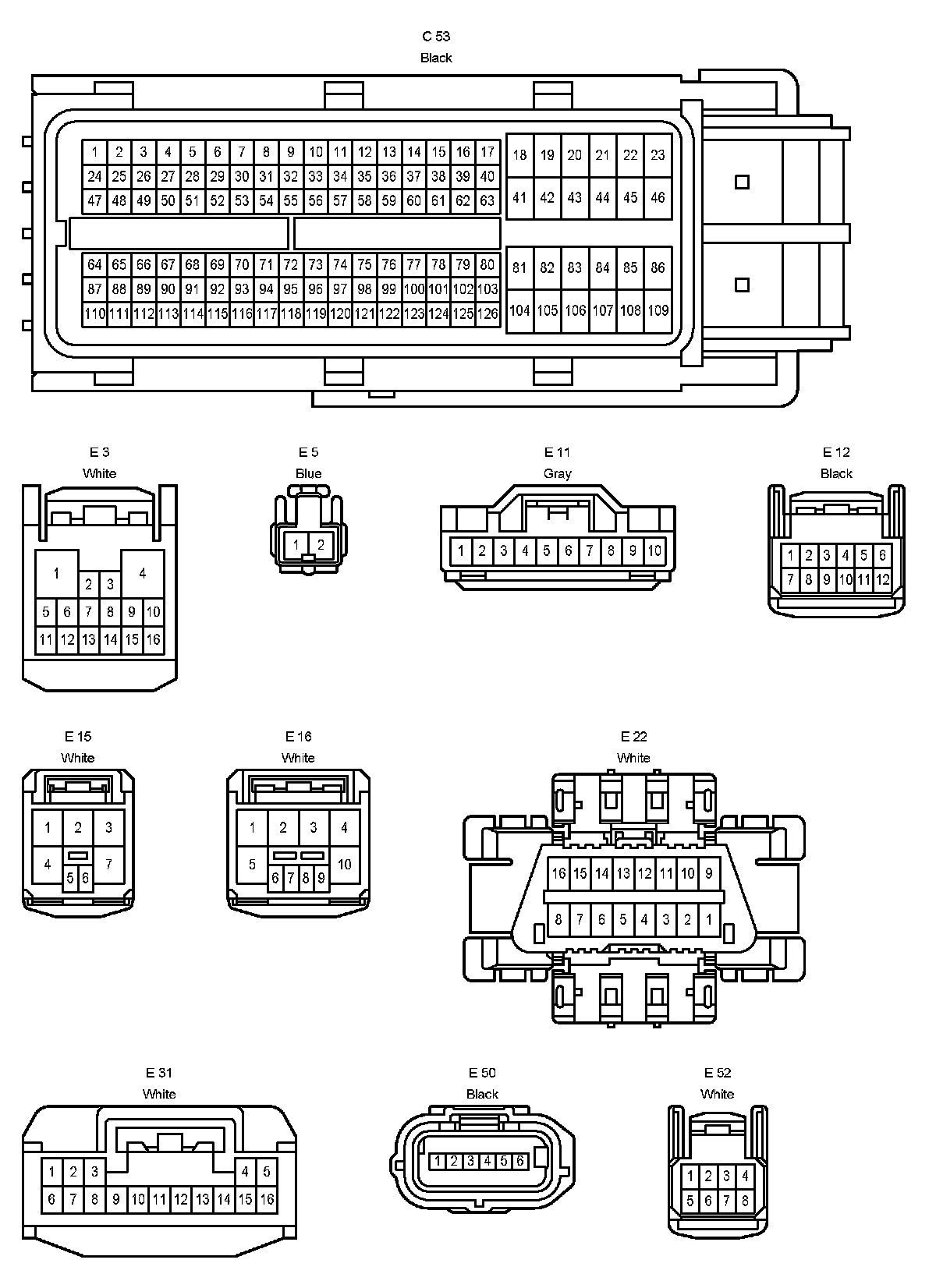

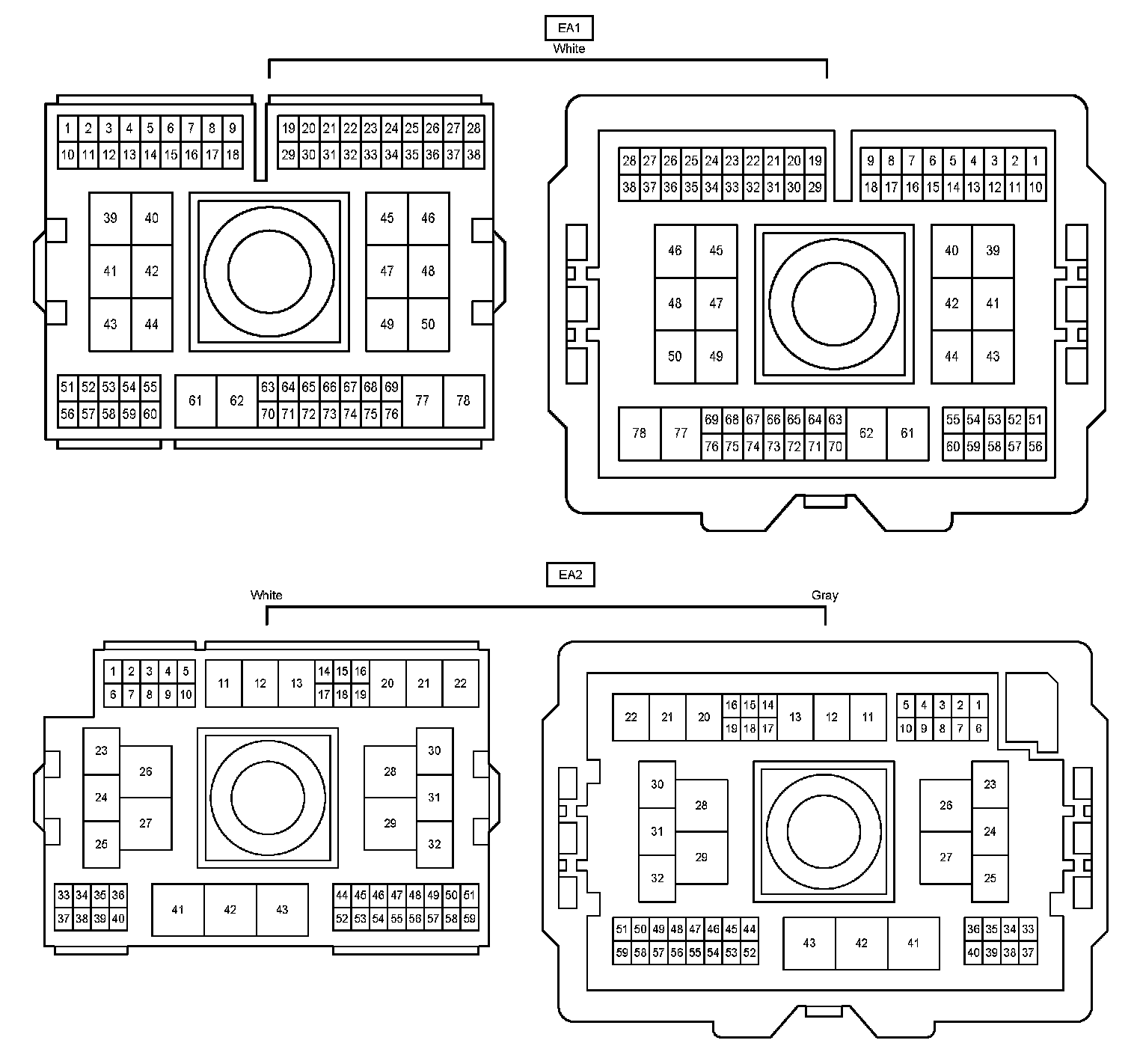

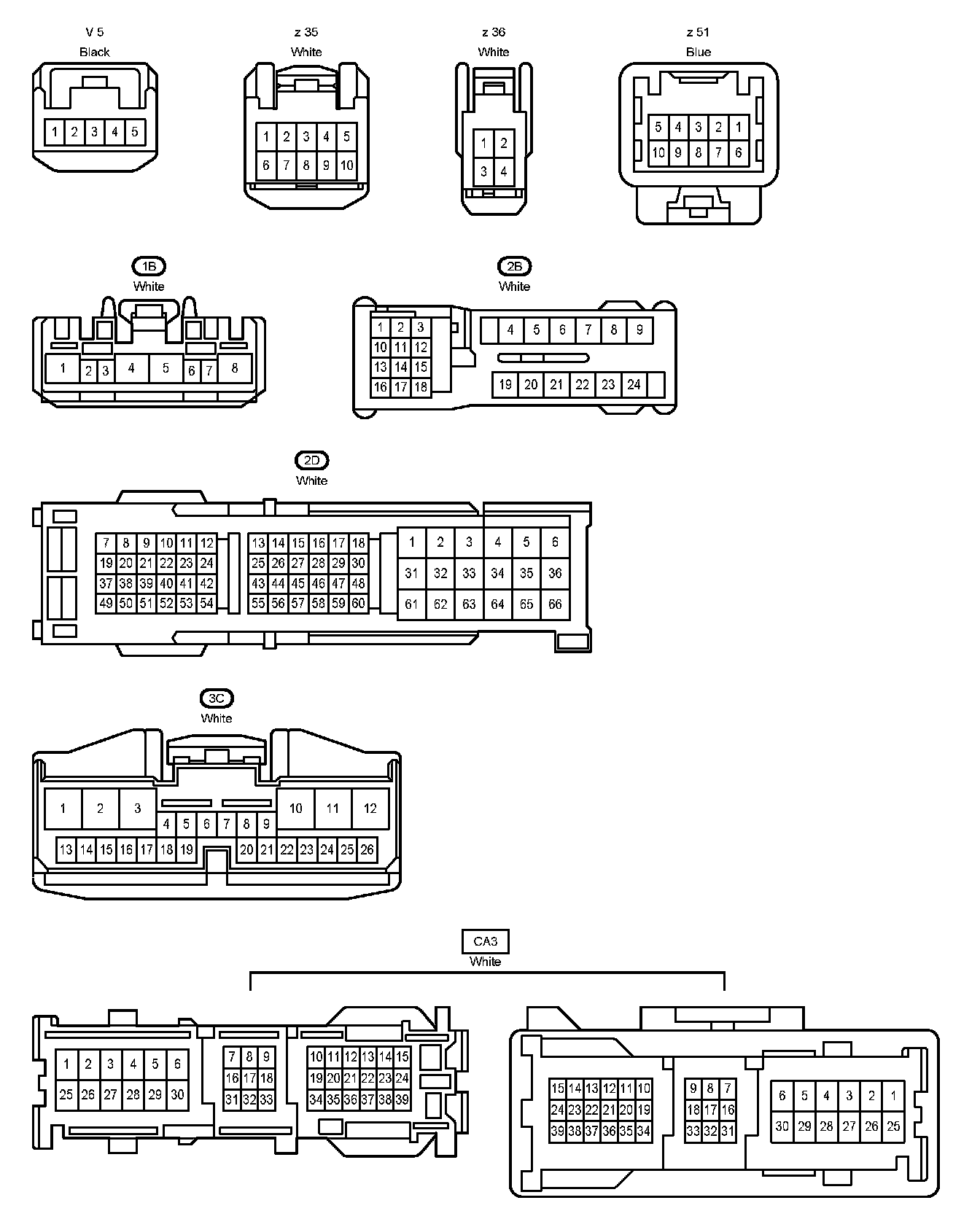

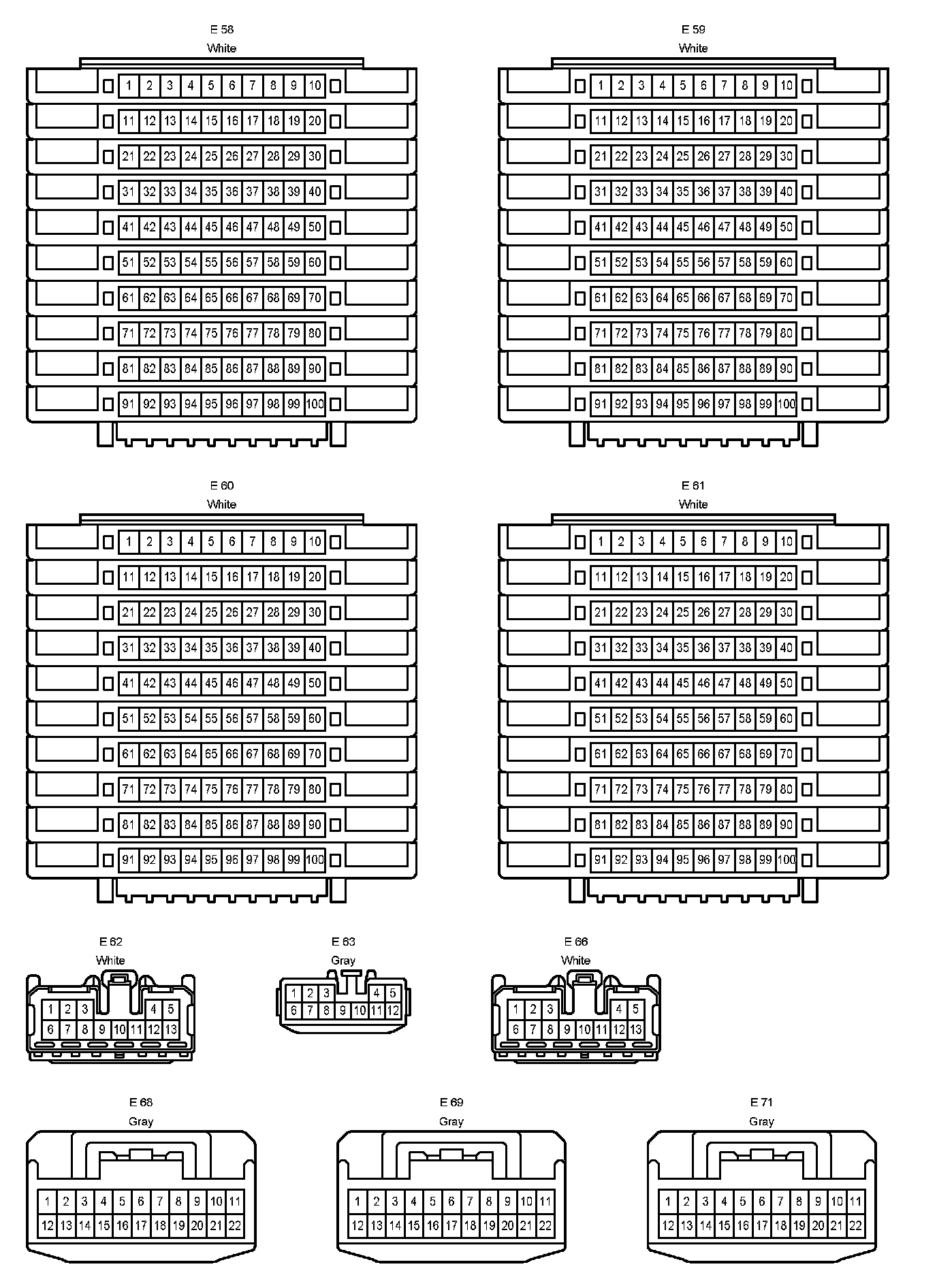

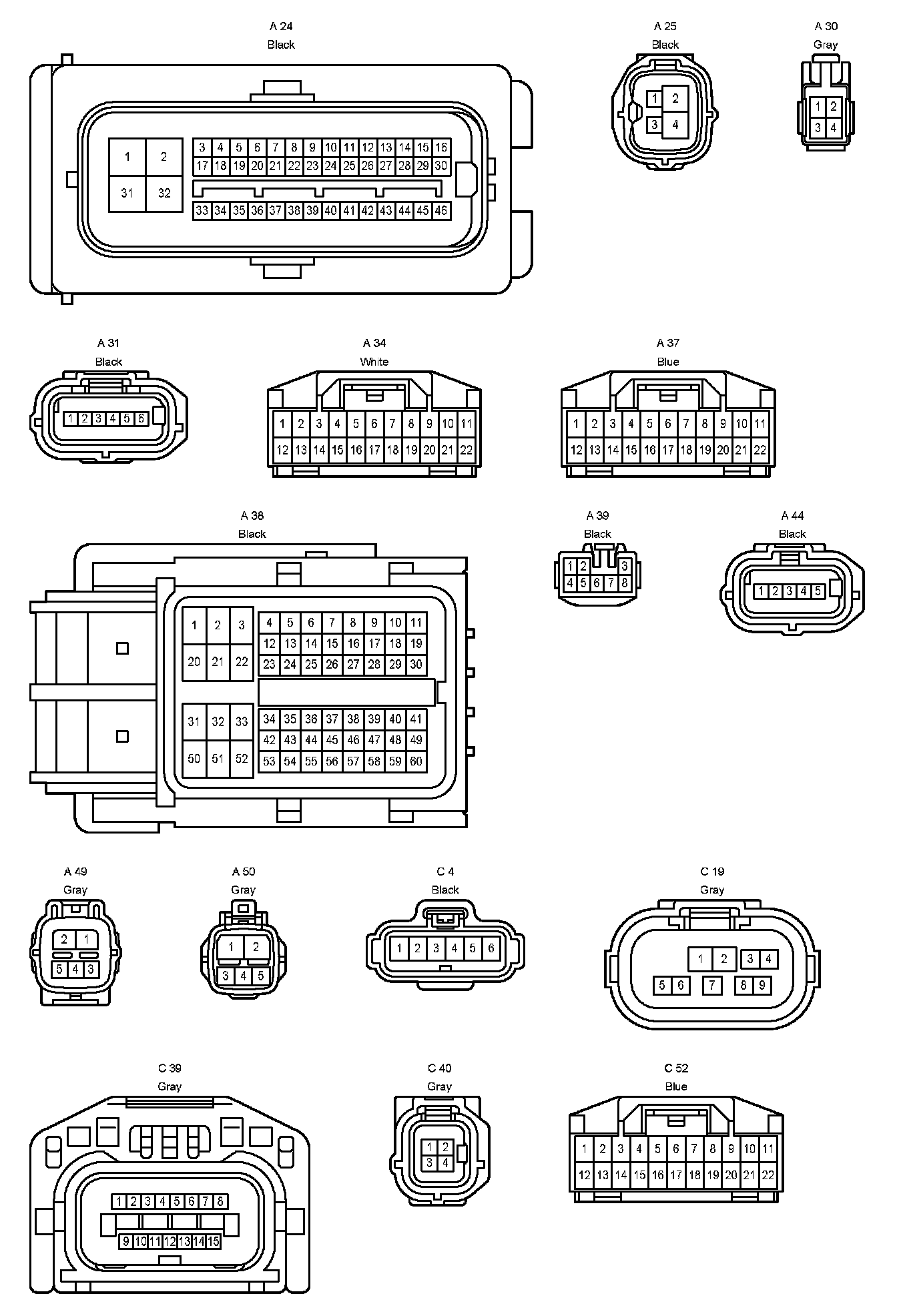

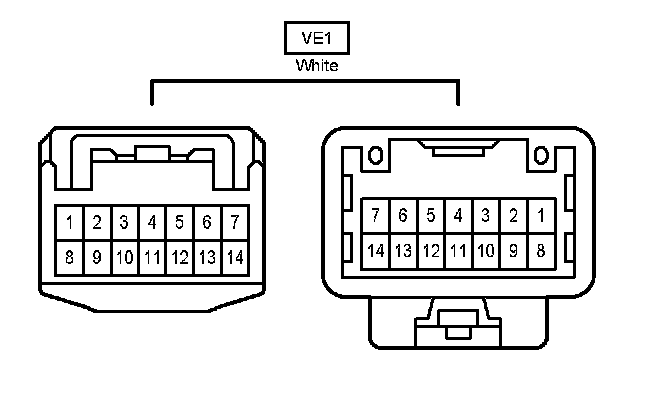

Connector Pin Outs Part 1:

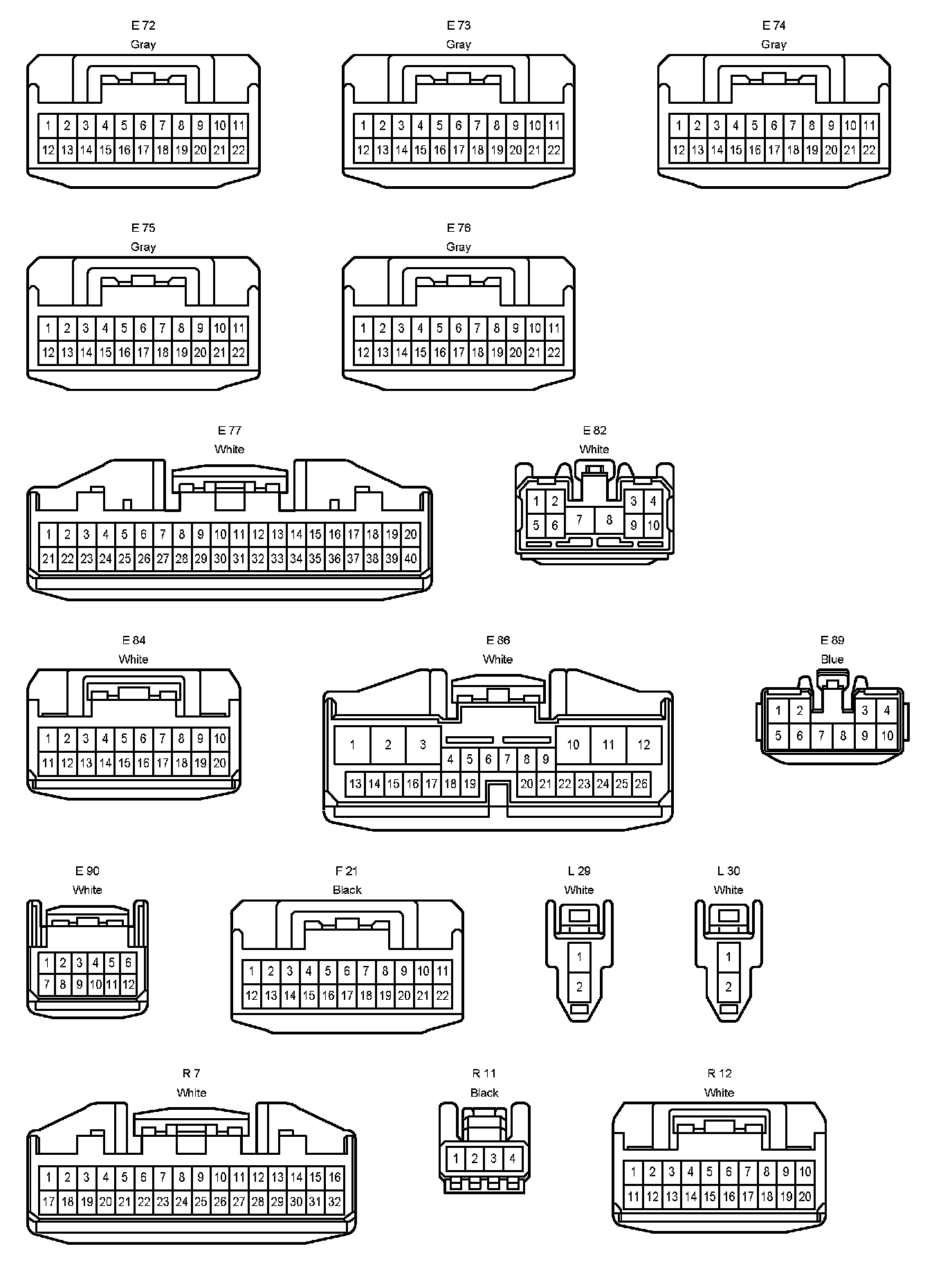

Connector Pin Outs Part 2:

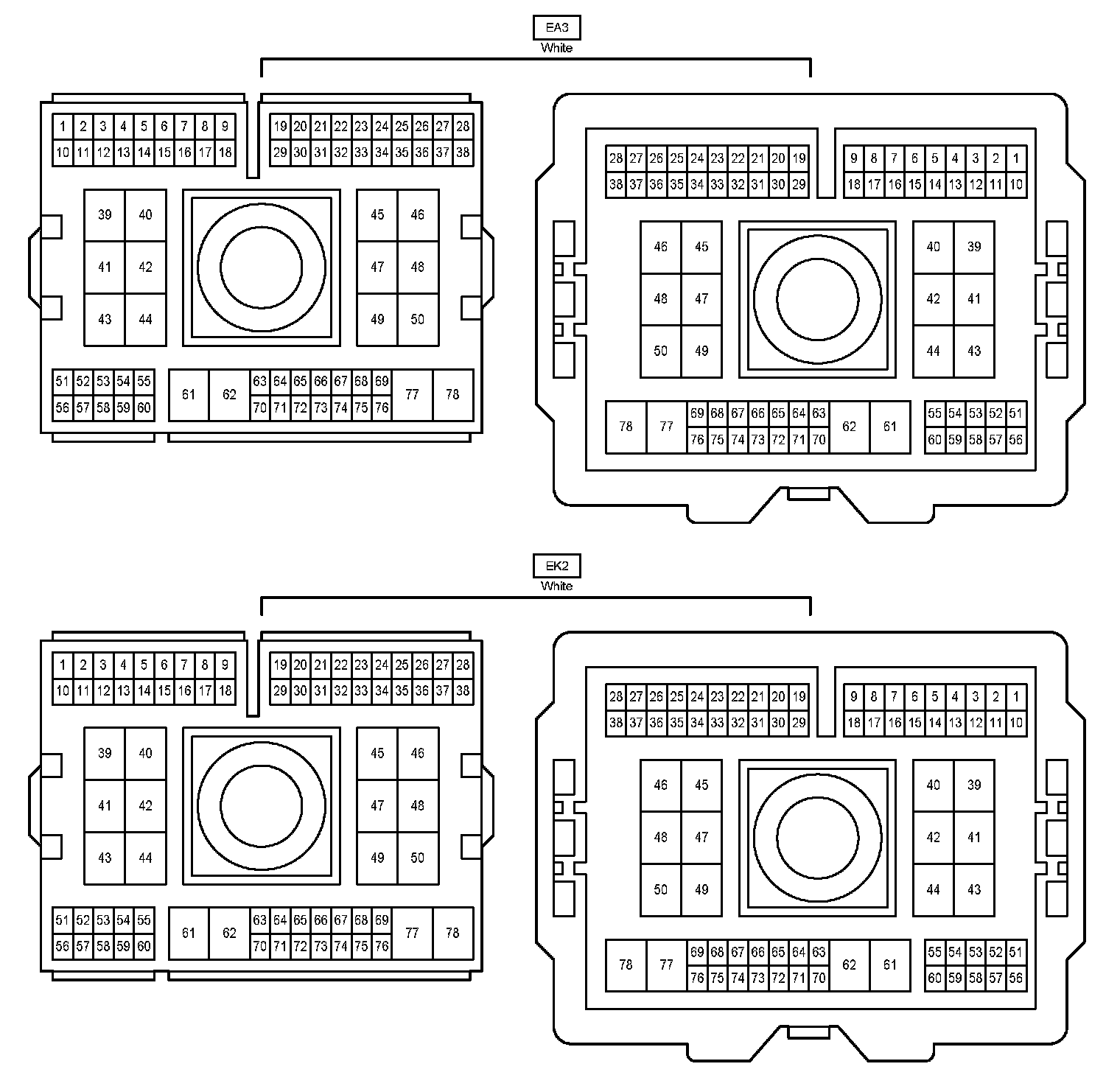

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Connector Pin Outs Part 8:

Connector Pin Outs Part 9:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
