Crawl Switch









BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: CRAWL SWITCH: INSPECTION

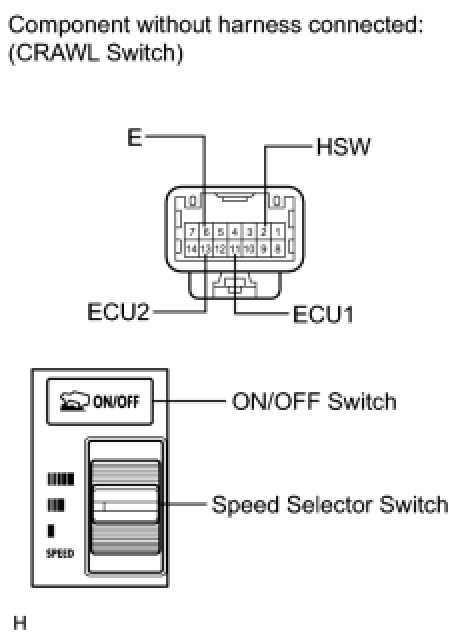

1. INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (CRAWL SWITCH)

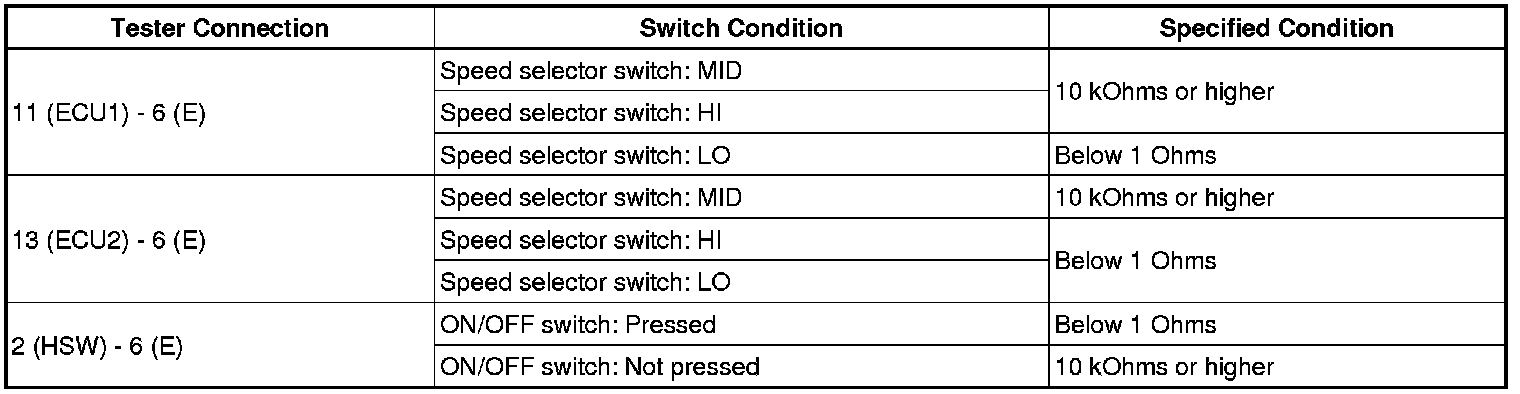

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the integration control and panel assembly (CRAWL switch).
