Disposal

BRAKE SYSTEM (OTHER): HYDRAULIC BRAKE BOOSTER: DISPOSAL

1. DISPOSE OF BRAKE BOOSTER ACCUMULATOR ASSEMBLY






(a) Place the brake booster accumulator assembly in a vise and cover it with cloth.

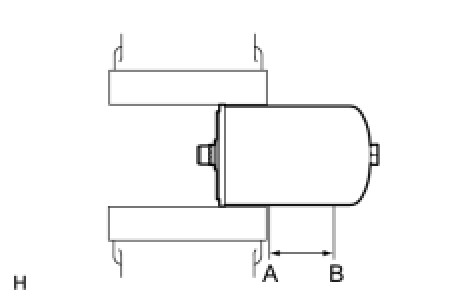

(b) Using a saw, cut the brake booster accumulator body between A and B as shown in the illustration to discharge the gas inside.
CAUTION:
- Cover the part with a piece of cloth when working because gas may blow out.
- Cut the accumulator carefully, not abruptly.
- Wear protective glasses.

(c) When the outer body of the brake booster accumulator is cut, gas and liquid discharge.
HINT:
The gas is colorless, odorless and non-poisonous.
