Removal

EXTERIOR PANELS / TRIM: REAR SPOILER: REMOVAL


1. REMOVE CENTER BACK DOOR GARNISH Disassembly

2. REMOVE BACK DOOR GLASS CHANNEL LH (w/o Power Back Door) Removal

3. REMOVE BACK DOOR GLASS CHANNEL RH (w/o Power Back Door) Removal

4. REMOVE REAR SPOILER SUB-ASSEMBLY

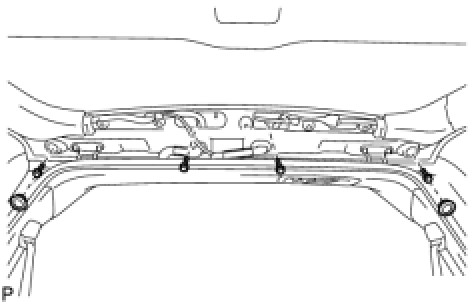

(a) w/ Power Back Door:
Remove the 2 hole plugs and 4 bolts.

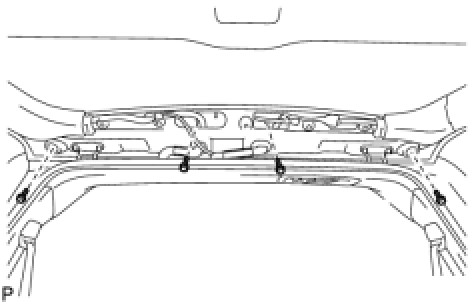

(b) w/o Power Back Door:
Remove the 4 bolts.

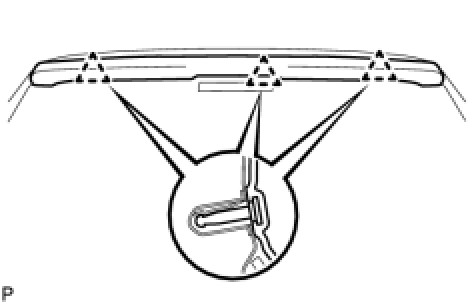

(c) Detach the 3 clips and remove the rear spoiler.
