Installation

EXTERIOR PANELS / TRIM: MUDGUARD: INSTALLATION

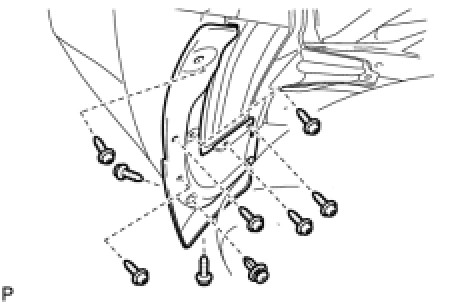

1. INSTALL FRONT FENDER MUDGUARD LH
(a) Install the mudguard with the clip.
(b) Using a T30 "TORX" socket, install the 4 screws.
2. INSTALL FRONT FENDER MUDGUARD RH
HINT:
Use the same procedures described for the LH side.

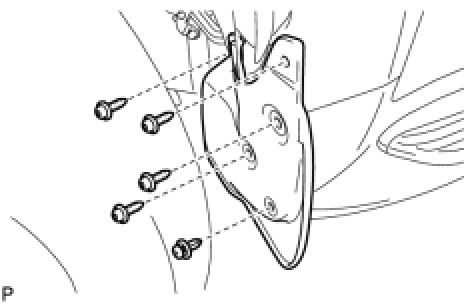

3. INSTALL REAR QUARTER PANEL MUDGUARD LH
(a) Install the mudguard with the clip.
(b) Using a T30 "TORX" socket, install the 7 screws.

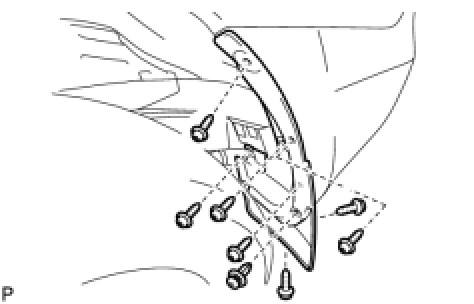

4. INSTALL REAR QUARTER PANEL MUDGUARD RH
(a) Install the mudguard with the clip.
(b) Using a T30 "TORX" socket, install the 8 screws.
