Seat Variable Cushion Switch (for Driver Side)

SEAT: SEAT VARIABLE CUSHION SWITCH (for Driver Side): INSPECTION





1. INSPECT SEAT VARIABLE CUSHION SWITCH

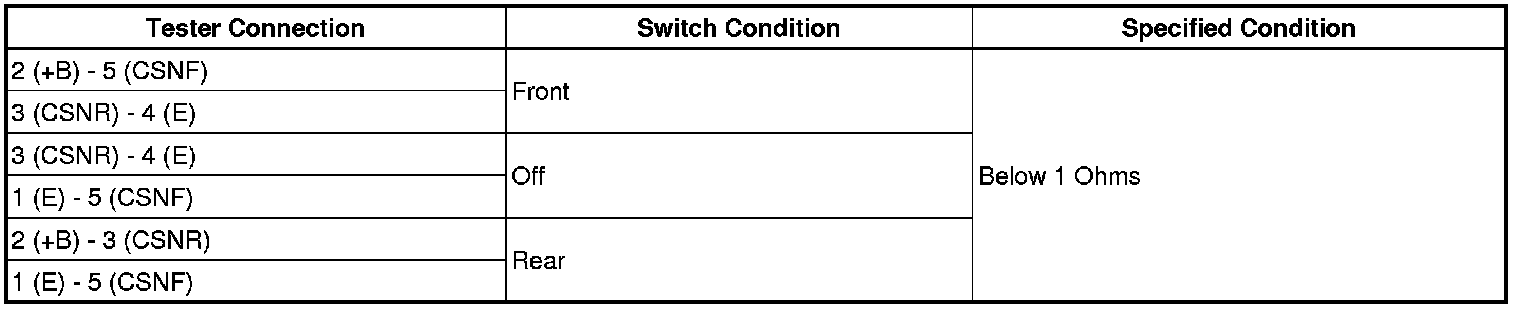

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the seat variable cushion switch.
