Rear Power Seat Control System (for Rear No. 2 Seat With Manual Folding-Up Function)

SEAT: REAR POWER SEAT CONTROL SYSTEM (for Rear No. 2 Seat with Manual Folding-up Function): TERMINALS OF ECU

1. CHECK FOLD SEAT CONTROL ECU LH

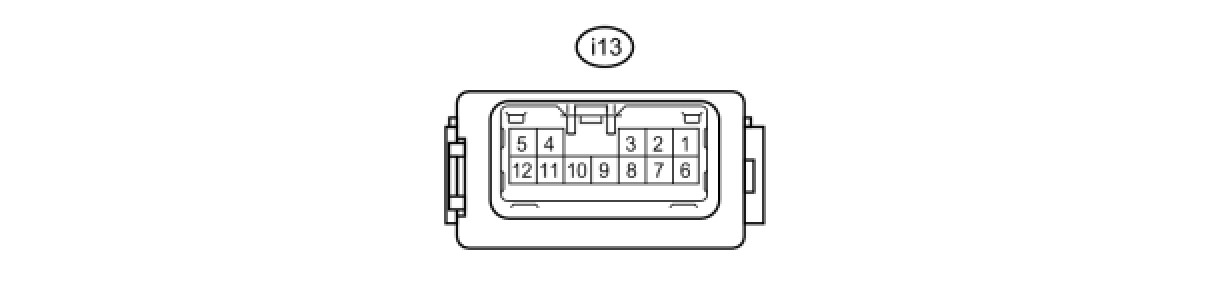

(a) Disconnect the i13 ECU connector.

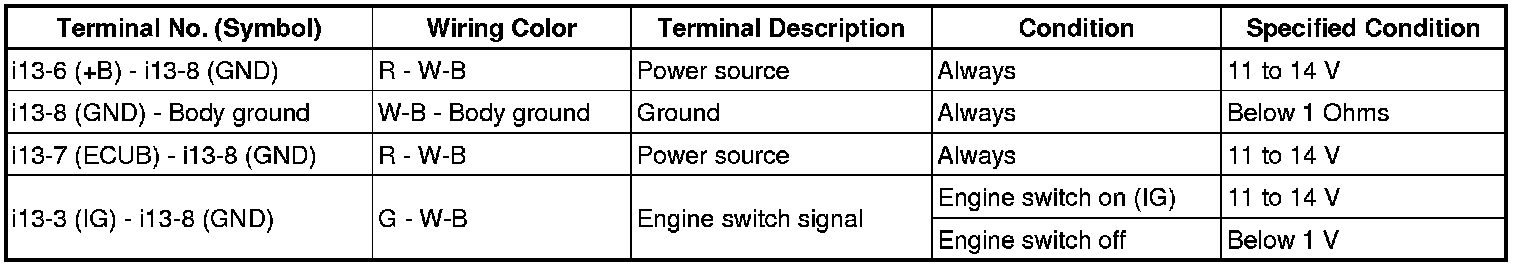

(b) Measure the voltage and resistance according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Reconnect the i13 ECU connector.

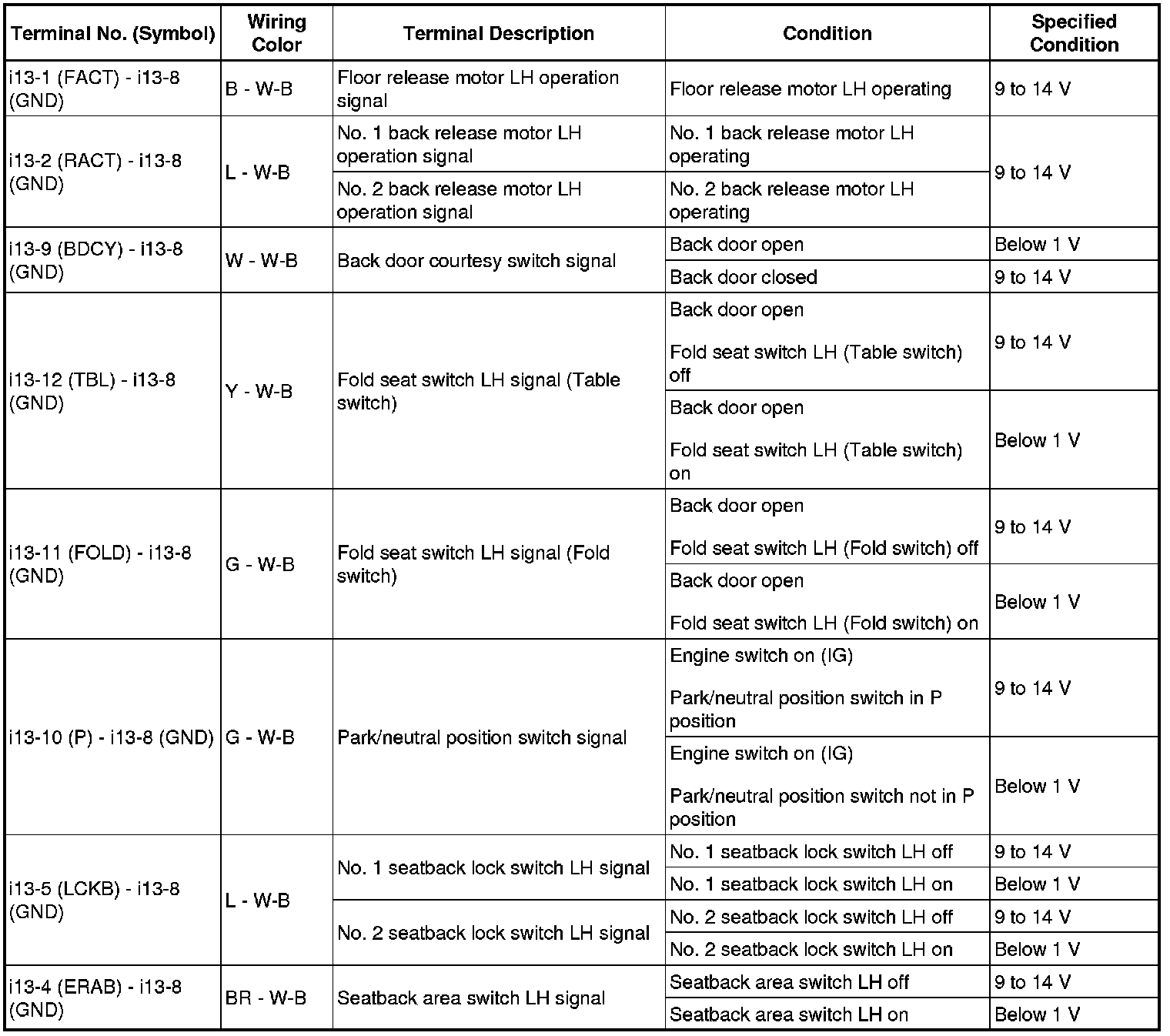

(d) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, the fold seat control ECU may have a malfunction.
2. CHECK FOLD SEAT CONTROL ECU RH





(a) Disconnect the i5 ECU connector.

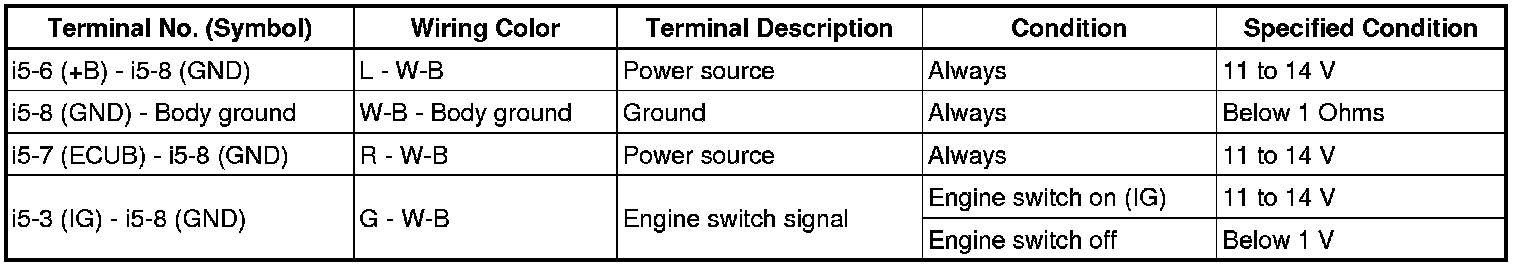

(b) Measure the voltage and resistance according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Reconnect the i5 ECU connector.

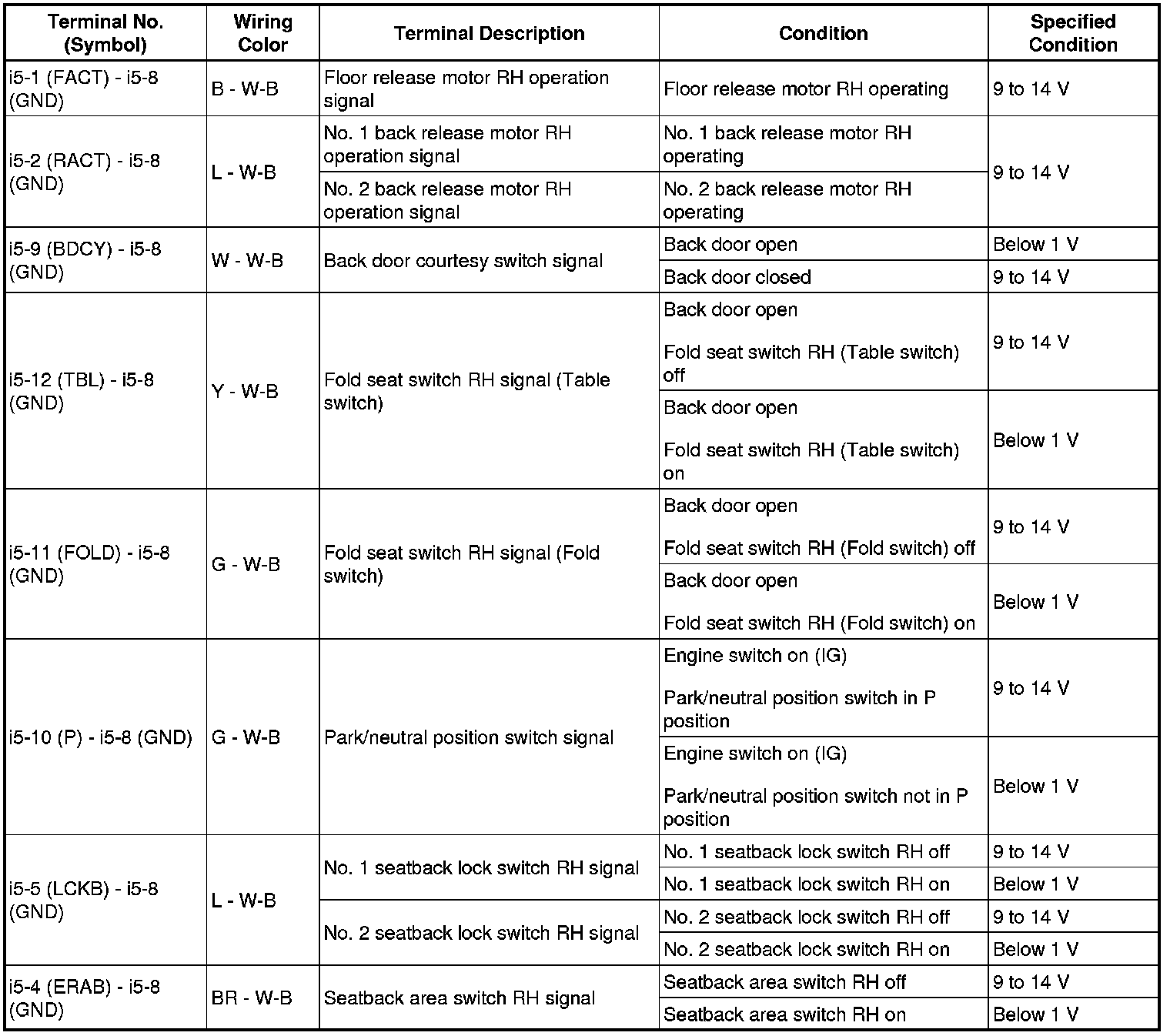

(d) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, the fold seat control ECU may have a malfunction.
