Rear Power Seat Control System (for Rear No. 2 Seat With Manual Folding-Up Function)

SEAT: REAR POWER SEAT CONTROL SYSTEM (for Rear No. 2 Seat with Manual Folding-up Function): HOW TO PROCEED WITH TROUBLESHOOTING

HINT:
Use the following procedures to troubleshoot the rear power seat control system.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding.
NEXT -- Continue to next step.
3. PROBLEM SYMPTOMS TABLE
(a) Refer to the Problem Symptoms Table Rear Power Seat Control System (for Rear No. 2 Seat With Manual Folding-Up Function).

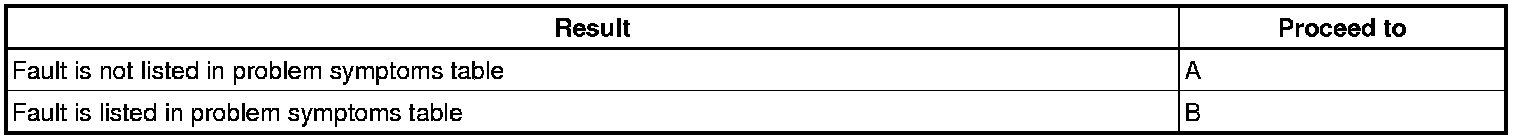

Result





B -- Go to step 5
A -- Continue to next step.
4. OVERALL ANALYSIS AND TROUBLESHOOTING
(a) Terminals of ECU Rear Power Seat Control System (for Rear No. 2 Seat With Manual Folding-Up Function)

NEXT -- Continue to next step.
5. REPAIR OR REPLACE
NEXT -- Continue to next step.
6. CONFIRMATION TEST
NEXT -- END
