Inspection

SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Manual Folding-up Function): INSPECTION





1. INSPECT REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY

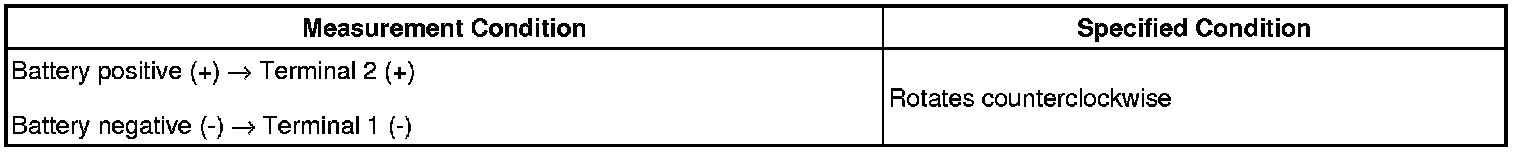

(a) Apply battery voltage to the lock control lever connector and check the operation of the lever.
OK:





NOTICE:
To prevent damage to the unit, do not reverse the connection.
If the result is not as specified, replace the rear seat lock control lever sub-assembly.
