Inspection

SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): INSPECTION





1. INSPECT REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY

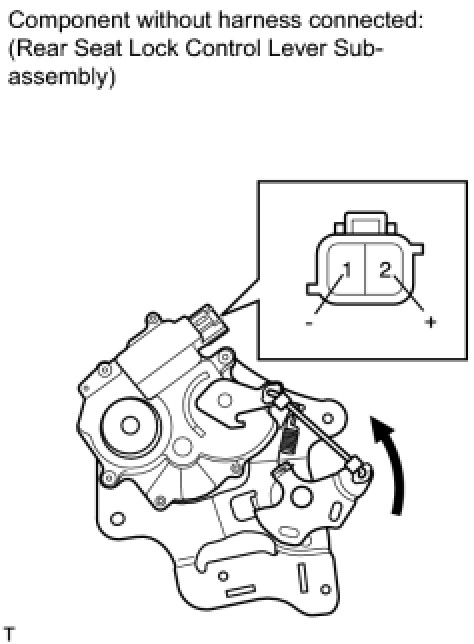

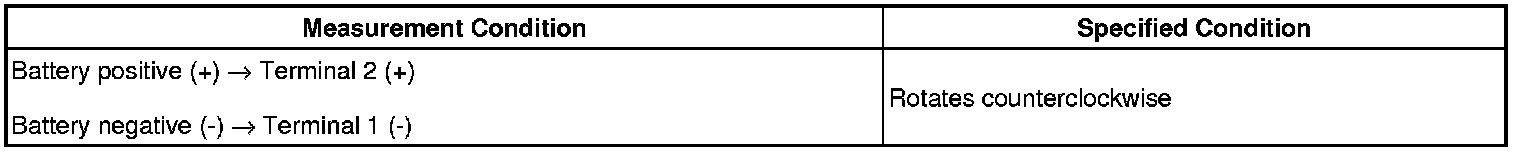

(a) Apply battery voltage to the lock control lever and check the operation of the lever.
OK:





NOTICE:
To prevent damage to the unit, do not reverse the connection.
If the result is not as specified, replace the rear seat lock control lever sub-assembly.
2. INSPECT POWER SEAT MOTOR ASSEMBLY





CAUTION:

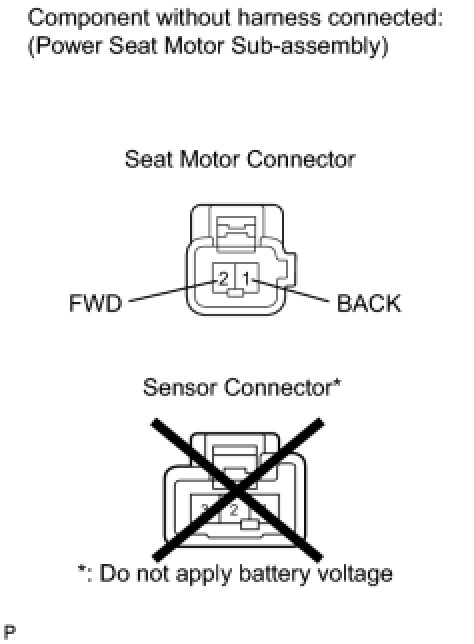

Do not apply battery voltage to the sensor connector.

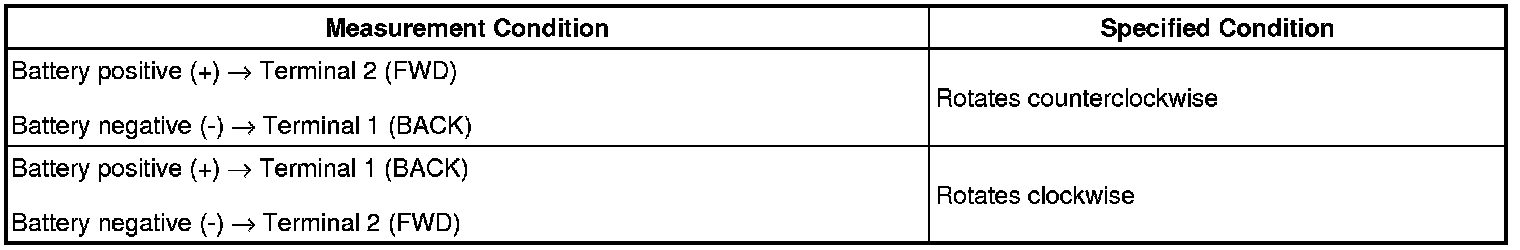

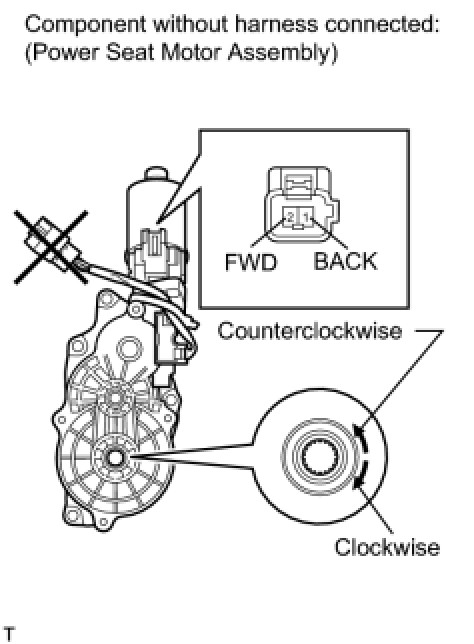

(a) Apply battery voltage to the power seat motor and check the operation of the motor.
OK:





If the result is not as specified, replace the power seat motor assembly.
3. INSPECT FOLD SEAT LEG LOCK SUB-ASSEMBLY

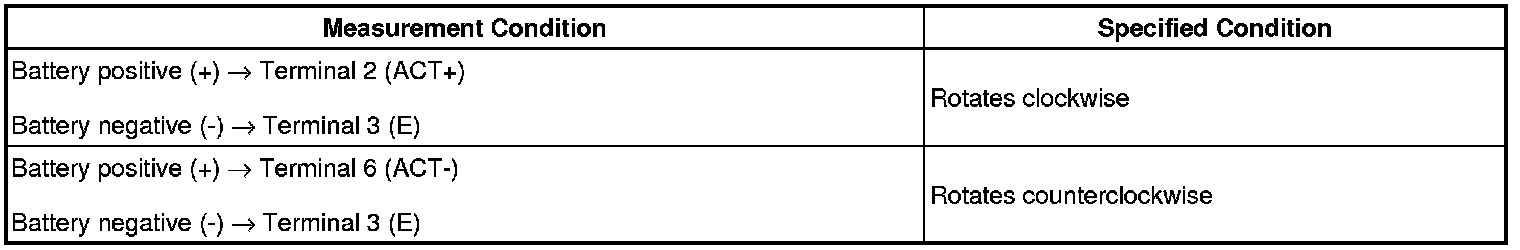

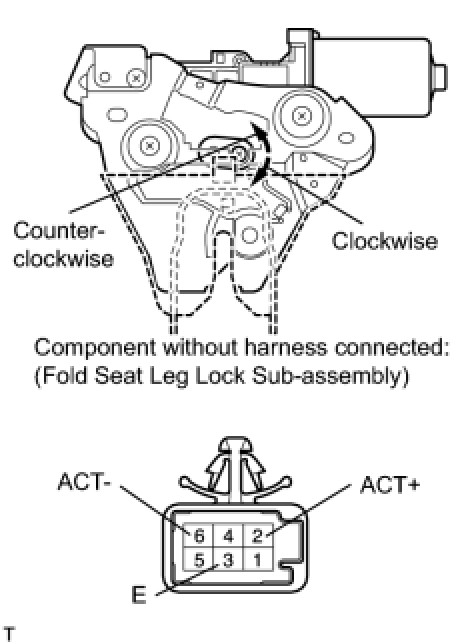

(a) Apply battery voltage to the lock motor and check the operation of the motor.
OK:





If the result is not as specified, replace the fold seat leg lock sub-assembly.

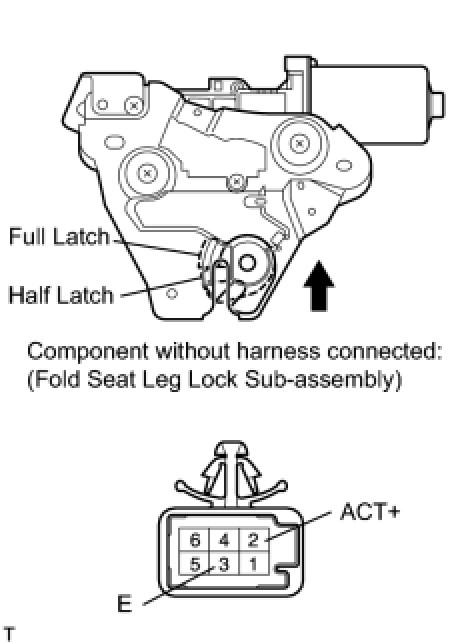

(b) Set the fold seat leg lock sub-assembly to half latch.

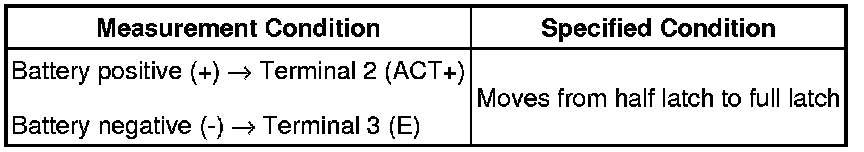

(c) Apply battery voltage to the lock motor connector and check the closer operation.
OK:





If the result is not as specified, replace the fold seat leg lock sub-assembly.
