Removal

SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Manual Folding-up Function): REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR NO. 2 SEAT HEADREST ASSEMBLY LH
2. REMOVE REAR SEAT CUSHION HINGE COVER LH
(a) Operate the power seat switch and move the seat to the storage position.
HINT:
In order to remove the seat, do not engage the striker.





(b) Using a screwdriver, detach the 3 claws and remove the cover.
HINT:
Tape the screwdriver tip before use.





3. REMOVE REAR NO. 2 SEAT HINGE COVER LH
(a) Detach the 3 claws and 2 clips, and remove the cover.
4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
w/ Navigation System:

After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Customize Parameters.

5. REMOVE REAR NO. 2 SEAT ASSEMBLY

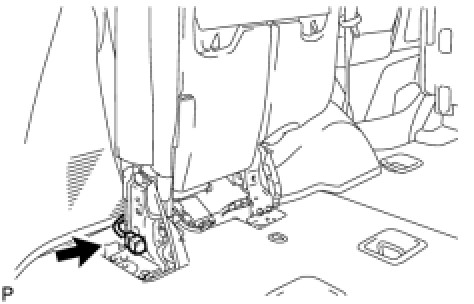

(a) Disconnect the connector.

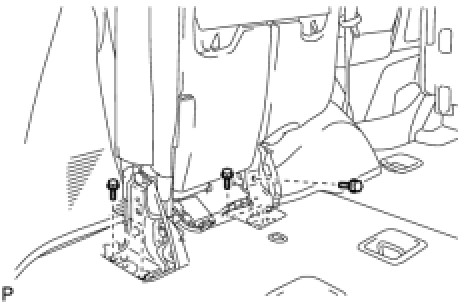

(b) Remove the 4 bolts and seat assembly.
NOTICE:
Be careful not to damage the vehicle body.

6. REMOVE REAR STEP COVER Removal

7. REMOVE REAR DOOR SCUFF PLATE LH Removal

8. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE Removal

9. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Removal

10. REMOVE REAR SEAT COVER CAP Removal

11. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH Removal

12. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH
(a) Detach the 4 claws and remove the seat lock control lever.

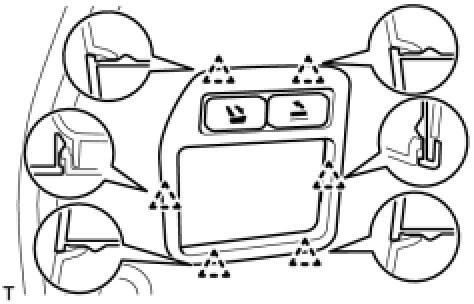

13. REMOVE REAR NO. 2 SEAT COVER BEZEL
(a) Detach the 6 clips and remove the rear No. 2 seat cover bezel.






14. REMOVE FOLD SEAT SWITCH ASSEMBLY
(a) Using a screwdriver, detach the 4 claws and remove the switch.
15. REMOVE REAR ROOF NO. 1 AIR DUCT (for LH Side) Removal

16. REMOVE NO. 1 WOOFER BOX SPEAKER ASSEMBLY (for RH Side, w/ Woofer) Removal

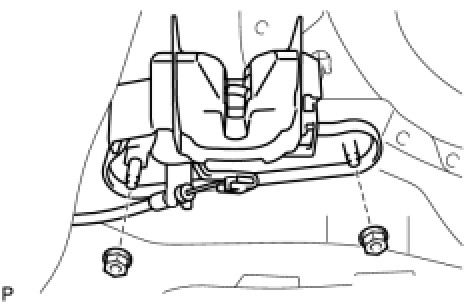

17. REMOVE FOLD SEAT LEG LOCK SUB-ASSEMBLY
(a) Detach the 2 cable clamps.






(b) Remove the 2 nuts and fold seat leg lock.
18. REMOVE NO. 3 SEAT CUSHION COVER






(a) Detach the 4 clips and 16 claws, and remove the 4 seat cushion covers.
19. REMOVE REAR SEAT LOCK STRIKER SUB-ASSEMBLY
(a) Fold back the floor carpet.






(b) Remove the 8 bolts and 4 seat lock strikers.
