Installation

SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Manual Folding-up Function): INSTALLATION

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. INSTALL REAR SEAT LOCK STRIKER SUB-ASSEMBLY






(a) Install the 4 seat lock strikers with the 8 bolts.
Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)
(b) Return the floor carpet to its original position.
2. INSTALL NO. 3 SEAT CUSHION COVER






(a) Attach the 16 claws and 4 clips to install the 4 seat cushion covers.
3. INSTALL FOLD SEAT LEG LOCK SUB-ASSEMBLY






(a) Install the fold seat leg lock with the 2 nuts.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)
(b) Attach the 2 cable clamps.
4. INSTALL NO. 1 WOOFER BOX SPEAKER ASSEMBLY (for RH Side, w/ Woofer) Removal

5. INSTALL REAR ROOF NO. 1 AIR DUCT (for LH Side) Removal

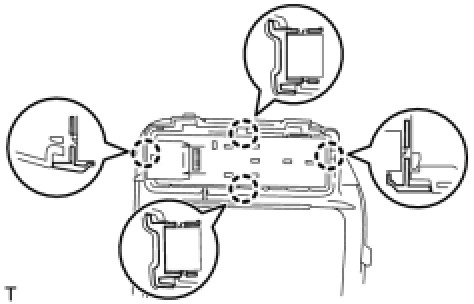

6. INSTALL FOLD SEAT SWITCH ASSEMBLY
(a) Attach the 4 claws to install the switch.






7. INSTALL REAR NO. 2 SEAT COVER BEZEL
(a) Attach the 6 clips to install the No. 2 seat cover bezel.
8. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH
(a) Attach the 4 claws to install the seat lock control lever.
9. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH Removal

10. INSTALL REAR SEAT COVER CAP LH Installation

11. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Installation

12. INSTALL REAR FLOOR MAT REAR SUPPORT PLATE Removal

13. INSTALL REAR DOOR SCUFF PLATE LH Removal

14. INSTALL REAR STEP COVER Removal

15. INSTALL REAR NO. 2 SEAT ASSEMBLY





(a) Temporarily install the seat assembly with the 4 bolts.
NOTICE:
Be careful not to damage the vehicle body.

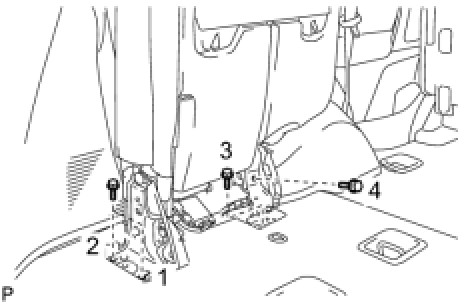

(b) Tighten the bolts in the order shown in the illustration.
Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)






(c) Connect the connector.
16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.





17. INSTALL REAR NO. 2 SEAT HINGE COVER LH
(a) Attach the 3 claws and 2 clips to install the cover.
18. INSTALL REAR SEAT CUSHION HINGE COVER LH






(a) Attach the 3 claws to install the cover.
(b) Return the seat to the upright position.
19. INSTALL REAR NO. 2 SEAT HEADREST ASSEMBLY LH
20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
