Disposal

SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Manual Folding-up Function): DISPOSAL

HINT:
- Use the same procedures for the LH side and RH side
- The procedures listed below are for the LH side.





1. DISPOSE OF NO. 2 SEAT STAY SUB-ASSEMBLY
(a) Horizontally fix the seat stay in a vise with the piston rod pulled out.
(b) Wear safety glasses. Gradually cut an area between A and B shown in the illustration using a metal saw and gradually release the gas.

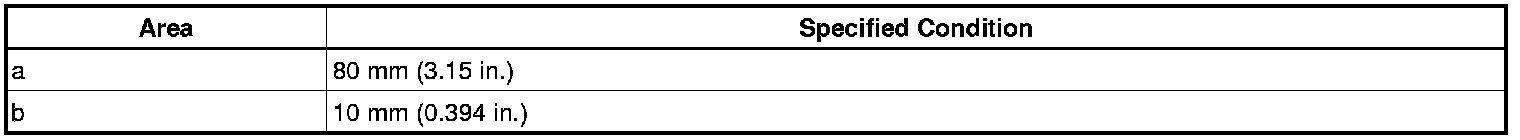

Standard:





CAUTION:
As metal debris may be blown outward by the gas, you must:
- Wear protective glasses.
- Cover the area being cut.
NOTICE:
The gas inside the seat stay is colorless, odorless and harmless. There is a possibility that metal debris could scatter, so cover the part with a piece of cloth or other material.
