Rear Seat Cushion Heater (for RH Side)

SEAT: REAR SEAT CUSHION HEATER (for RH Side): INSPECTION





1. INSPECT REAR SEAT CUSHION HEATER ASSEMBLY RH

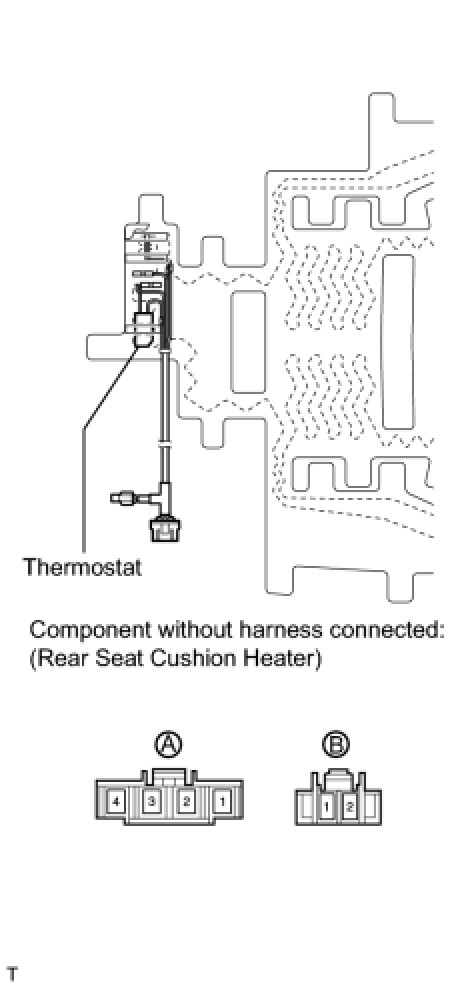

(a) Check the seat cushion heater.
(1) Heat the thermostat with a light.
(2) Measure the resistance according to the value(s) in the table below.

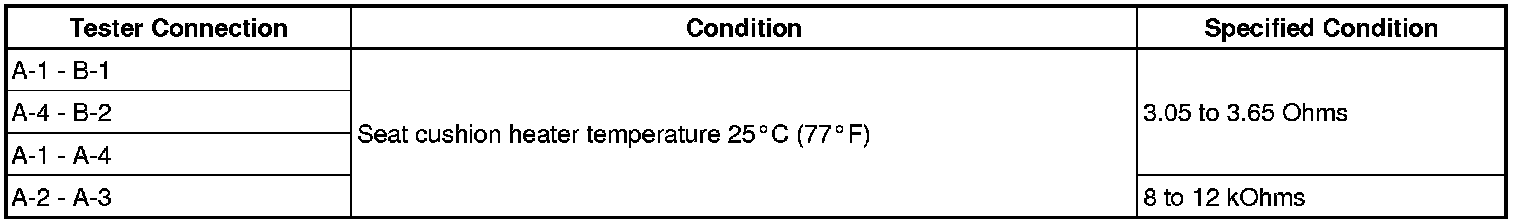

Standard Resistance:






If the result is not as specified, replace the seat cushion heater assembly.
