Removal

SEAT: REAR SEATBACK HEATER (for LH Side): REMOVAL

CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.

1. REMOVE REAR NO. 1 SEAT ASSEMBLY
(a) Remove the rear No. 1 seat assembly Removal.
2. REMOVE SEAT ADJUSTER BOLT COVER Disassembly

3. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH Disassembly

4. REMOVE REAR NO. 1 SEAT RECLINING COVER LH Disassembly

5. REMOVE REAR NO. 1 SEAT RECLINING COVER RH Disassembly

6. REMOVE UPPER SEAT TRACK RAIL COVER LH Disassembly

7. REMOVE UPPER SEAT TRACK RAIL COVER RH Disassembly

8. REMOVE REAR NO. 2 SEAT LEG SIDE COVER Disassembly

9. REMOVE REAR NO. 2 SEAT PROTECTOR Disassembly

10. REMOVE REAR NO. 1 SEAT HINGE SUB-ASSEMBLY LH Disassembly

11. REMOVE REAR NO. 1 SEAT HINGE SUB-ASSEMBLY RH Disassembly

12. REMOVE SEAT BELT ANCHOR COVER CAP Disassembly

13. REMOVE REAR SEATBACK STAY COVER LH Disassembly

14. REMOVE REAR UNDER SIDE COVER LH Disassembly

15. REMOVE REAR SEAT CUSHION COVER RH Disassembly

16. REMOVE REAR SEAT UNDER TRAY COVER LH Disassembly

17. REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY LH Removal

18. DISCONNECT NO. 1 SEAT 3 POINT TYPE BELT ASSEMBLY LH Removal

19. REMOVE SEAT CUSHION COVER WITH PAD Disassembly

20. REMOVE REAR SEATBACK COVER Disassembly

21. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH Disassembly

22. REMOVE REAR SEAT HEADREST ASSEMBLY
23. REMOVE REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY Disassembly

24. REMOVE SHOULDER BELT ANCHOR COVER Disassembly

25. REMOVE REAR SEAT BELT HOLE COVER LH Disassembly

26. REMOVE SEATBACK COVER WITH PAD Disassembly

27. REMOVE REAR SEPARATE TYPE SEATBACK COVER Disassembly







28. REMOVE REAR SEATBACK HEATER ASSEMBLY

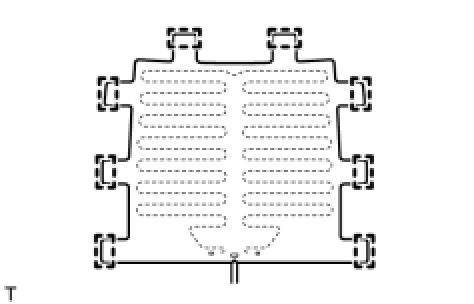

(a) Cut off the tack pins which fasten the seatback heater to the seatback cover, and then remove the seatback heater from the seatback cover.
