Connector Views

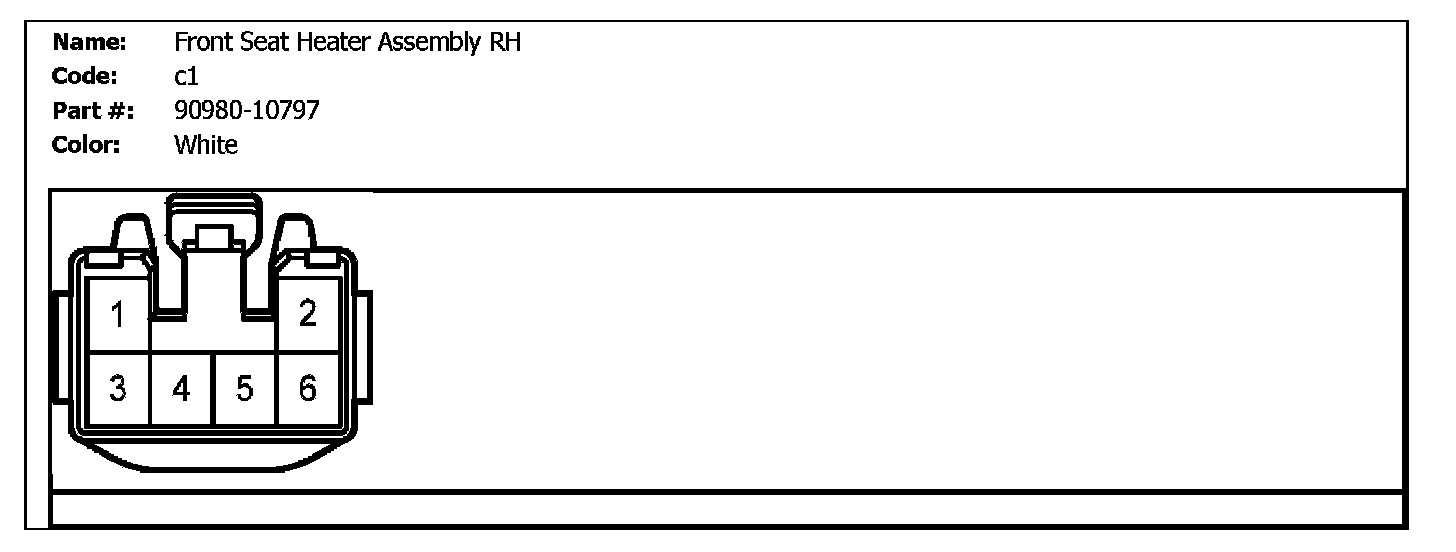

c1 (Front Seat Heater Assembly RH):

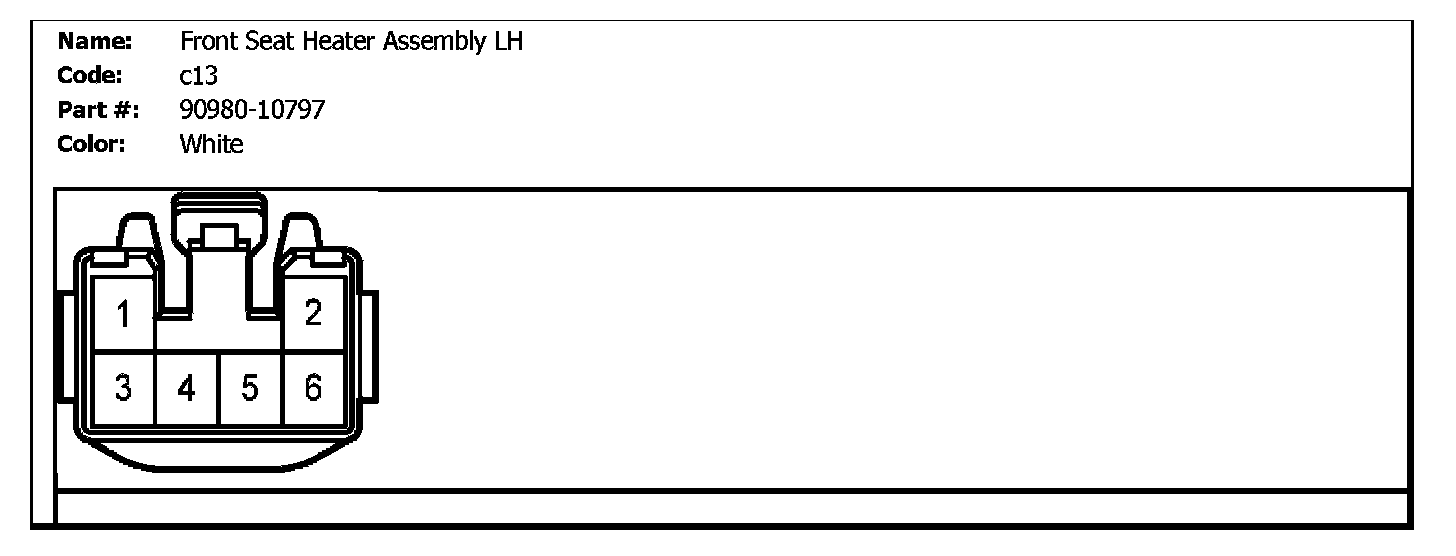

c13 (Front Seat Heater Assembly LH):

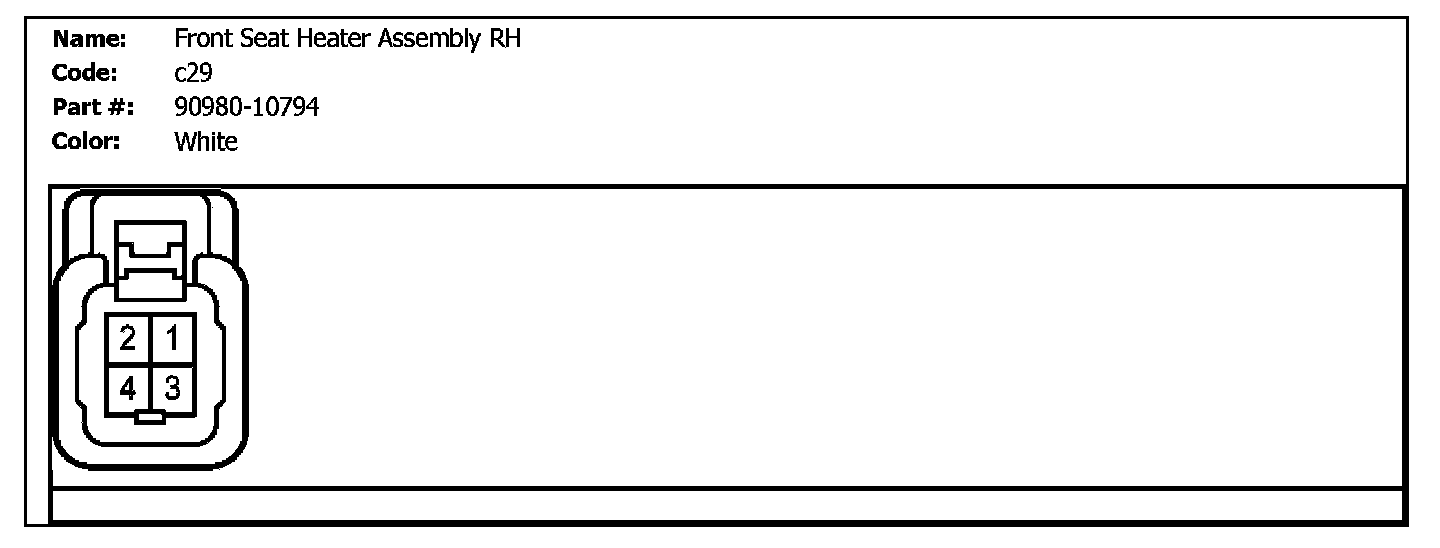

c29 (Front Seat Heater Assembly RH):

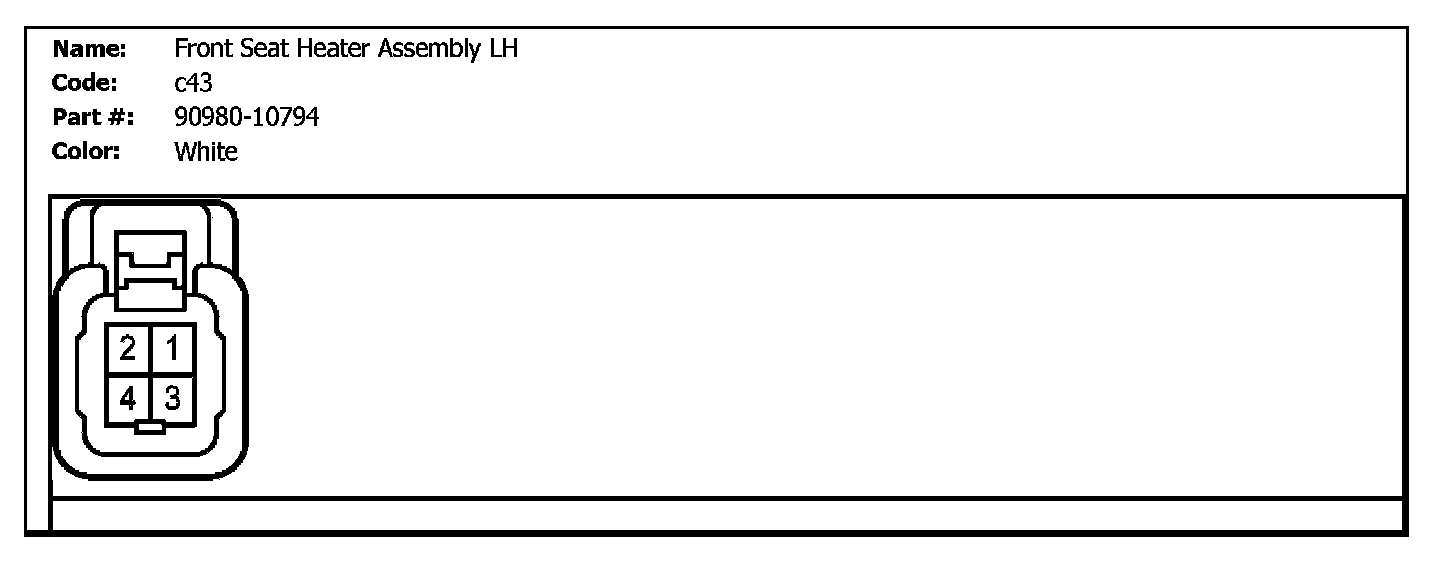

c43 (Front Seat Heater Assembly LH):

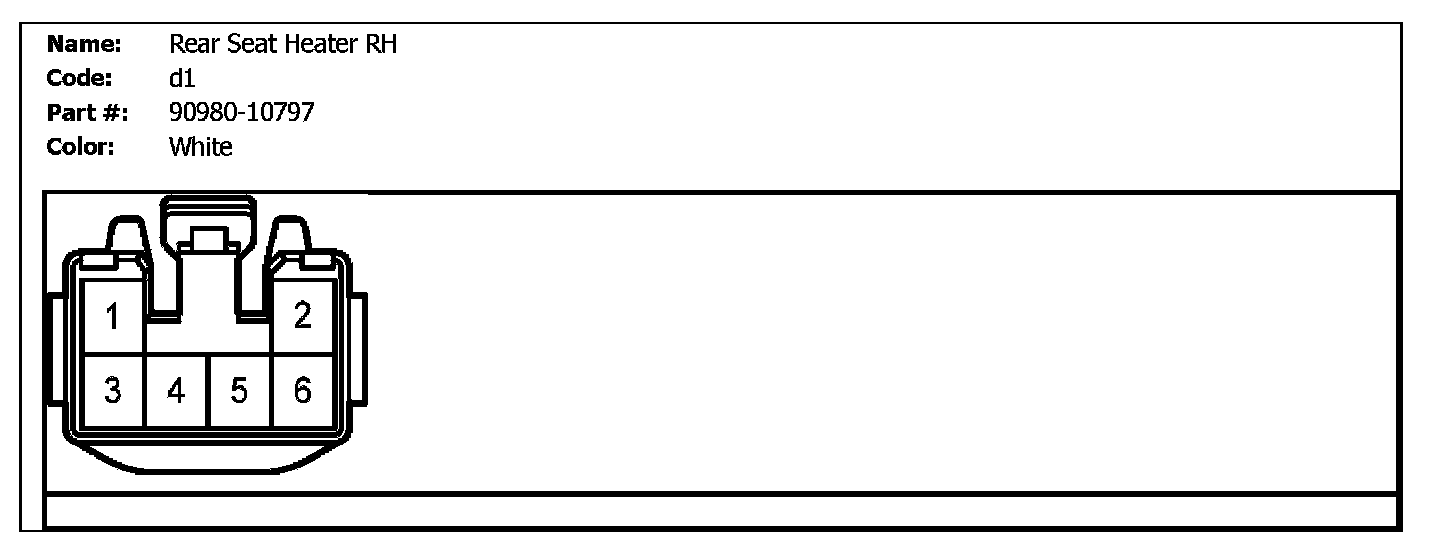

d1 (Rear Seat Heater RH):



d2 (Rear Seat Heater LH):
