Lumbar Switch

SEAT: LUMBAR SWITCH: INSPECTION

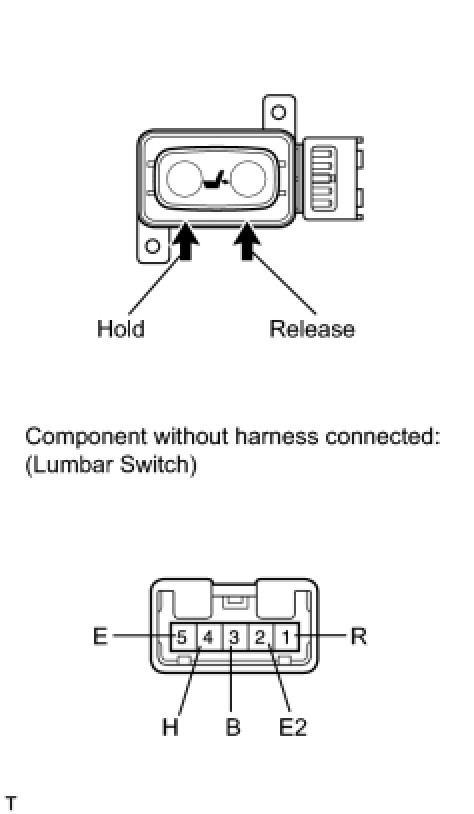

1. INSPECT LUMBAR SWITCH LH
(a) Measure the resistance according to the value(s) in the table below.

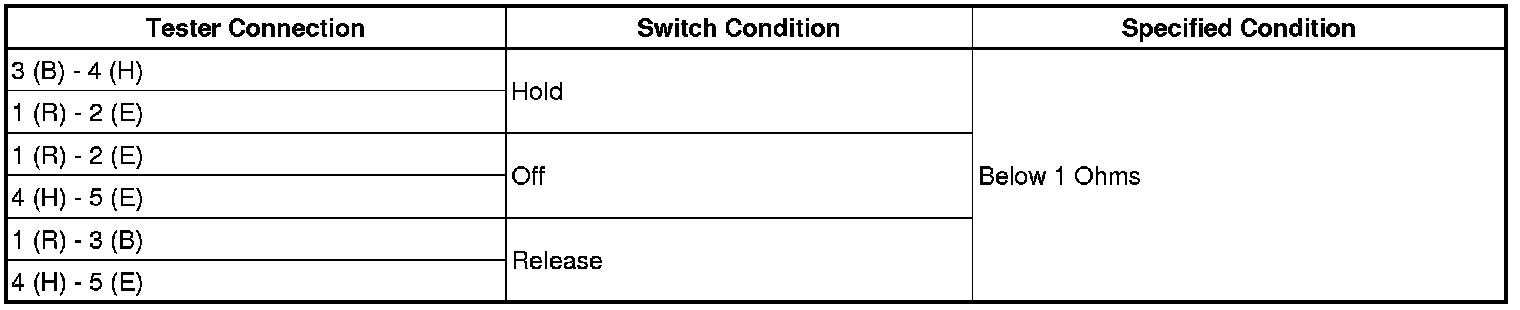

Standard Resistance:





If the result is not as specified, replace the lumbar switch.

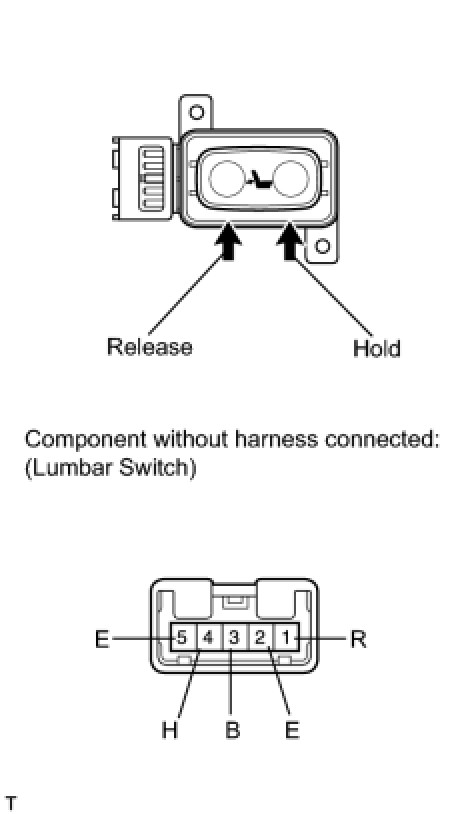

2. INSPECT LUMBAR SWITCH RH
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the lumbar switch.
