Lumbar Support Adjuster Assembly

SEAT: LUMBAR SUPPORT ADJUSTER ASSEMBLY: INSPECTION

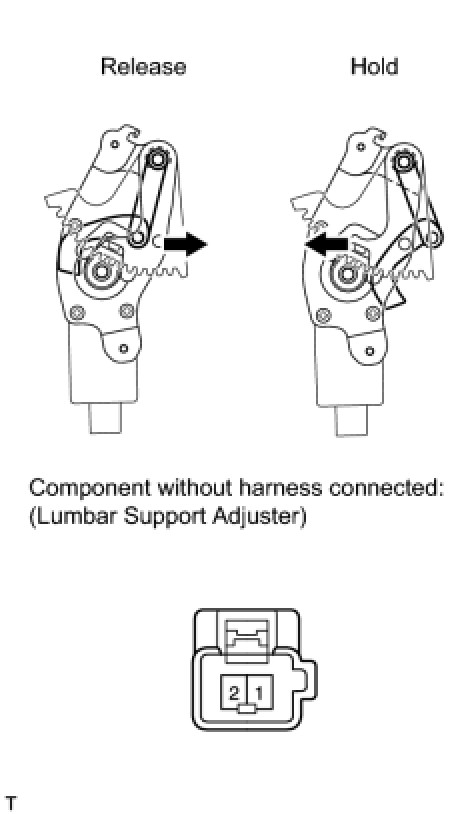

1. INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY LH
(a) Check the operation of the lumbar support adjuster.
(1) Check if the lumbar support adjuster moves smoothly when the battery is connected to the lumbar support adjuster motor connector terminals.

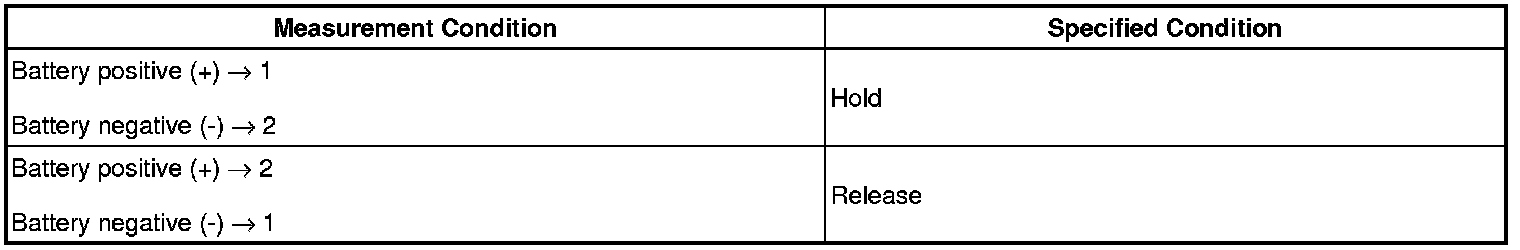

OK:






If the result is not as specified, replace the lumbar support adjuster assembly.

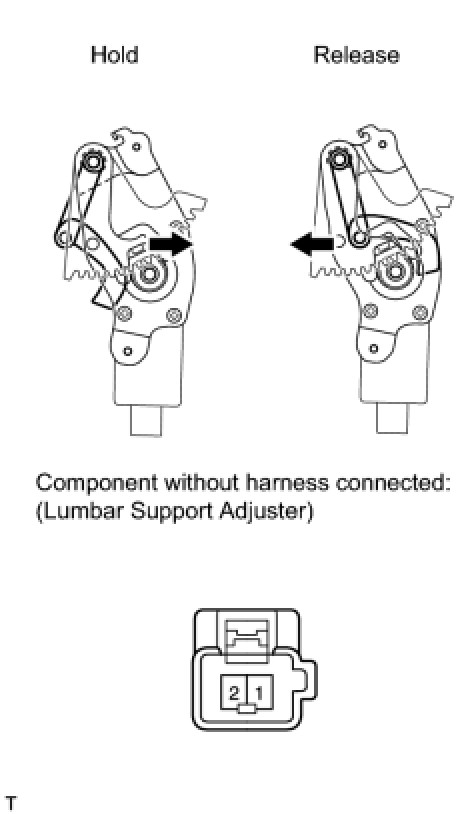

2. INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY RH
(a) Check the operation of the lumbar support adjuster.
(1) Check if the lumbar support adjuster moves smoothly when the battery is connected to the lumbar support adjuster motor connector terminals.

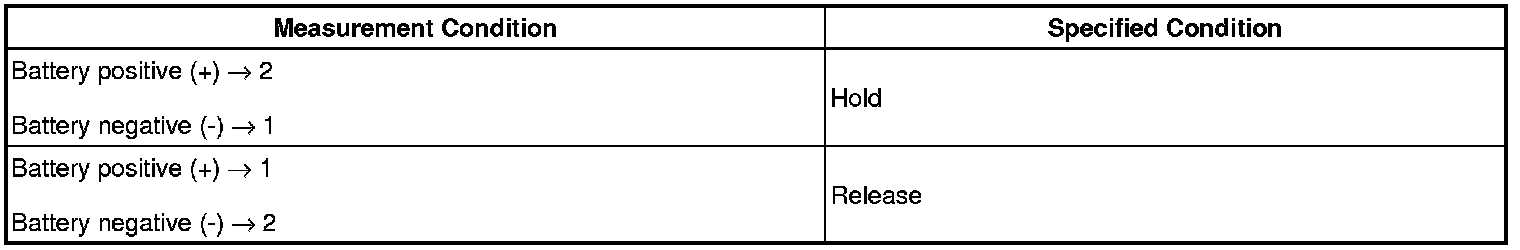

OK:






If the result is not as specified, replace the lumbar support adjuster assembly.
